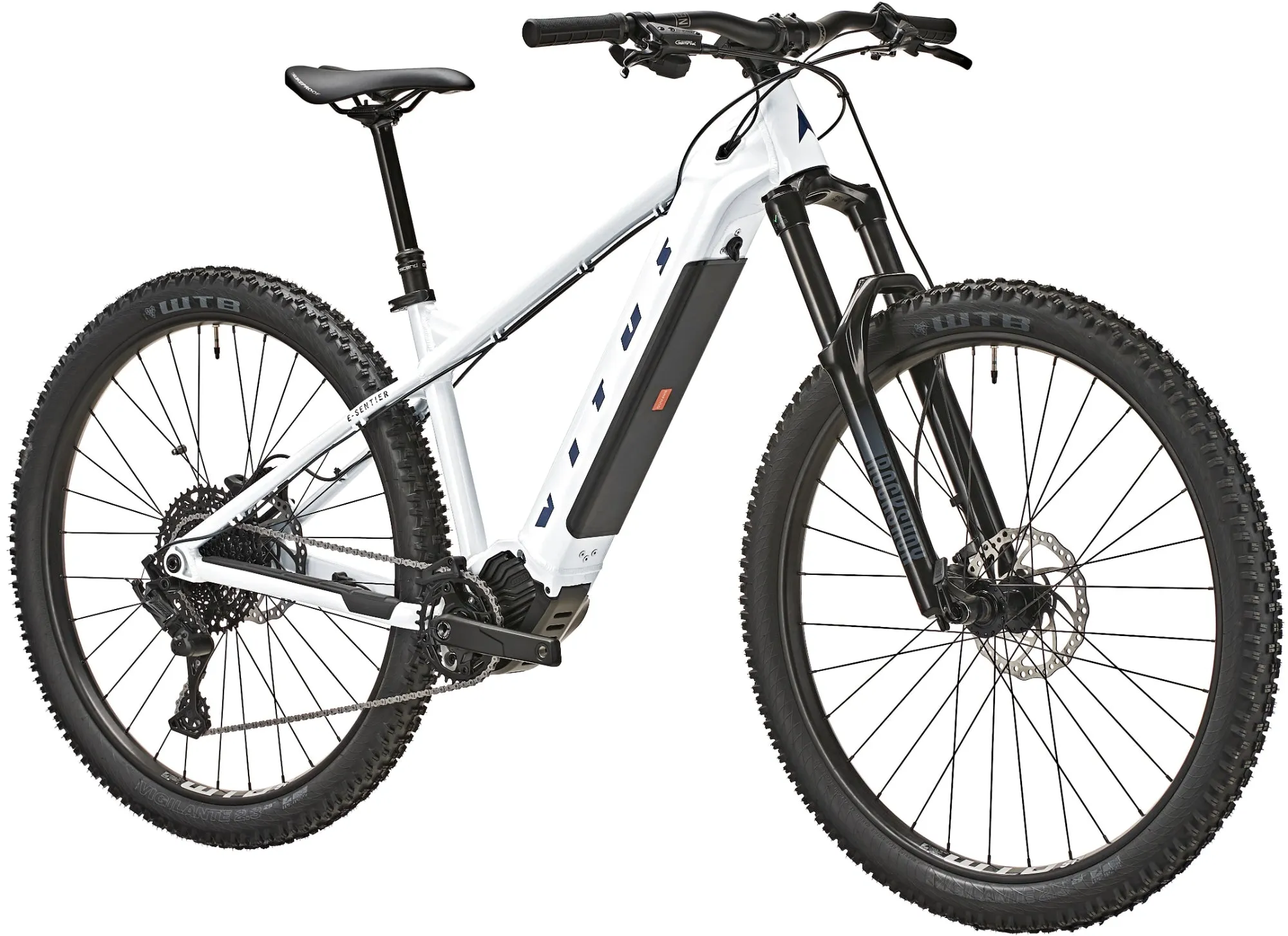

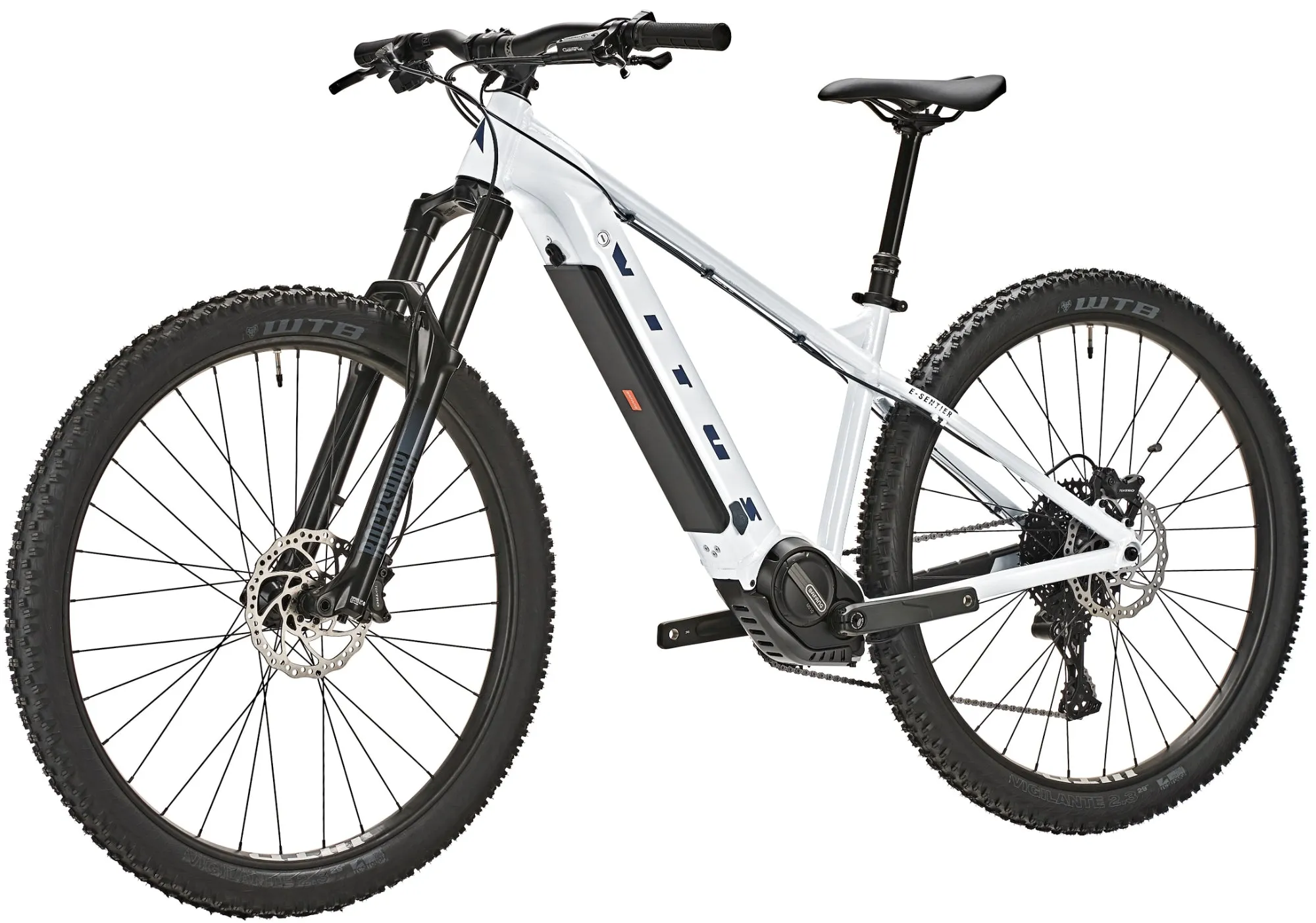

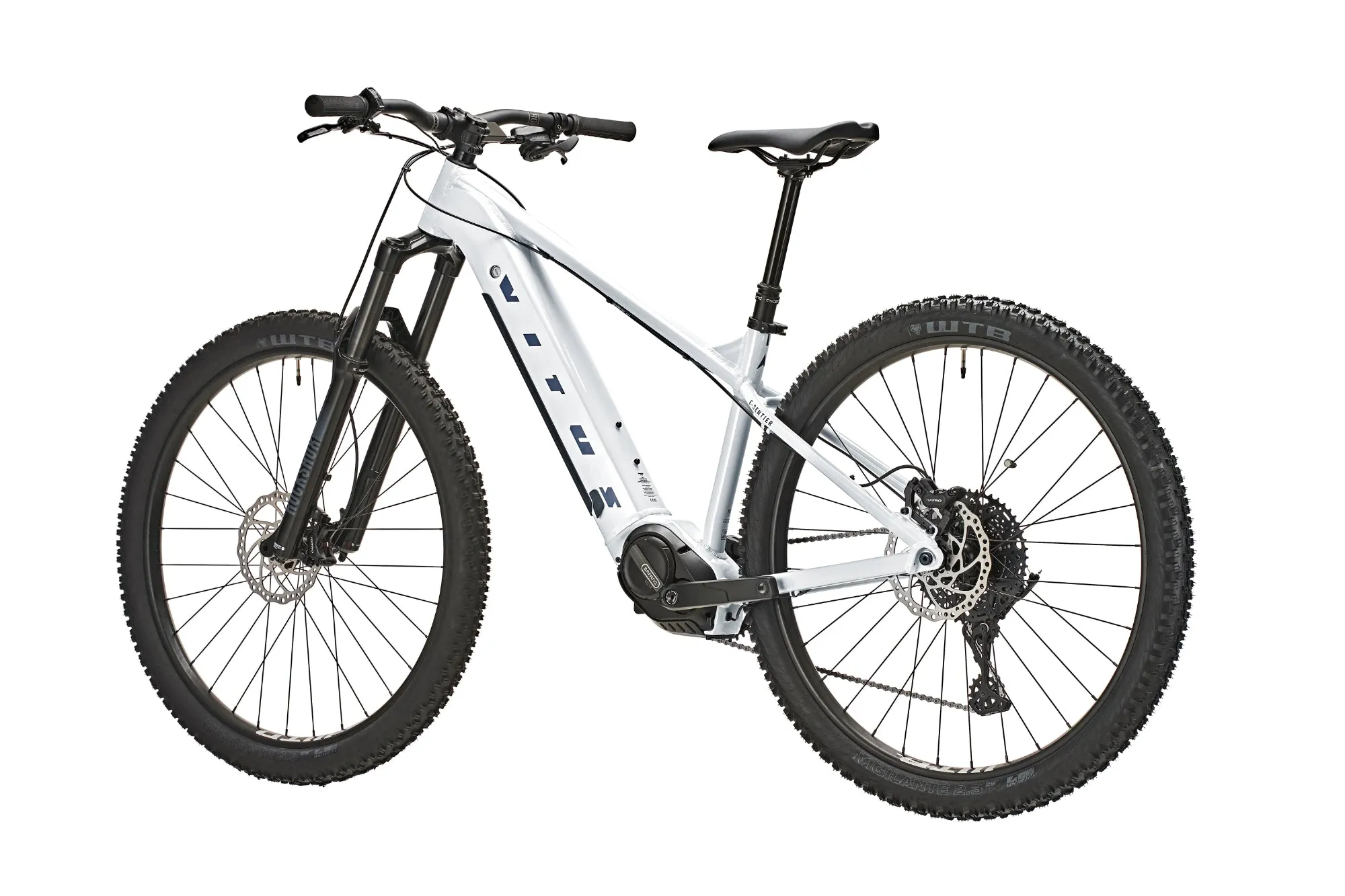

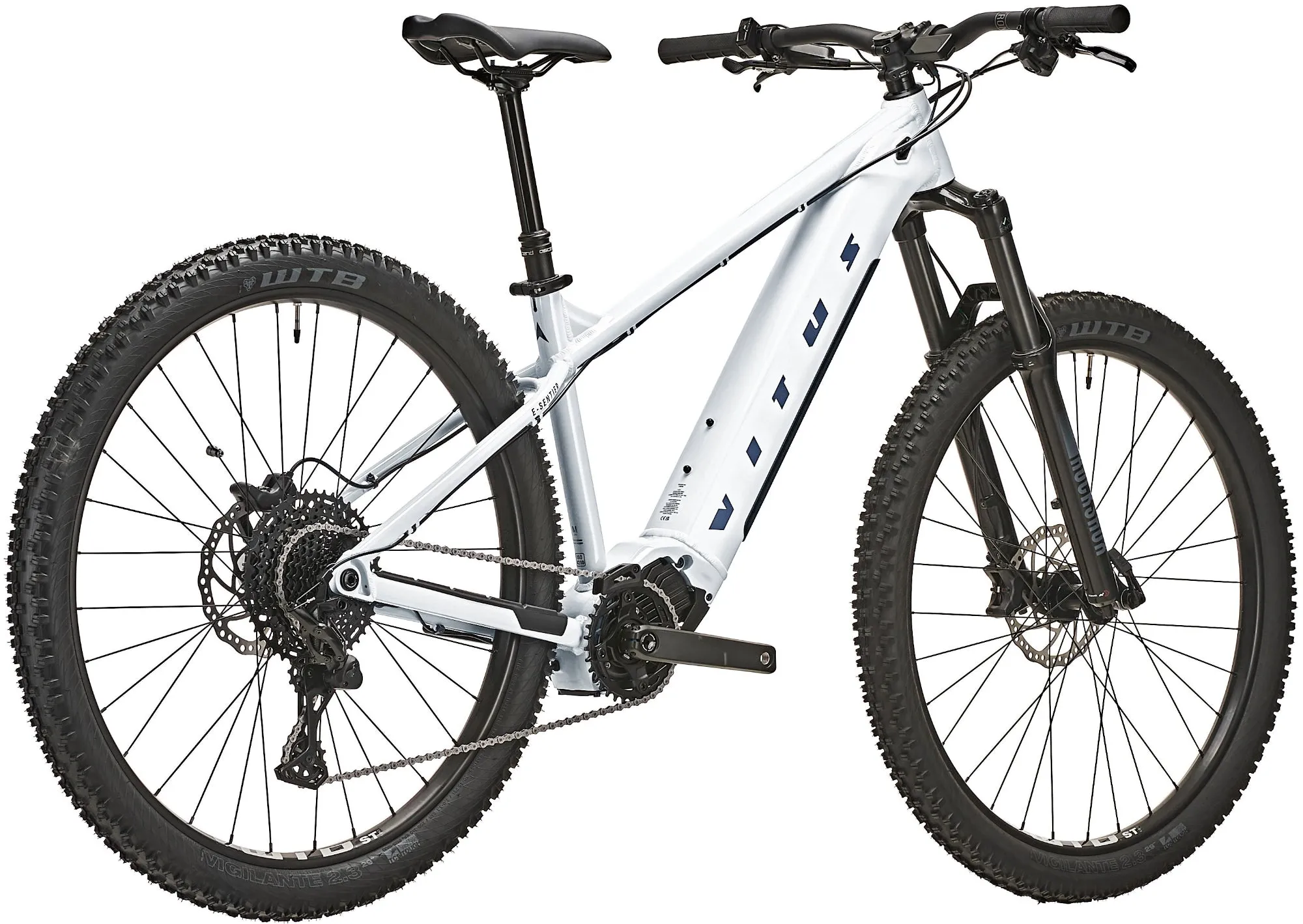

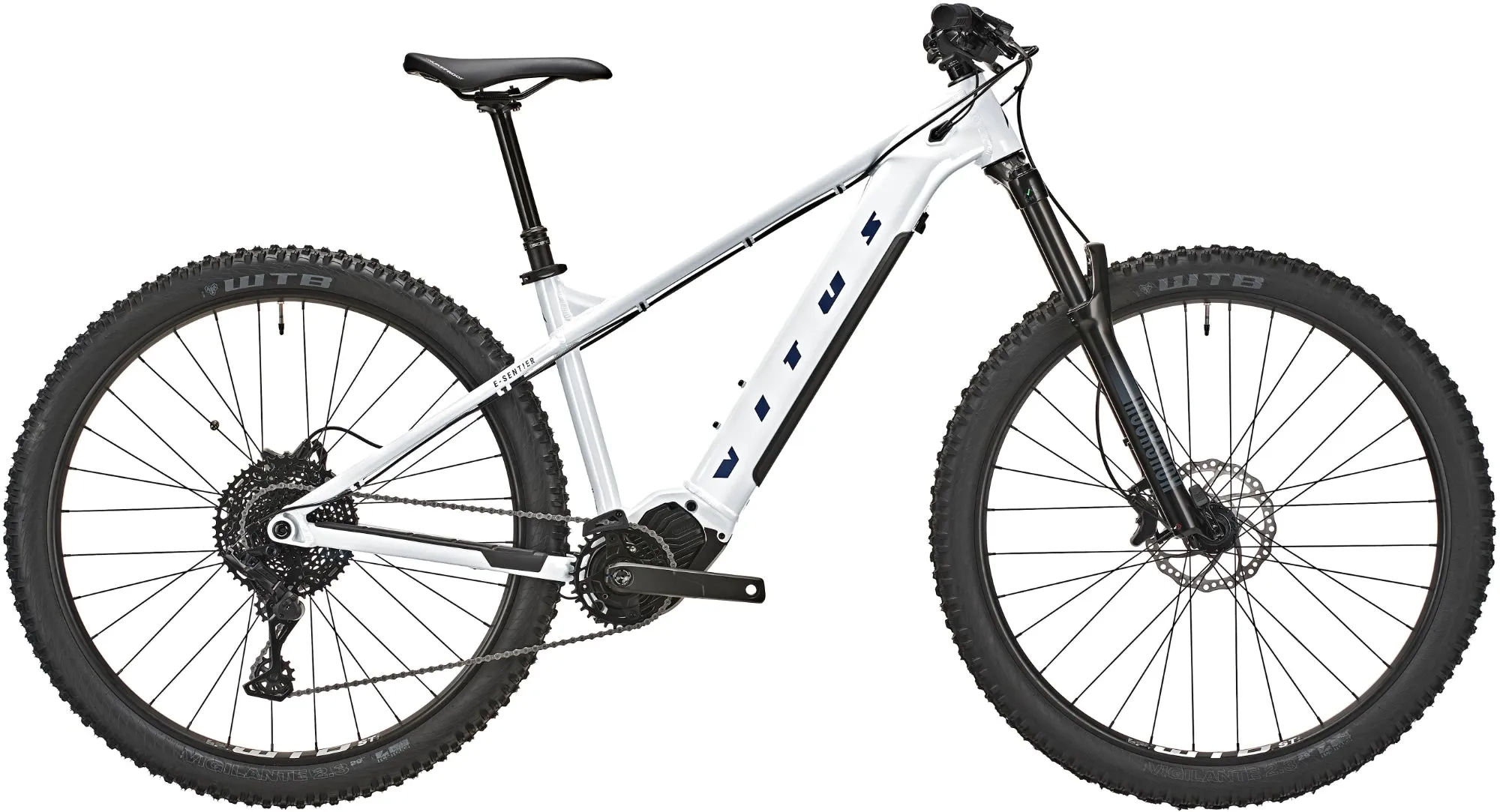

Engineered for fast-paced trail riding, the Vitus E-Sentier combines the agility and fun-loving nature of a traditional hardtail with the power of the Bafang M510 motor system.

At the heart of the E-Sentier is the Bafang M510 motor system with a maximum torque of 95Nm. We developed a close partnership with Bafang and tuned the system to perform exactly to our needs, effectively cherry-picking the best features and incorporating them into our drive unit.

The M510 system is powered by an integrated 630Wh battery and a display with five custom power modes — Eco, Eco-plus, Trail, Boost, and Race — giving the rider maximum options for adjusting range and on-trail performance.

Spec wise, the Microshift Advent X 1x10 speed groupset combined with four piston Tektro disc brakes and a 140mm RockShox 35 Silver TK fork gives the rider the perfect balance of versatility and control.

When it comes to wheels, size matters – but it's all about finding the perfect match for your riding style. For our smaller riders cruising on the size small, we've dialled in the agility with 27.5" wheels. These wheels bring an extra dose of responsiveness, making quick turns and navigating tight spots a breeze. It's all about snappy handling and a nimble feel that suits riders looking to conquer trails with precision.

For medium, large and X-large riders, we've rolled out the big guns – 29" wheels. These larger wheels bring a whole new level of momentum and stability to the game. The 29ers effortlessly roll over obstacles, providing a smoother ride that eats up rough terrain. It's all about maximising speed, maintaining momentum, and conquering the trail with confidence.

The E-Sentier's wheel size optimisation ensures that every rider, regardless of stature, gets the best possible ride. Choose your size and own the trail.

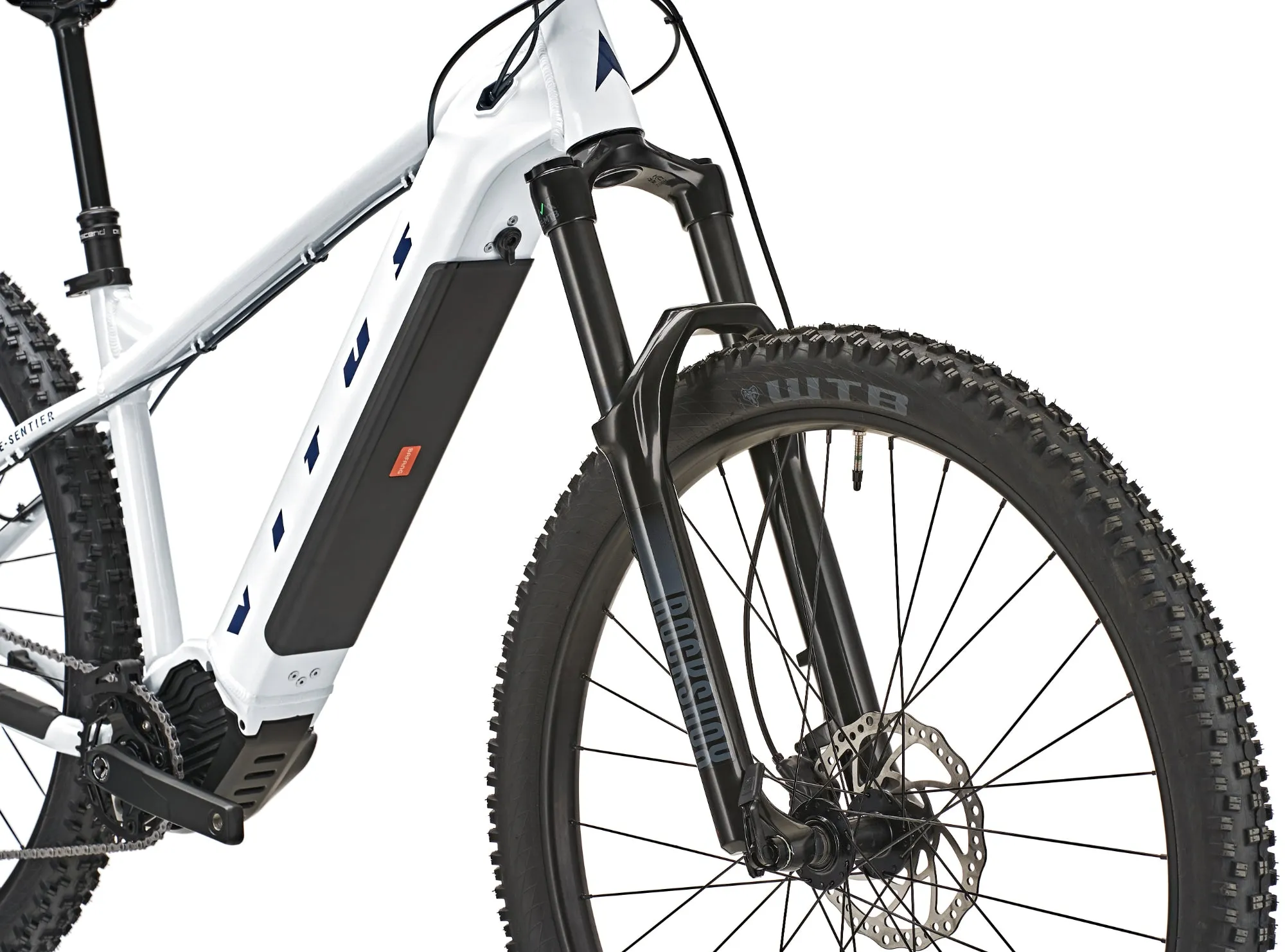

RockShox 35 Silver TK suspension fork
Smooth Bafang M510 motor produces 250W max power and 95Nm torque
Long range 630Wh internal battery

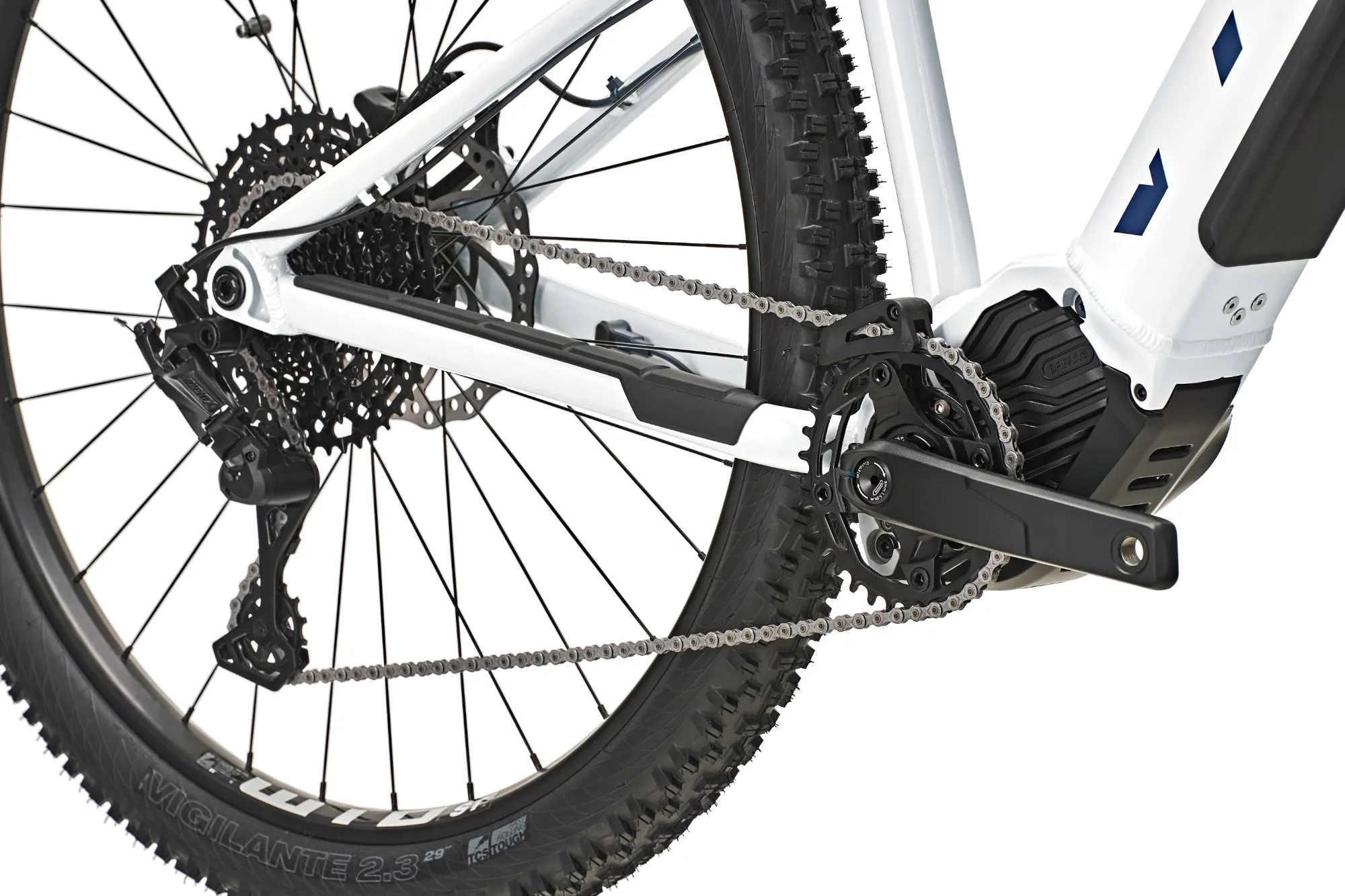

Wide range Microshift Advent X 1x10 speed drivetrain

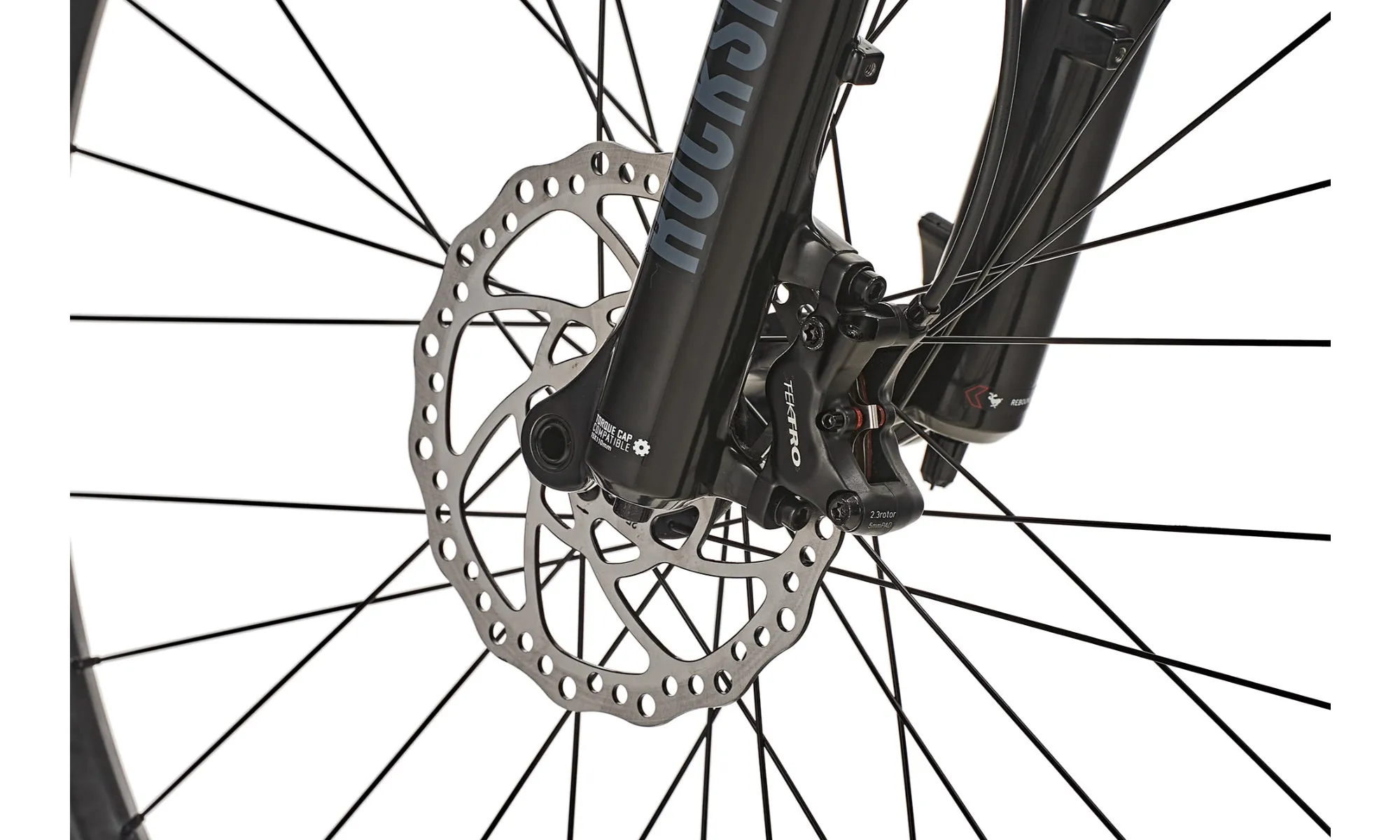

Powerful Tektro 4 piston hydraulic disc brakes
Tubeless ready WTB rims with grippy WTB Vigilante Tyres

E-Sentier Electric Hardtail Platform

Internal battery frame design with Bafang M510 drive unit, engineered for fast-paced trail riding

Frame Material

6061-T6 Aluminium

Suspension Travel (MTB Only)

140mm Front

Wheel Size

S: 27.5" Front & Rear, M/L/XL: 29" Front & Rear

Available Size

S, M, L, XL

Colour

Cool Grey

Weight:

Medium: 23.5kg (tubeless setup)

Specifications

FRAMEE-Sentier 6061-T6 Alloy S: 27.5", M/L/XL: 29", Internal battery, Internal cable routing, post mount disc brake mounts, Boost hub spacing - 148mm x 12mm thru axle, Bafang M510 compatible. Axle Specifications: 176mm Length, 14.5mm Thread Length, M12xP1.0 Thread Pitch	REAR RIMWTB ST i30 TCS 2.0 S: 27.5", M/L/XL: 29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed
FORKSRockShox 35 Silver TK S: 27.5", M/L/XL: 29", 140mm travel, 110mm x 15mm axle, 1-1/8" upper tapered to 1.5" lower steerer tube	FRONT HUBVitus KT MS6F 32H, 6 Bolt Disc Fitment, 110mm x 15mm
SHOCKN/A	REAR HUB Vitus KT H5ER-SH 32H, 6 Bolt Disc Fitment, HG Freehub, 148mm x 12mm
CHAINSETBafang 34T Narrow Wide Chainring, 170mm Crank Length, 53mm Chain Line	WHEELSETWTB ST i30 TCS 2.0 rims on Vitus KT hubs S: 27.5" Front & Rear, M/L/XL: 29" Front & Rear, 32H, 6 Bolt, Boost 110mm x 15mm Front & 148mm x 12mm Rear Hub Spacing, Tubeless Ready
BOTTOM BRACKETN/A N/A	FRONT TYREWTB Vigilante TCS S: 27.5" x 2.3", M/L/XL: 29" x 2.3", Folding Bead, Tough High-Grip Compound
FRONT DERAILLEURN/A	REAR TYREWTB Vigilante TCS S: 27.5" x 2.3", M/L/XL: 29" x 2.3", Folding Bead, Tough High-Grip Compound

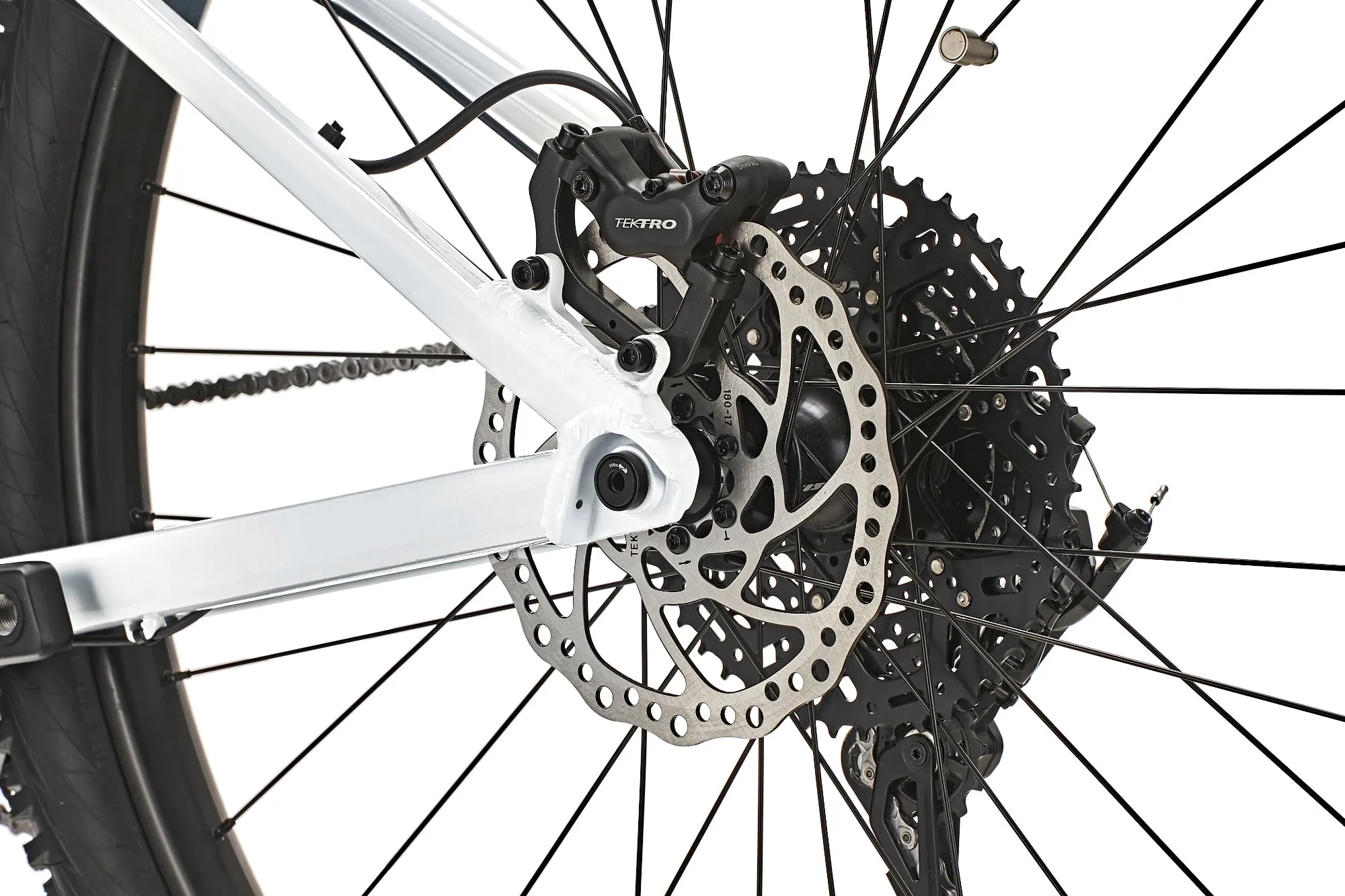

REAR DERAILLEURMicroshift Advent X 10 Speed, Medium Cage	BRAKESTektro HD-M535 Post Mount, Four Piston Caliper
SHIFTERSMicroshift Advent X 10 Speed, Trigger Shifter	BRAKE ROTORSTektro TR180-17 180mm Front & Rear, 6 Bolt Hub Fitment

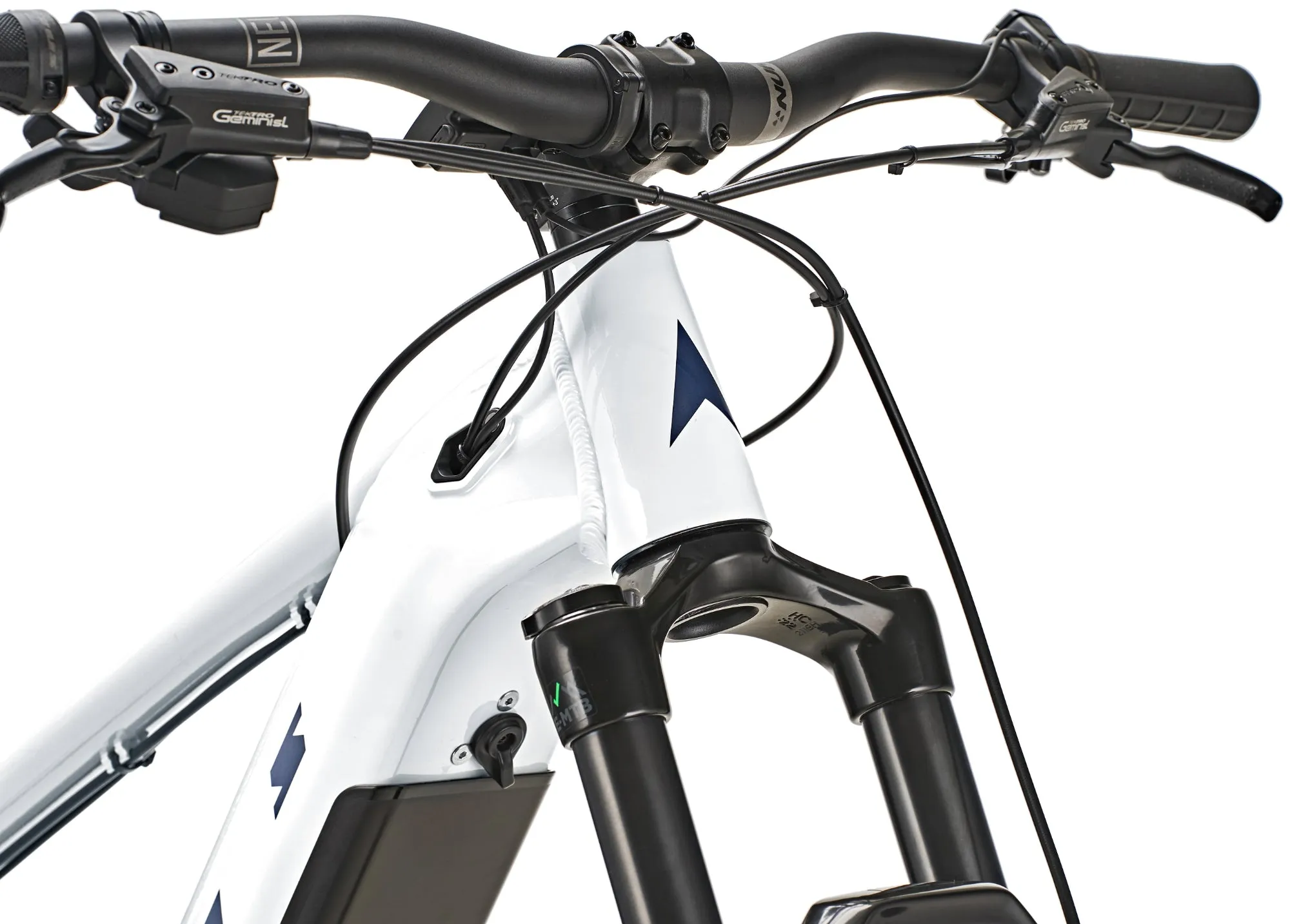

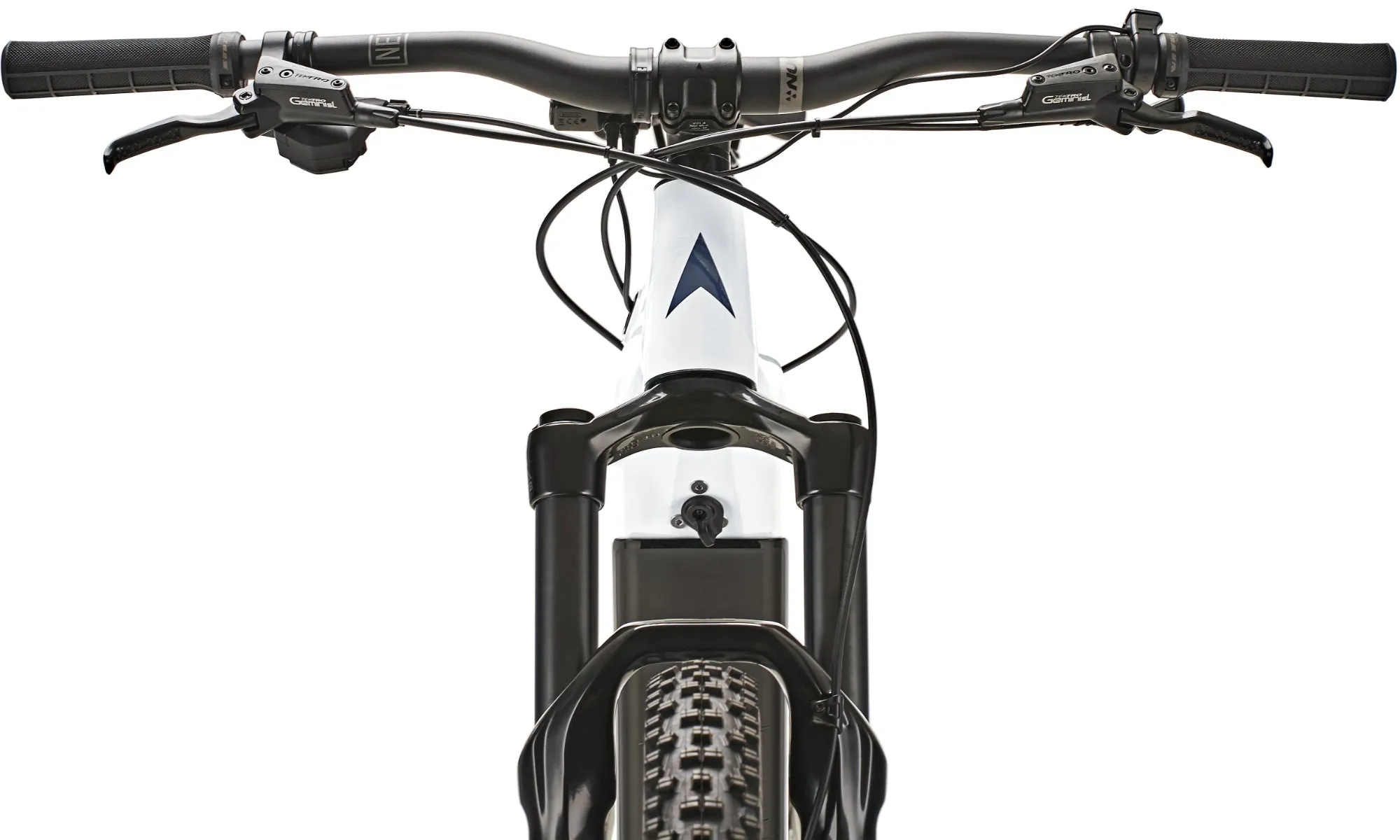

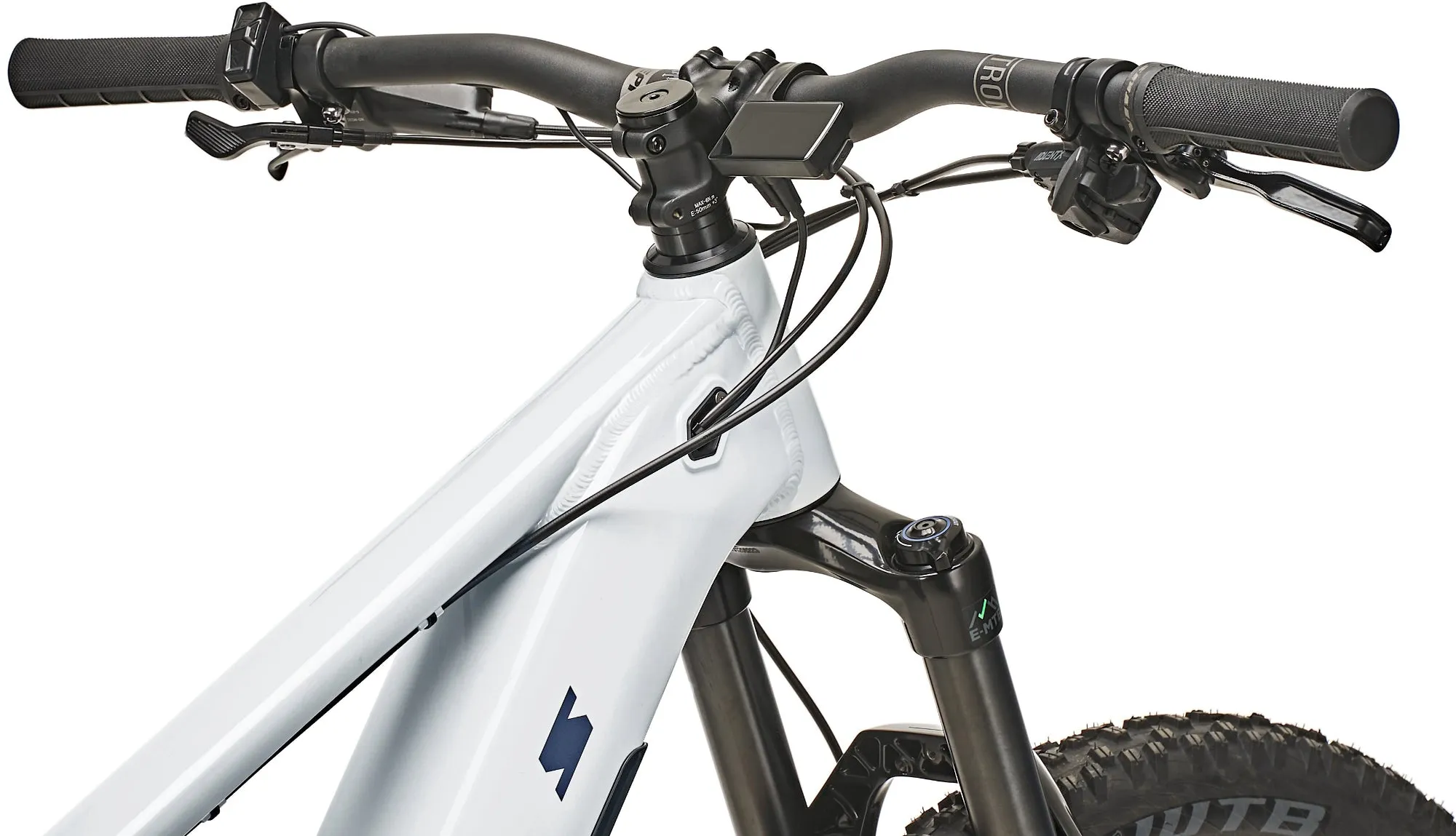

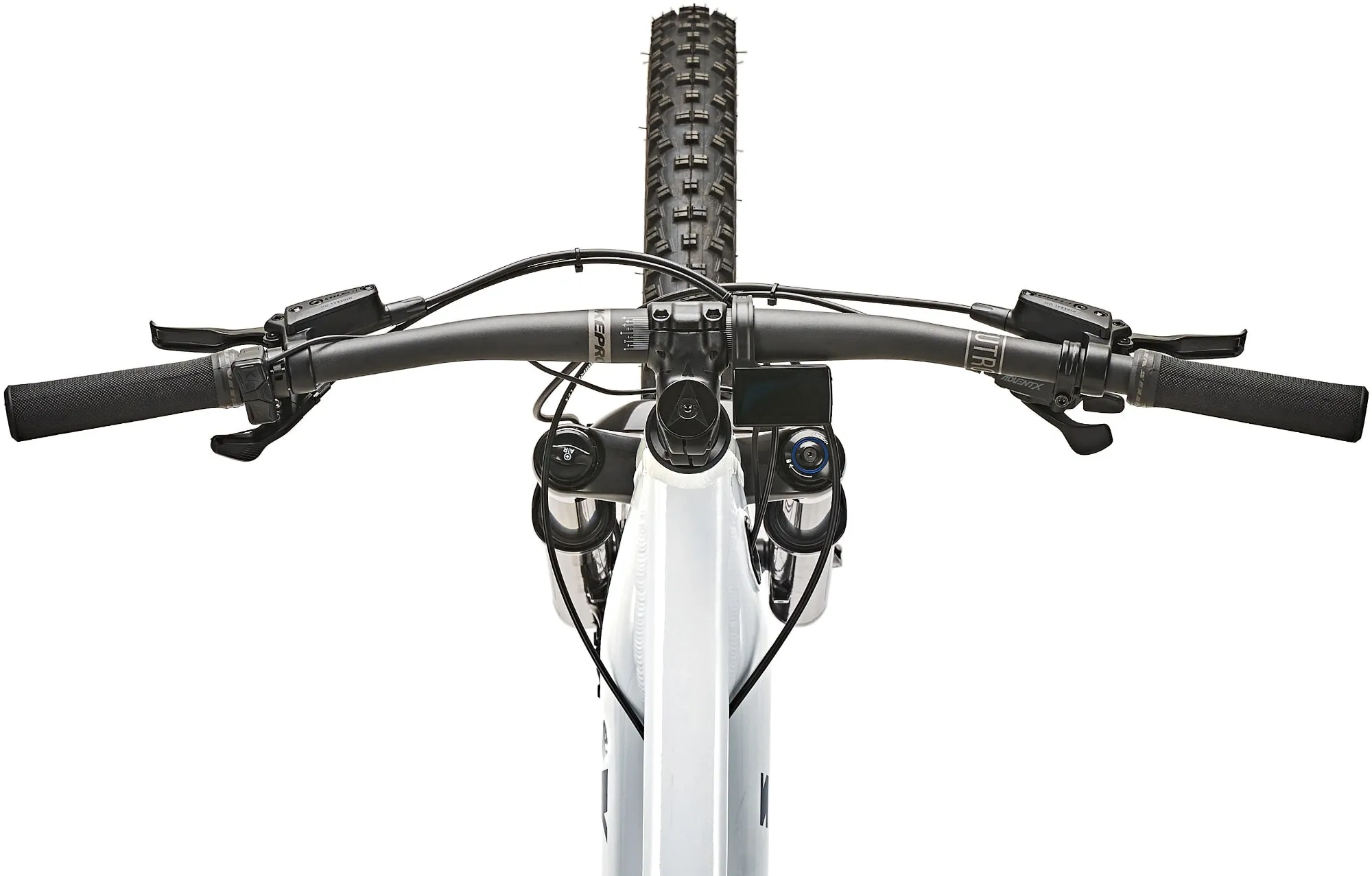

CASSETTEMicroshift Advent X H-Series 10 Speed, CS-H104, 11-48T Range	HANDLEBARSNukeproof Neutron V2 Riser 6061 Alloy, 9° Back Sweep, 25mm Rise, 31.8mm Clamp Diameter, S & M: 760mm Wide, L & XL: 780mm Wide
CHAINKMC X10 10 Speed, 118 Links	STEMVitus Alloy 40mm Reach, 3° Rise, 31.8mm Handlebar Clamp Diameter
MOTOR BATTERYBafang M510 630Wh, Downtube Integrated	HEADSETVitus Semi-integrated, ZS44/28.6 upper & ZS56/40 lower
MOTOR COMPUTERBafang M510 Colour LCD Screen, 5 Modes	GRIPSVitus Lock On Black
MOTOR SHIFTERBafang M510 Mounted on left	SADDLENukeproof Neutron Saddle Black, Steel Rails

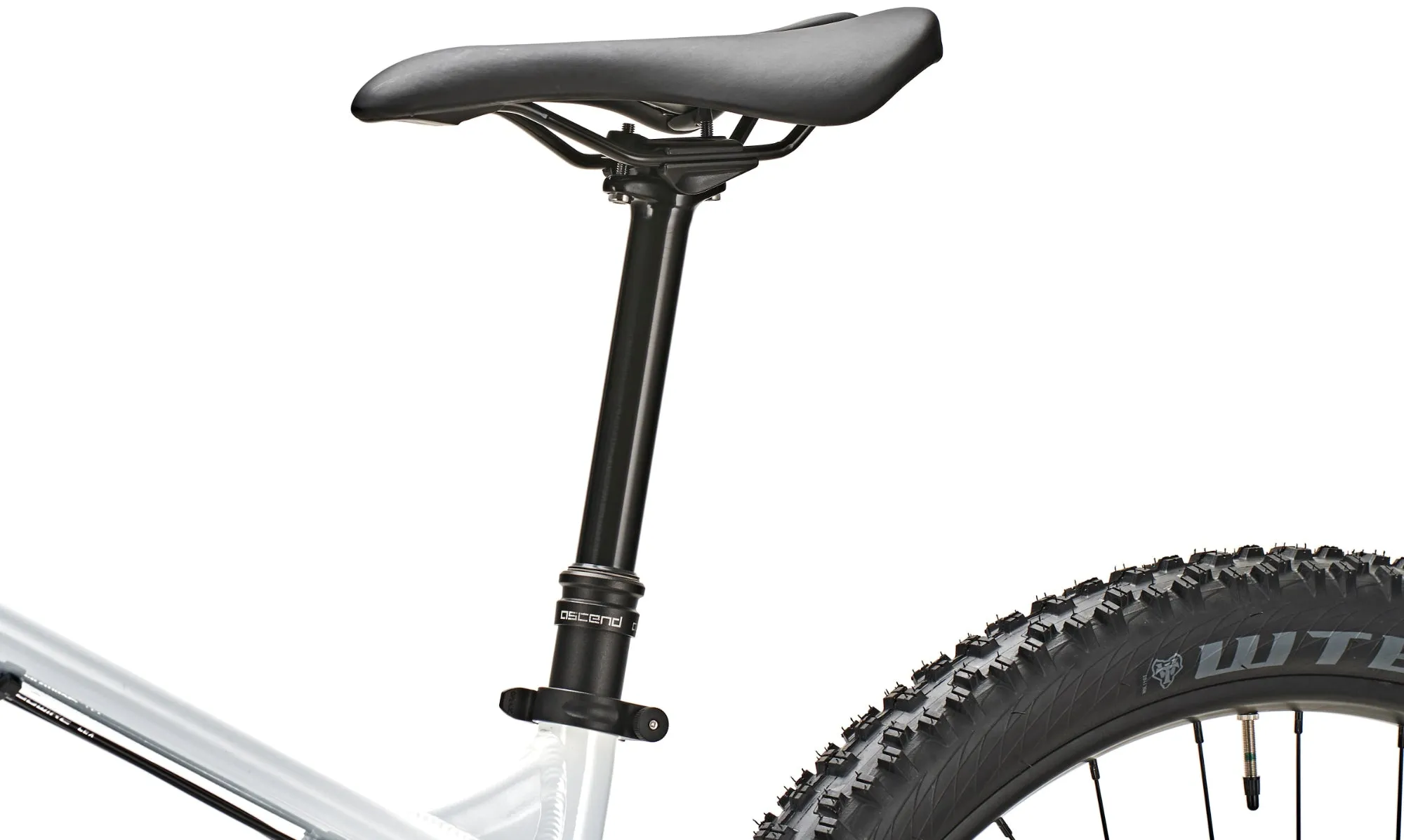

MOTOR DRIVE UNITBafang M510 Max Power Output 250W, Max Torque 95Nm	SEATPOSTBrand-X Ascend Dropper Remote lever, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop
FRONT RIMWTB ST i30 TCS 2.0 S: 27.5", M/L/XL: 29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed	SEATCLAMPVitus 34.9mm Diameter
