Product Details

The Vitus Substance loads your ride with freedom and choice. It expands your world, opening up new possibilities to ride and explore where otherwise you might not have looked.

Unshackled from the same old routes, each ride reveals new ways ahead, like a fresh map - that bridleway to who-knows-where, the gravel track through the woods or the rougher shortcut that you know is quicker but that other bikes couldn’t handle. See, in a world obsessed with pace, sometimes we need to focus on the place, the journey and the fun that comes from a bike with the capability to seek out adventures where others wouldn’t.

Whether embarking on a far-flung bikepacking adventure or simply staying light for a mixed-terrain local loop, the Substance is capable of adapting to suit your ride. At its core, a lightweight carbon frame and fork are tuned for comfort on long days and across varied surfaces, aided by big volume tyres that soften the bumps and add traction over rutted or loose tracks. With compatibility for 1X or 2X drivetrains and either 700c or 650b wheels, you can really fine-tune the setup to best fit where you are riding. And if ultra-racing or multi-day expeditions are your thing, the frame has ample mounts for luggage, waterbottles and mudguards. For those remote rides where water, food and spares might be hard to come by, you can always load up with whatever you need to reach the next supply point.

This isn’t simply about the same cliches of getting off the beaten track or going in search of the road less travelled, because the Substance is more than a gravel or adventure bike. It broadens your horizons, delivering richer experiences and powerful lasting memories. It’s a bike that enables you to do more. It’s a bike that gives you options. The Substance empowers a new mindset, one that entices you to break away from routine and to ride where you want to ride, unrestricted.

  • Dedicated carbon adventure/gravel frameset
  • SRAM Apex 1X groupset
  • WTB 650b aluminium disc wheelset
  • Maxxis Rambler EXO 650b x 47 tyres
  • Full mudguard mounts
  • Rear rack and extra water bottle mounts

Features:

Substance offers you a new way to ride

Adventure ready

Frame Material

UD Carbon

Wheel Size

650b

Available Size

XS, S, M, L, XL

Colour

Silver

Weight:

Medium: 9.1kg

Specifications

FRAMESubstance Carbon

UD Carbon, Internal Cable Routing, Flat Mount, 1x Dropper Post Compatible, Mudguard Mounts, Rack Mounts, 12mm x 142mm Hub Spacing, Axle Specifcations: 172mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch

REAR HUB Prime SR2D

142x12mm, Centre Lock, HG Freehub, 36T Ratchet System

FORKSSubstance Carbon

UD Carbon, Tapered Steerer, 100 x 12mm, Mudguard Mounts, Flat Mount, Axle Specifications: 120mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch

WHEELSETPrime Orra V2 Alloy

650b, Tubeless Ready, 100 x 12mm Front, 142 x 12mm Rear, Centre Lock, HG Freehub

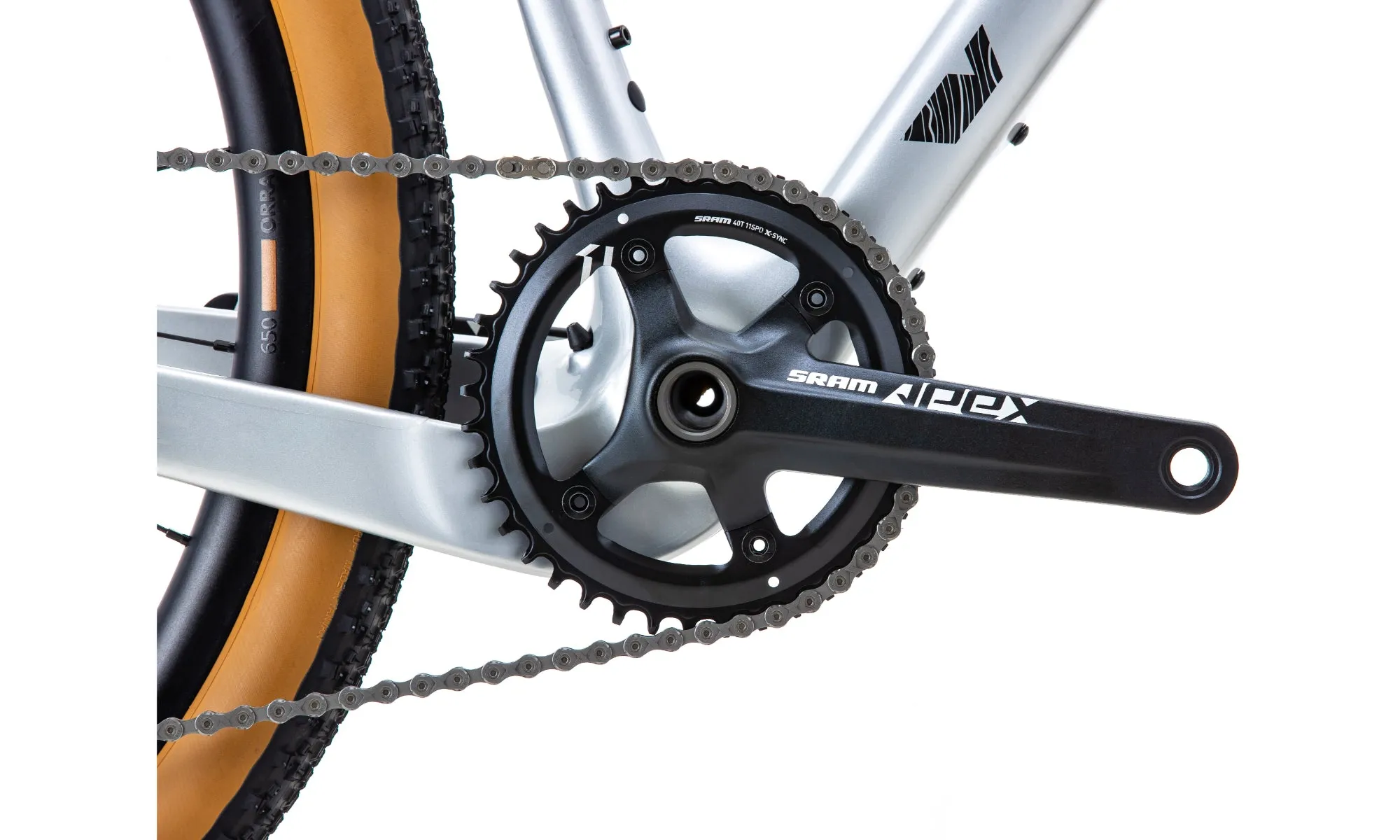

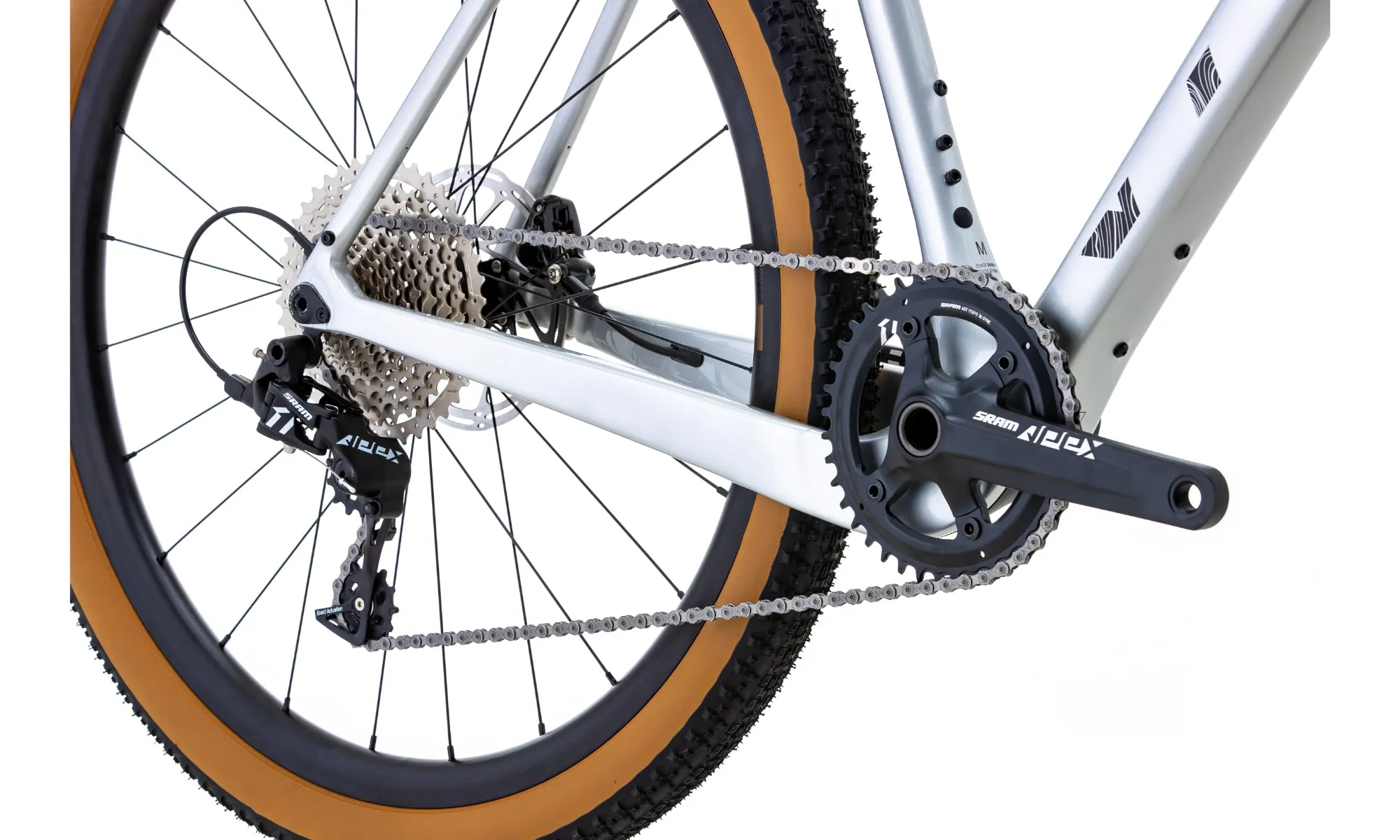

CHAINSETSRAM Apex X-Sync

40T, 11 Speed, XS:170mm S:170mm M:172.5mm L:172.5mm XL:175mm

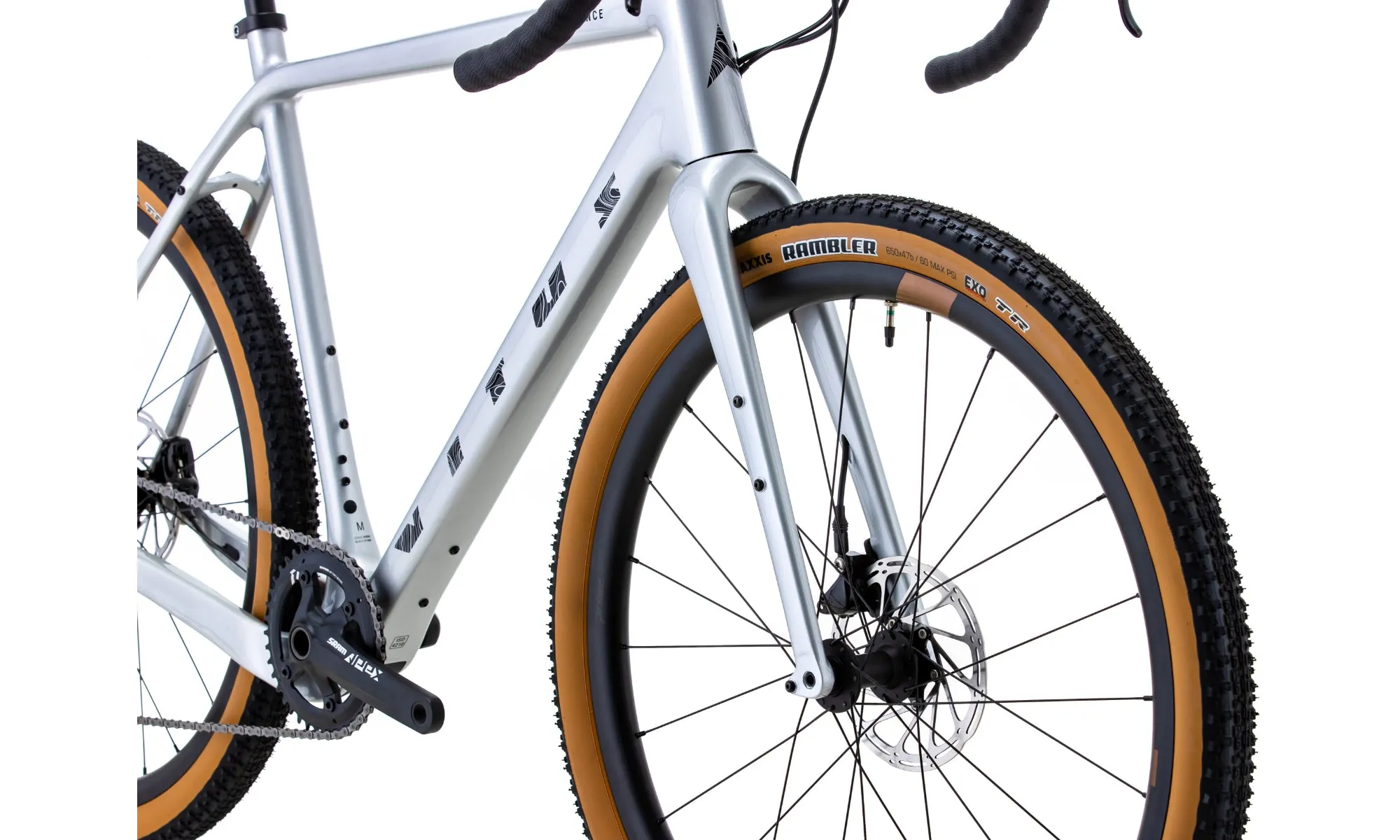

FRONT TYREMaxxis Rambler

650b x 47, Tubeless Ready, EXO Casing, Tan Wall

BOTTOM BRACKETSRAM GXP

BSA Threaded, 68mm, English

REAR TYREMaxxis Rambler

650b x 47, Tubeless Ready, EXO Casing, Tan Wall

FRONT DERAILLEURN/A

N/A

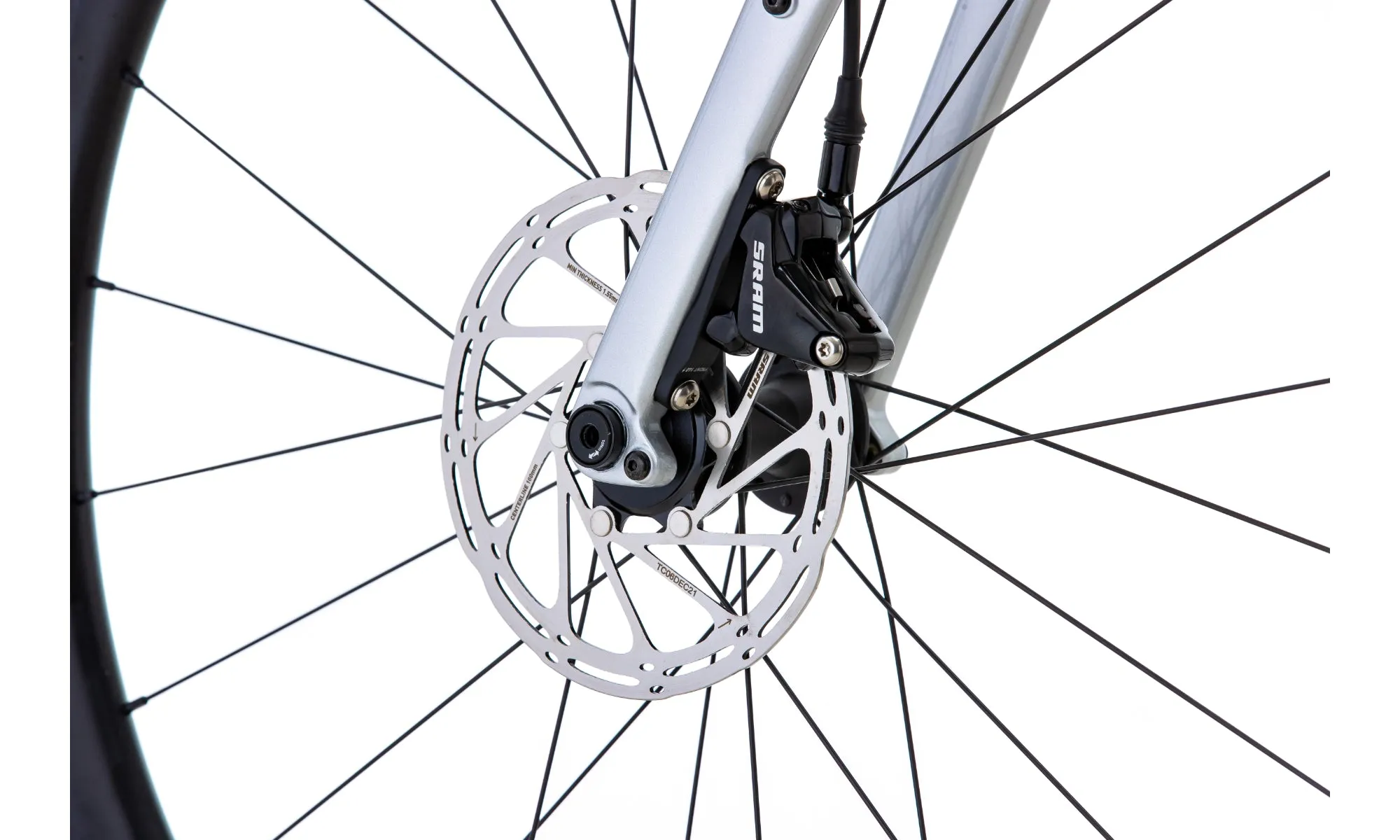

BRAKESSRAM Apex

Hydraulic Disc, Flat Mount

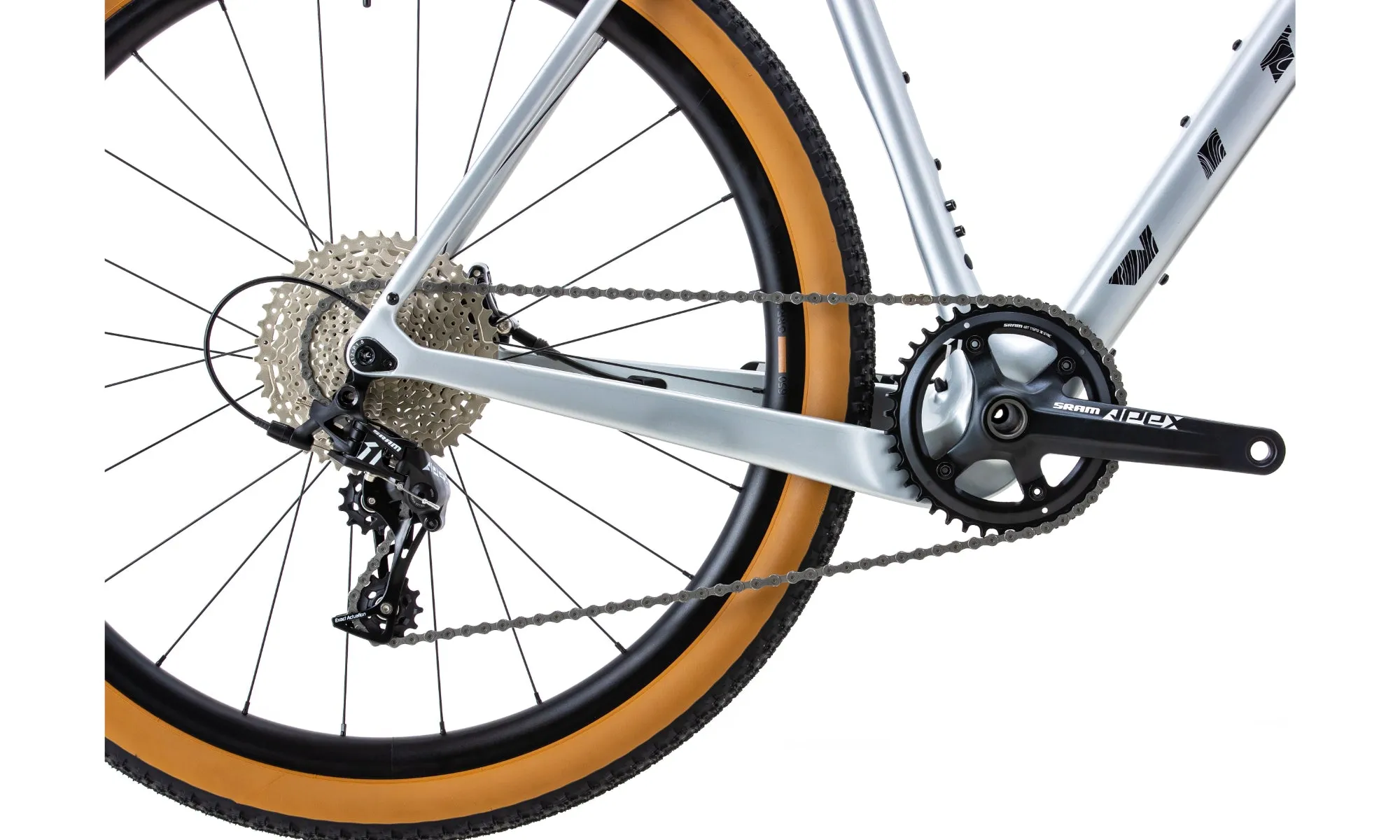

REAR DERAILLEURSRAM Apex

11 Speed, Long Cage

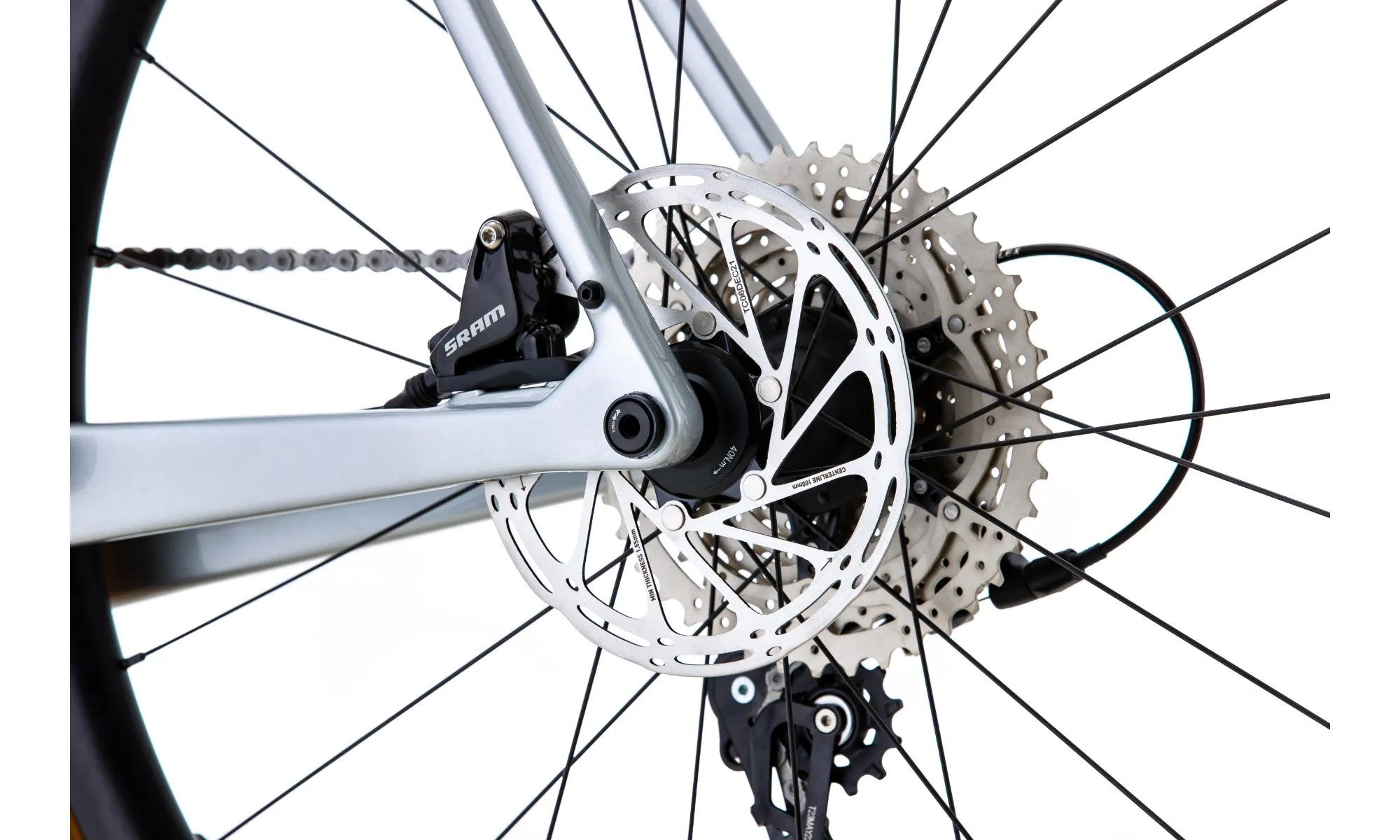

BRAKE ROTORSSRAM Centreline

Front: 160mm, Rear: 160mm

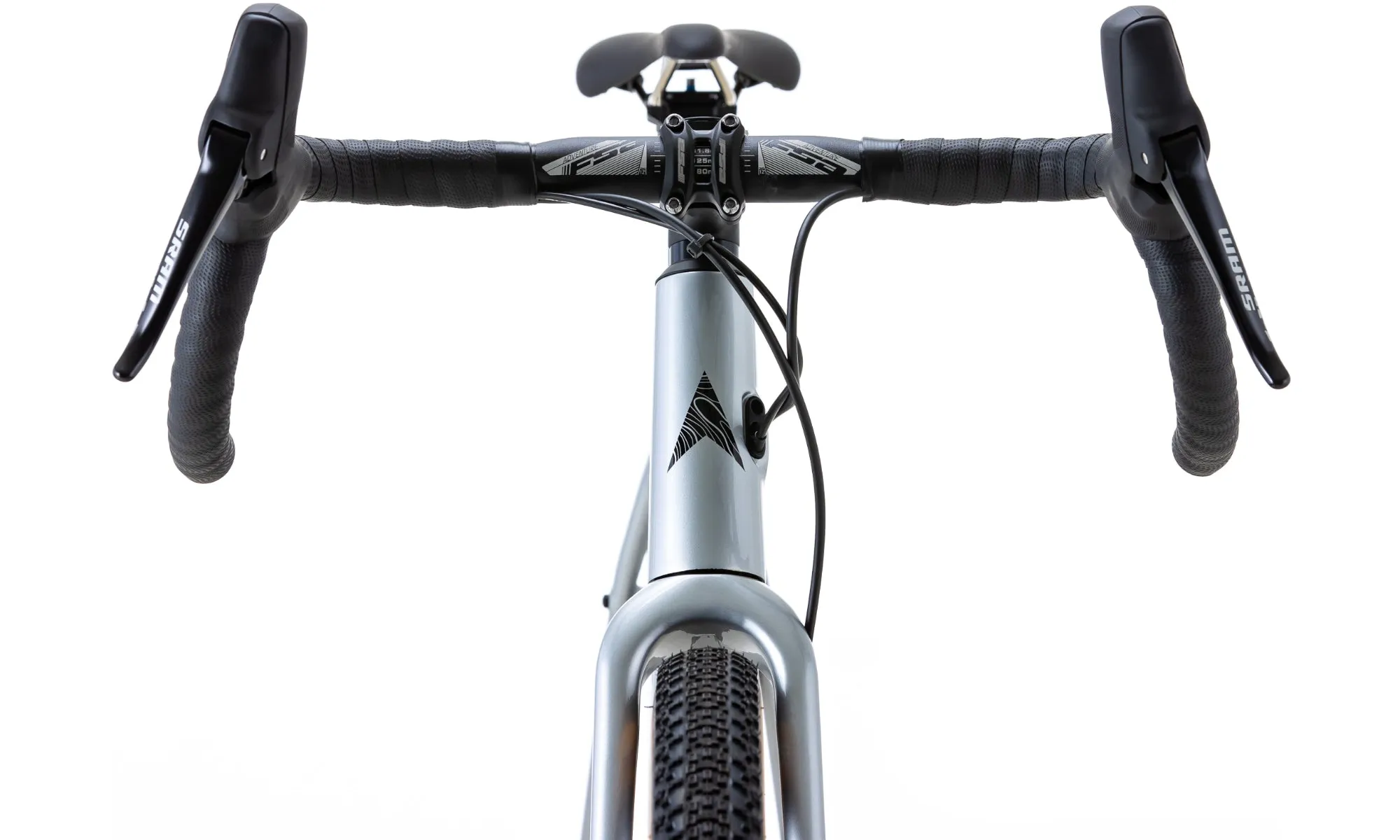

FRONT SHIFTERSRAM Apex

Hydraulic Brake Lever

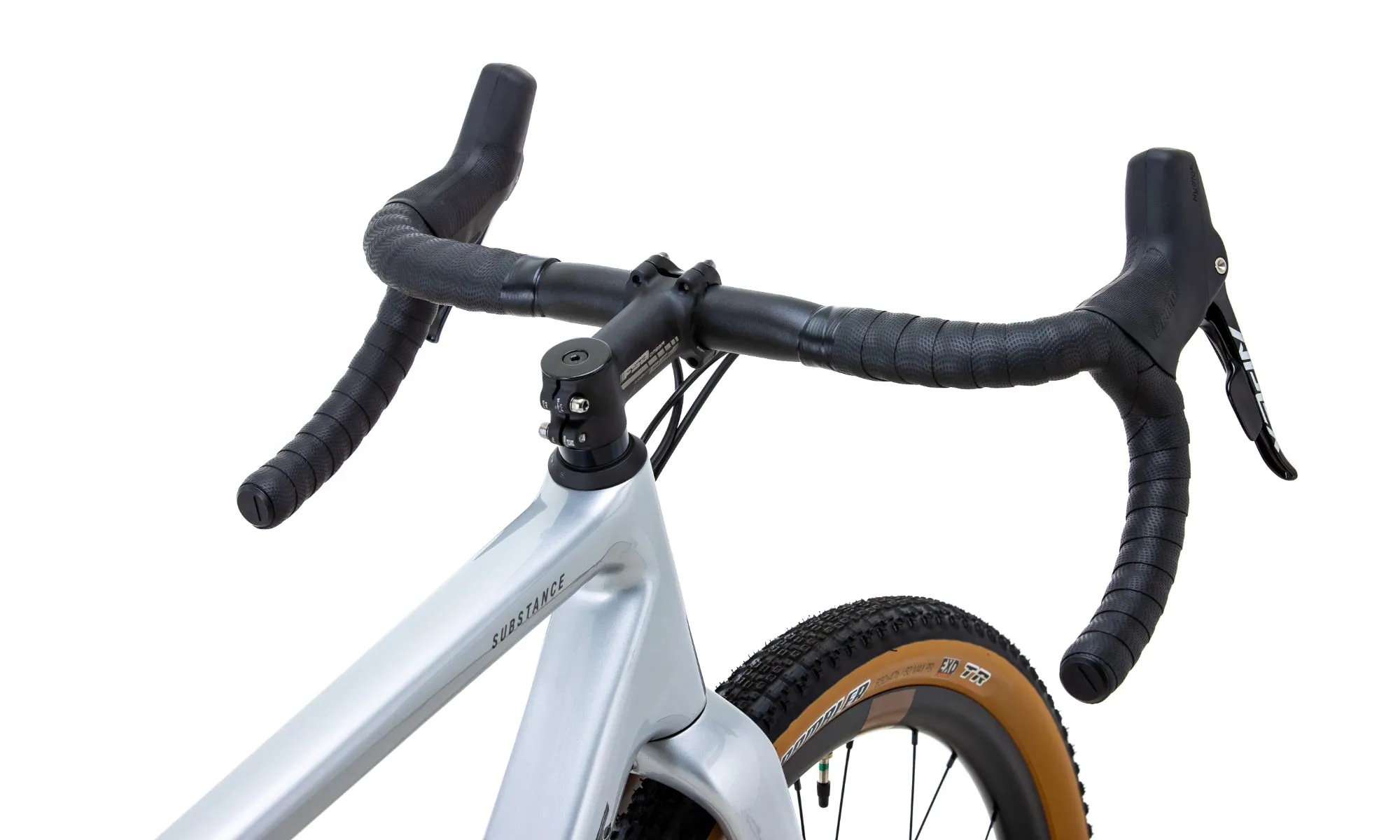

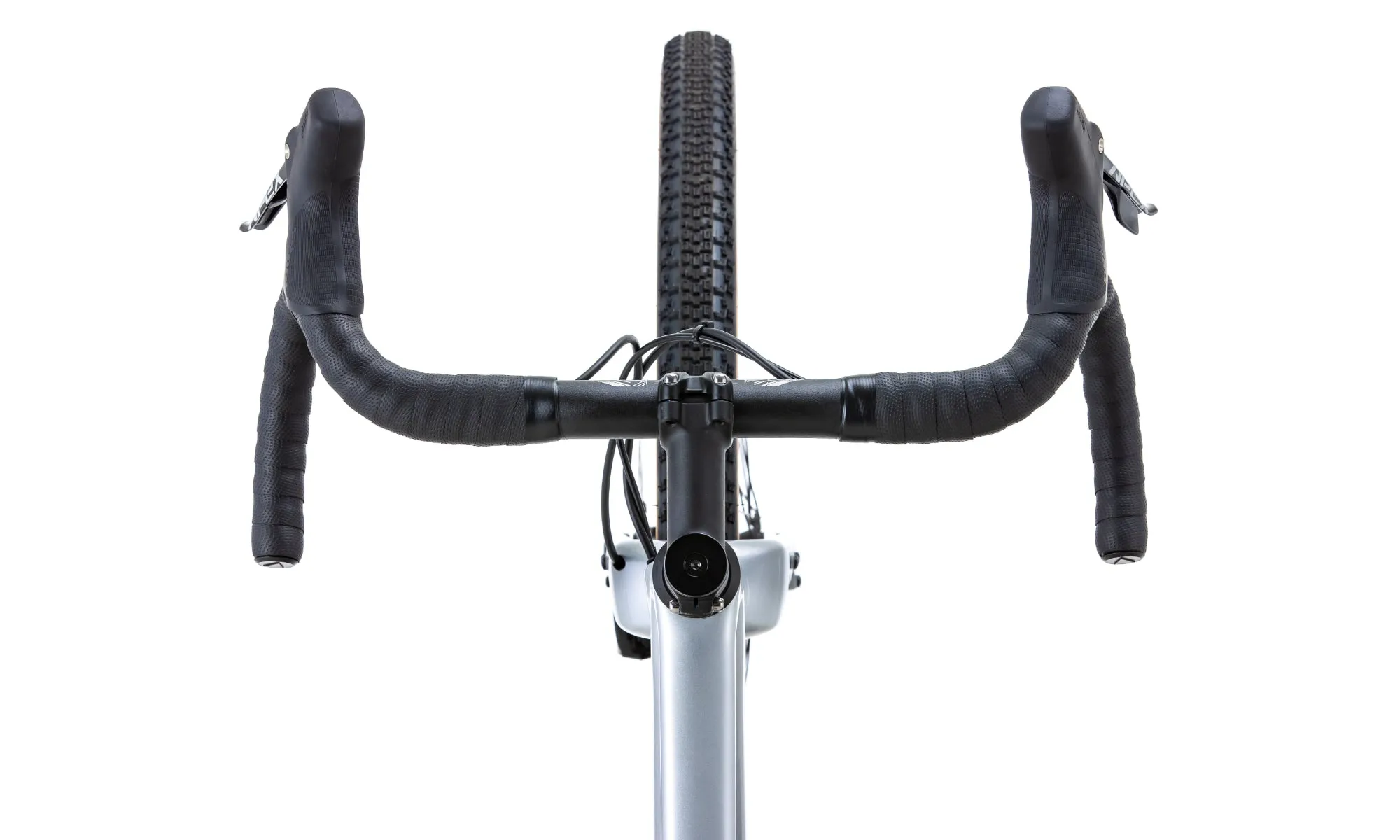

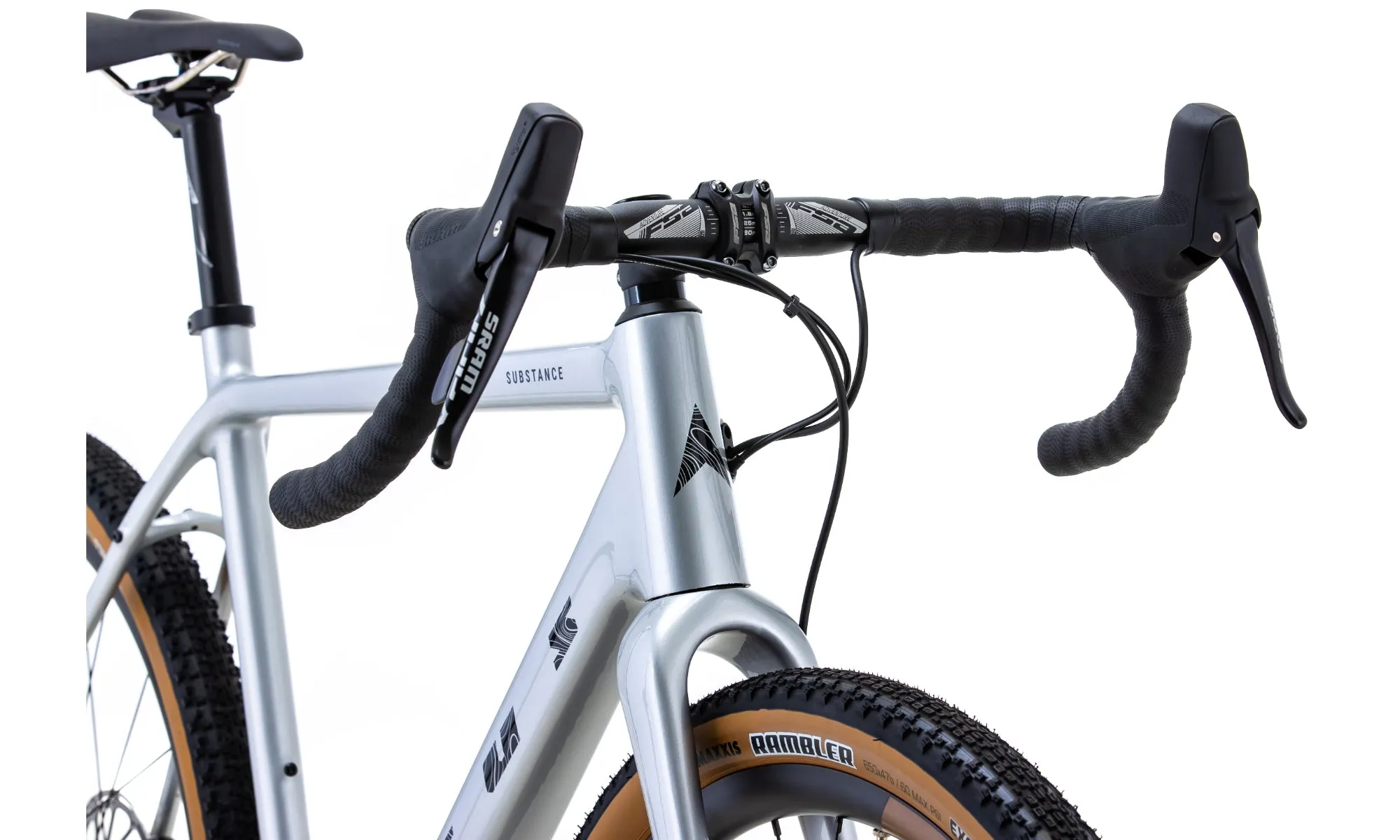

HANDLEBARSFSA Adventure Compact Handlebars

6061 Aluminium, 80mm Reach, 125mm Drop, 12 Degree Flare, XS:400mm S:420mm M:420mm L:440mm XL:440mm

REAR SHIFTERSRAM Apex

11 Speed

STEMFSA Omega 6061 Aluminium

3D Forged, Bar Bore: 31.8mm, /- 6 degrees, XS:80mm S:90mm M:90mm L:100mm XL:110mm

CASSETTESunrace CSMS7

11 Speed, 11-42T

HEADSETACROS Aix-Low R3

Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40

CHAINKMC X11

11 Speed

GRIPSVitus Super Grip

Anti Slip, Shockproof

FRONT RIMPrime Orra V2 Alloy

650b, Tubeless Ready

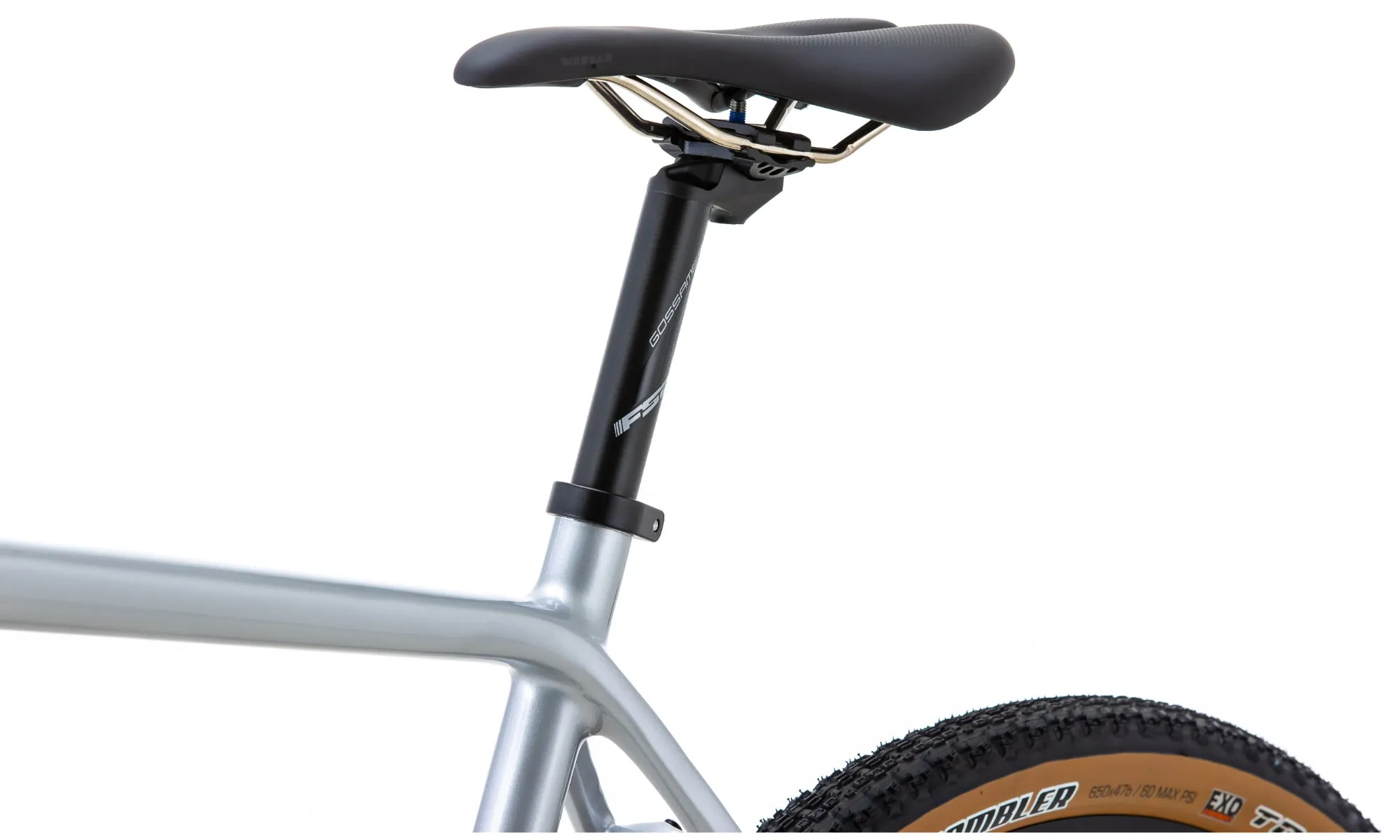

SADDLEVitus

Ti Rail

REAR RIMPrime Orra V2 Alloy

650b, Tubeless Ready

SEATPOSTFSA Gossamer

27.2mm x 350mm

FRONT HUBPrime SR2D

12x100mm, Centre Lock

SEATCLAMPAluminium 31.8mm

Stainless Steel Bolt

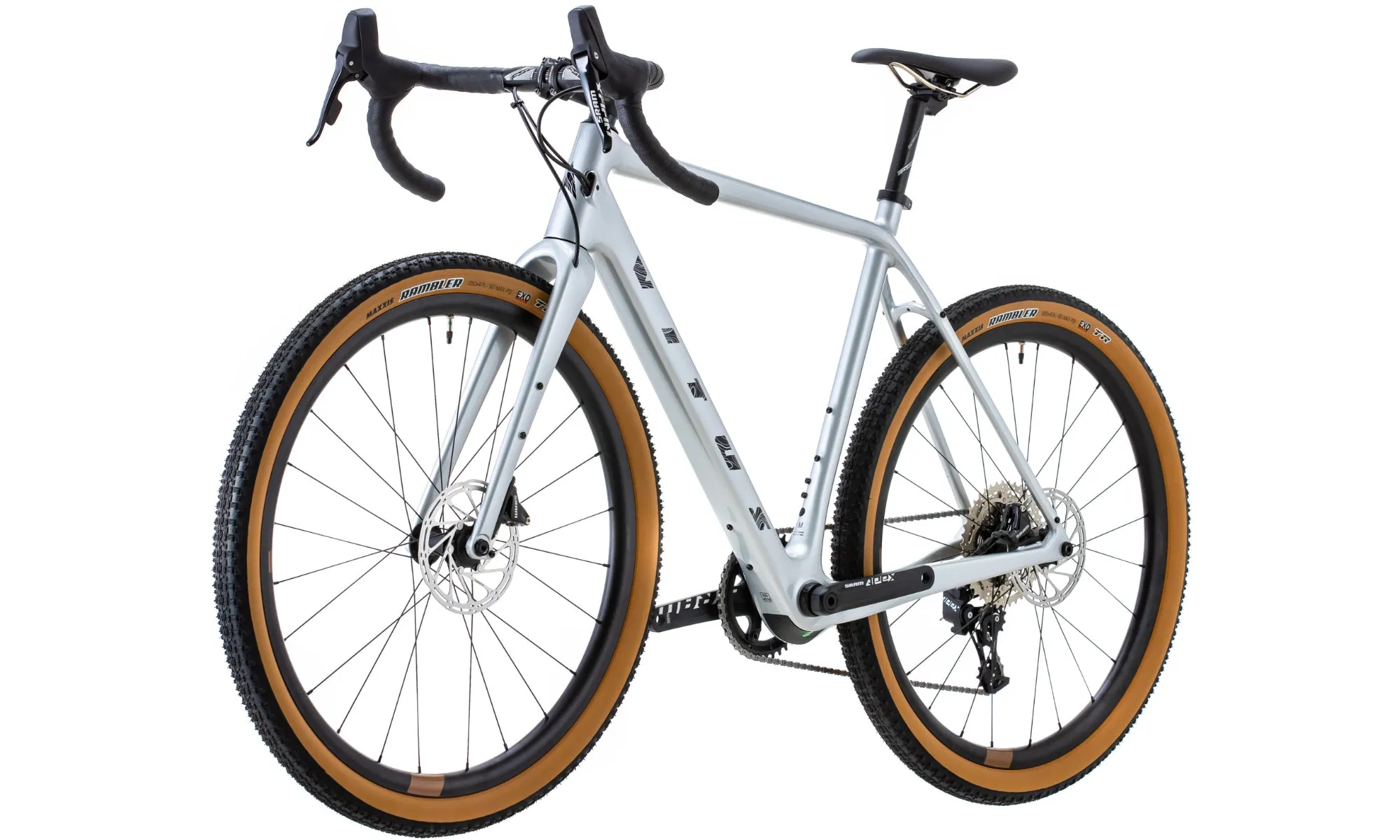

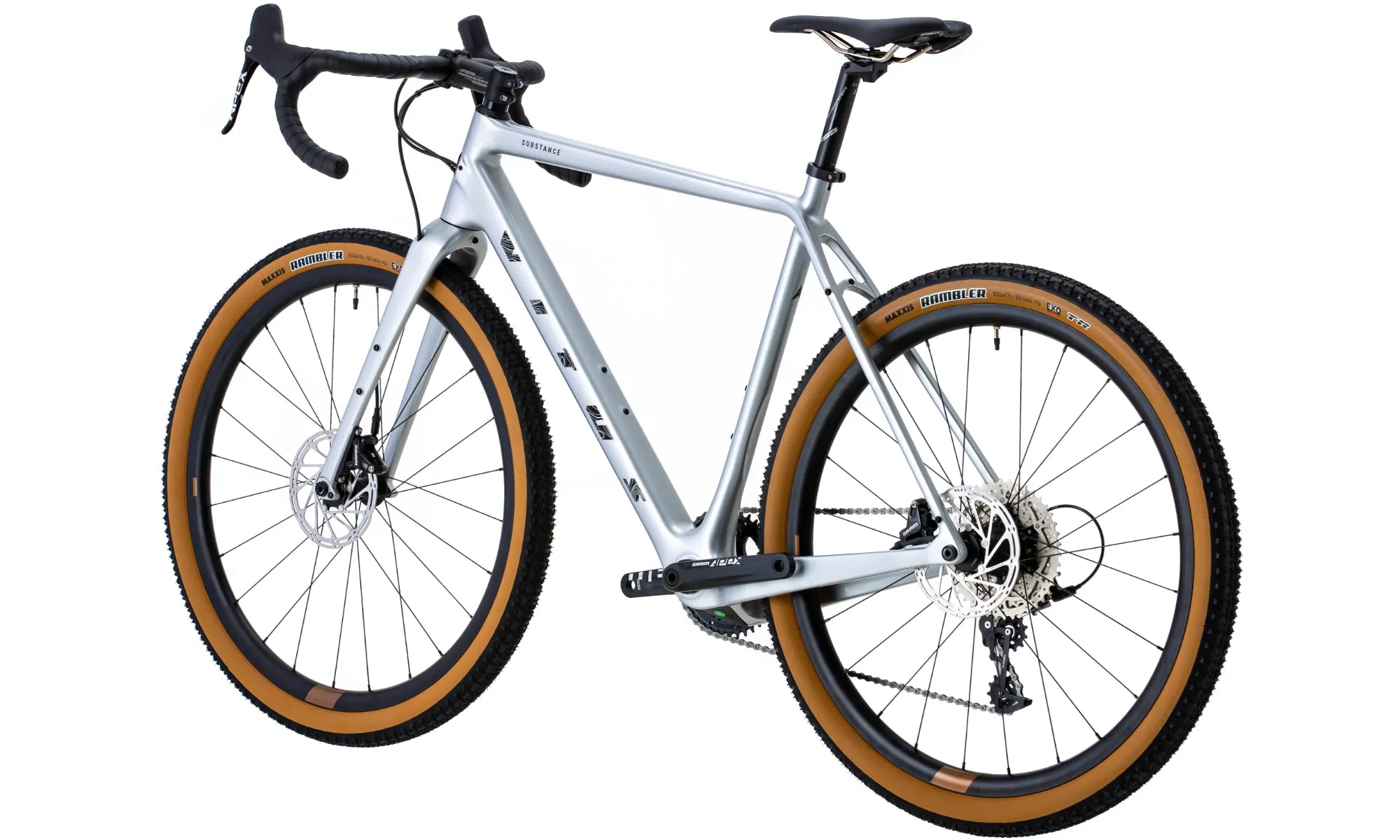

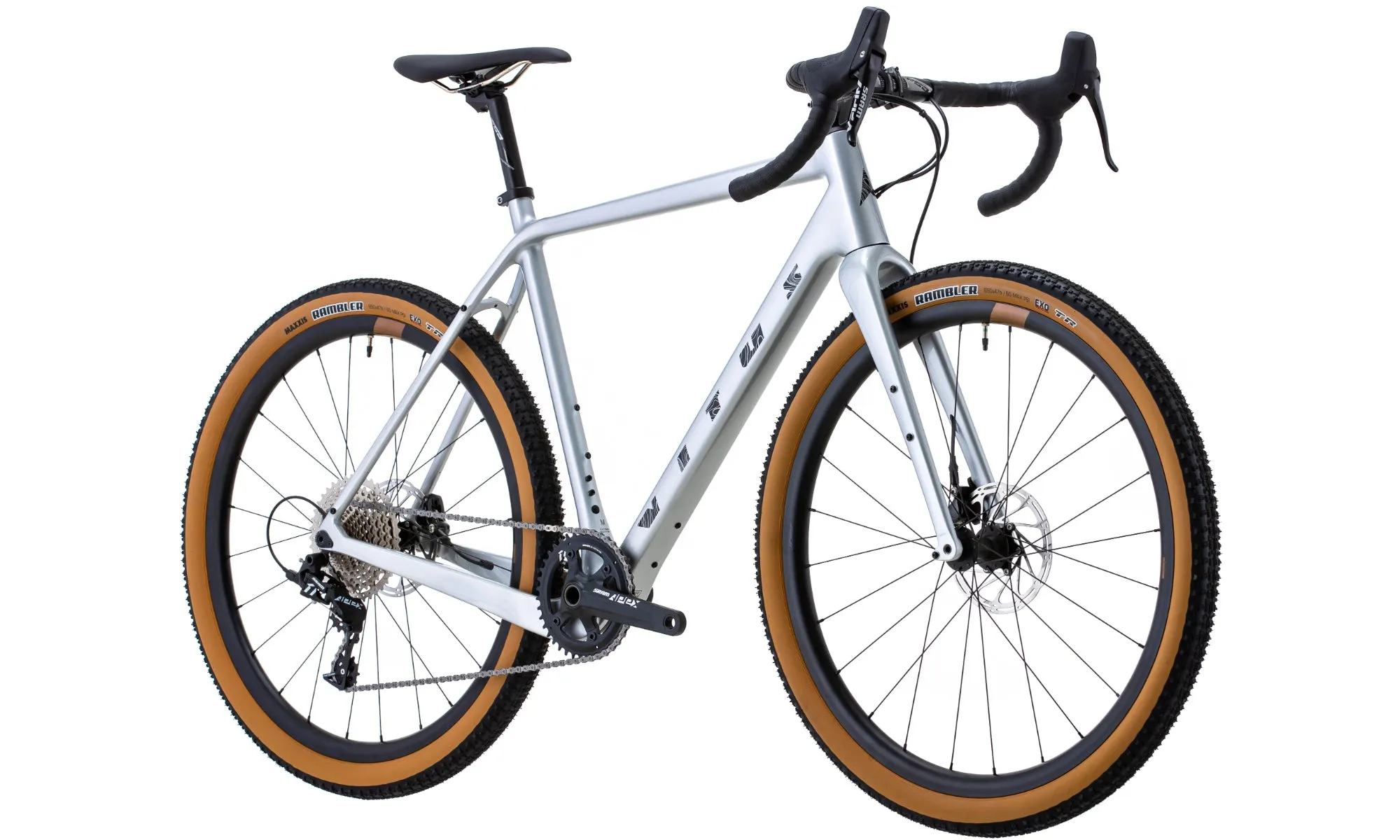

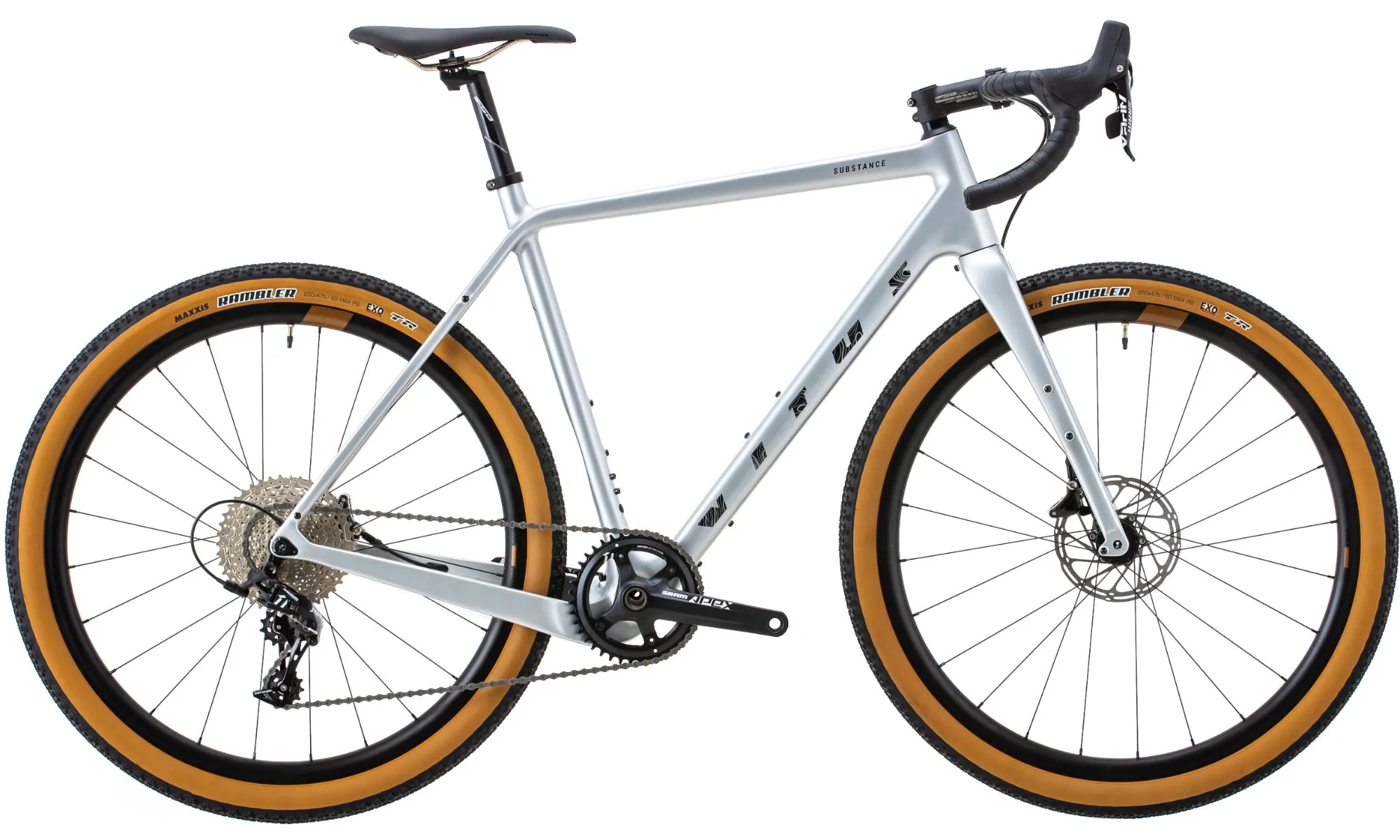

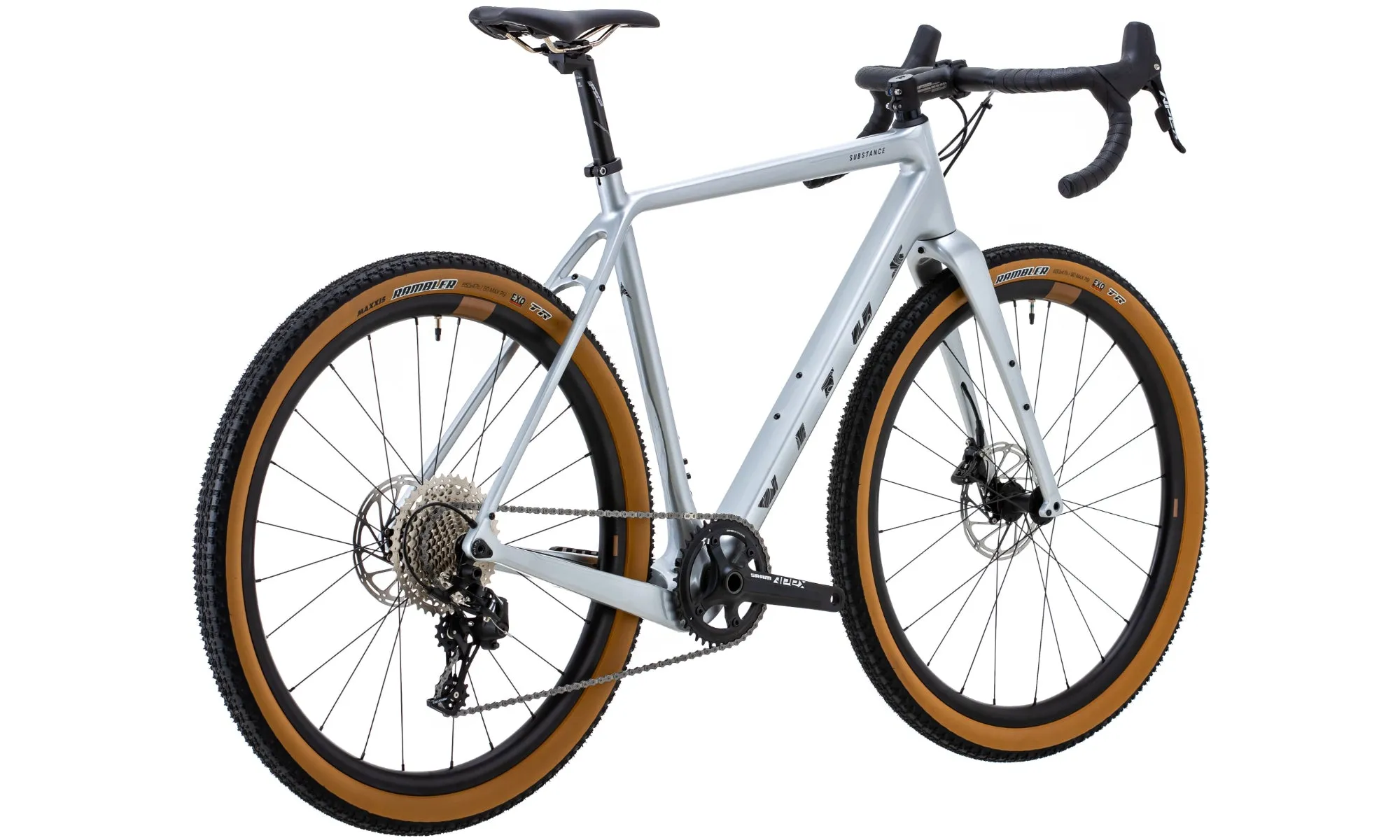

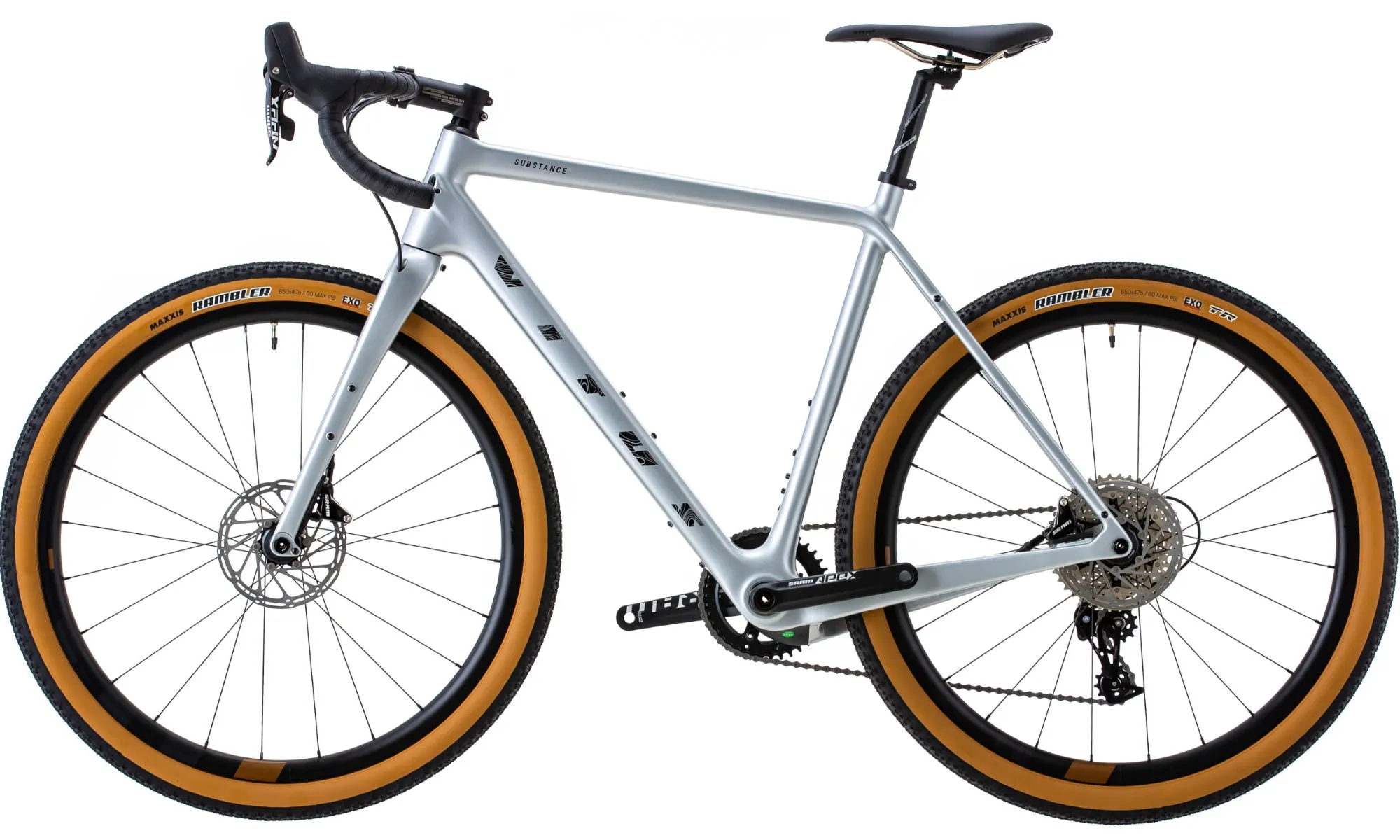

Vitus Substance Carbon Apex Gravel Bike

  • Silver

$ 48.54

$ 63.10

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
