Product Details

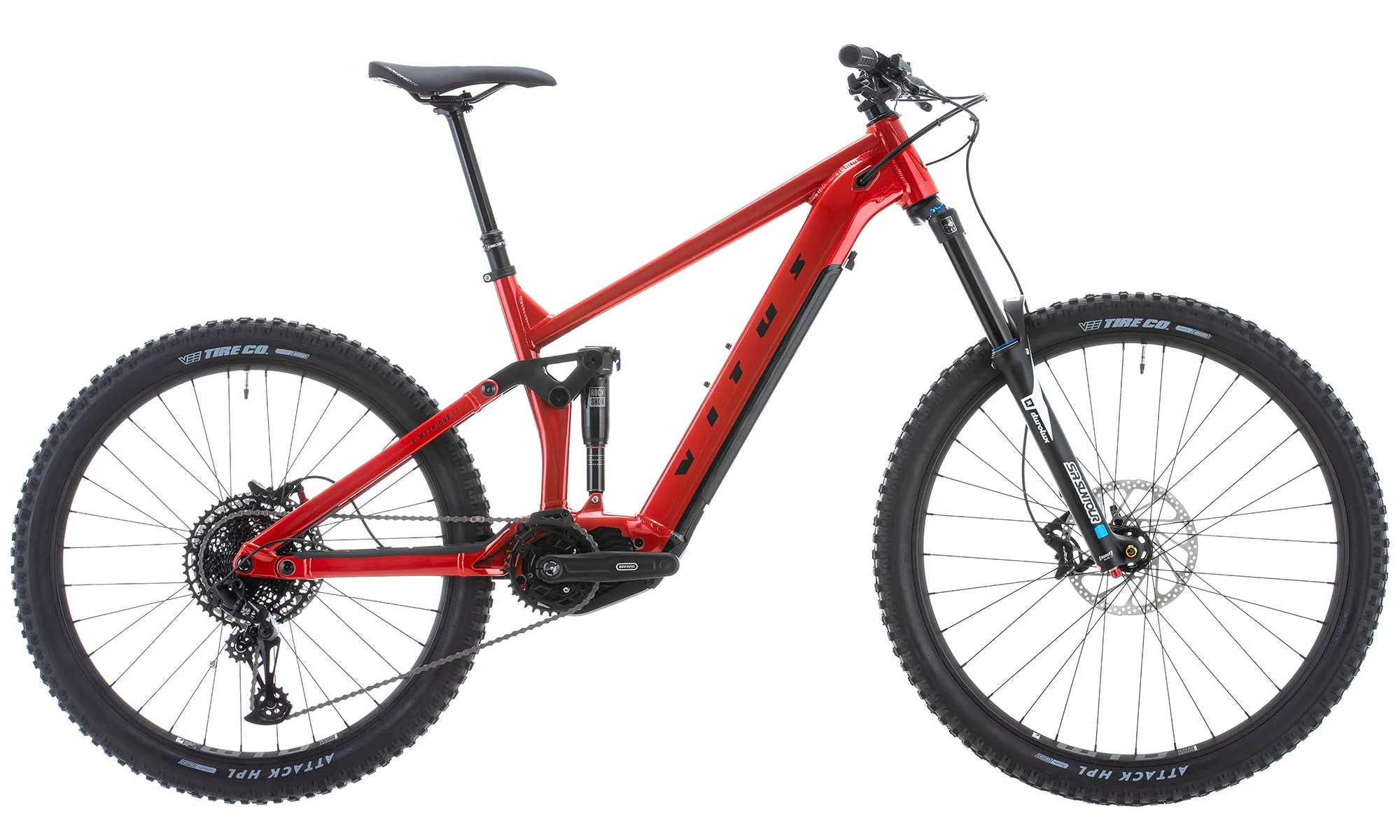

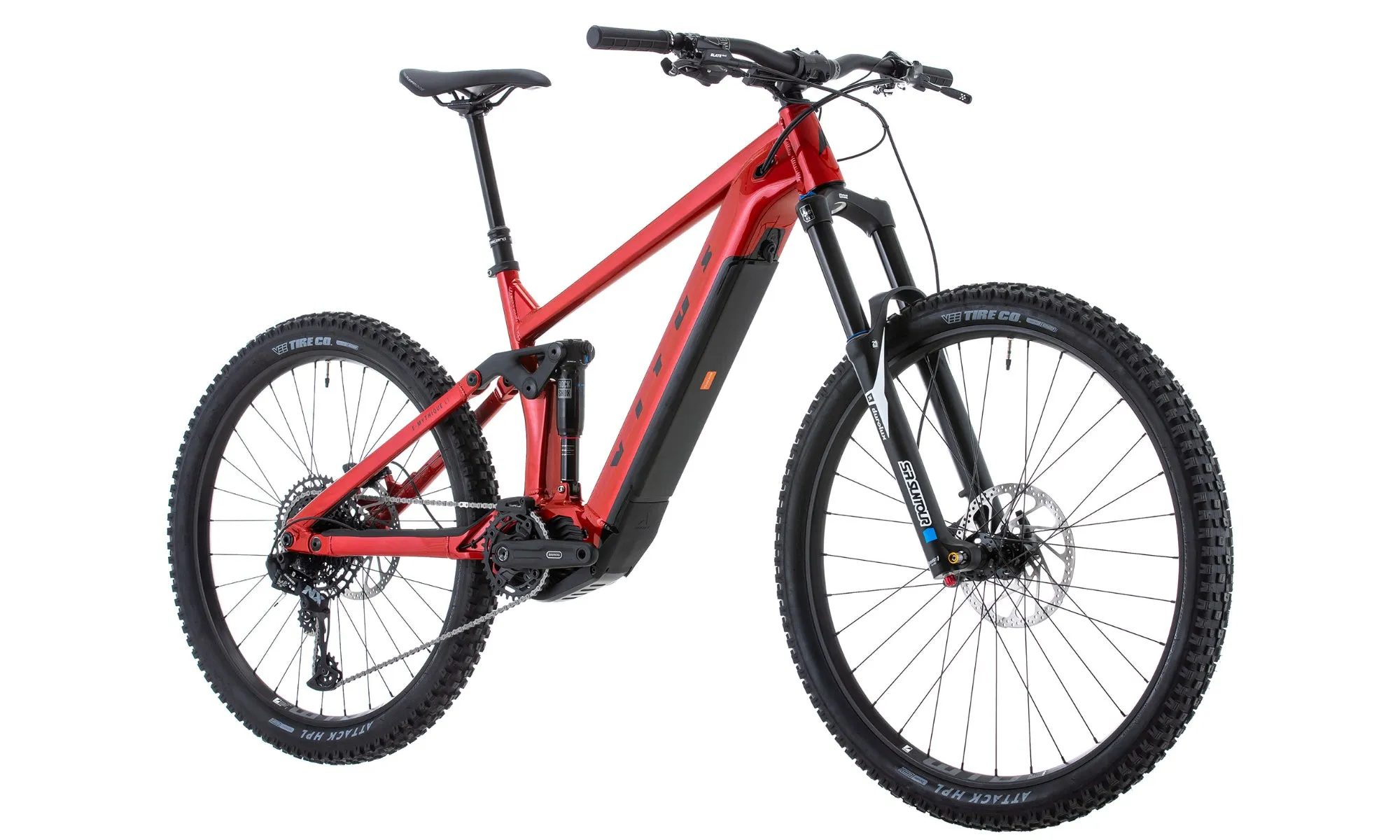

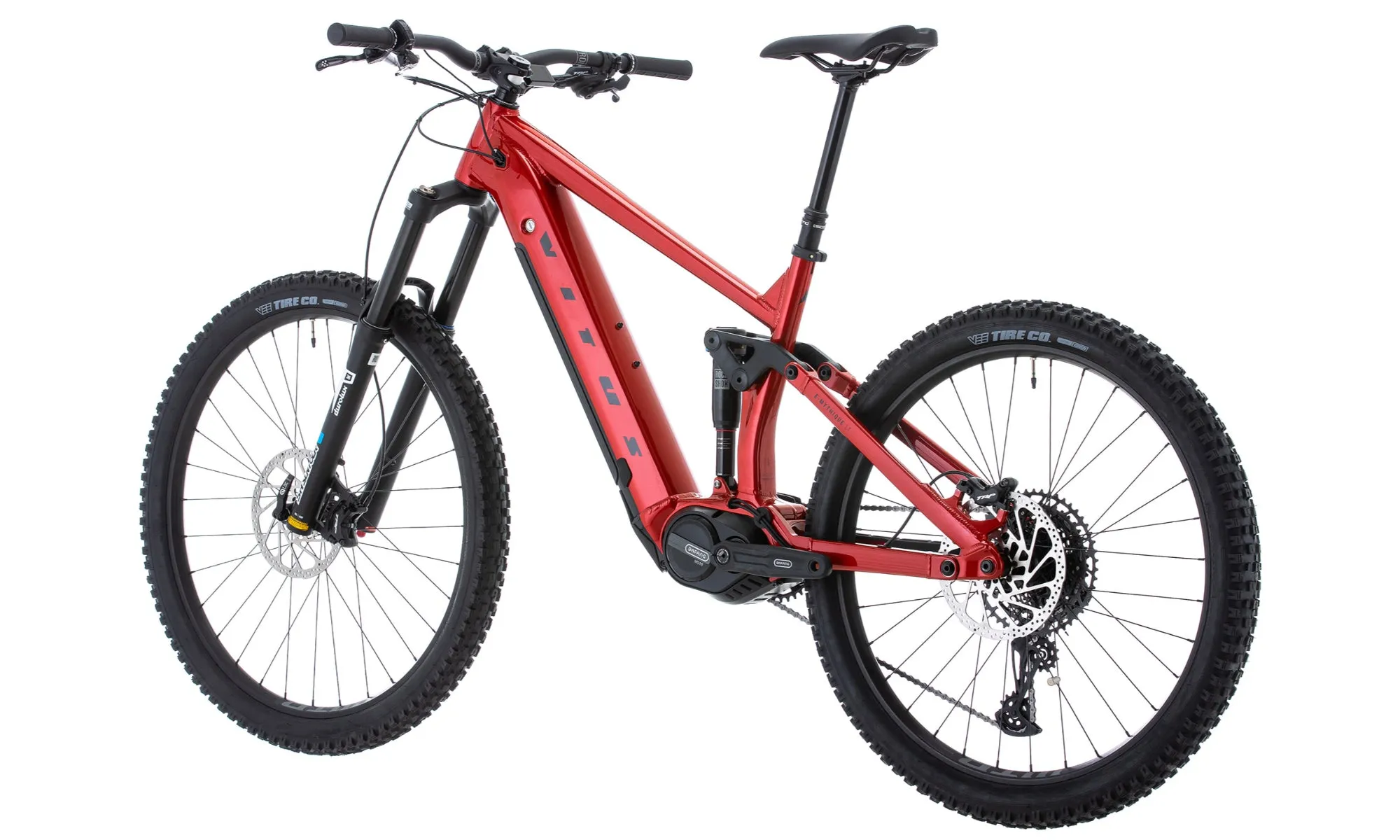

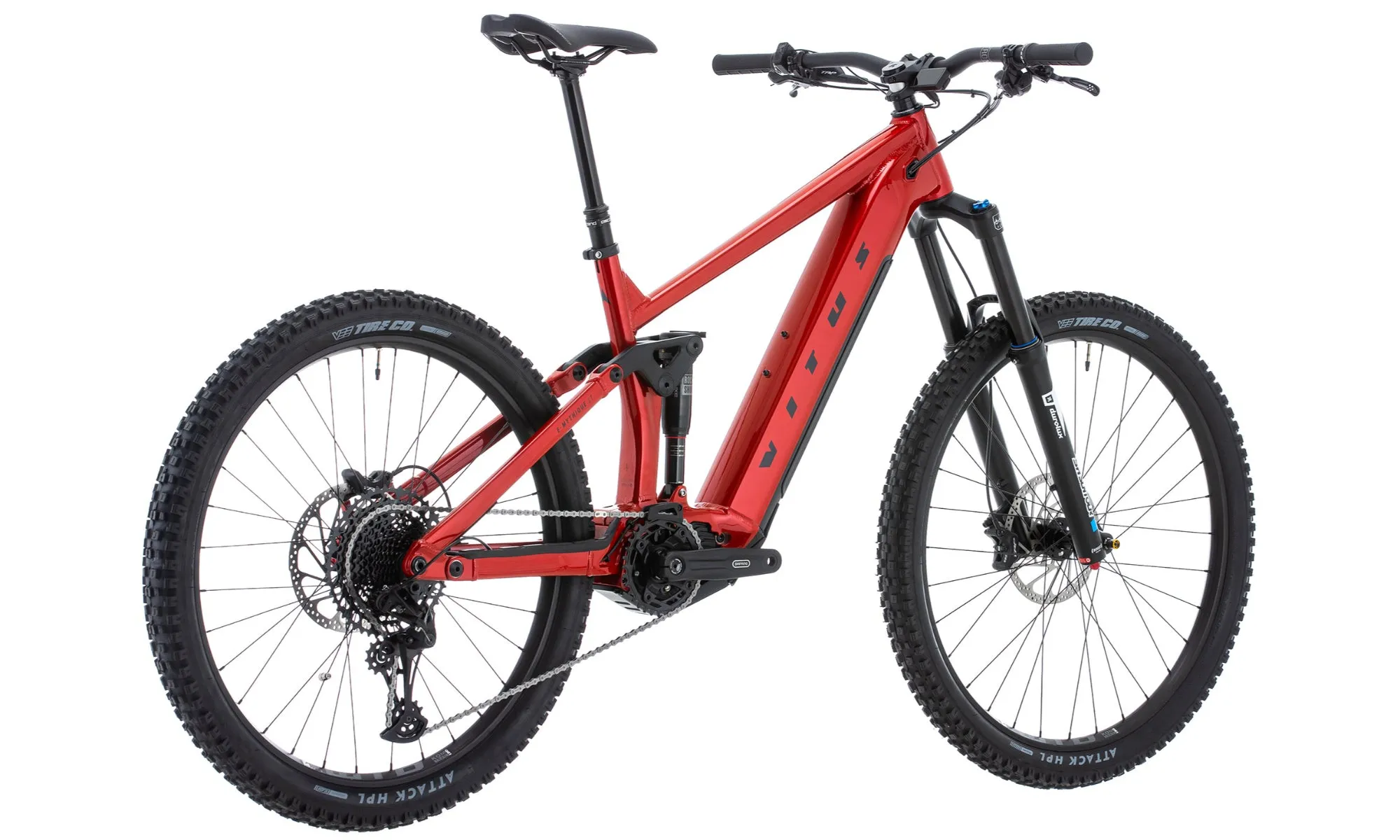

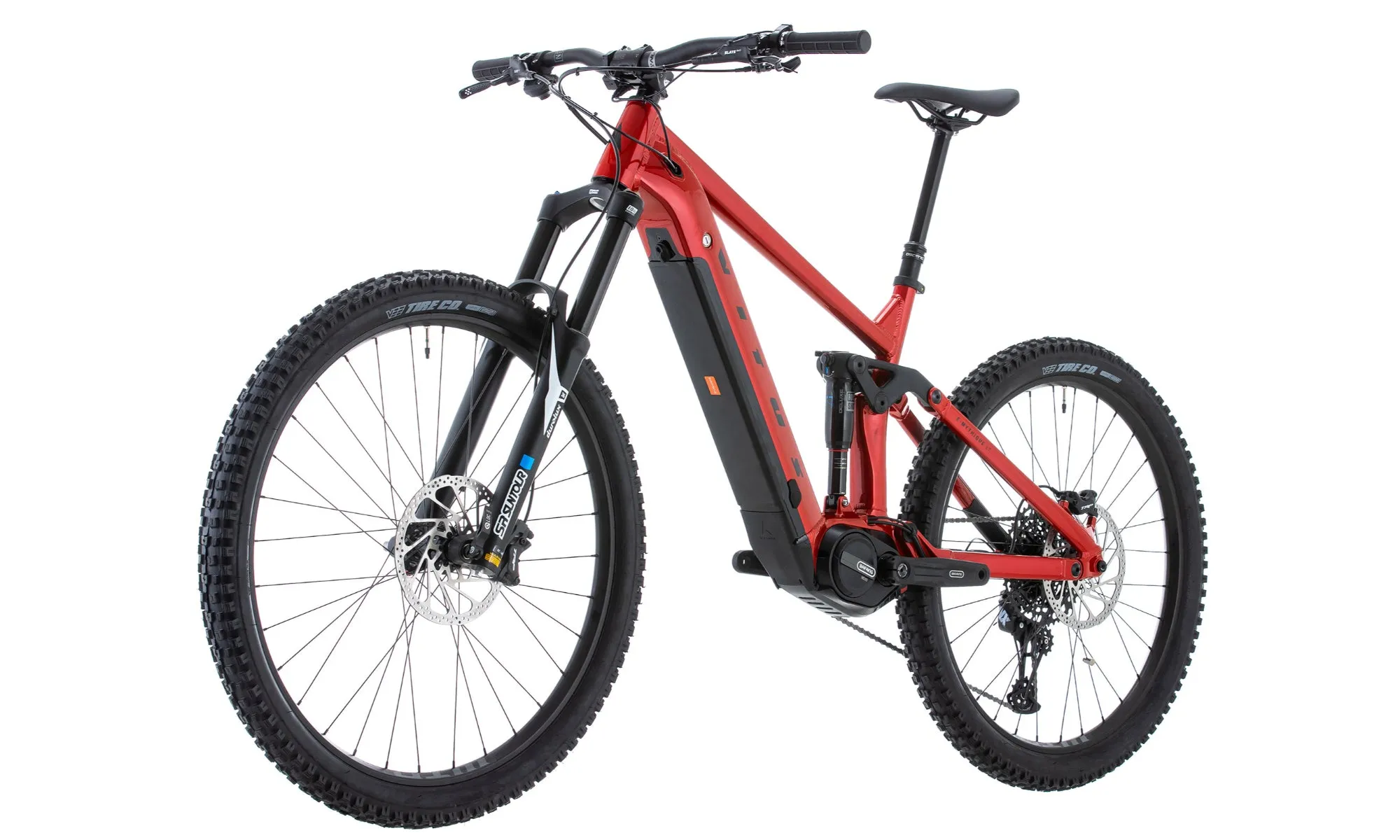

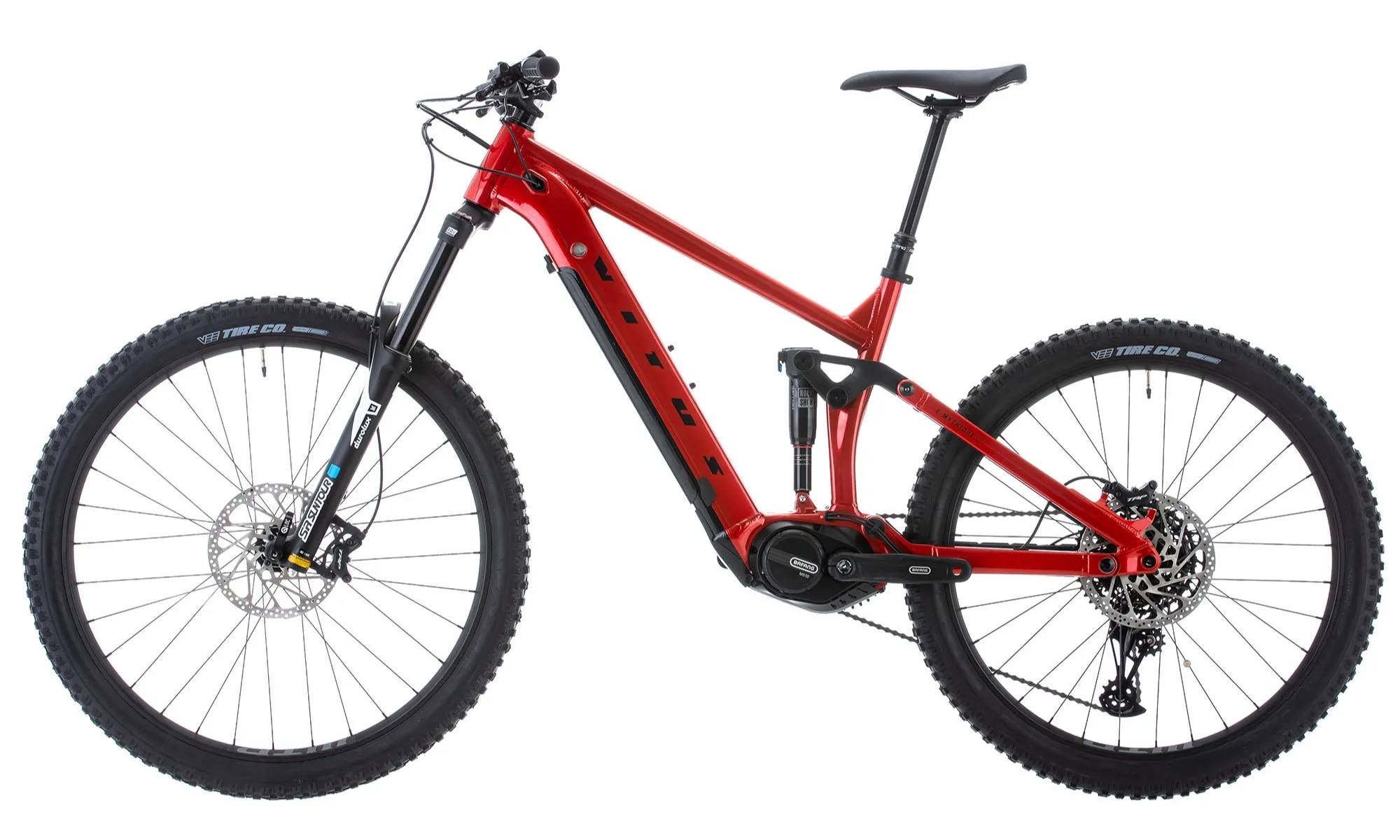

The newest member of our award-winning eMTB range, the Vitus E-Mythique LT is a riot on the descent and a magic carpet on the climb.

Powered by our own custom tuned Bafang M510 motor system developed in partnership with Bafang, it blends the ethos of our award-winning Mythique trail bike with the downhill performance of the E-Sommet . The result is an eMTB that inspires confidence in big terrain, both up and down the mountain.

Packing 170mm of travel in the front and 160mm in the rear, it’s a long travel variation of the Mythique that incorporates learnings from our current E-Sommet range into an eMTB that is ready to ride anything. Whether it’s a steep and technical climb or after-work laps on the downhill track, the E-Mythique LT has been tested and developed to deliver.

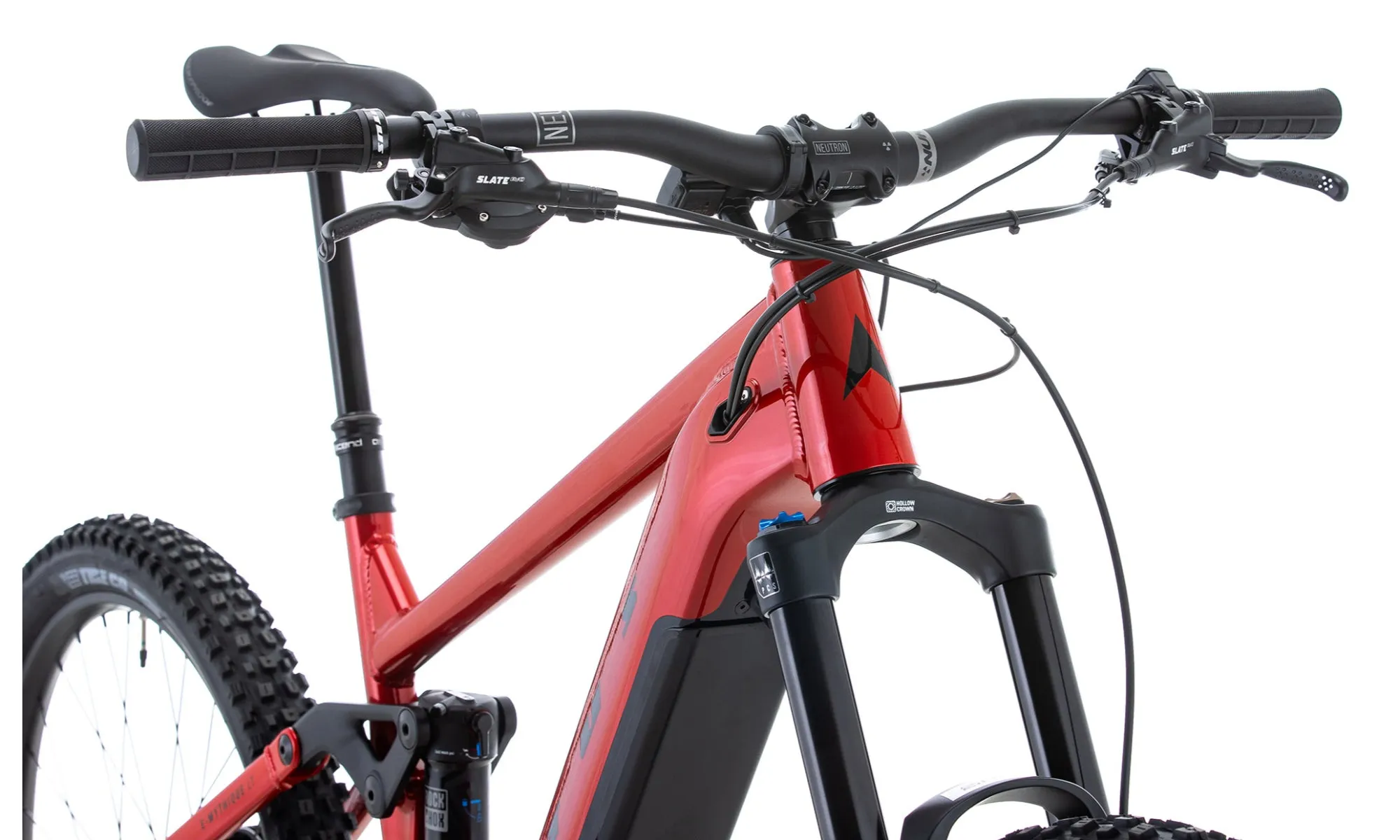

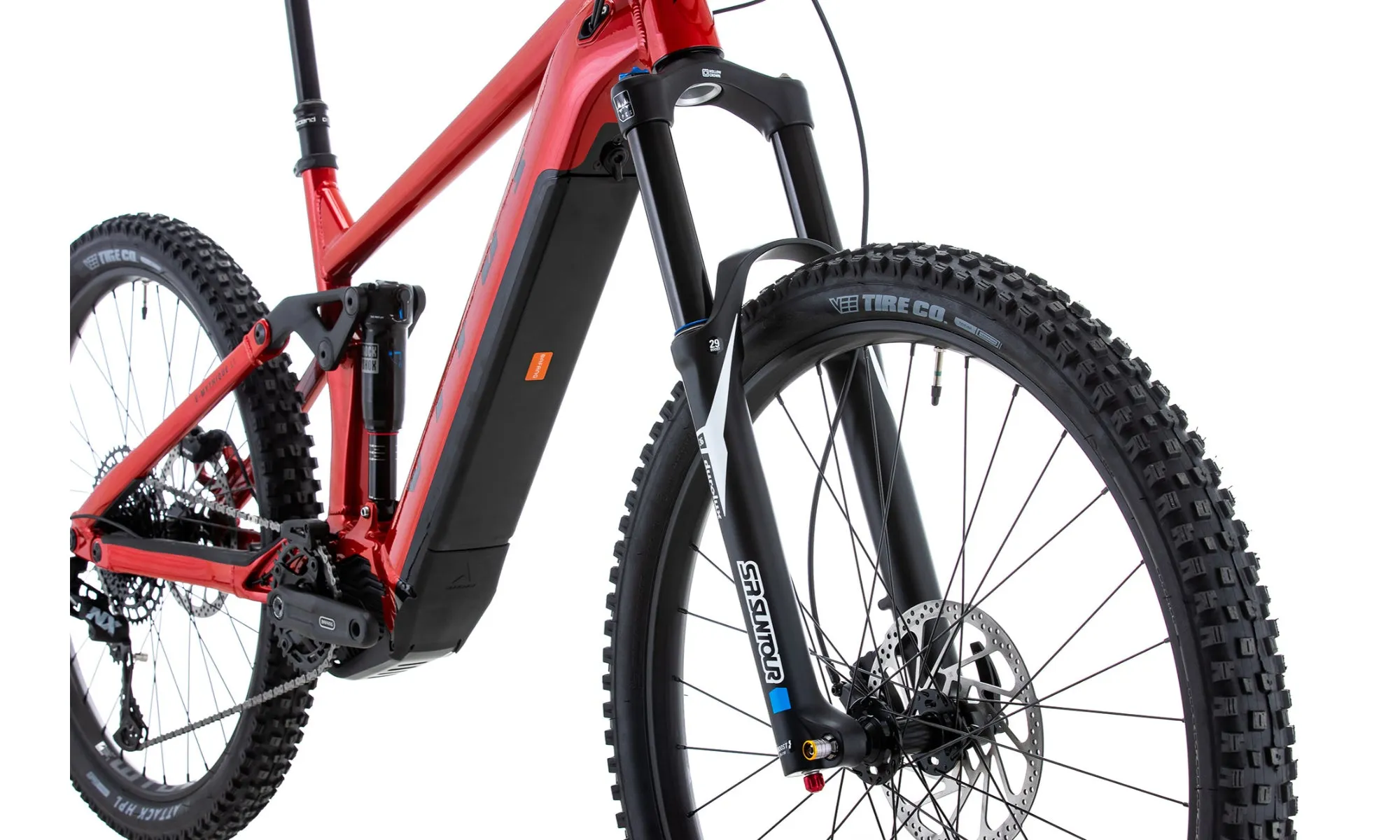

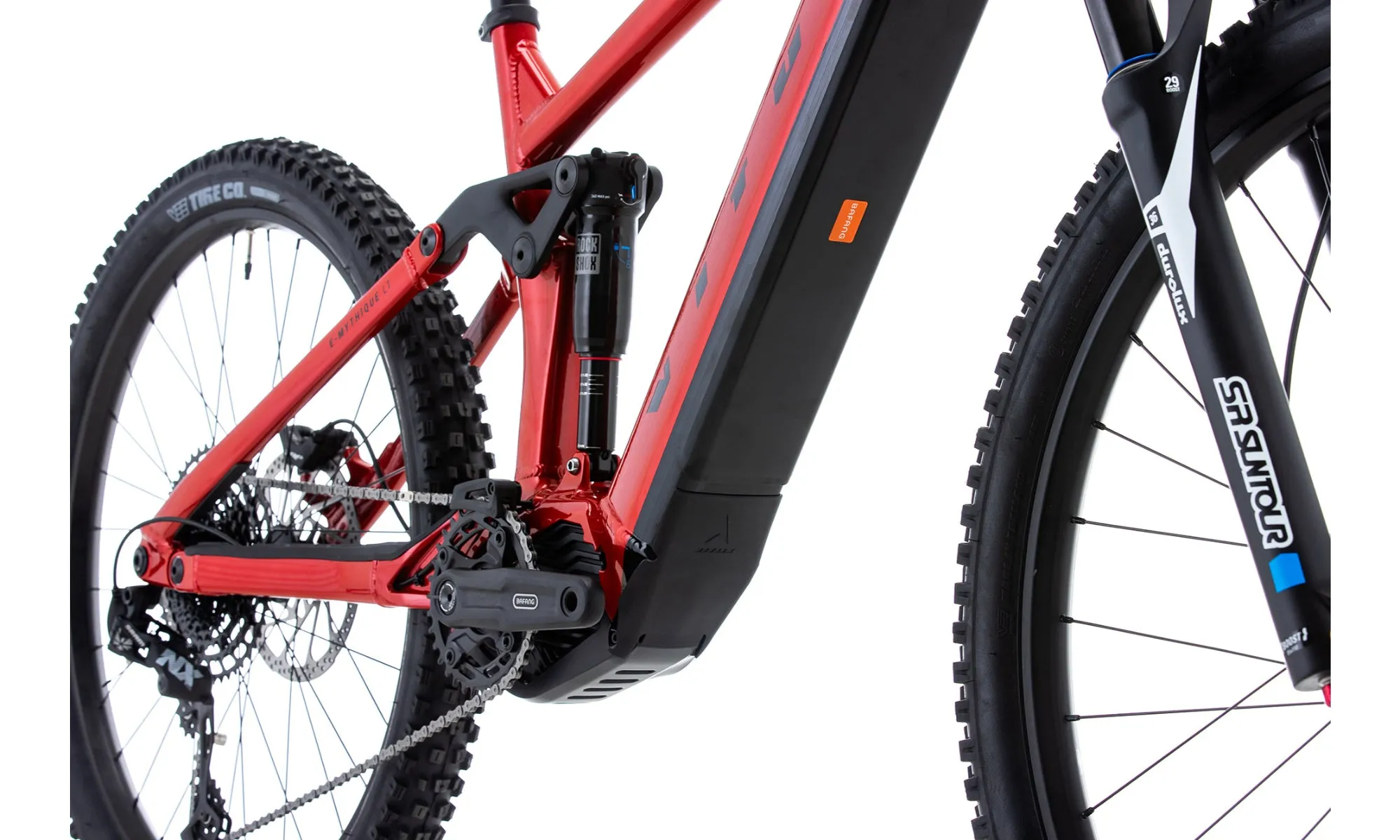

The VRS version of the E-Mythique is built around a 170mm SR Suntour Durolux36 fork and RockShox Deluxe Select R rear shock with 160mm of travel. The drivetrain is a mixed SRAM NX/SX Eagle 12-speed setup and braking is handled by the TRP Slate EVO 4-piston hydraulic disk brakes. Rounding out the build are tubeless WTB rims and a Nukeproof Neutron cockpit.

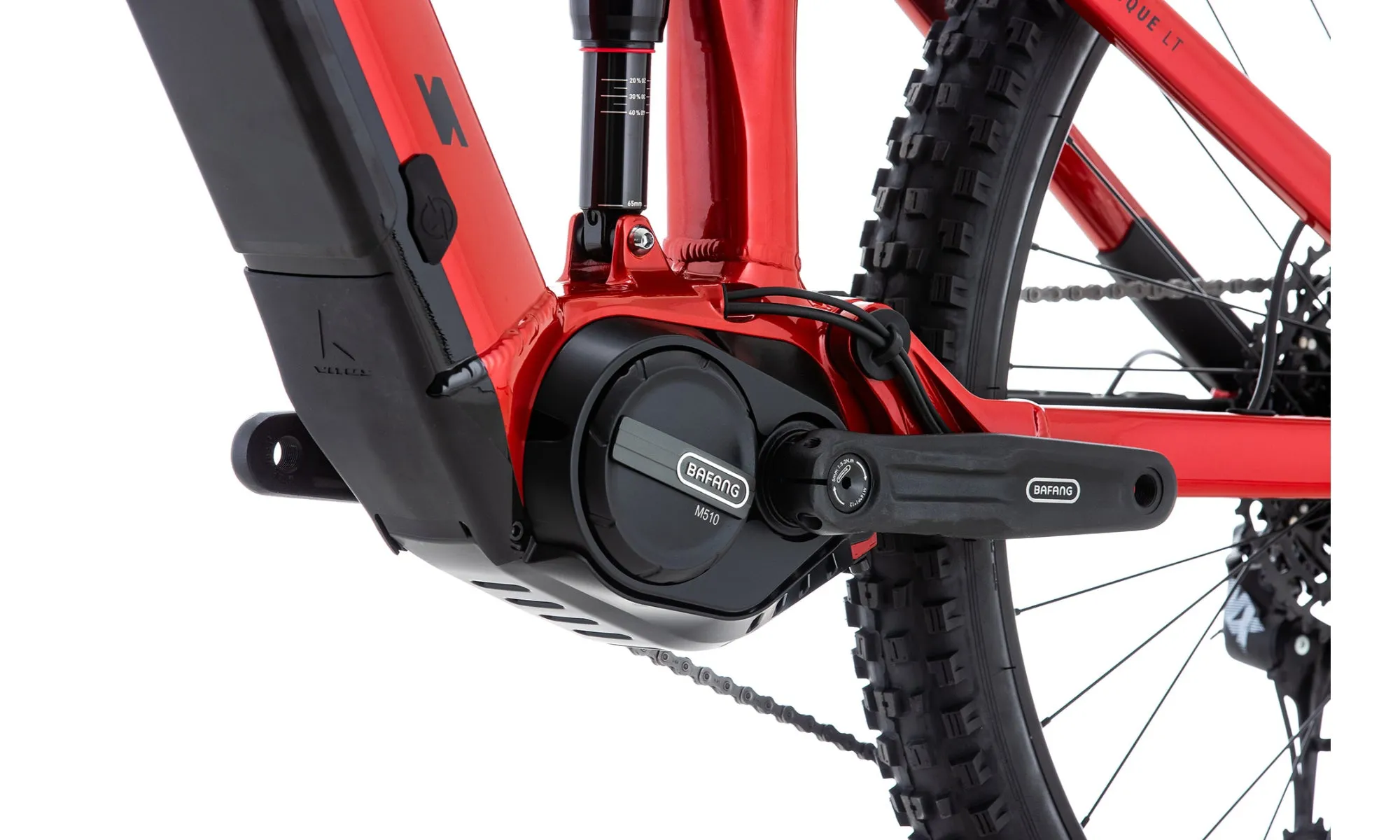

The new Bafang M510 motor system

To build an eMTB that performs exceptionally well, we partnered with a new drive unit manufacturer for Vitus, choosing Bafang and their M510 drive unit.

With a maximum torque of 95Nm and competitive system weight, the M510 is the perfect drive unit to power the E-Mythique LT. We developed a close partnership with Bafang and tuned the system to perform exactly to our needs, effectively cherry-picking the best features and incorporating them into our drive unit.

The M510 system is powered by an integrated 630Wh battery and a display with five custom power modes — Eco, Eco-plus, Trail, Boost, and Race — giving the rider maximum options for adjusting range and on-trail performance.

Combining this drive unit with our experience in suspension and geometry design, we have created an eMTB to be proud of. It's made to be ridden everywhere; from steep, rough trails to big days with big climbs .

The E-Mythique LT is designed to get the most out of eMTB’ing, whatever you might want that to be.

The E-Mythique LT VRS component details

  • SR Suntour Durolux36 & Deluxe Select R suspension
  • Smooth Bafang M510 motor produces 250W max power and 95Nm torque
  • Long range 630Wh internal battery

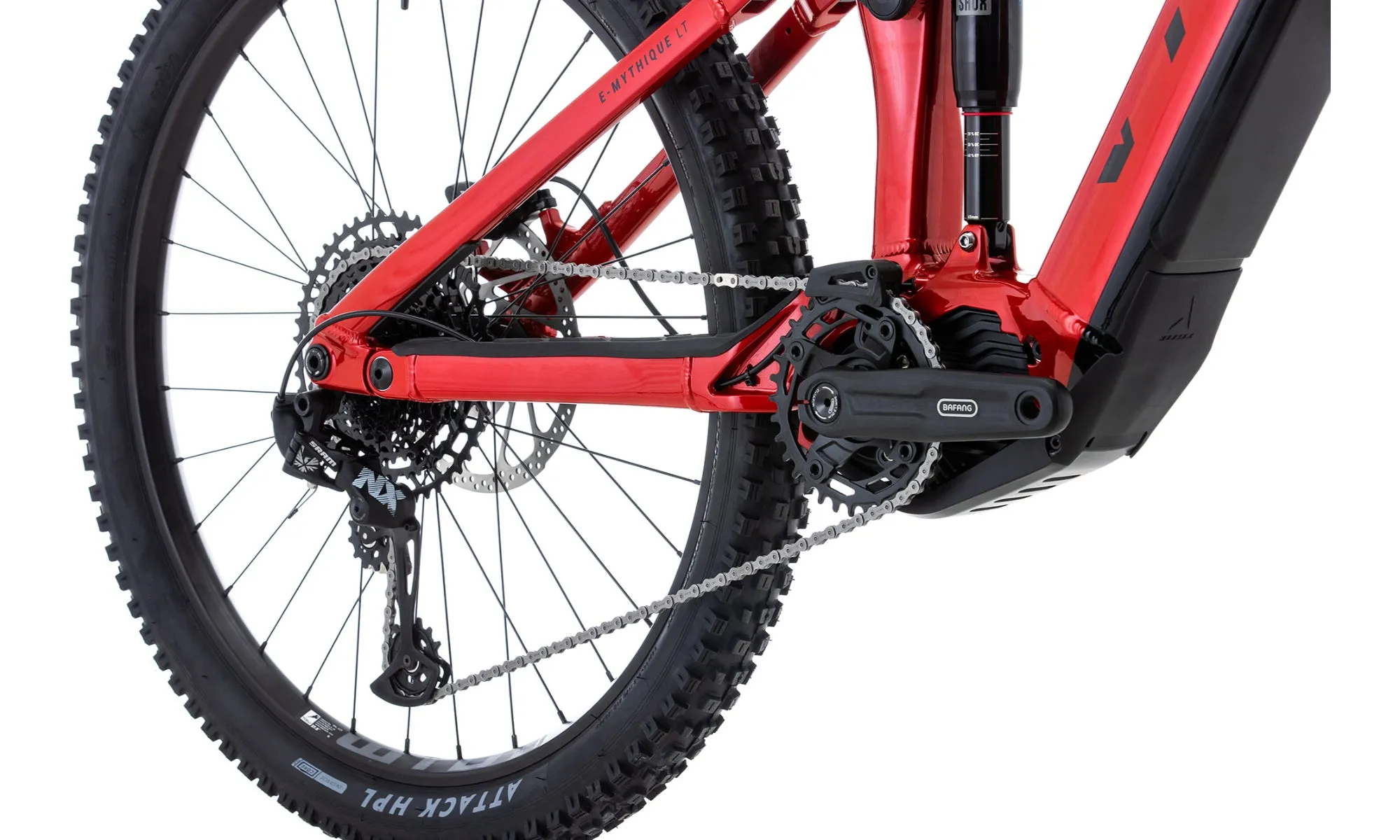

  • Wide range SRAM NX/SX Eagle 1x12 speed drivetrain
  • Powerful TRP Slate EVO 4 piston hydraulic disc brakes
  • Tubeless ready WTB rims with grippy Vee Tyres

E-Mythique Electric Enduro Platform

Internal battery frame design with new Bafang M510 drive unit, optimised suspension kinematics and modern geometry.

Frame Material

6061-T6 Aluminium

Suspension Travel (MTB Only)

170mm Front, 160mm Rear

Wheel Size

Mullet - 29" Front / 27.5" Rear

Available Size

S, M, L, XL

Colour

Octane Red

Weight:

Medium: 24.4kg (tubeless)



Specifications

FRAMEE-Mythique 6061-T6 Double Butted Alloy

Internal cable routing, post mount disc brake mounts, Boost hub spacing - 148mm x 12mm thru axle, Bafang M510 compatible. Axle Specifications: 181mm Length, 14.5mm Thread Length, M12xP1.0 Thread Pitch

REAR RIMWTB ST Light i30 TCS 2.0

27.5", 32H, Presta Valve, Tubeless Ready Rim Tape Installed

FORKSSR Suntour Durolux36 Boost EQ 29"

170mm travel, 110mm x 15mm axle

FRONT HUBVitus KT DHF112



32H, 6 Bolt Disc Fitment, 110mm x 15mm

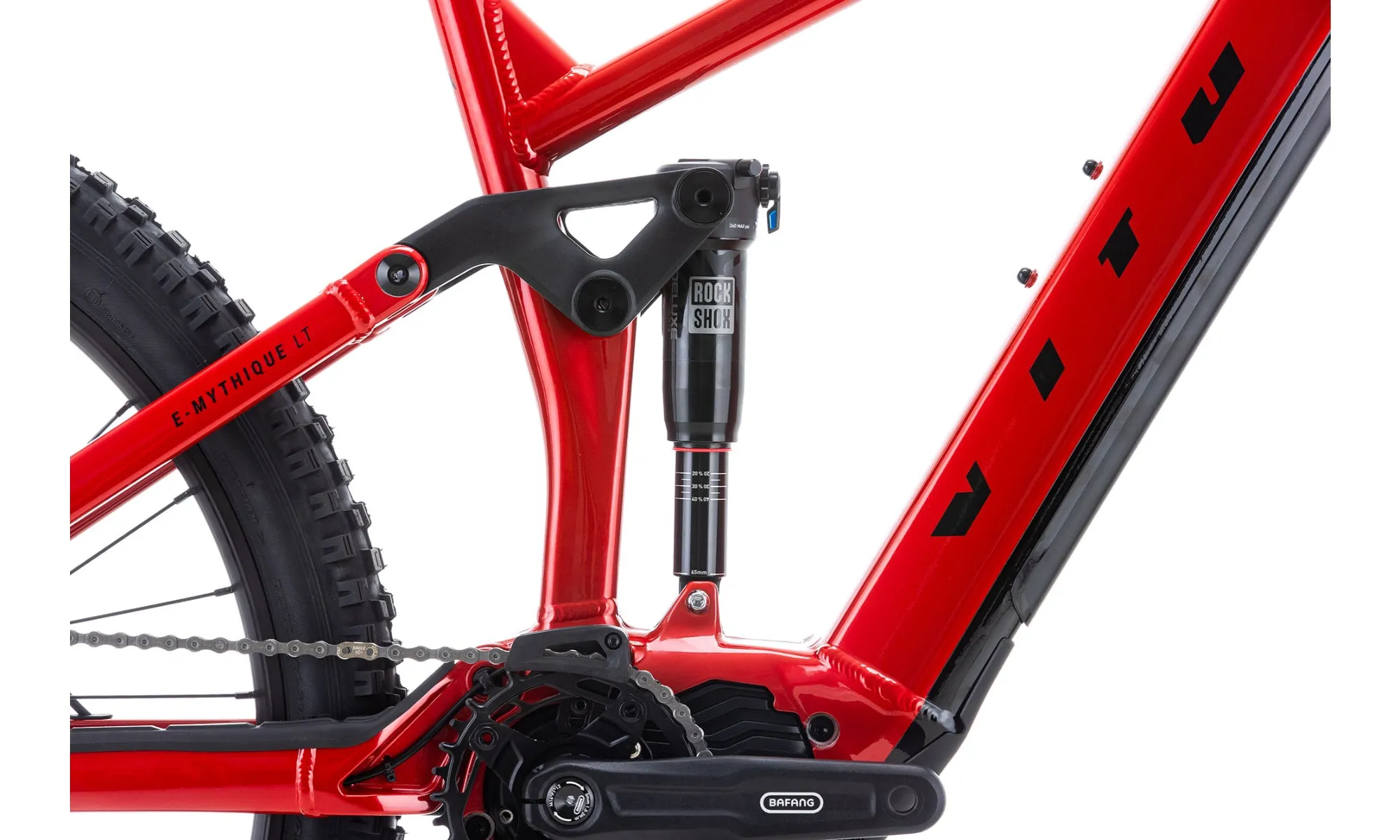

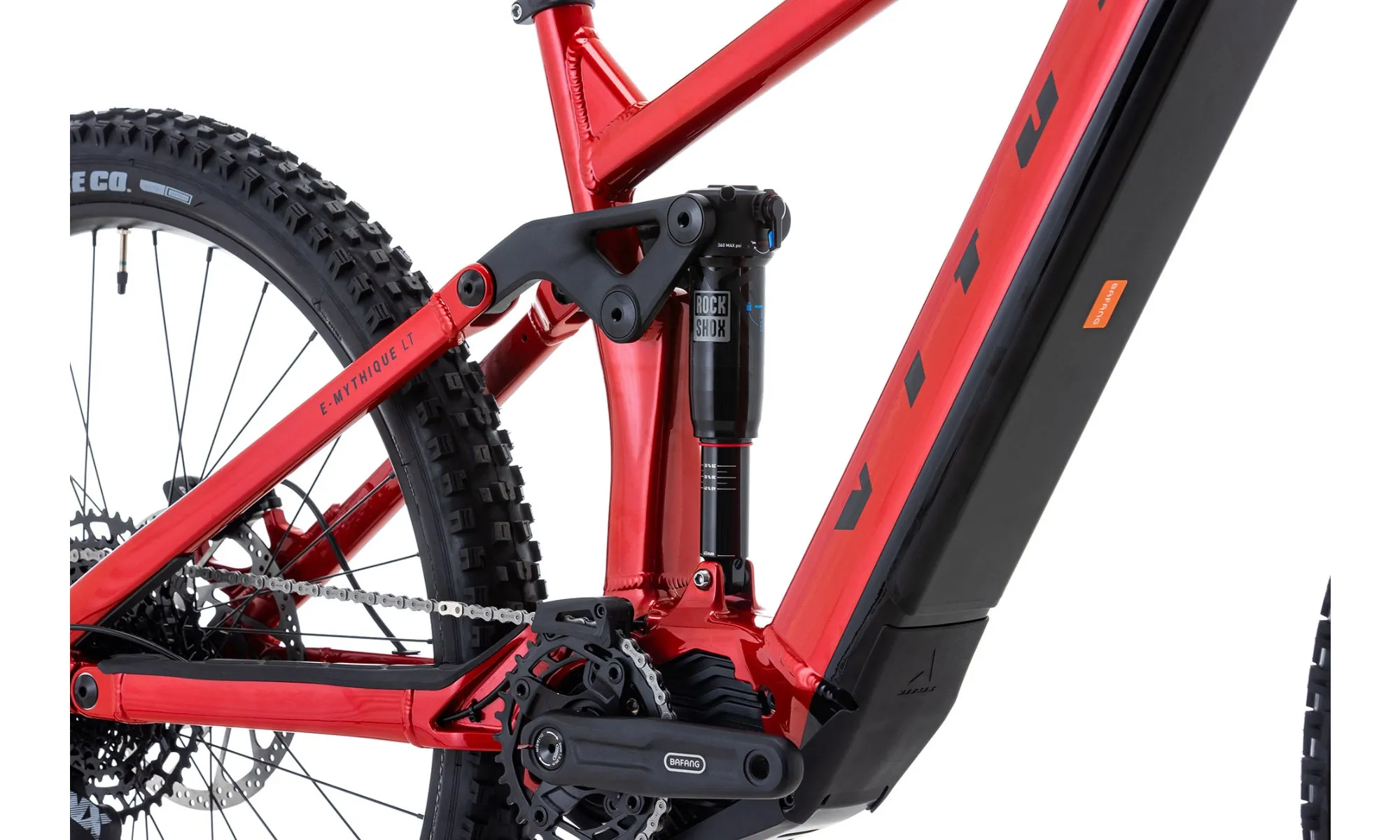

SHOCKRockShox Deluxe Select R

DebonAir, 205mm x 65mm, trunnion

REAR HUB Vitus KT H5ER-SH

32H, 6 Bolt Disc Fitment, HG Freehub, 148mm x 12mm

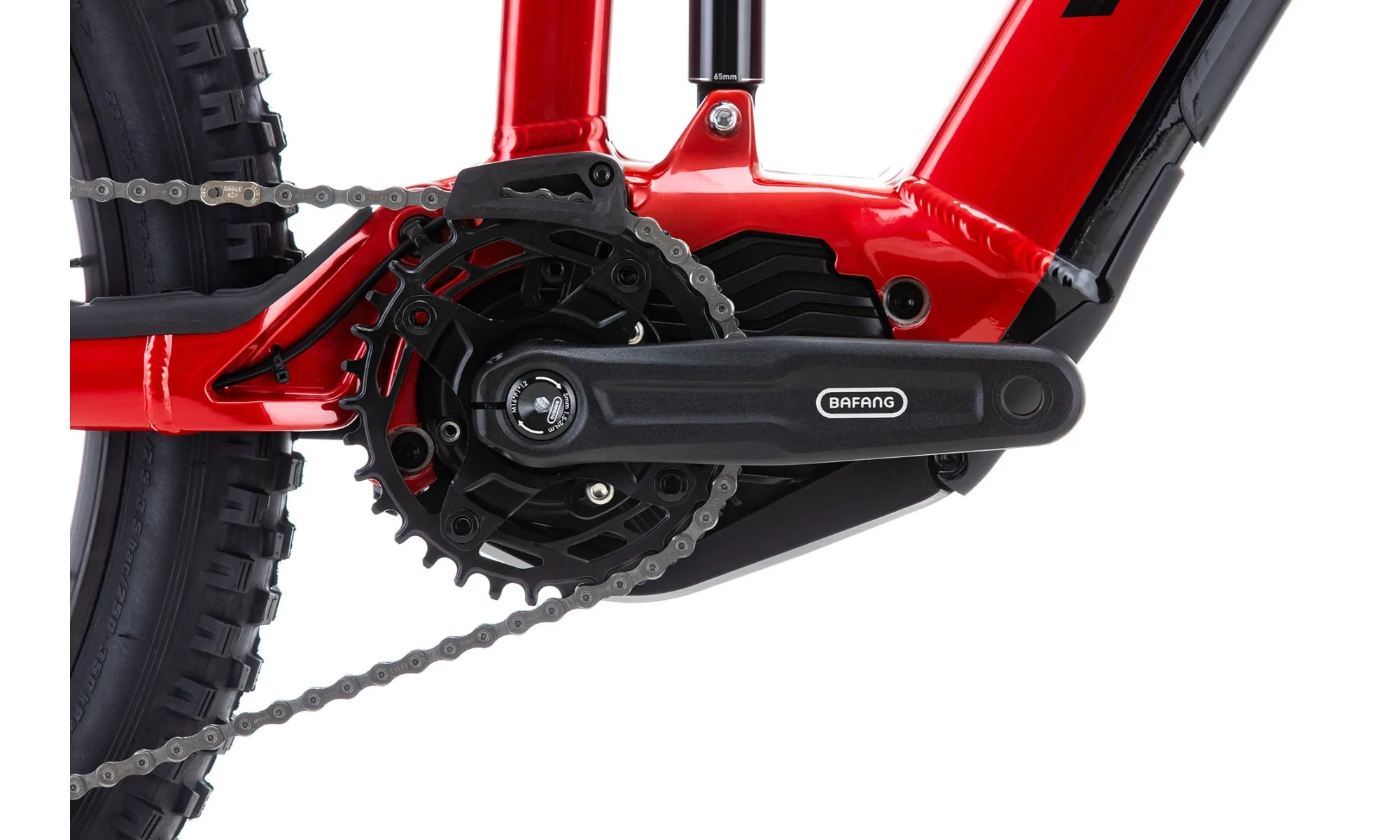

CHAINSETBafang

34T Narrow Wide Chainring, 165mm Crank Length, 53mm Chain Line

WHEELSETWTB ST Light i30 rims on Vitus KT hubs

29" Front, 27.5" Rear Wheelset, 32H, 6 Bolt, Boost 110mm x 15mm Front & 148mm x 12mm Rear Hub Spacing, Tubeless Ready

BOTTOM BRACKETN/A

N/A

FRONT TYREVee Tire Co. Attack HPL

29" x 2.5", TOP40 Compound, Enduro Core

FRONT DERAILLEURN/A

N/A

REAR TYREVee Tire Co. Attack HPL

27.5" x 2.5", E-Ctrl Compound, Override Core

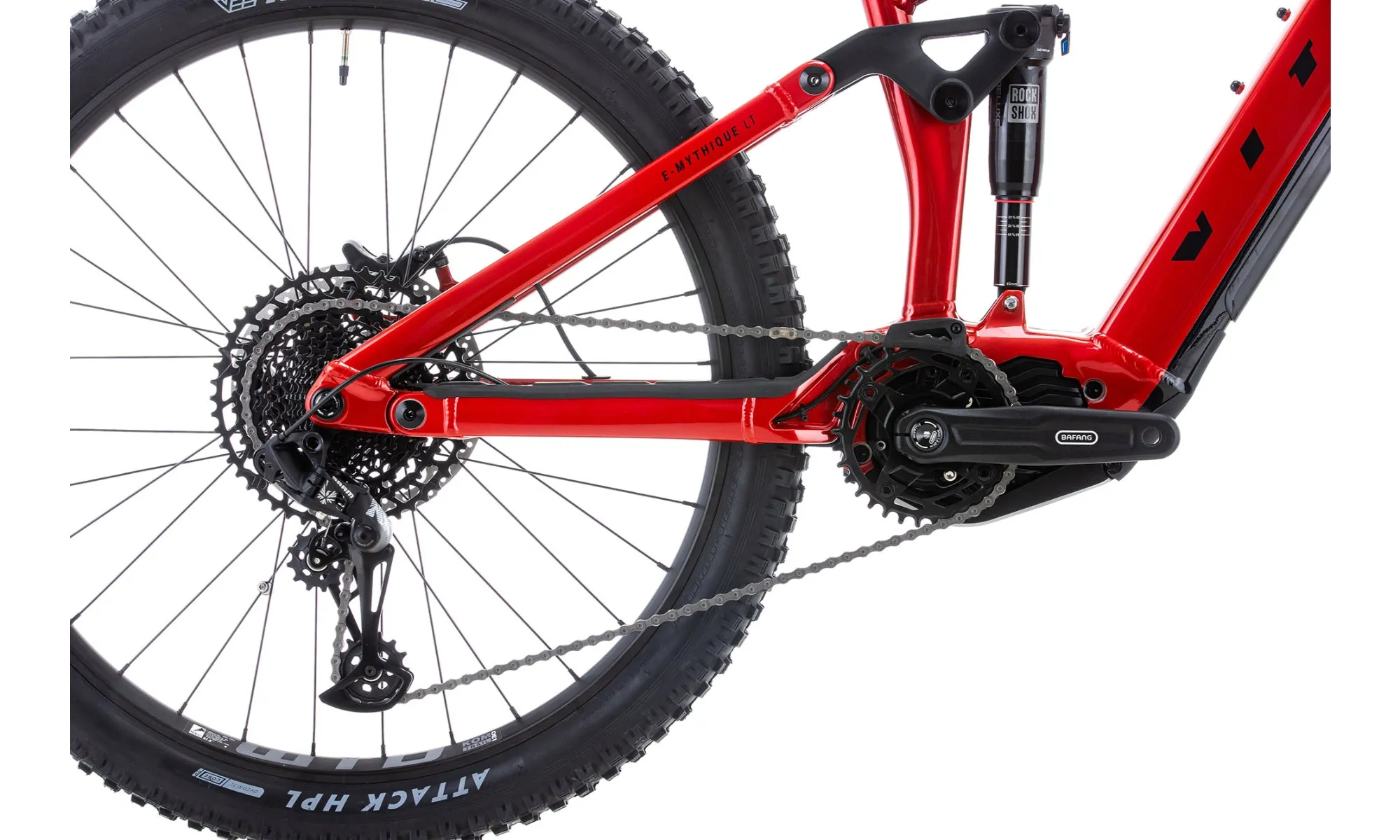

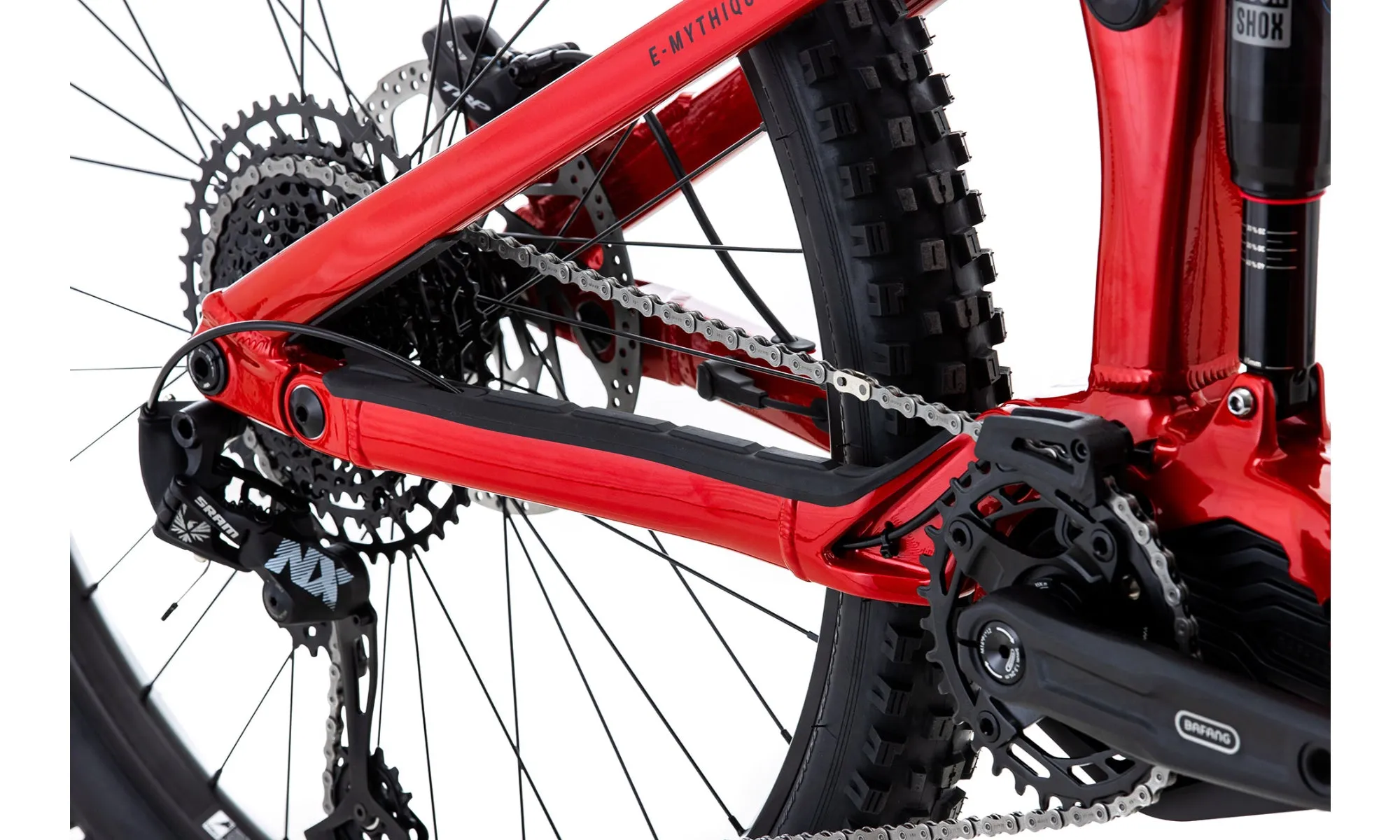

REAR DERAILLEURSRAM NX Eagle

12 Speed

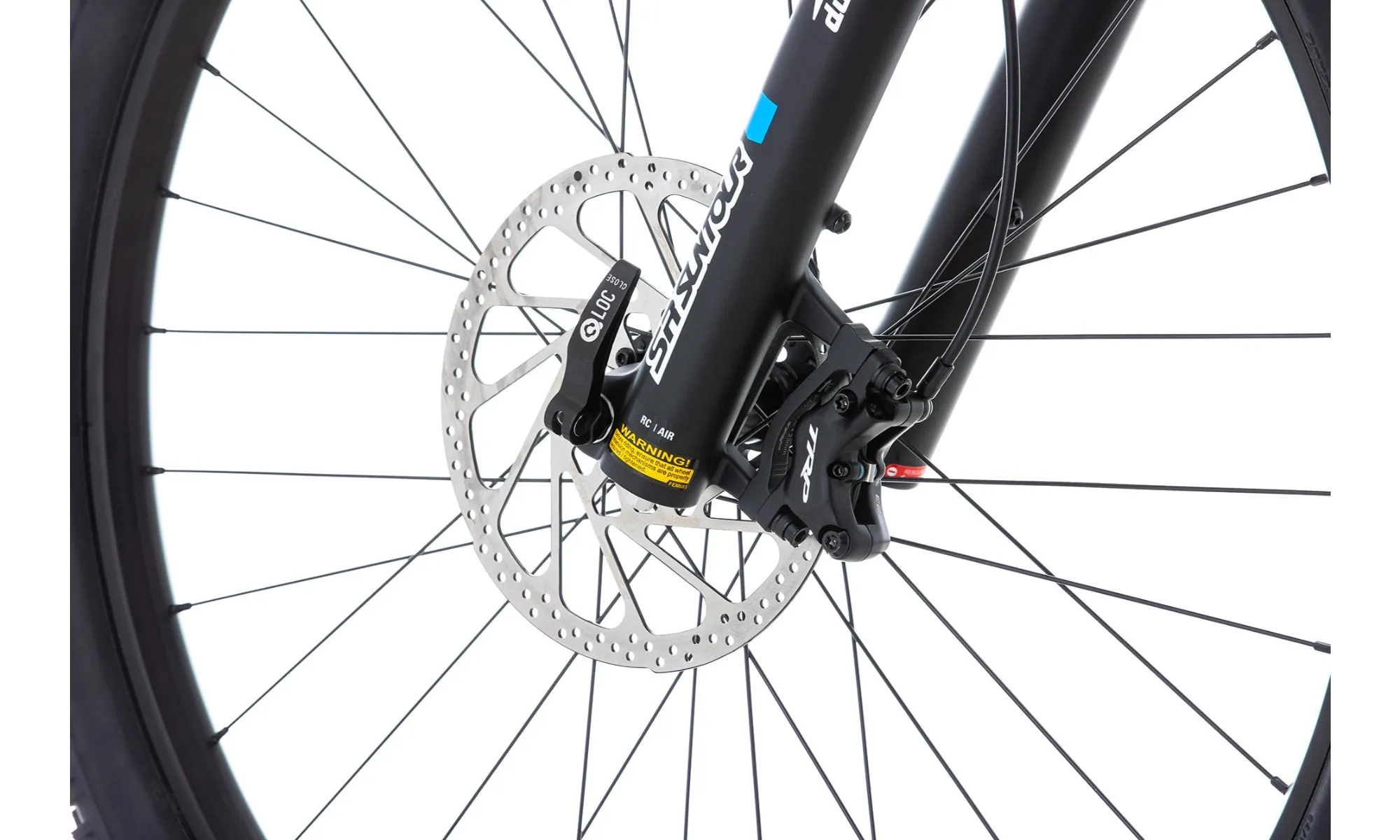

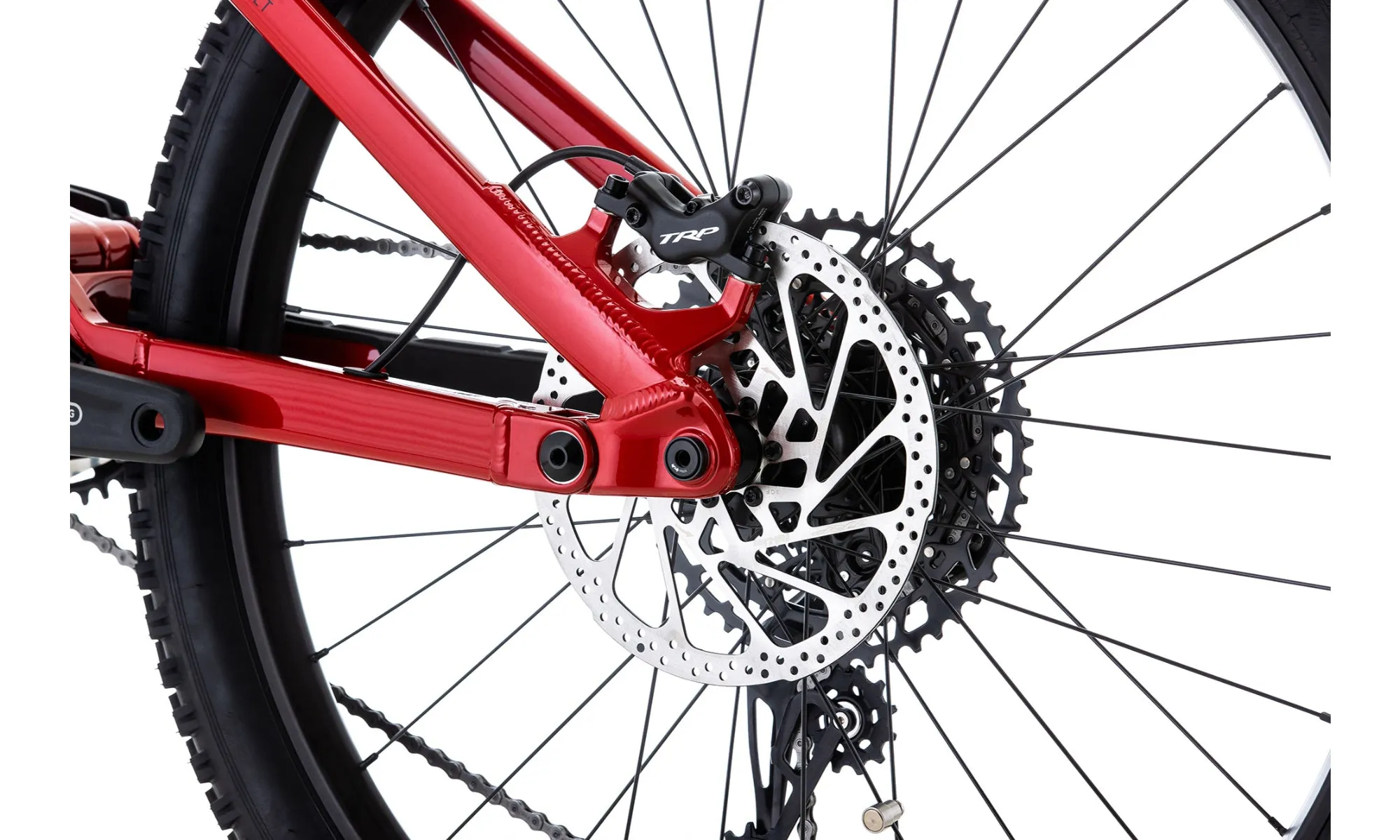

BRAKESTRP Slate EVO



HD-M807, Post Mount, Four Piston Caliper

SHIFTERSSRAM SX Eagle



12 Speed, Trigger Shifter

BRAKE ROTORSTRP RS01E



203mm Front & Rear, 6 Bolt Hub Fitment

CASSETTESRAM PG-1210 Eagle

12 Speed, 11-50T Range

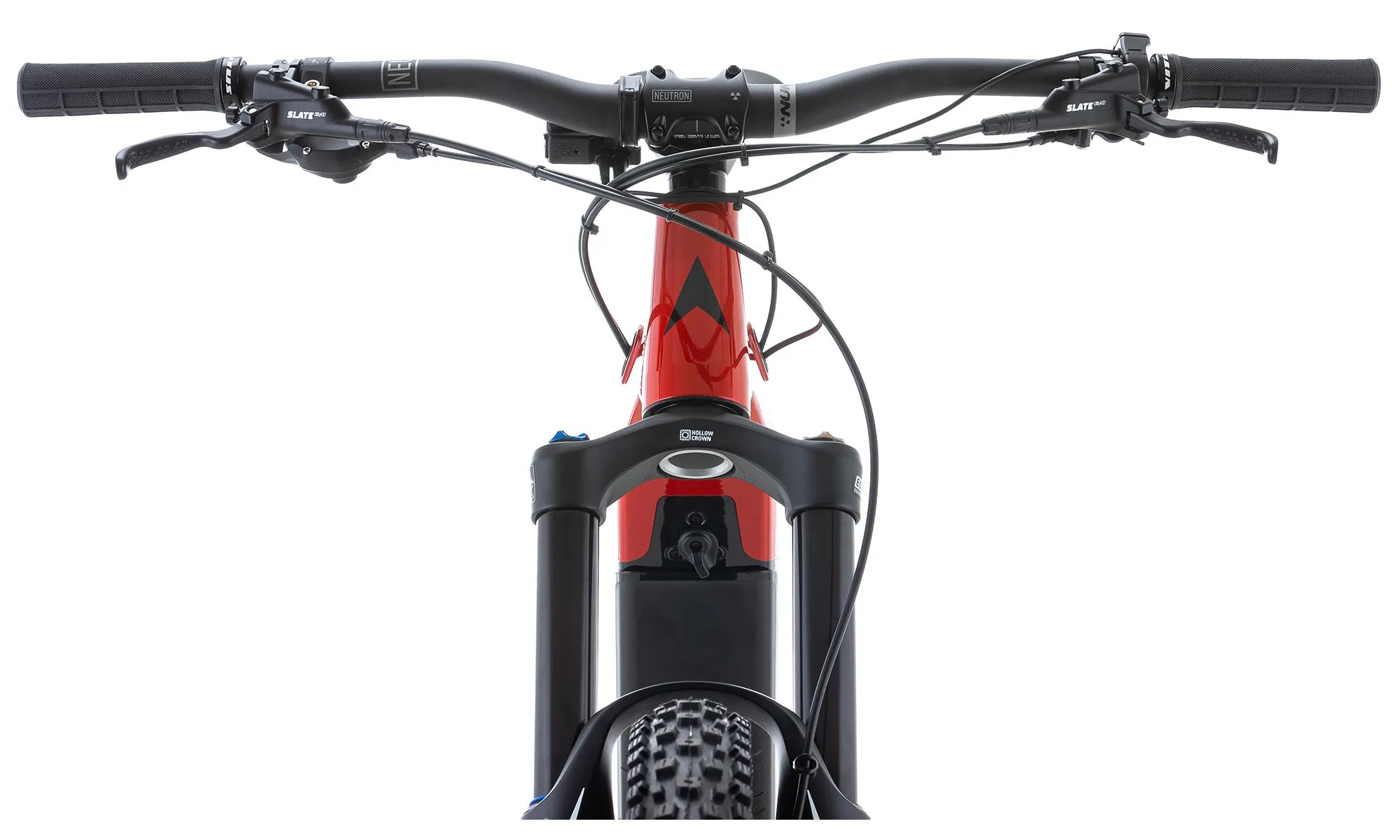

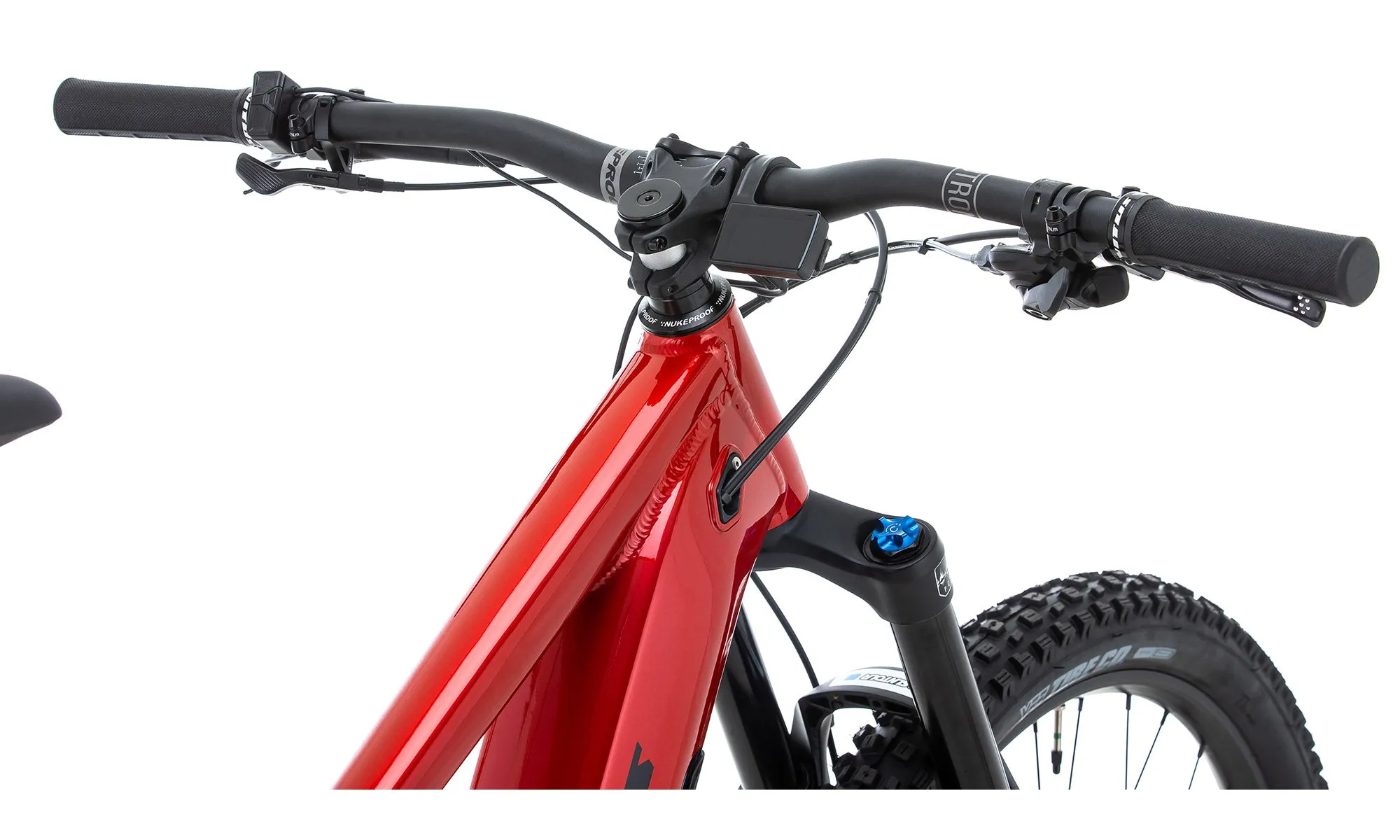

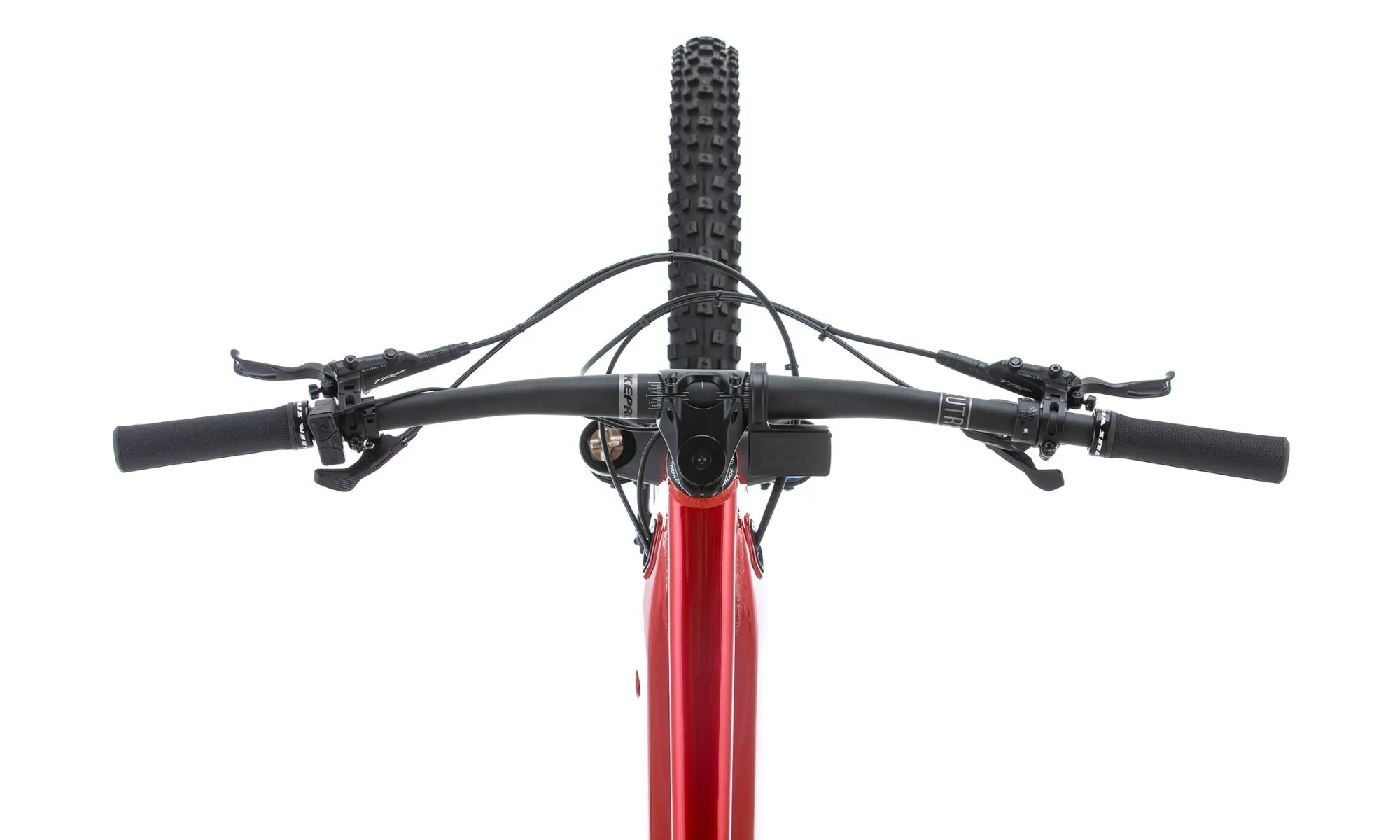

HANDLEBARSNukeproof Neutron V2 Riser



6061 Alloy, 9° Back Sweep, 31.8mm Clamp Diameter, S & M: 760mm Wide, 12mm Rise, L & XL: 780mm Wide, 25mm Rise

CHAINSRAM NX Eagle



12 Speed, 118 Links

STEMNukeproof Neutron



6061 Alloy, 45mm Reach, 0° Rise, 31.8mm Handlebar Clamp Diameter

MOTOR BATTERYBafang M510



630Wh, Downtube Integrated

HEADSETNukeproof



ZS44/28.6 upper & ZS56/40 lower to suit 1-1/8" upper tapered to 1.5" lower headtube

MOTOR COMPUTERBafang M510



Colour LCD Screen, 5 Modes

GRIPSVitus Lock On



N/A

MOTOR SHIFTERBafang M510



Mounted on left

SADDLENukeproof Neutron Saddle



Black, Steel Rails

MOTOR DRIVE UNITBafang M510



Max Power Output 250W, Max Torque 95Nm

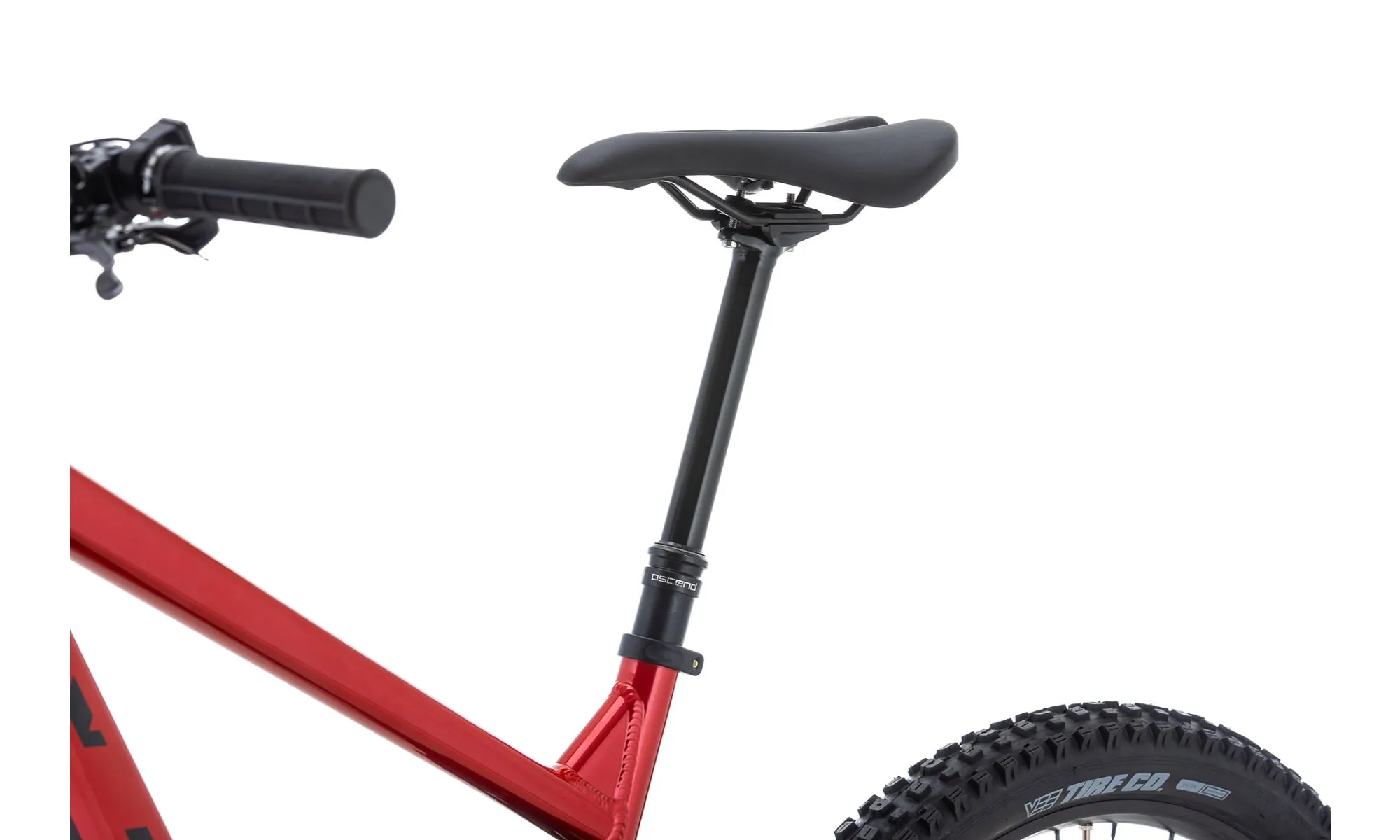

SEATPOSTBrand-X Ascend Dropper



Remote lever, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop

FRONT RIMWTB ST Light i30 TCS 2.0



29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed

SEATCLAMPVitus



34.9mm Diameter

Vitus E-Mythique LT 297 VRS Mountain Bike

  • Octane Red

$ 69.59

$ 90.47
