Product Details
＋

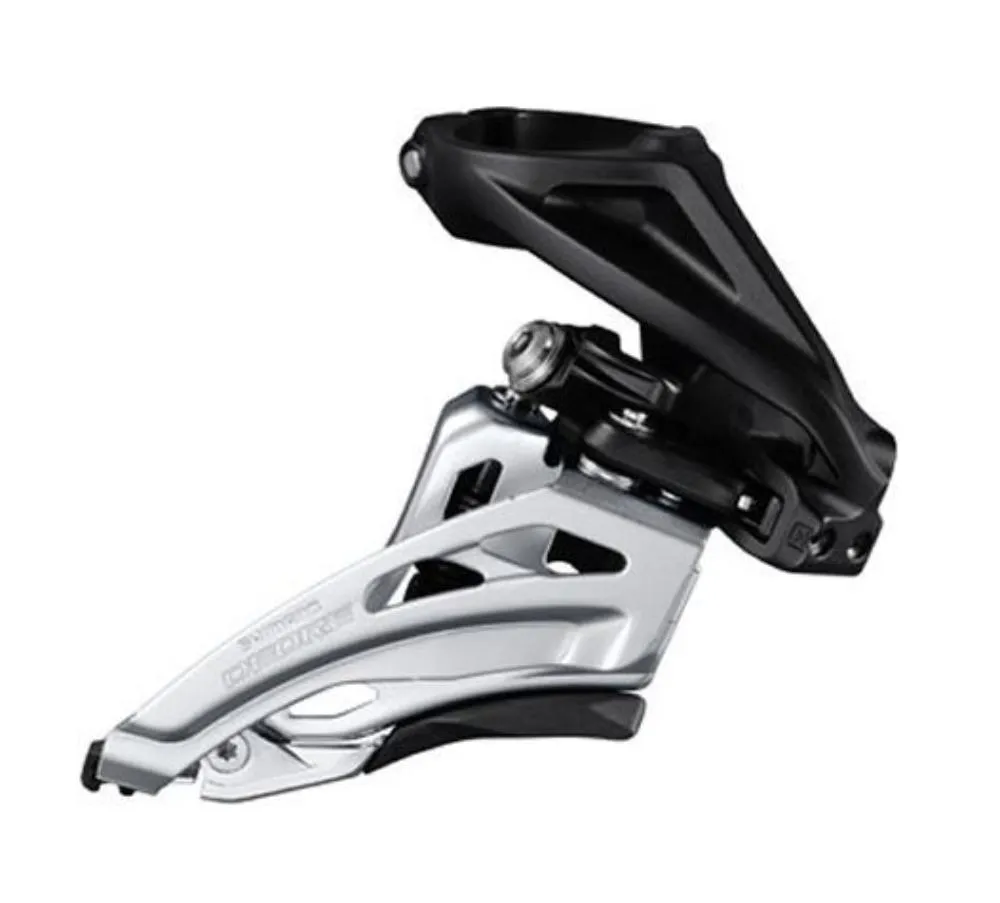

| Model No. | FD-M617-H |
| Series | DEORE M610 Series |
| Color | Black |
| Action_SIDE SWING | ✔ |
| Angled clamp band design | ✔ |
| Angled stroke adjust screw | ✔ |
| Cable route type_Front-Pull | ✔ |
| Chain line (mm) | 48.8 |
| Chain stay angle (deg.) | 66-69 |
| Compatible chain | HG-X 10-speed |
| Link bushings | 4 |
| Mount_Clamp Band (mm)_28.6 | X (w/ S size adapter) |
| Mount_Clamp Band (mm)_31.8 | X (w/ M size adapter) |
| Mount_Clamp Band (mm)_34.9 | ✔ |
| Top gear teeth | 36-38T |
| Total capacity | 14T |
| Front speeds | 2 |
| Rear speeds | 10 |
