Product Details

Turn it up. Right up. Redefine your trail riding and raise the bar for raw joy. The Vitus Escarpe 290 AMP Mountain Bike is full volume for when you need to go full-send. No half measures. Everything cranked up to 11. We’ve cut no corners in the build, so you can take any line on the trail.

That’s not to say that things are getting out of hand here. Far from it. The full-carbon frame is beautifully balanced, so it flows like mercury along the trail. You ride hard and fast, and the AMP keeps you on the right side of finding the limit. No surprises. The carbon chassis is married with the finest components to keep weight down, so acceleration comes easily and climbs are less of a drag. And with soft rubber on the chainstays, the only soundtrack is the song from a happy freewheel or the shred of your tyres through dirt. Plus your own whoopin’ and hollerin’, of course. If first back gets the beers in, there might be a few rounds on you.

Whether braking hard, pushing more power or negotiating a twisty descent, your centre of gravity is rarely constant, so key to the whole system is efficiency. To deal with the dynamic nature of trail riding, the Escarpe stays predictable and consistent so that you can stay loose. No white knuckles here. The suspension kinematics have been enhanced compared to the previous platform, further countering the effects of pedal-bob and reducing the harshness of small bumps and trail vibrations that drain your energy and kill speed. Smooth and fast for longer. With an adjustable flip-chip, that can raise the bottom bracket by 6mm and increase the head angle, you can also customise the setup to best suit how and where you ride. Whatsmore, geometry and performance are optimised throughout the size range, so whether you are S or XL, there’s no compromise on how this bike feels.

When riding trails there’s enough to think about without having to consider how the bike is going to respond to the next turn or obstacle. You should just know. It should do what you need it to. No back-chat and no fight. On the Escarpe you don’t have to compensate or compromise. You don’t have to adjust your style. Just ride. Just concentrate on having fun.

  • Full T800 frame sheds weight for a truly responsive ride
  • RockShox Lyrik Ultimate & Deluxe Ultimate RCT suspension
  • SRAM X0 T-Type 1x12 speed wireless drivetrain with wireless Reverb dropper
  • Powerful SRAM Code RSC 4 piston hydraulic disc brakes
  • Nukeproof Horizon V2 tubeless ready wheelset with tape applied
  • Confidence inspiring Maxxis Assegai & Dissector tyres

Carbon/Alloy Escarpe Trail Platform

Modern geometry with adjustable flip chip, improved suspension kinematics and a smile inducing ride.

Frame Material

Full T800 carbon fibre front & rear triangles

Suspension Travel (MTB Only)

150mm Front, 140mm Rear

Wheel Size

29"

Available Size

S, M, L, XL

Colour

Vitus Green

Weight:

Medium: 13.8kg (tubeless setup)



Specifications

FRAMEEscarpe full T800 carbon front & rear triangles

Internal cable routing, post disc brake mounts, BSA threaded BB, Boost hub spacing – 148mm x 12mm thru axle. Axle Specifications: 180mm Length, 13mm Thread Length, M12xP1.0 Thread Pitch

REAR HUB Nukeproof Horizon V2

32H, 6 Bolt Disc Fitment, XD Freehub, 148mm x 12mm

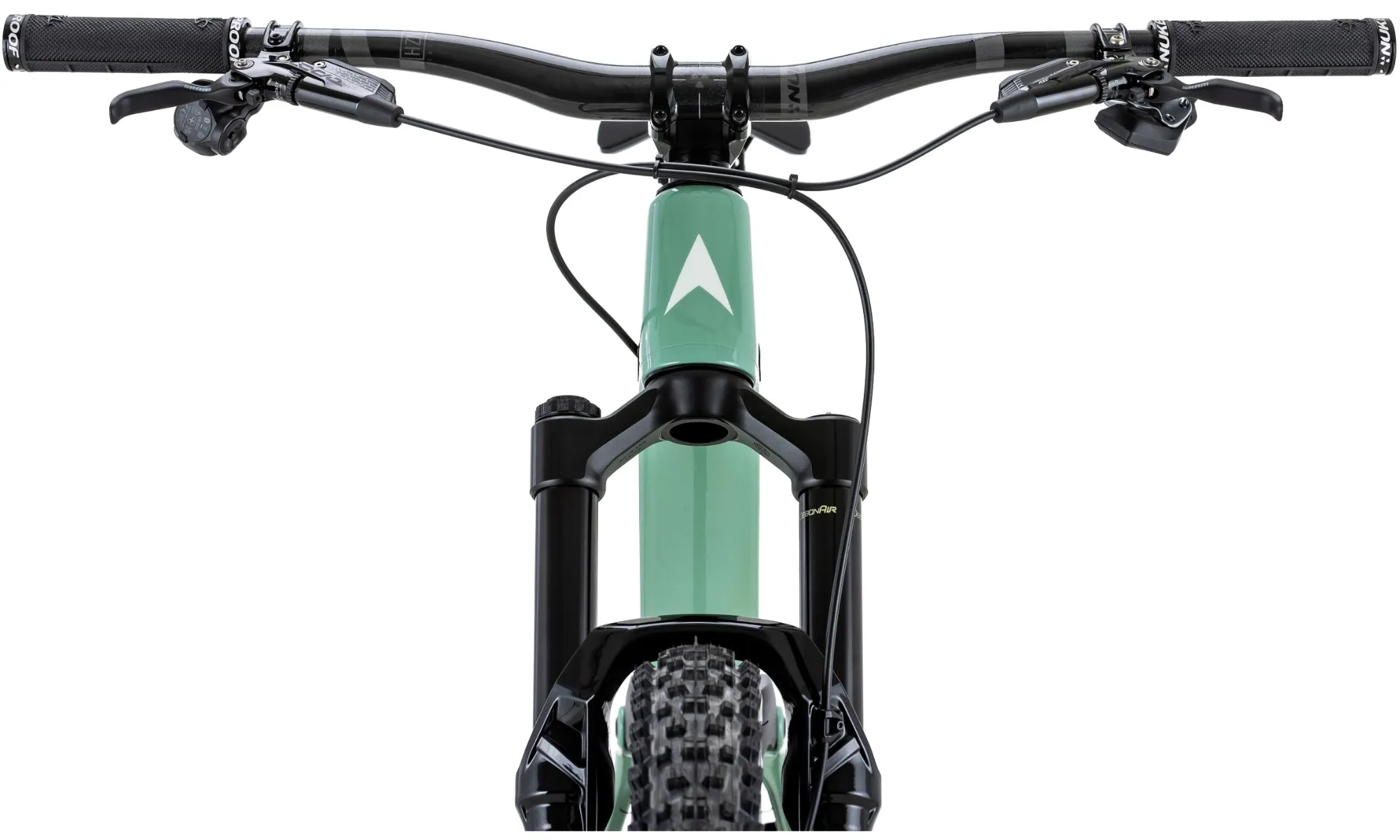

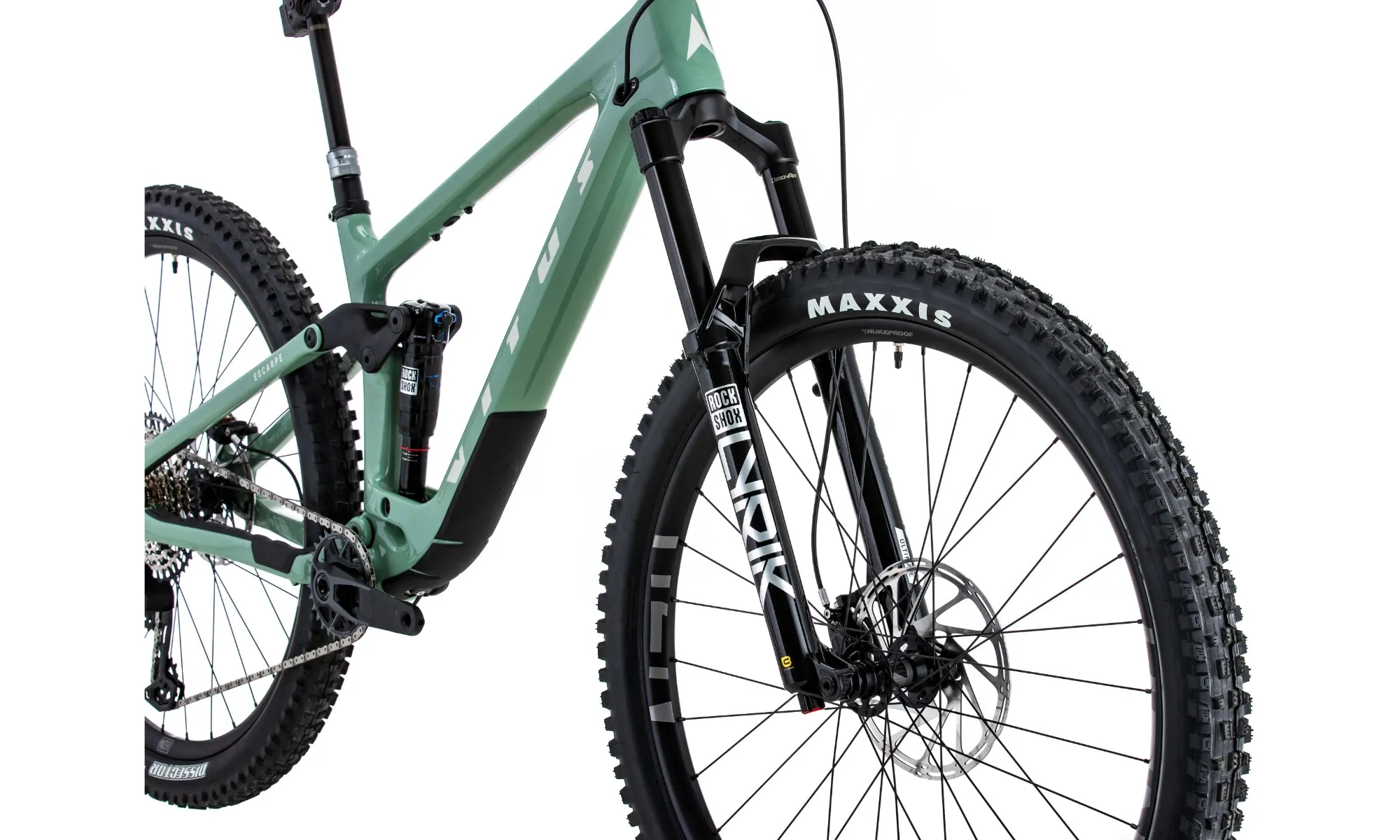

FORKSRockShox Lyrik Ultimate 29"

150mm travel, Charger 3 RC2 damper with ButterCups, DebonAir, 35mm stanchions, 110mm x 15mm Maxle Stealth axle, 44mm offset

WHEELSETNukeproof Horizon V2 Wheelset



29", 32H, 6 Bolt, Boost 110mm x 15mm Front & 148mm x 12mm Rear Hub Spacing, XD Freehub, Tubeless Ready

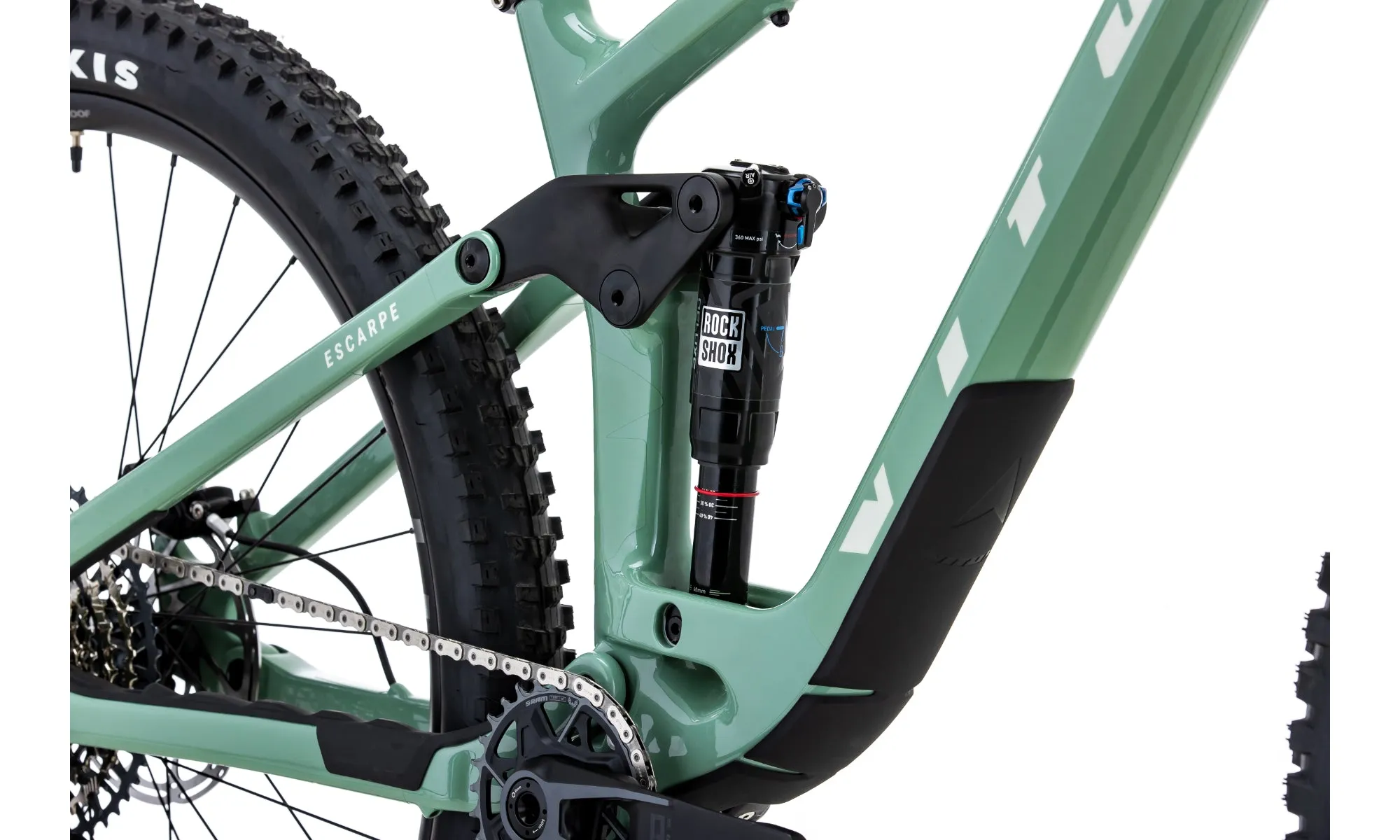

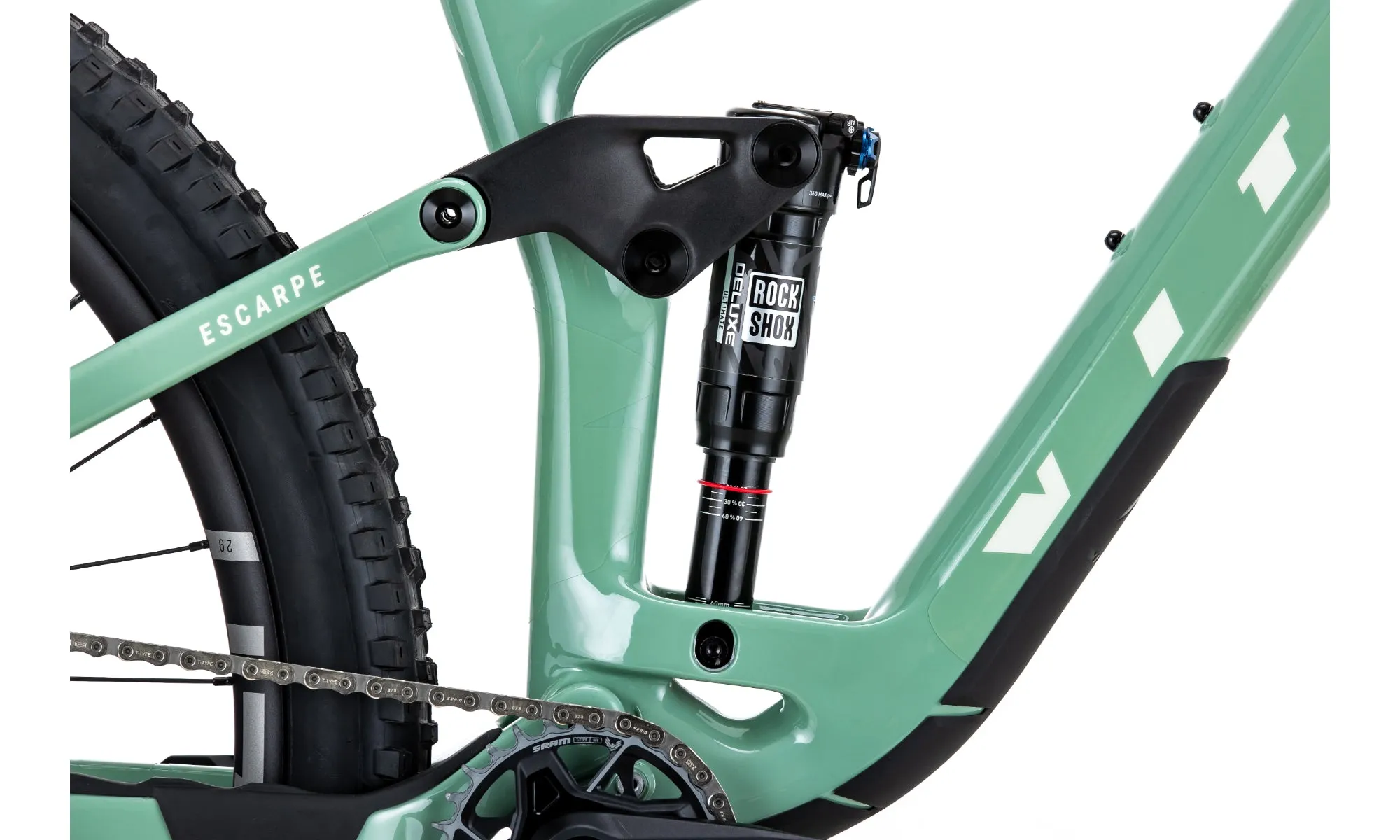

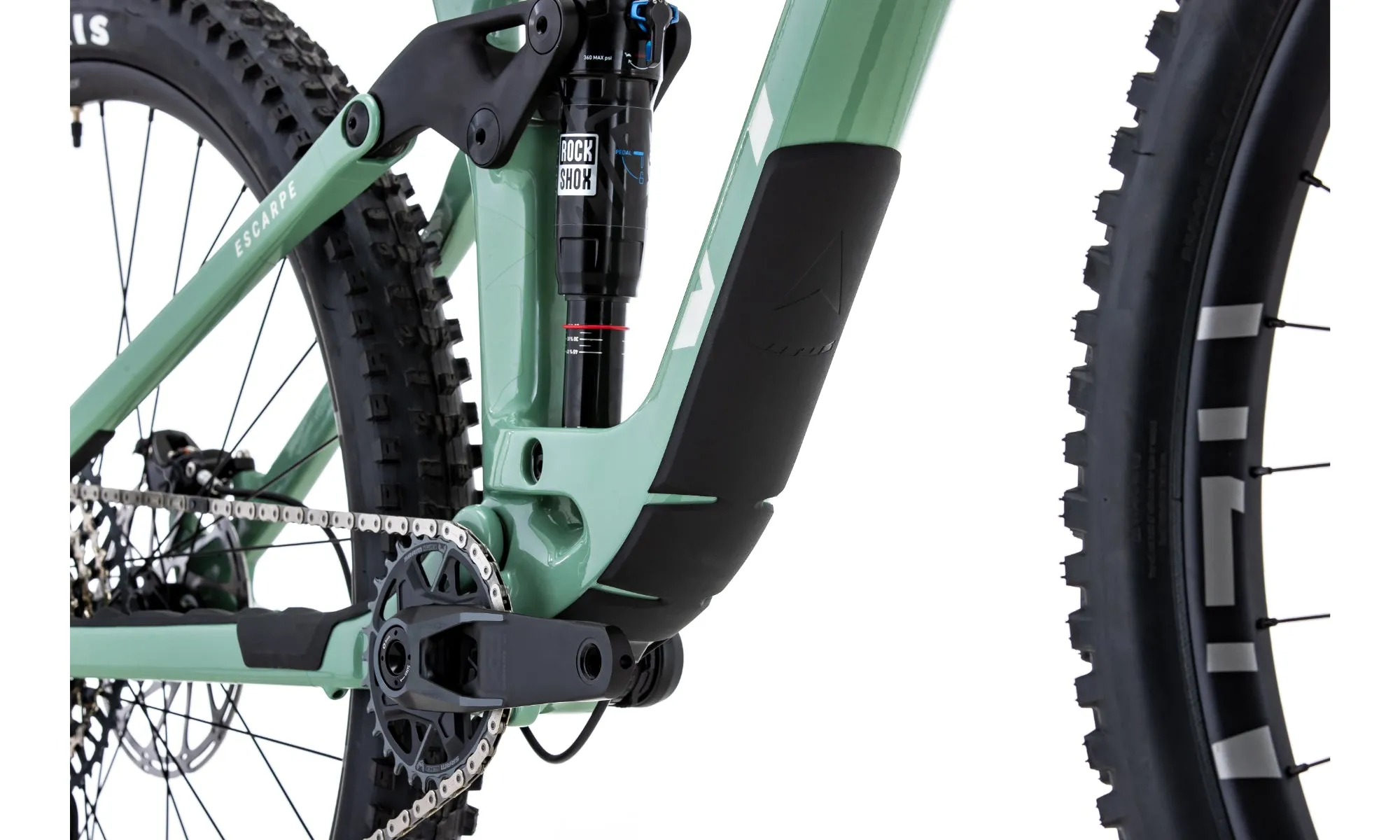

SHOCKRockShox Deluxe Ultimate RCT

205mm x 60mm, DebonAir, trunnion

FRONT TYREMaxxis Assegai

29" x 2.50" WT, 3C MaxxTerra compound, EXO casing

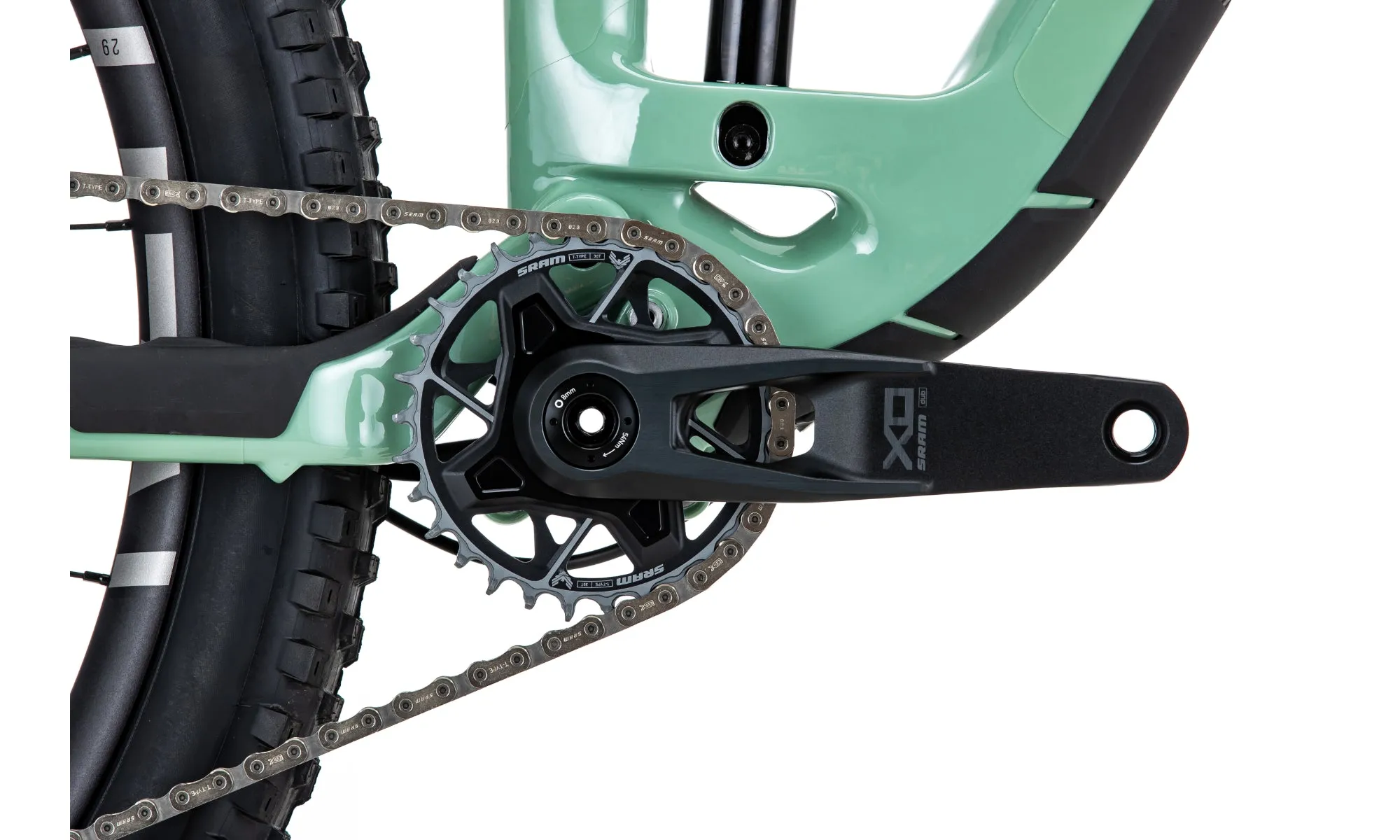

CHAINSETSRAM X0 Eagle T-Type

12 Speed, 30T Narrow Wide Chainring, 170mm Crank Length

REAR TYREMaxxis Dissector

29" x 2.4" WT, 3C MaxxTerra compound, EXO casing

BOTTOM BRACKETSRAM DUB

BSA Threaded BB, 73mm Shell

BRAKESSRAM Code RSC

Post Mount, Four Piston Caliper

FRONT DERAILLEURN/A

N/A

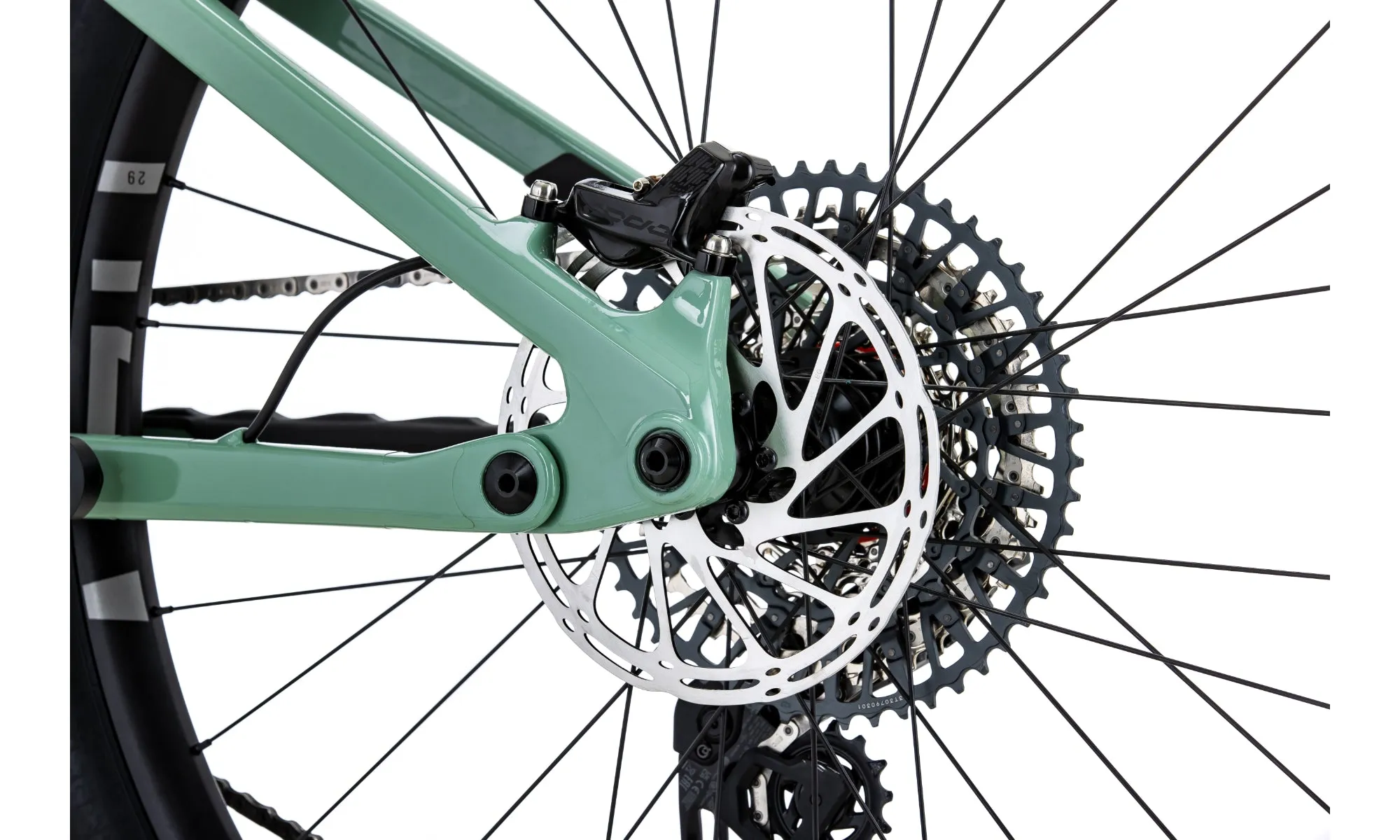

BRAKE ROTORSSRAM CenterLine

200mm Front, 180mm Rear, 6 Bolt Hub Fitment

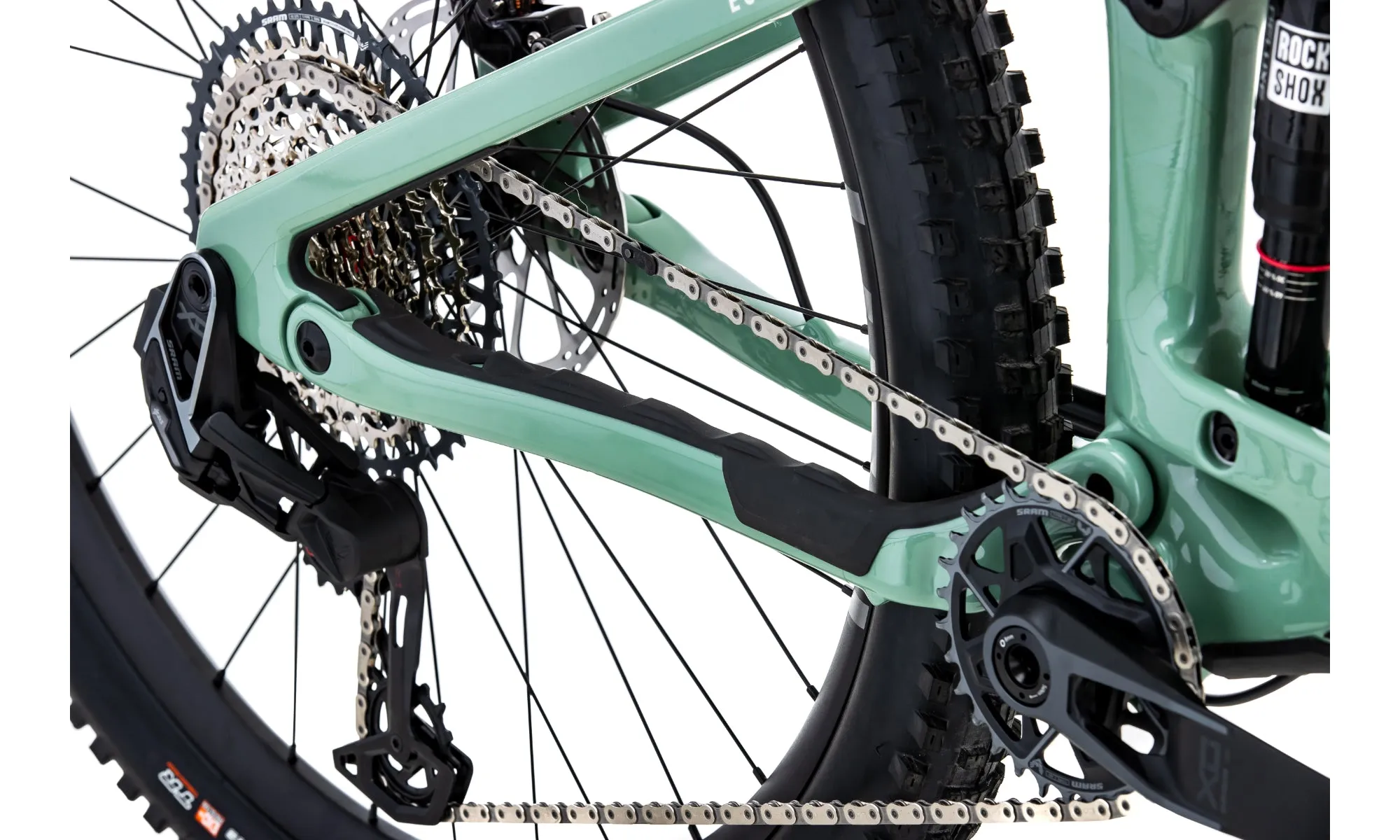

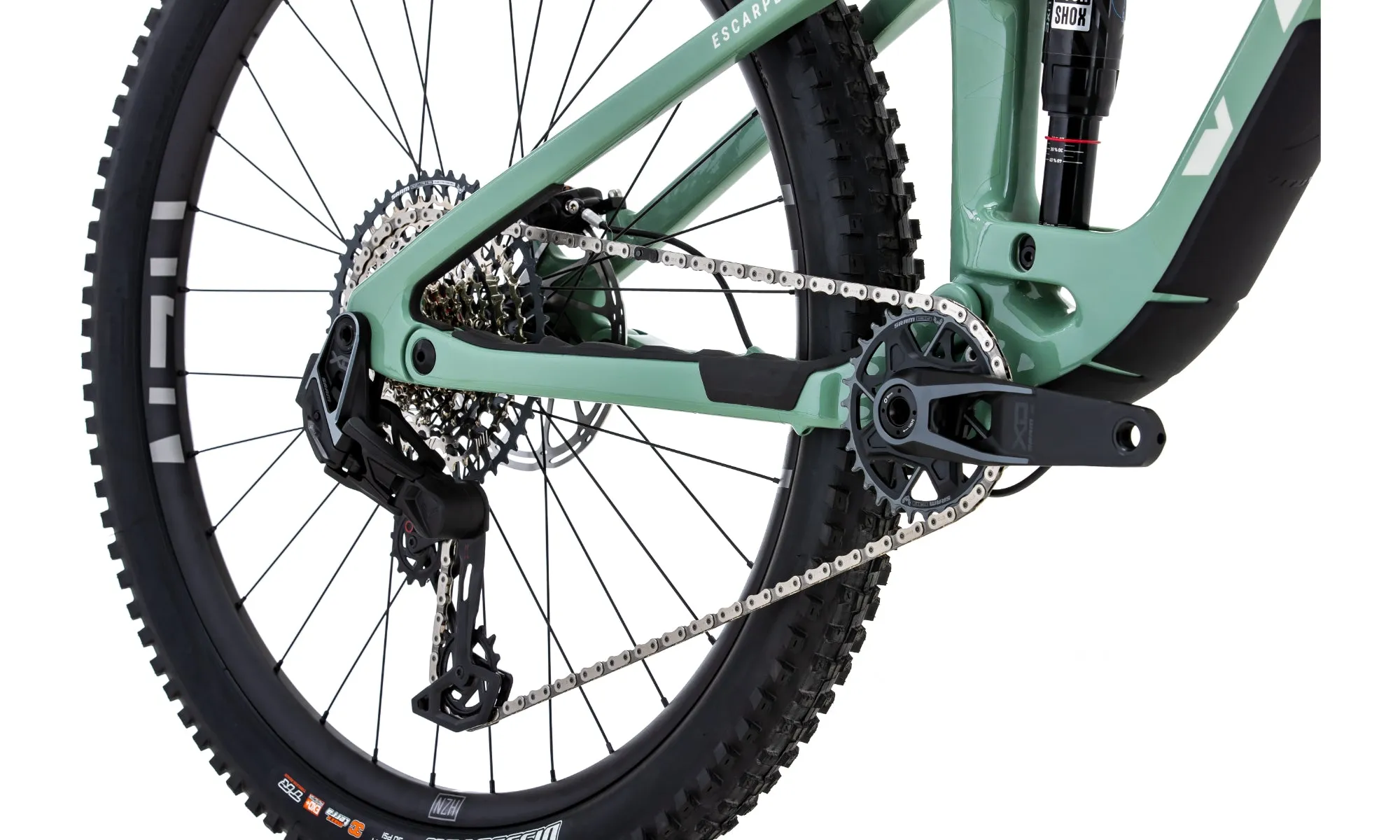

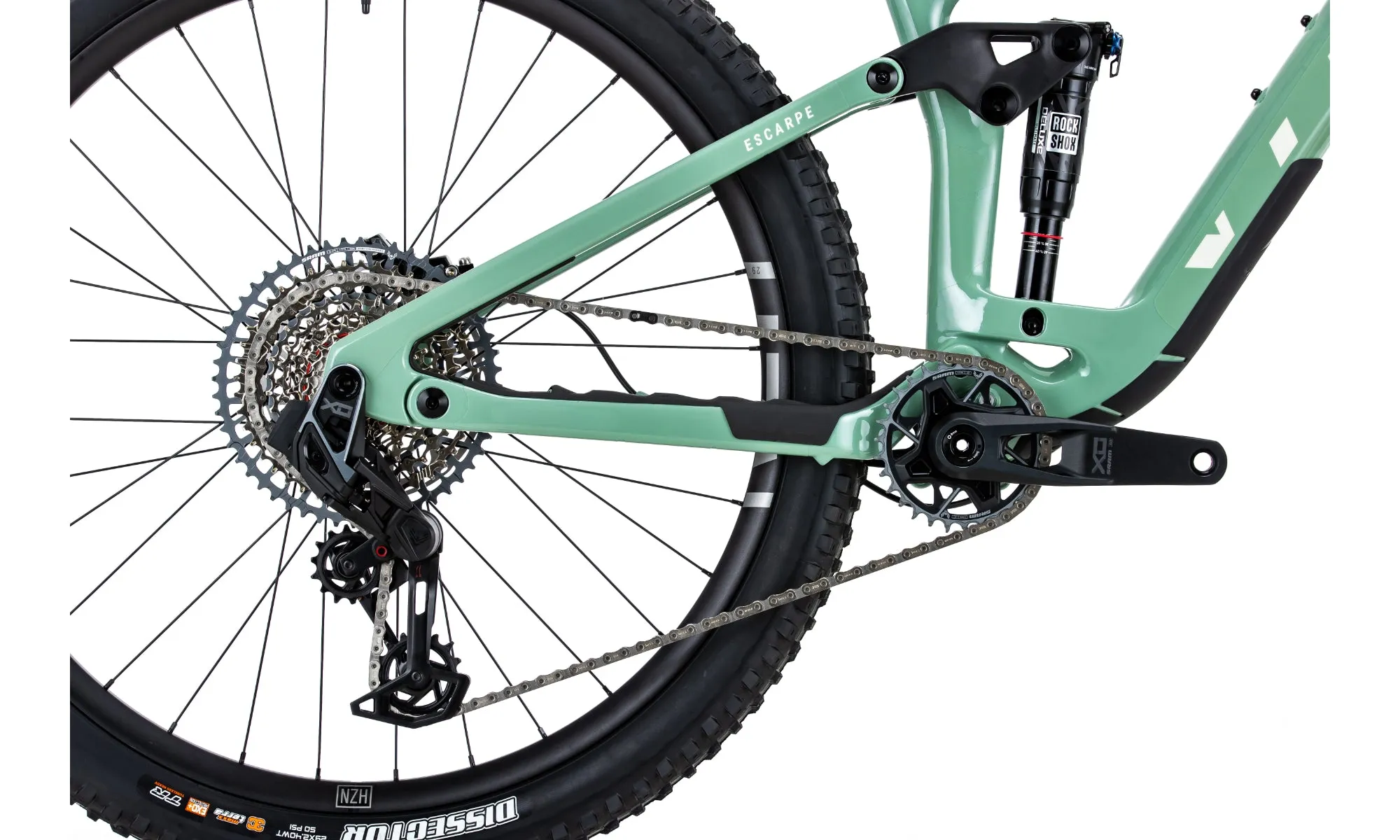

REAR DERAILLEURSRAM X0 Eagle T-Type AXS

12 Speed, Wireless Electronic, Long Cage

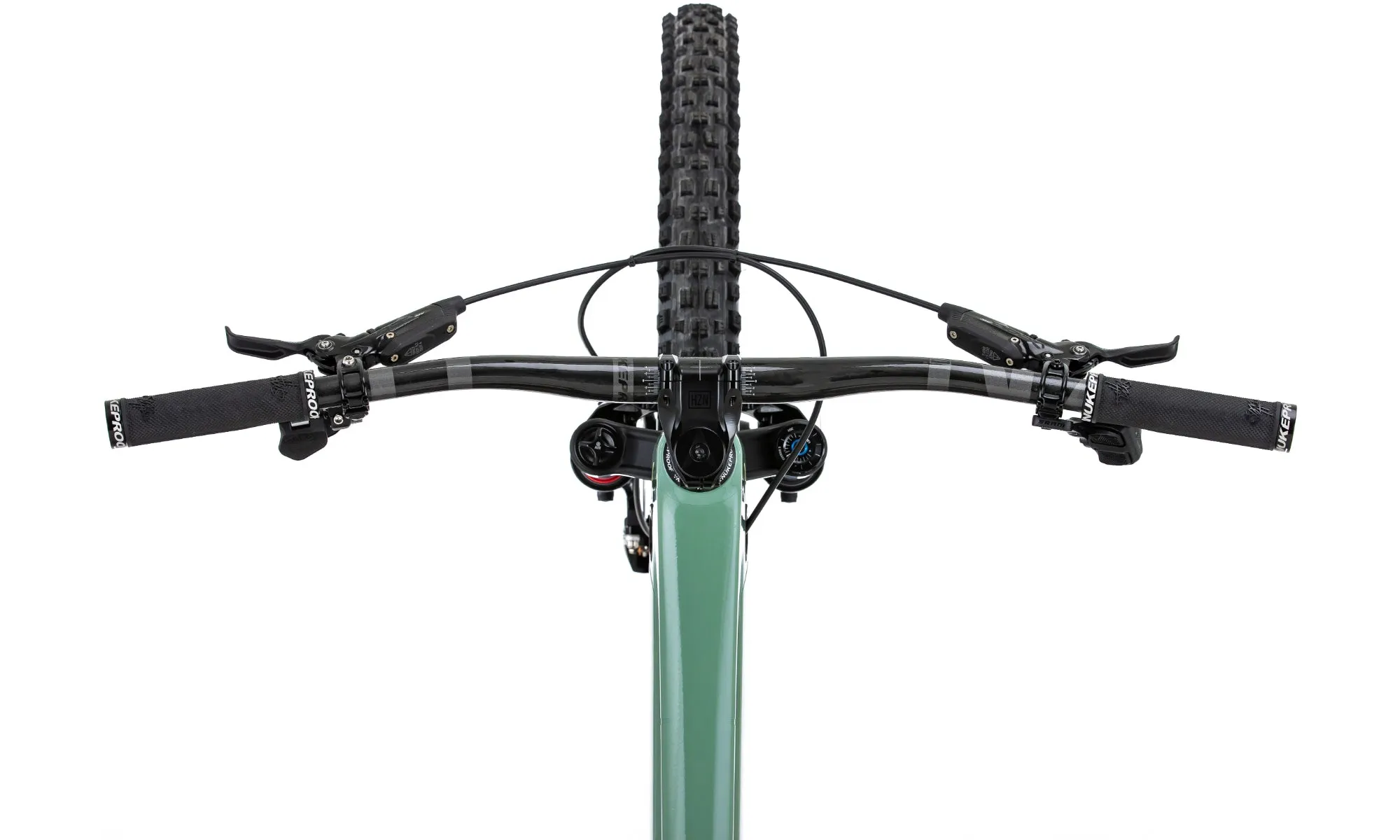

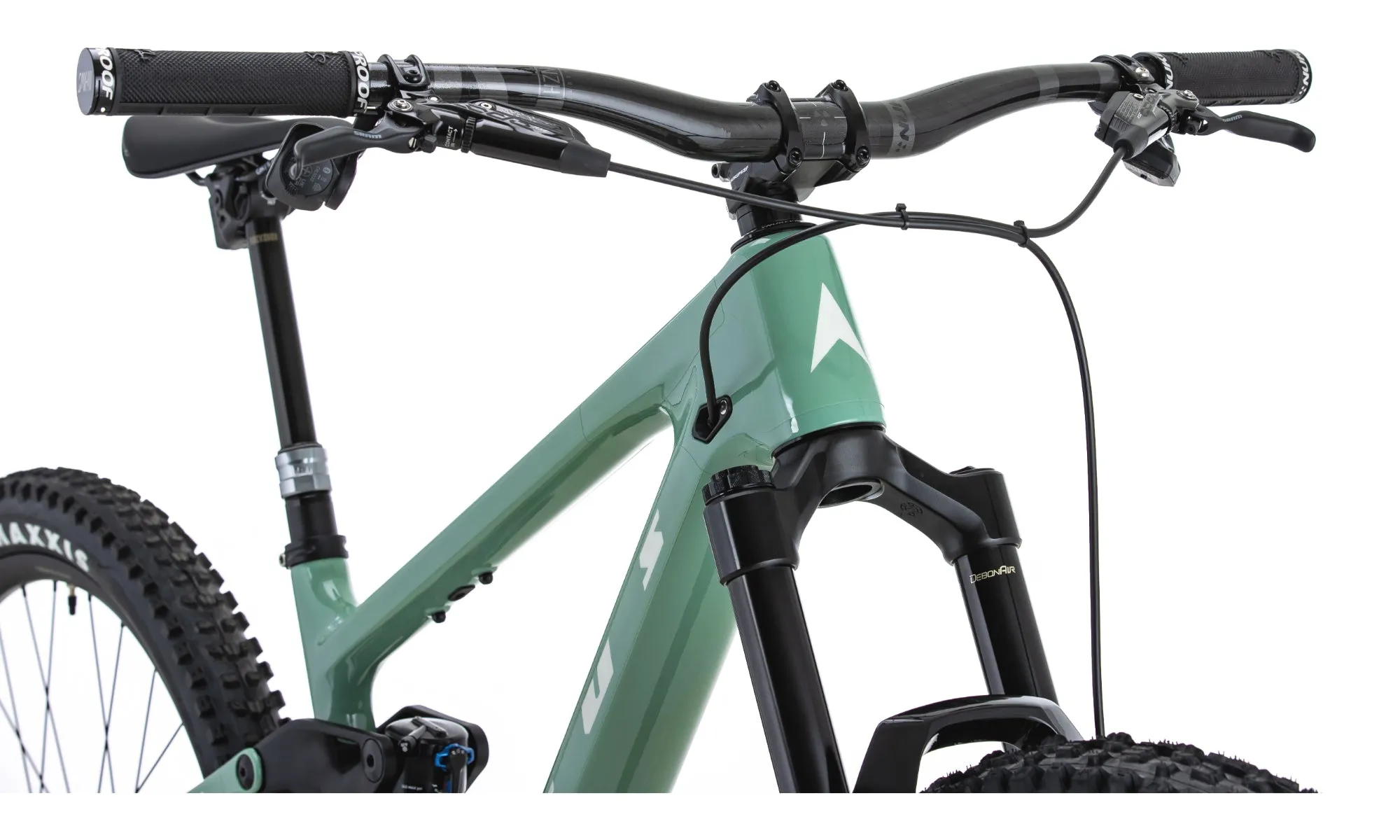

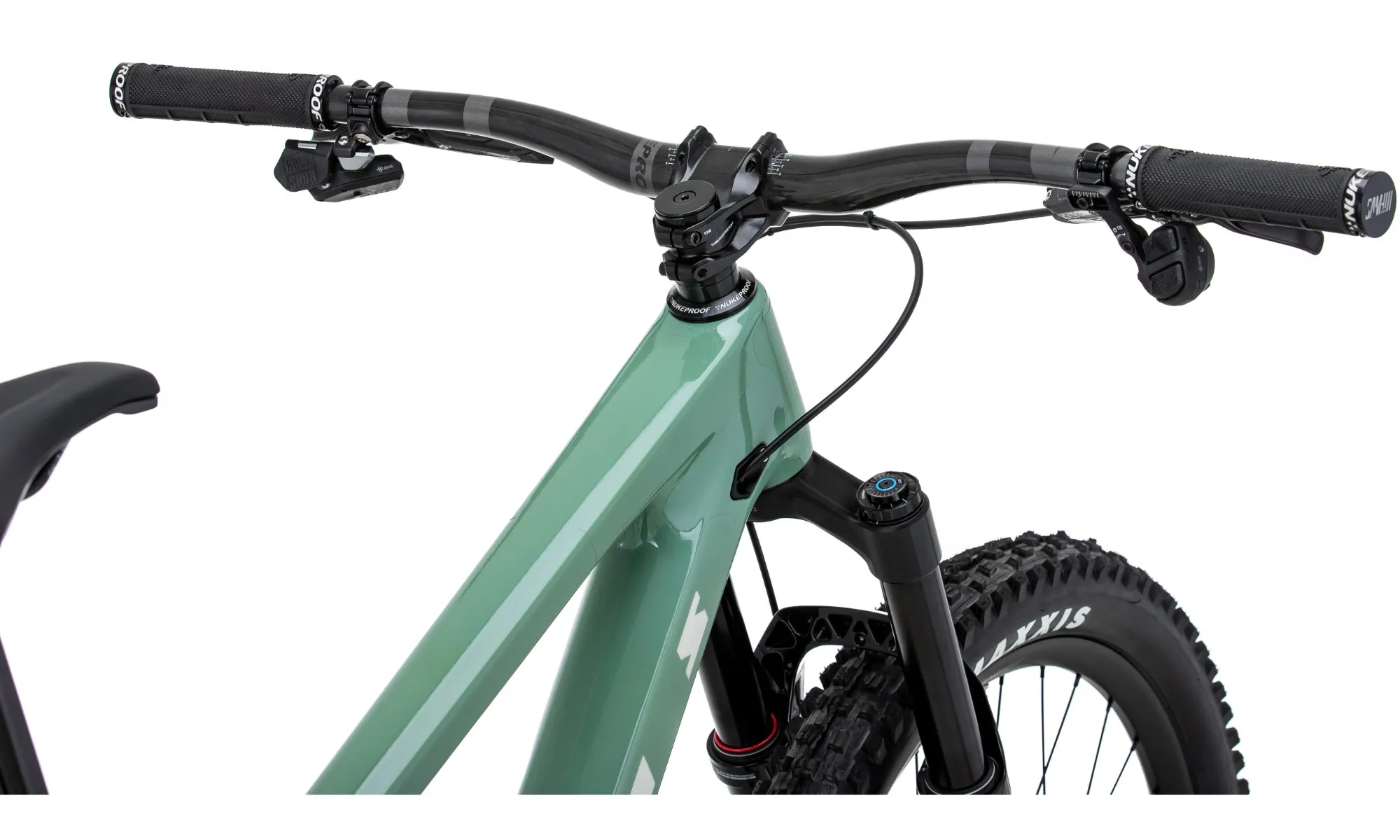

HANDLEBARSNukeproof Horizon V2 Carbon Riser



25mm Rise, 9° Back Sweep, 31.8mm Clamp Diameter, 780mm Wide

SHIFTERSSRAM AXS Pod Controller



12 Speed, Wireless Electronic, MMX Clamp

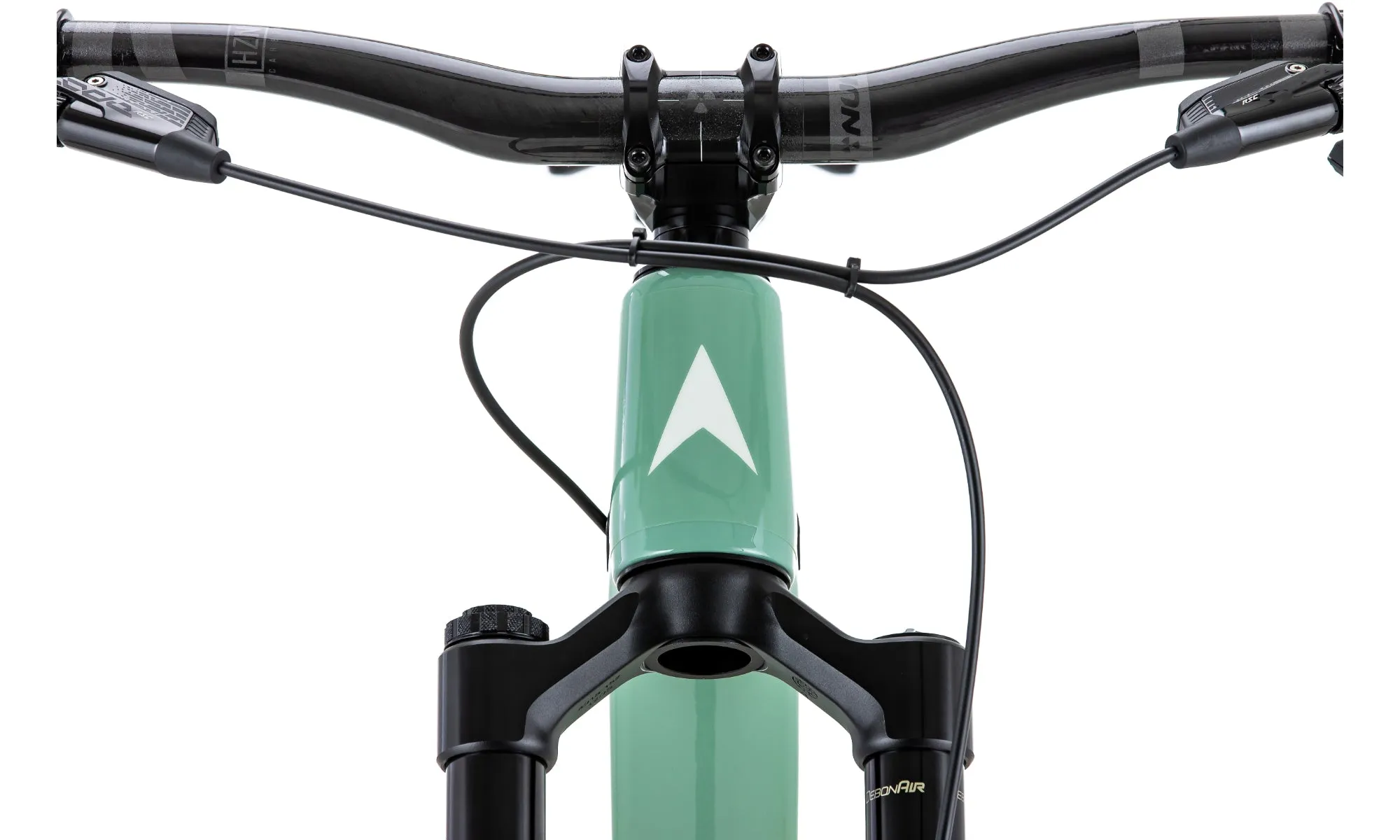

STEMNukeproof Horizon



6061 Alloy, 50mm length, 31.8mm Handlebar Clamp Diameter, 5° Rise

CASSETTESRAM Transmission

12 Speed, 10-52T Range

HEADSETNukeproof



ZS44/28.6 upper & ZS56/40 lower to suit 1-1/8" upper tapered to 1.5" lower headtube

CHAINSRAM Transmission



12 Speed, 118 Links

GRIPSNukeproof Sam Hill



Enduro Race Super Soft Grips

FRONT RIMNukeproof Horizon V2



29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed

SADDLENukeproof Horizon Enduro Saddle



Black, Ti Alloy Rails

REAR RIMNukeproof Horizon V2



29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed

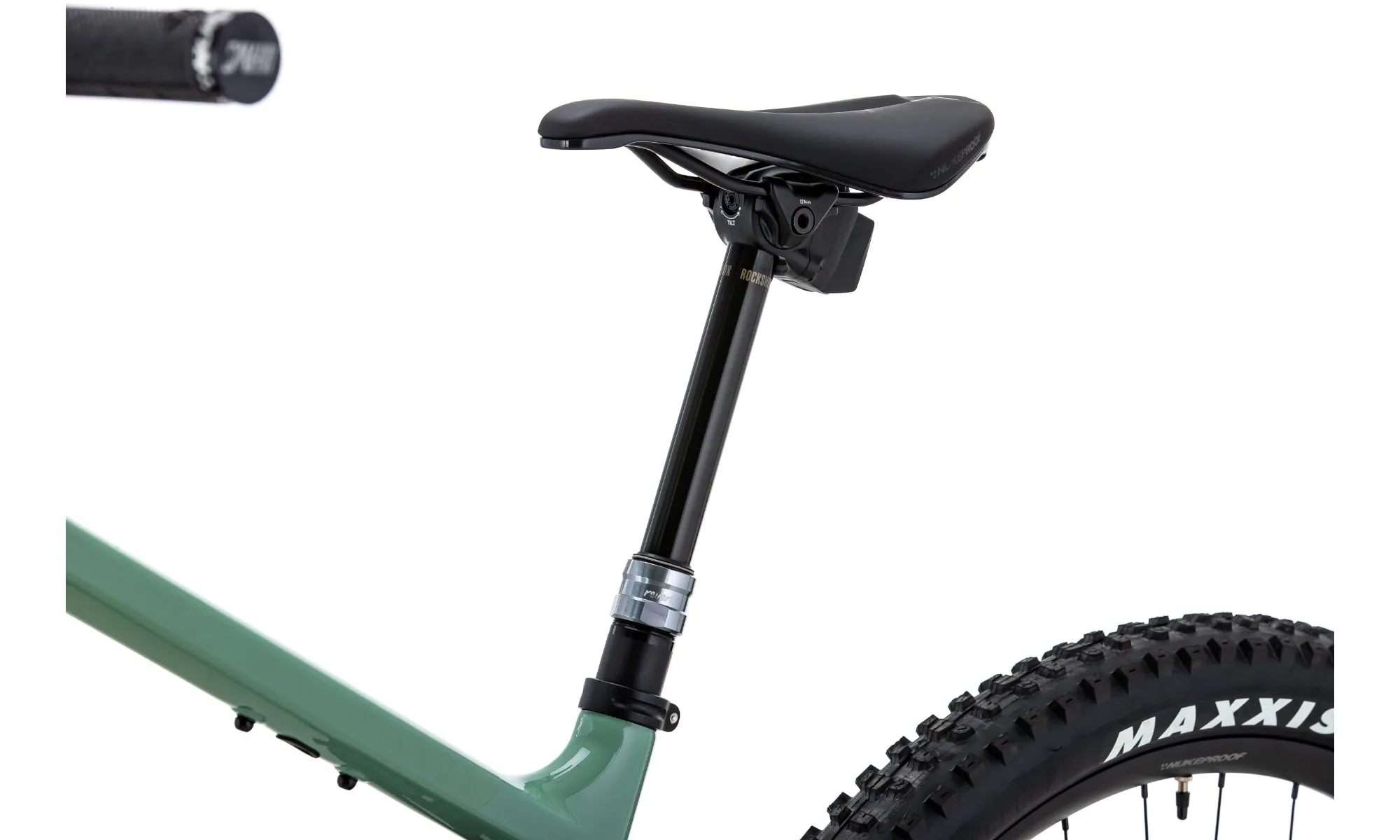

SEATPOSTRockShox Reverb AXS



Wireless Electronic, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop

FRONT HUBNukeproof Horizon V2



32H, 6 Bolt Disc Fitment, 110mm x 15mm

SEATCLAMPVitus



36.4mm Diameter

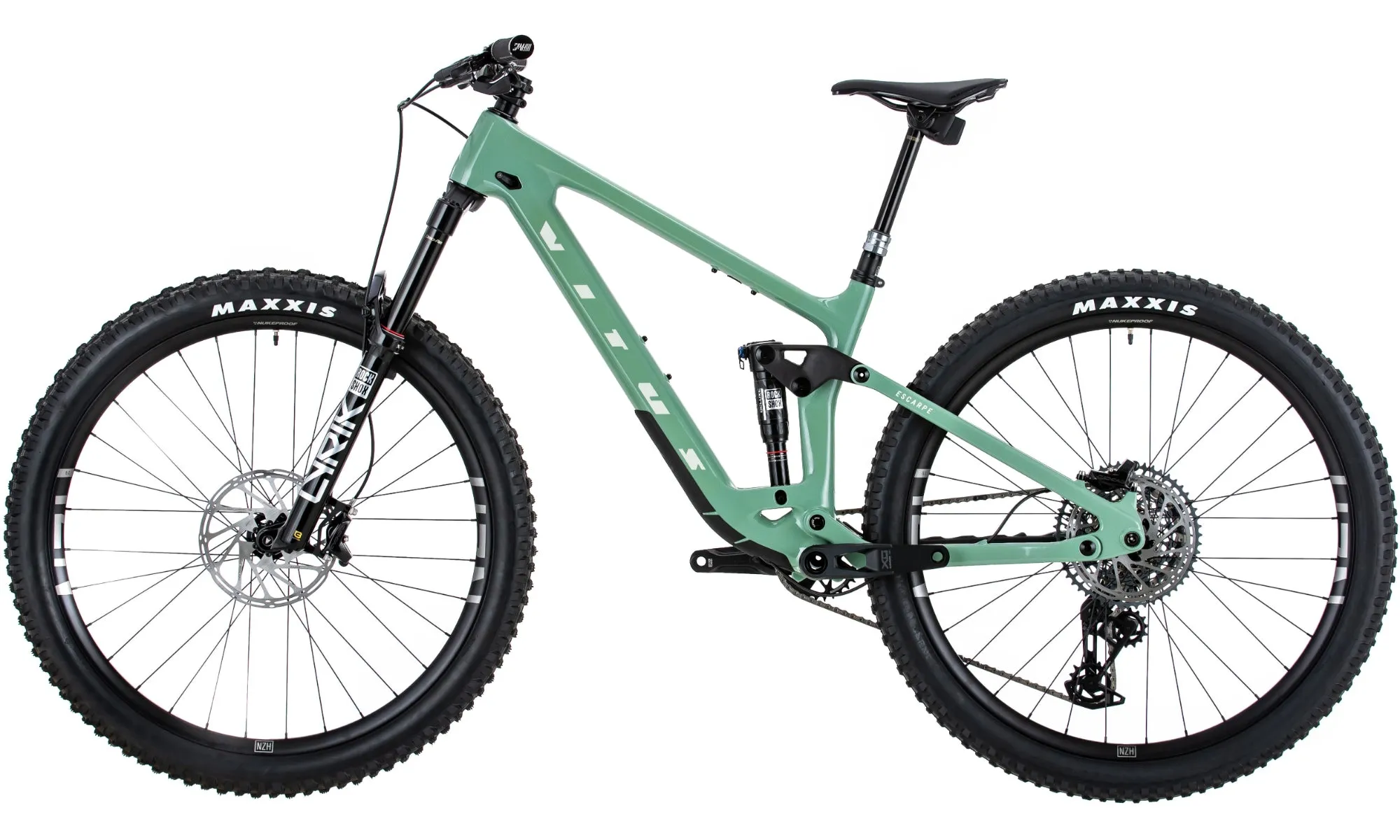

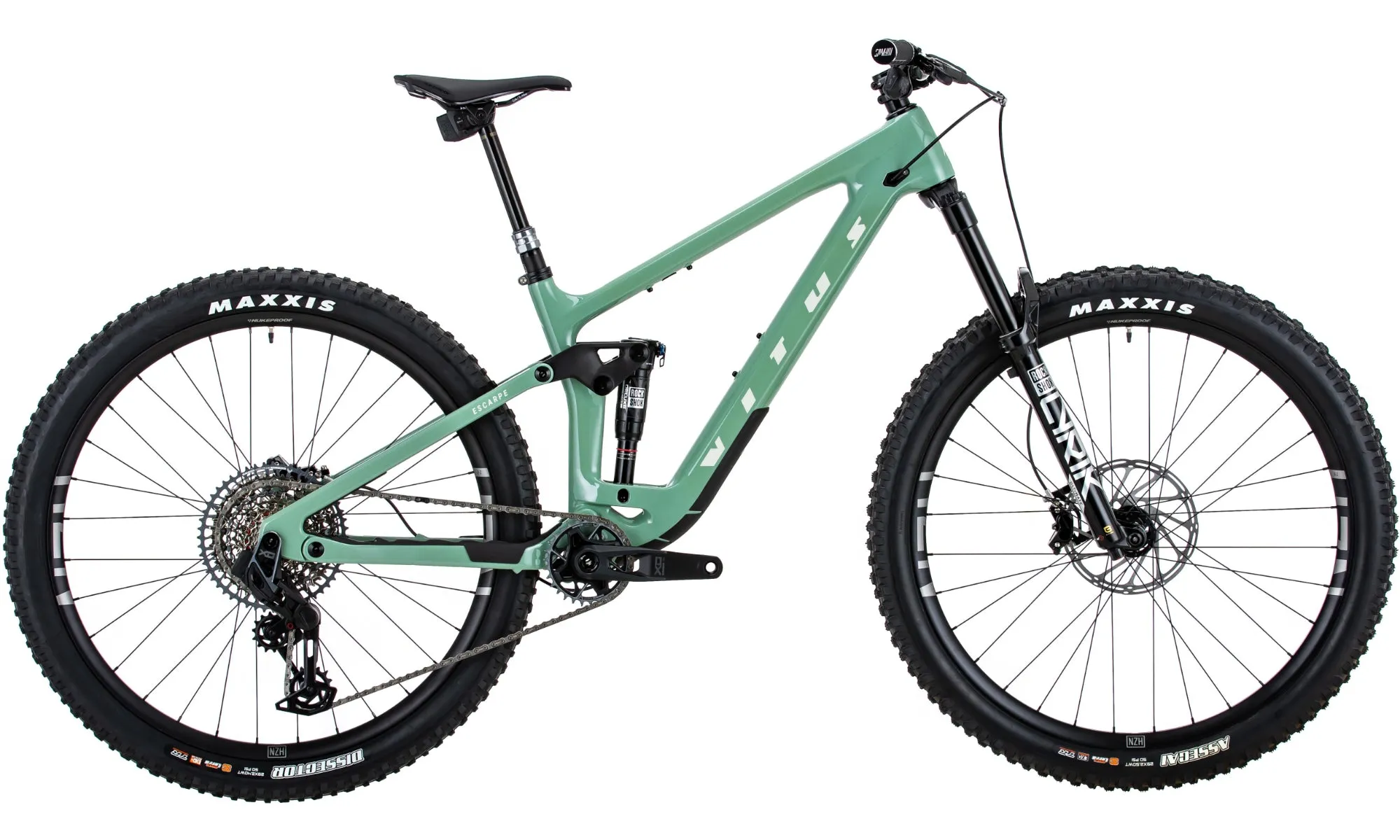

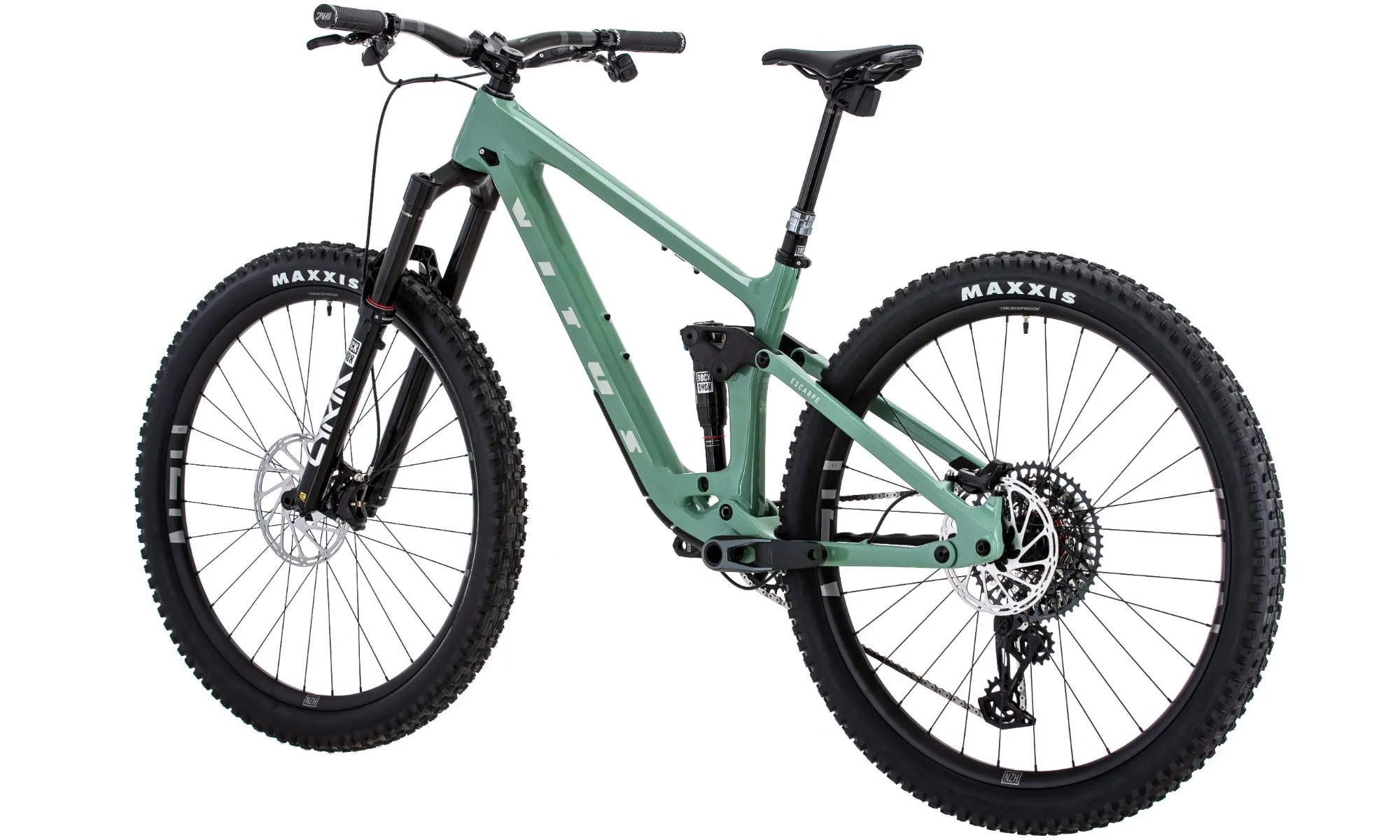

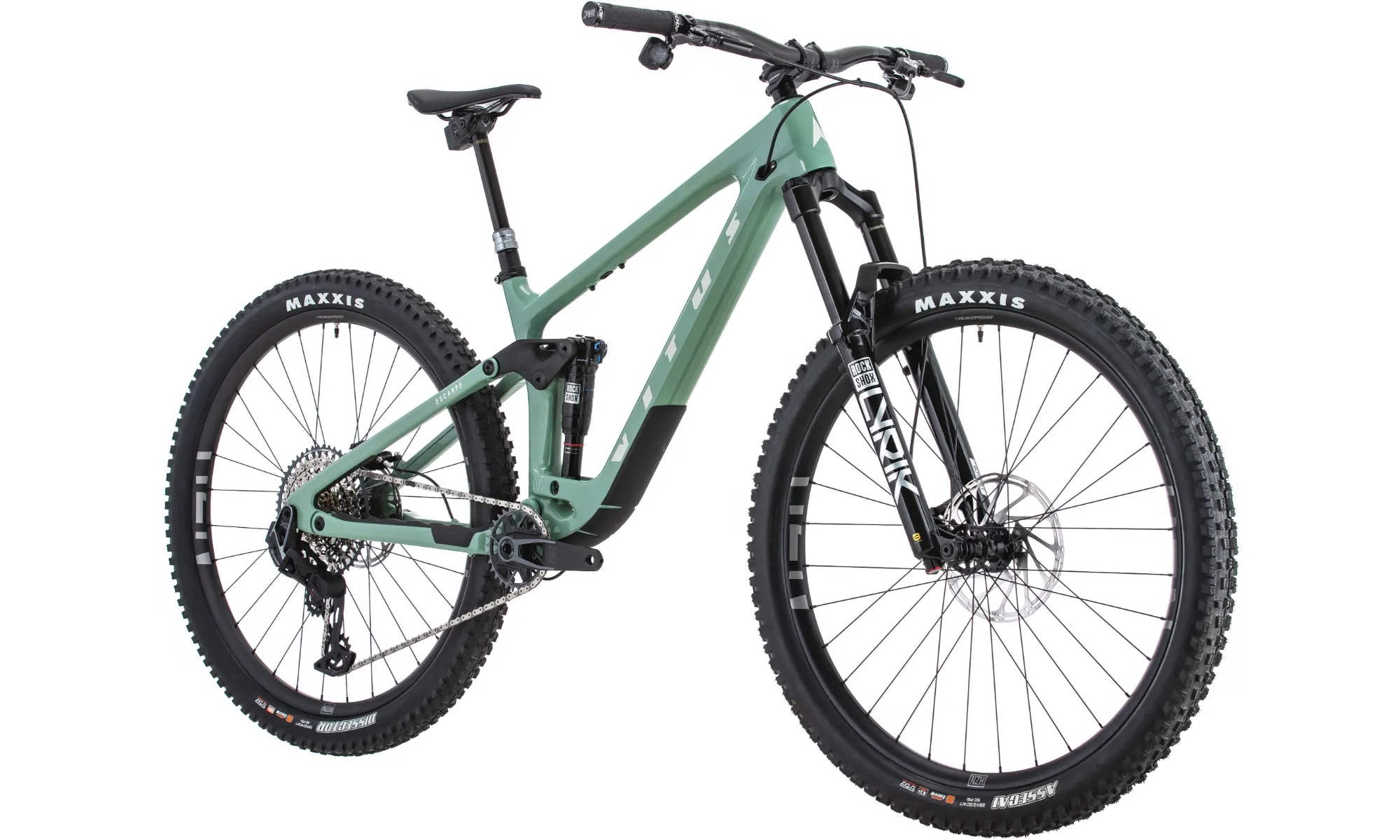

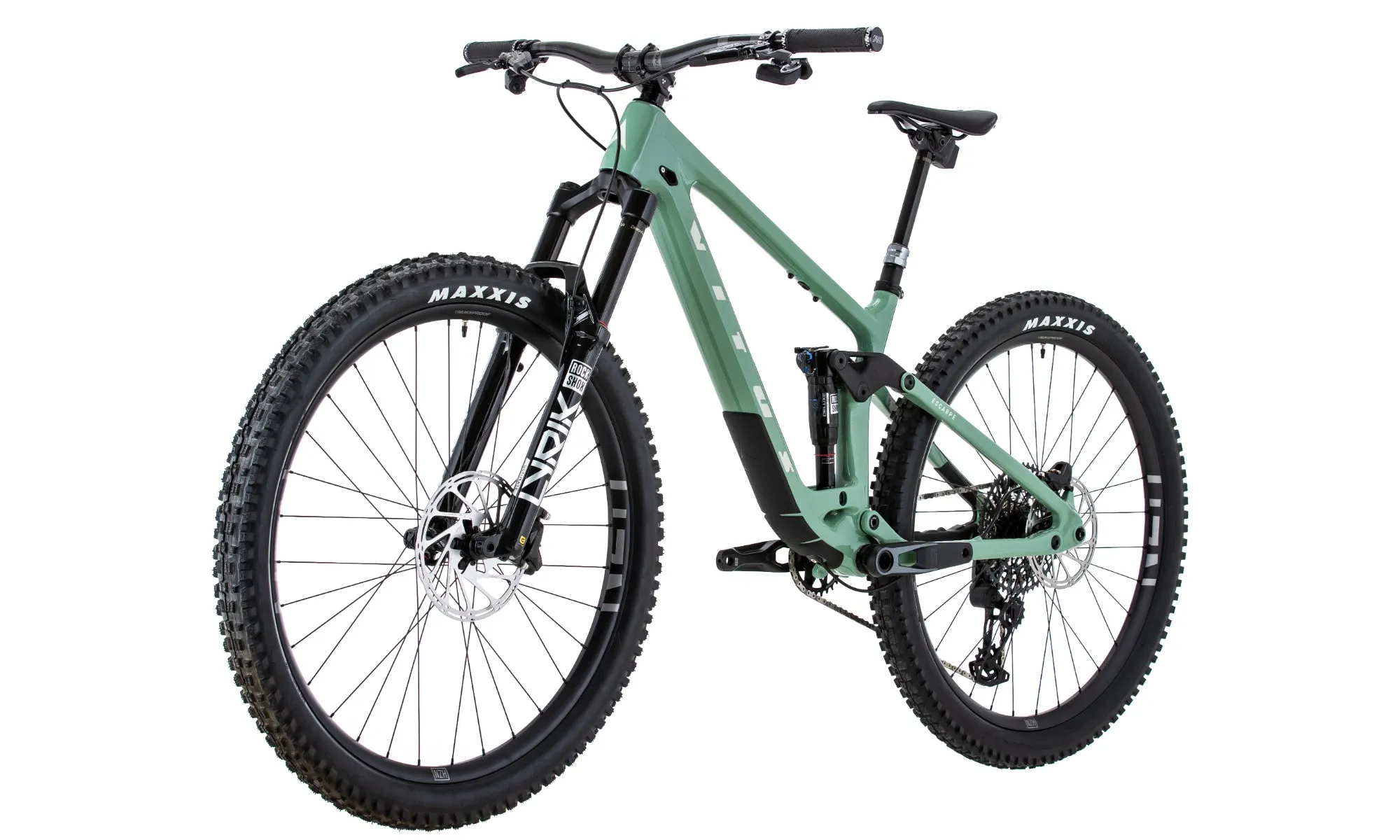

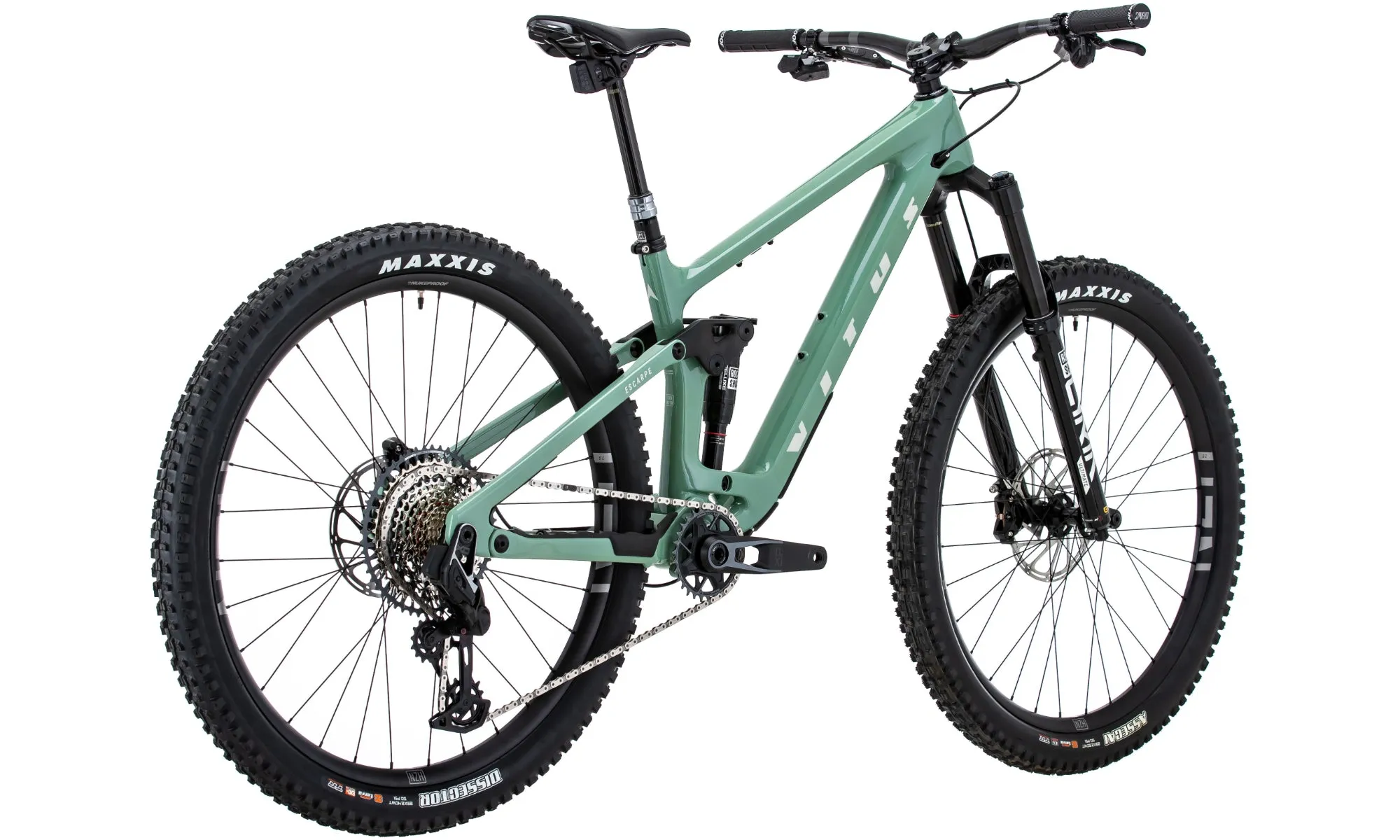

Vitus Escarpe 290 AMP Mountain Bike

  • Vitus Green

$ 42.24

$ 54.91
