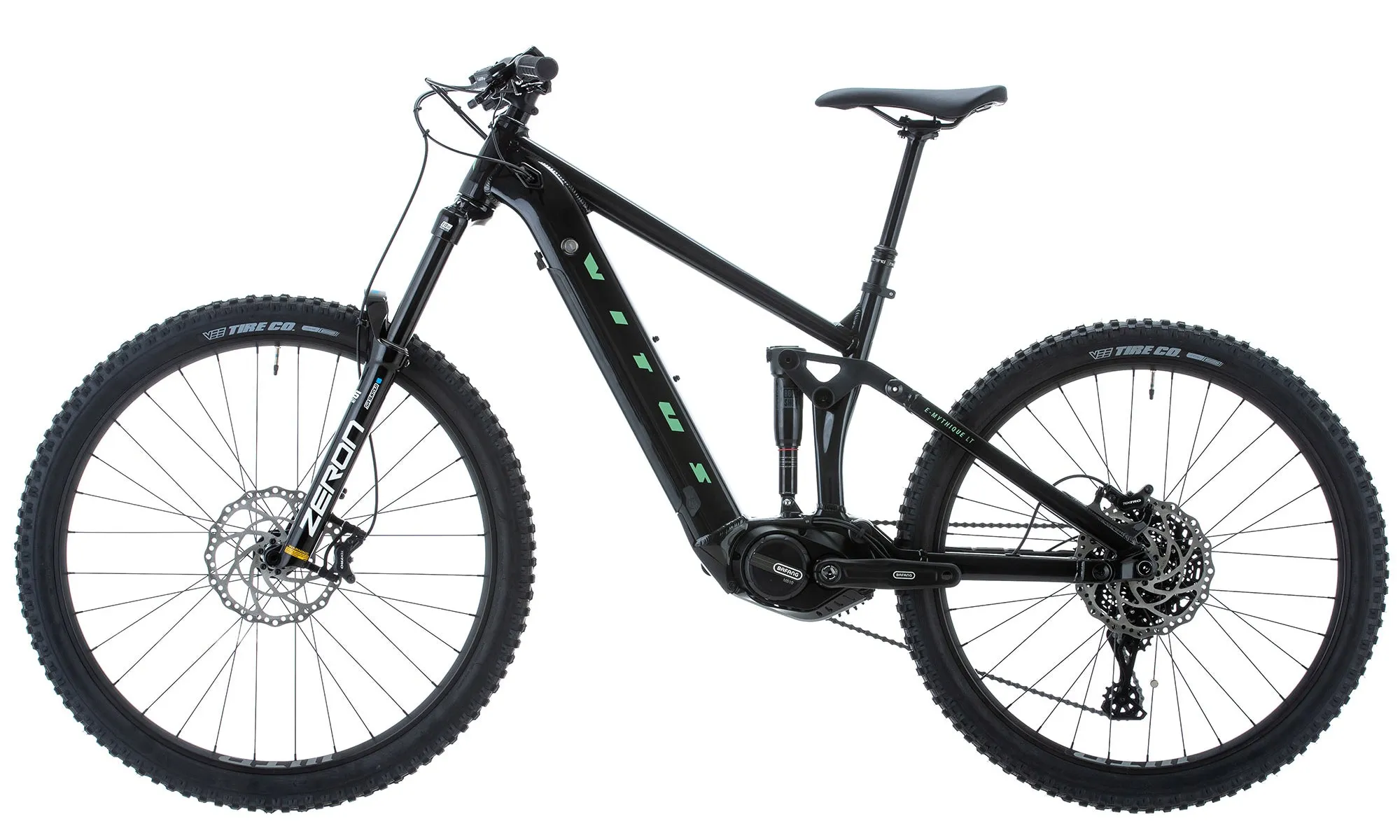

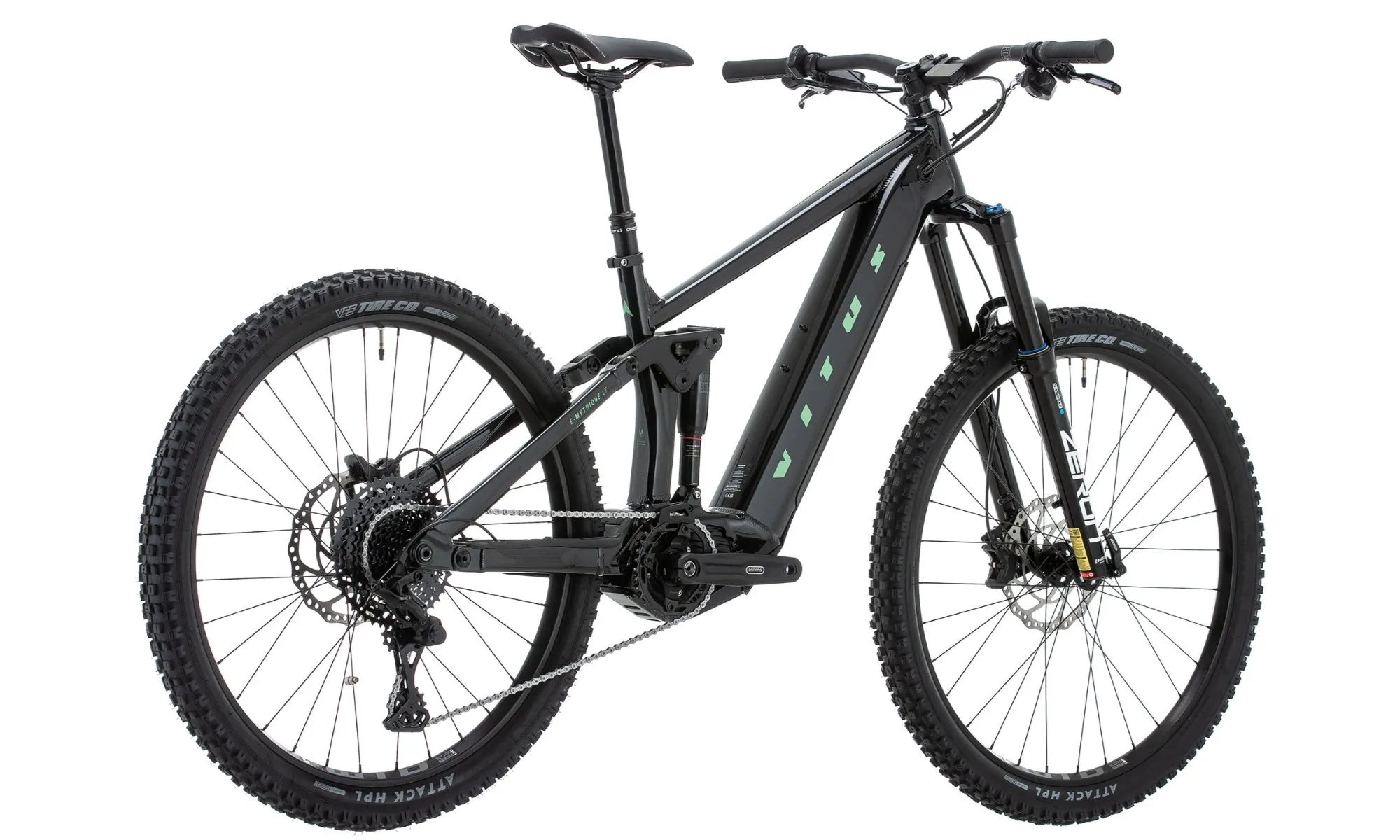

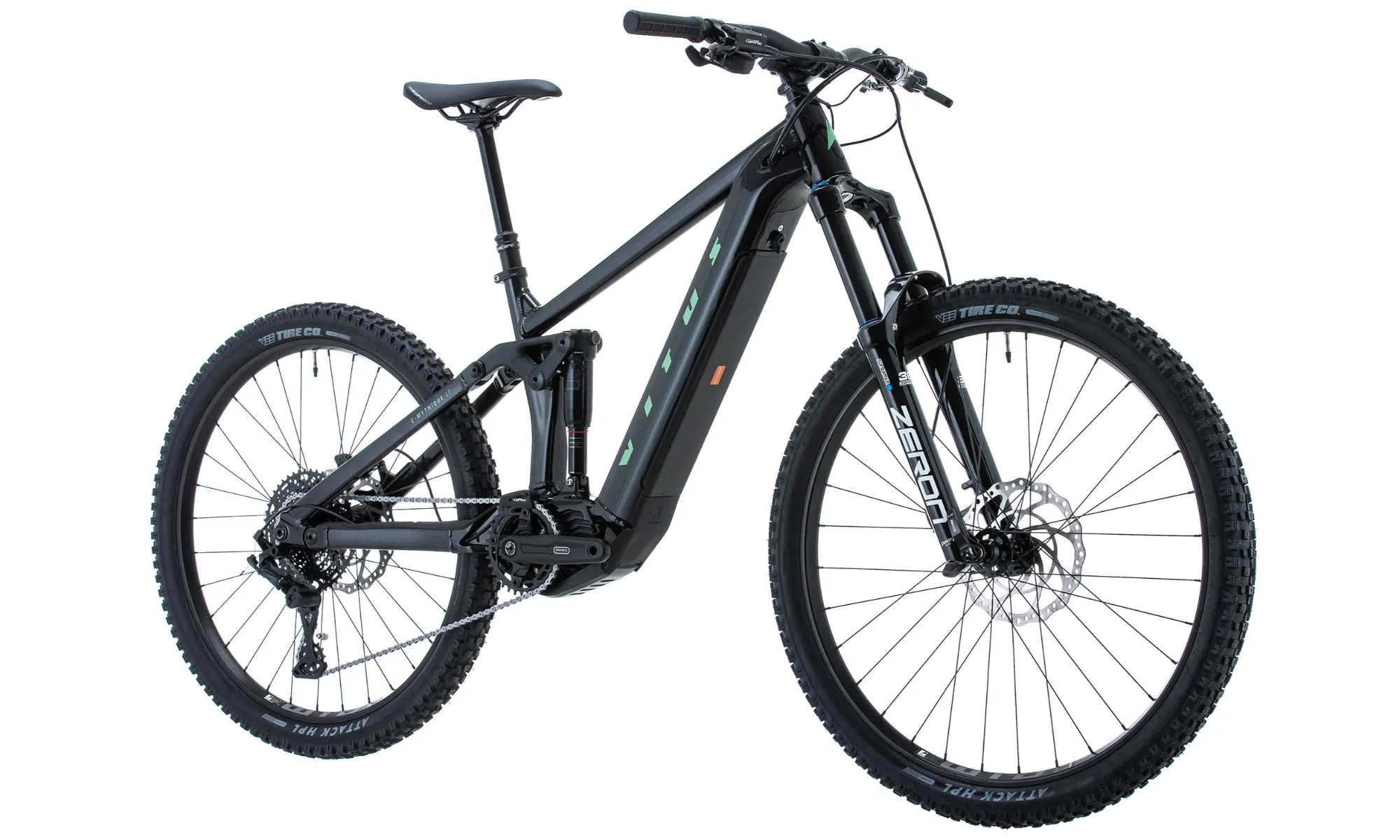

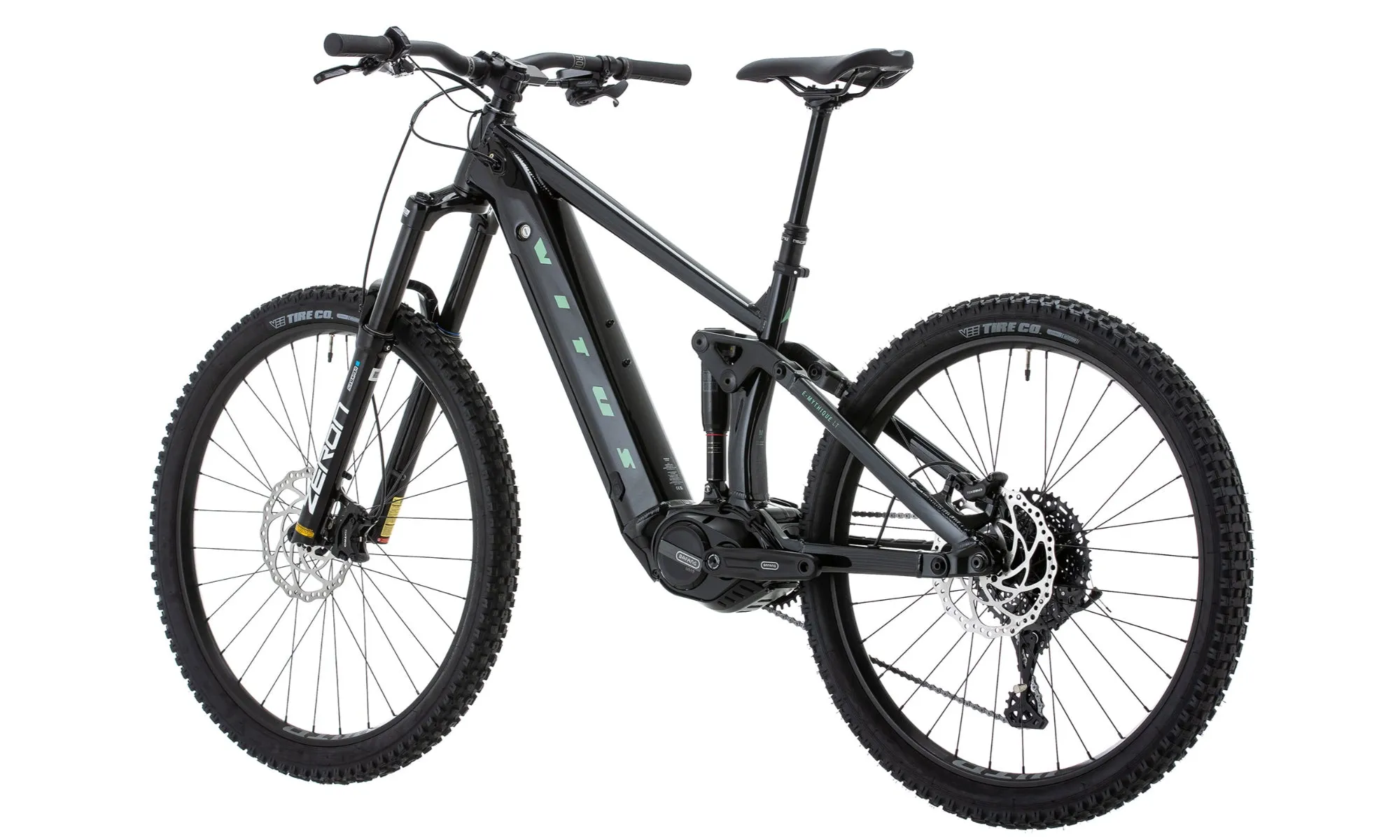

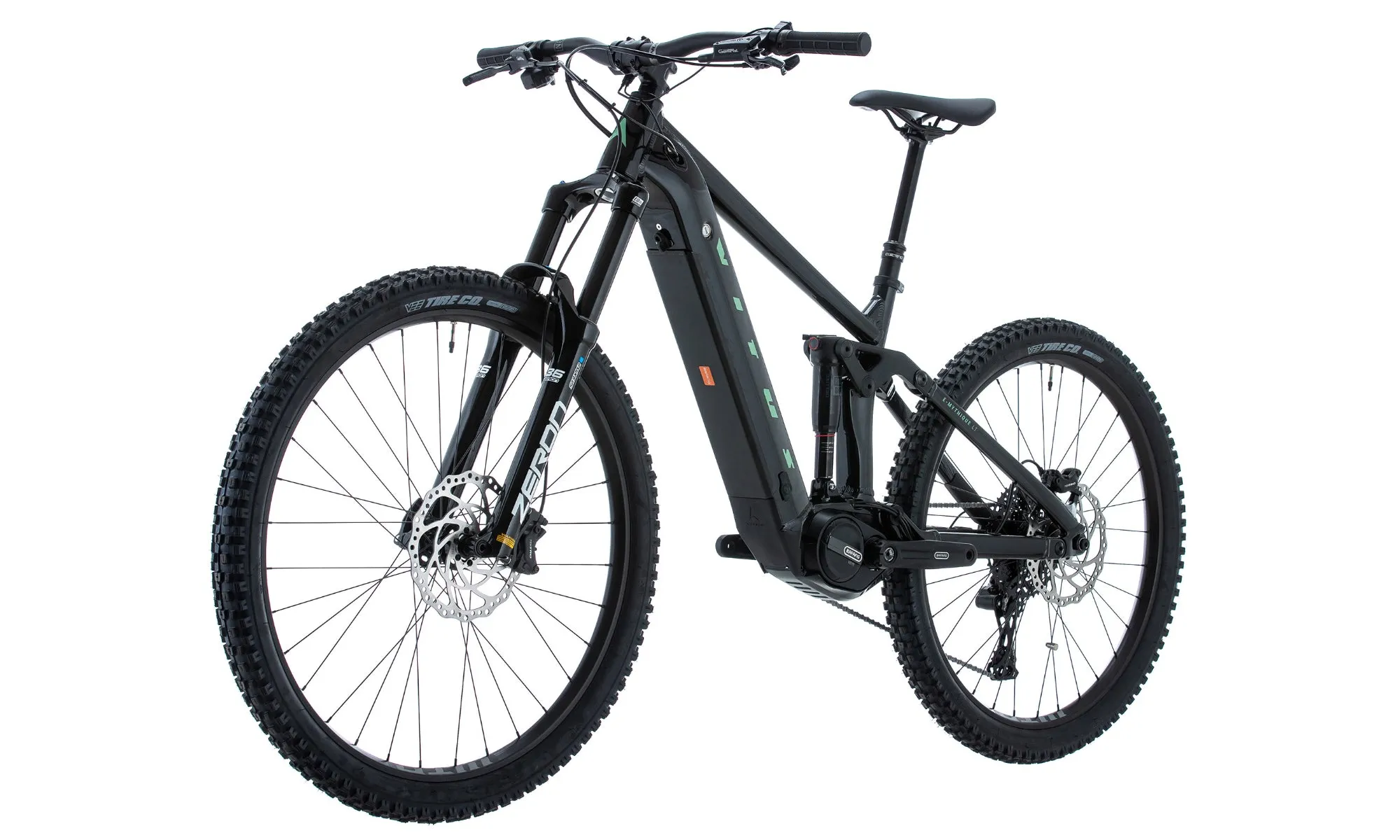

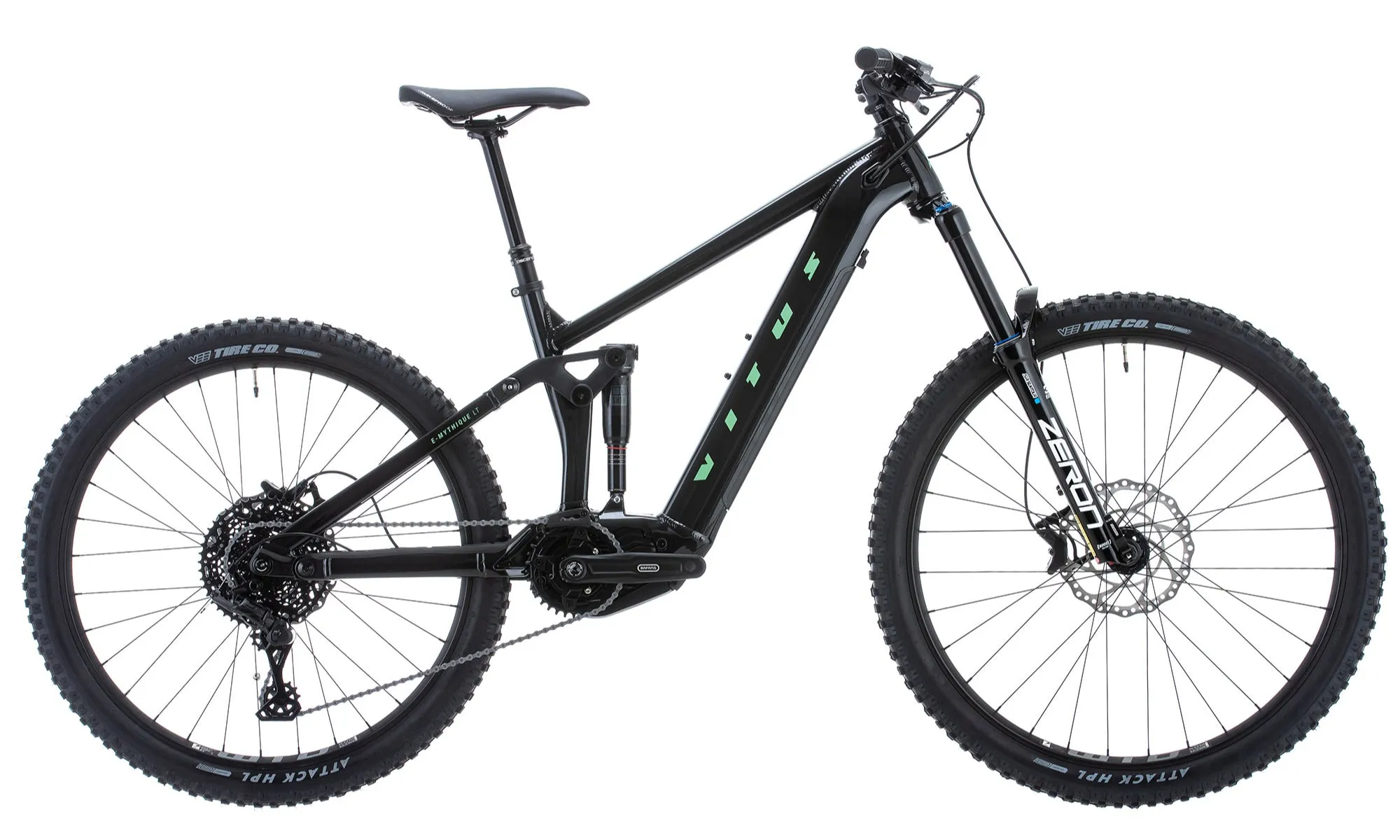

The newest member of our award-winning eMTB range, the Vitus E-Mythique LT is a riot on the descent and a magic carpet on the climb.
Powered by our own custom tuned Bafang M510 motor system developed in partnership with Bafang, it blends the ethos of our award-winning Mythique trail bike with the downhill performance of the E-Sommet . The result is an eMTB that inspires confidence in big terrain, both up and down the mountain.
Packing 160mm of travel front and rear, it’s a long travel variation of the Mythique that incorporates learnings from our current E-Sommet range into an eMTB that is ready to ride anything. Whether it’s a steep and technical climb or after-work laps on the downhill track, the E-Mythique LT has been tested and developed to deliver.

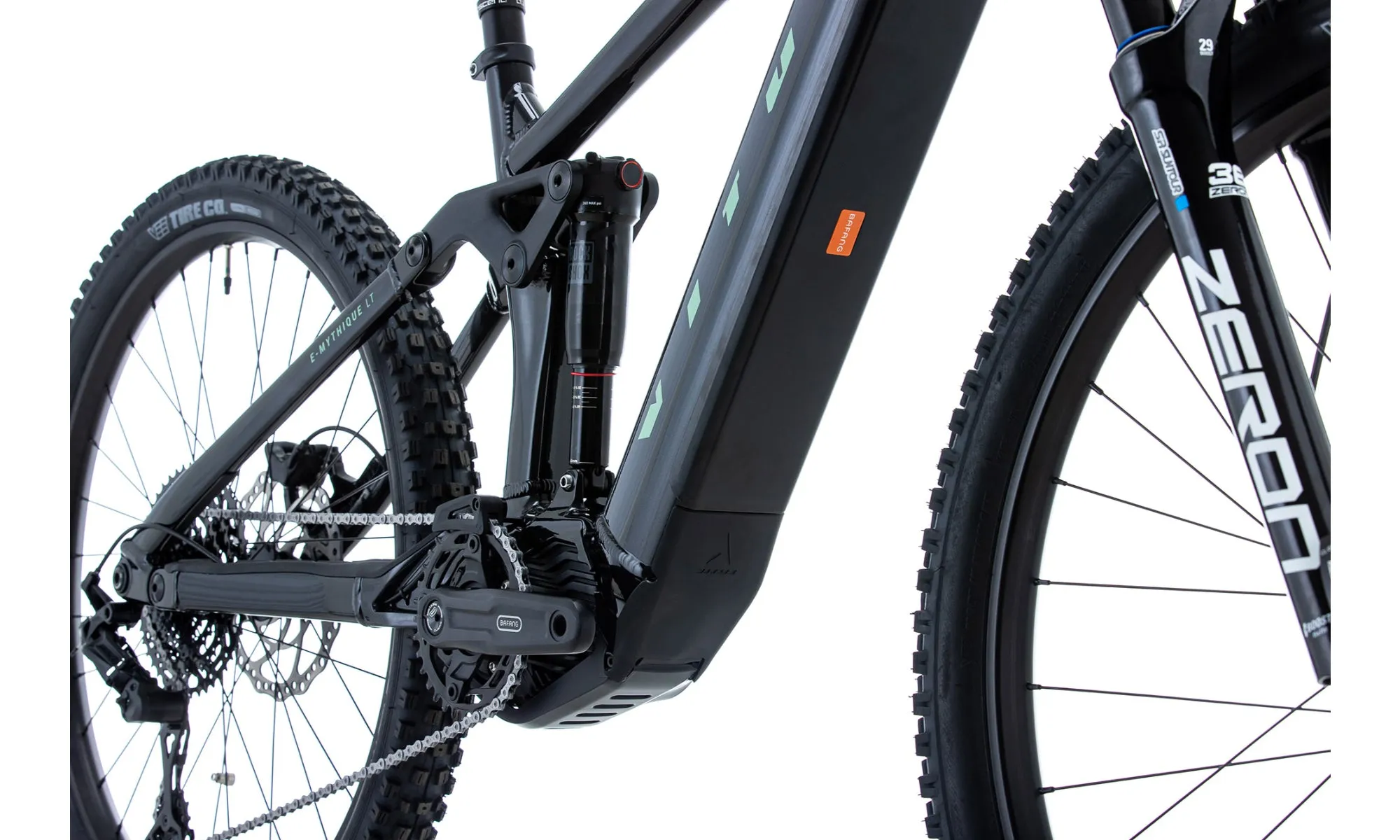

The VR version of the E-Mythique is built around a 170mm SR Suntour Zeron36 fork and RockShox Deluxe Select R rear shock with 160mm of travel. The drivetrain is a wide range Microshift Advent X 1x10-speed setup and braking is handled by the Tektro 4-piston hydraulic disk brakes. Rounding out the build are tubeless WTB rims and a Nukeproof Neutron cockpit.

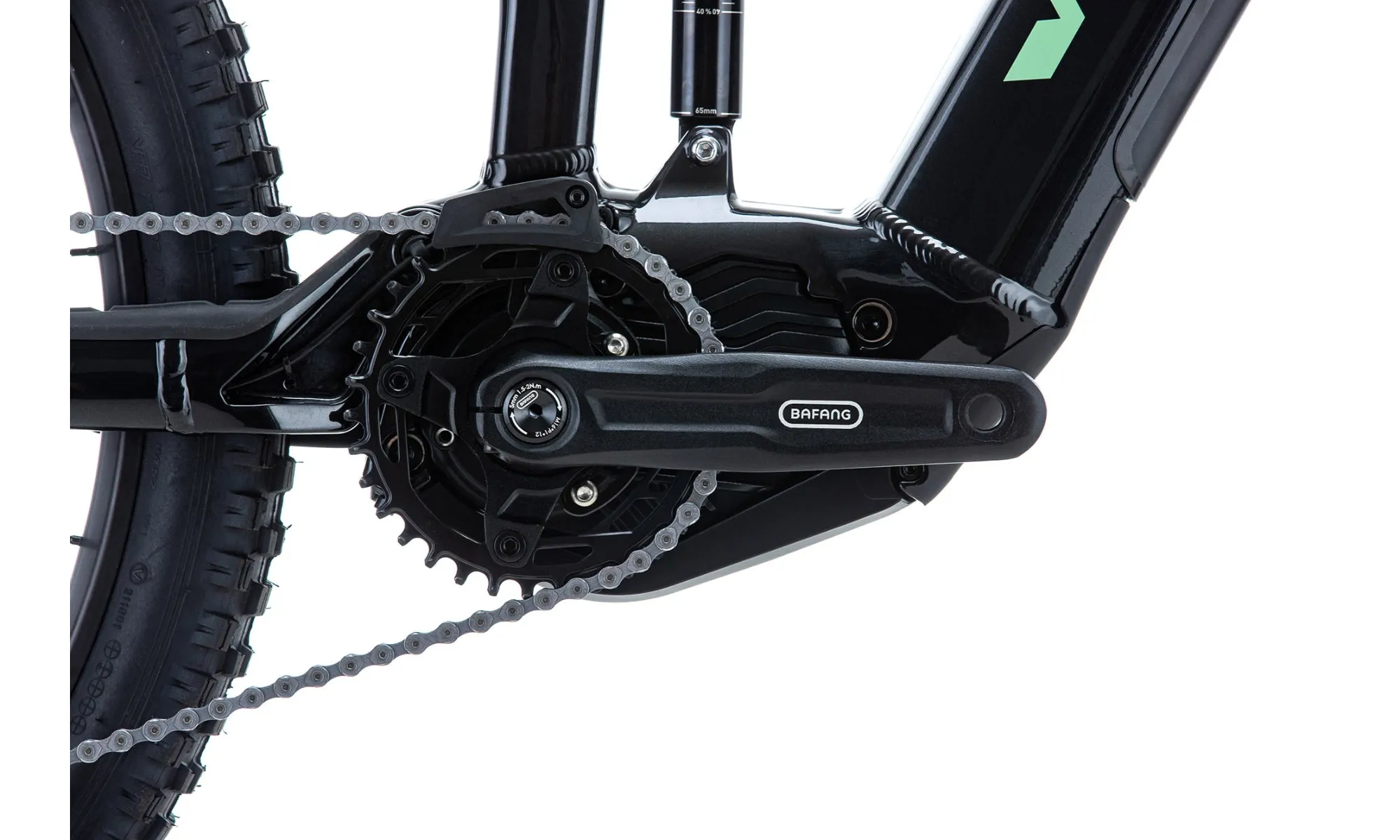

The new Bafang M510 motor system
To build an eMTB that performs exceptionally well, we partnered with a new drive unit manufacturer for Vitus, choosing Bafang and their M510 drive unit.
With a maximum torque of 95Nm and competitive system weight, the M510 is the perfect drive unit to power the E-Mythique LT. We developed a close partnership with Bafang and tuned the system to perform exactly to our needs, effectively cherry-picking the best features and incorporating them into our drive unit.
The M510 system is powered by an integrated 630Wh battery and a display with five custom power modes — Eco, Eco-plus, Trail, Boost, and Race — giving the rider maximum options for adjusting range and on-trail performance.
Combining this drive unit with our experience in suspension and geometry design, we have created an eMTB to be proud of. It's made to be ridden everywhere; from steep, rough trails to big days with big climbs .
The E-Mythique LT is designed to get the most out of eMTB’ing, whatever you might want that to be.
The E-Mythique LT VR component details
- SR Suntour Zeron36 & Deluxe Select R suspension
- Smooth Bafang M510 motor produces 250W max power and 95Nm torque
- Long range 630Wh internal battery

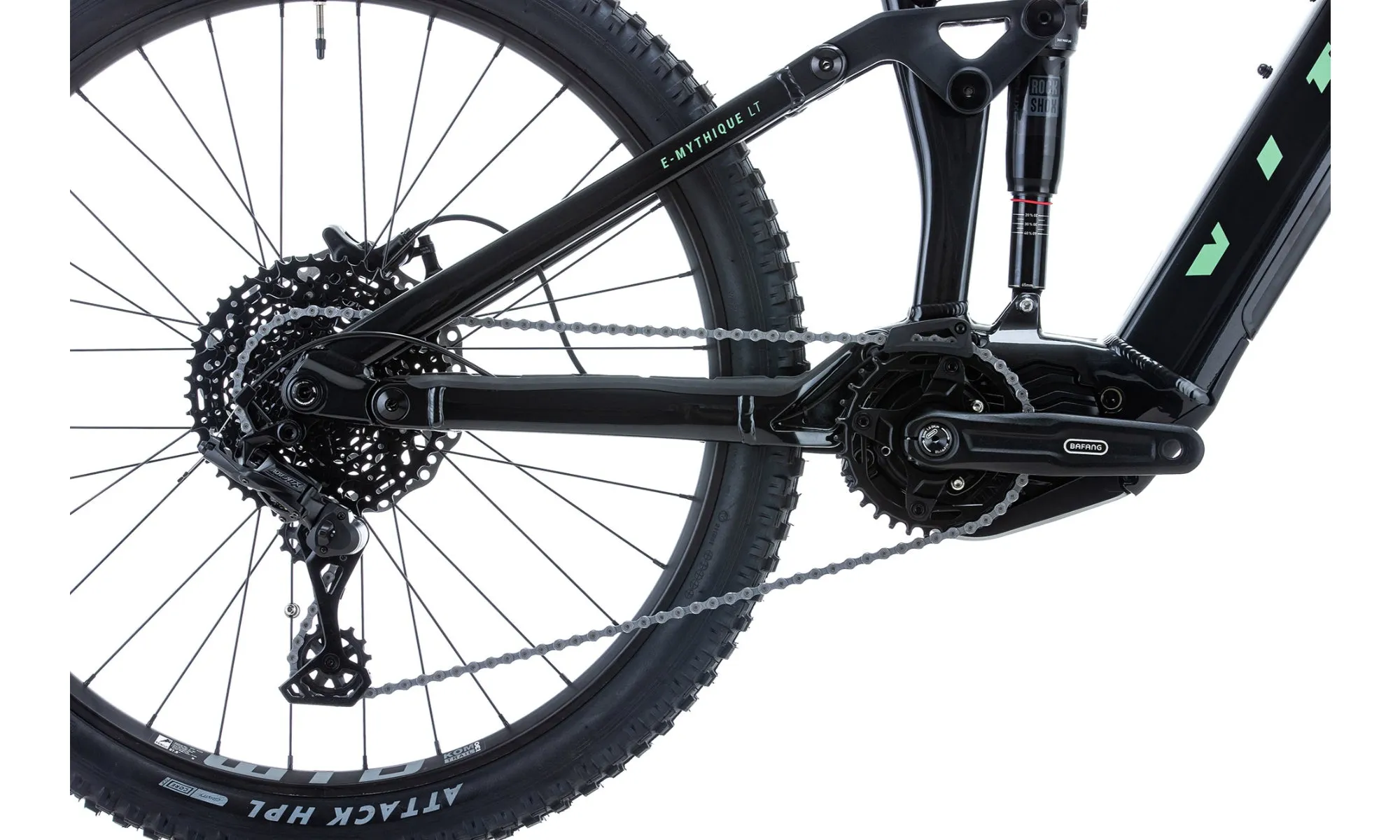

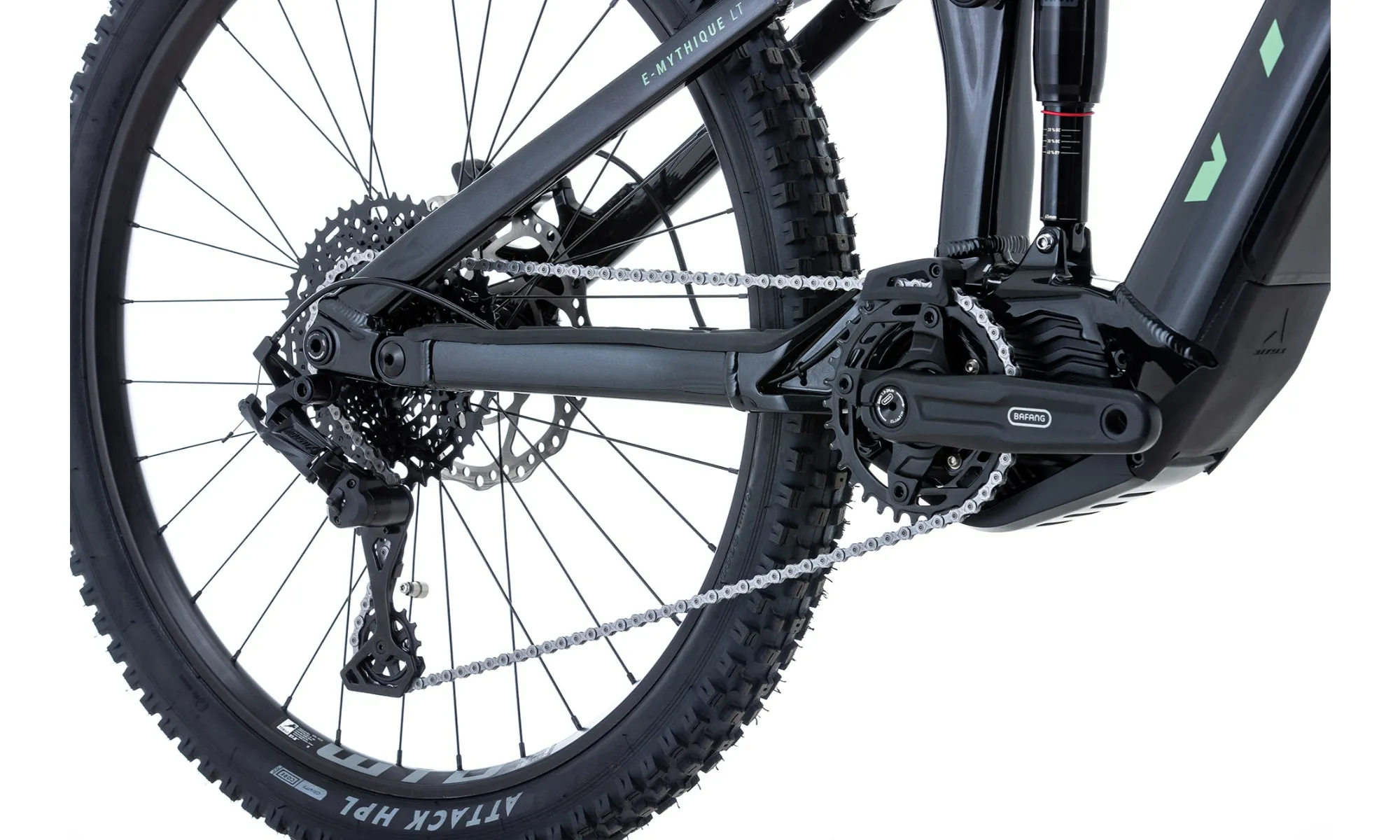

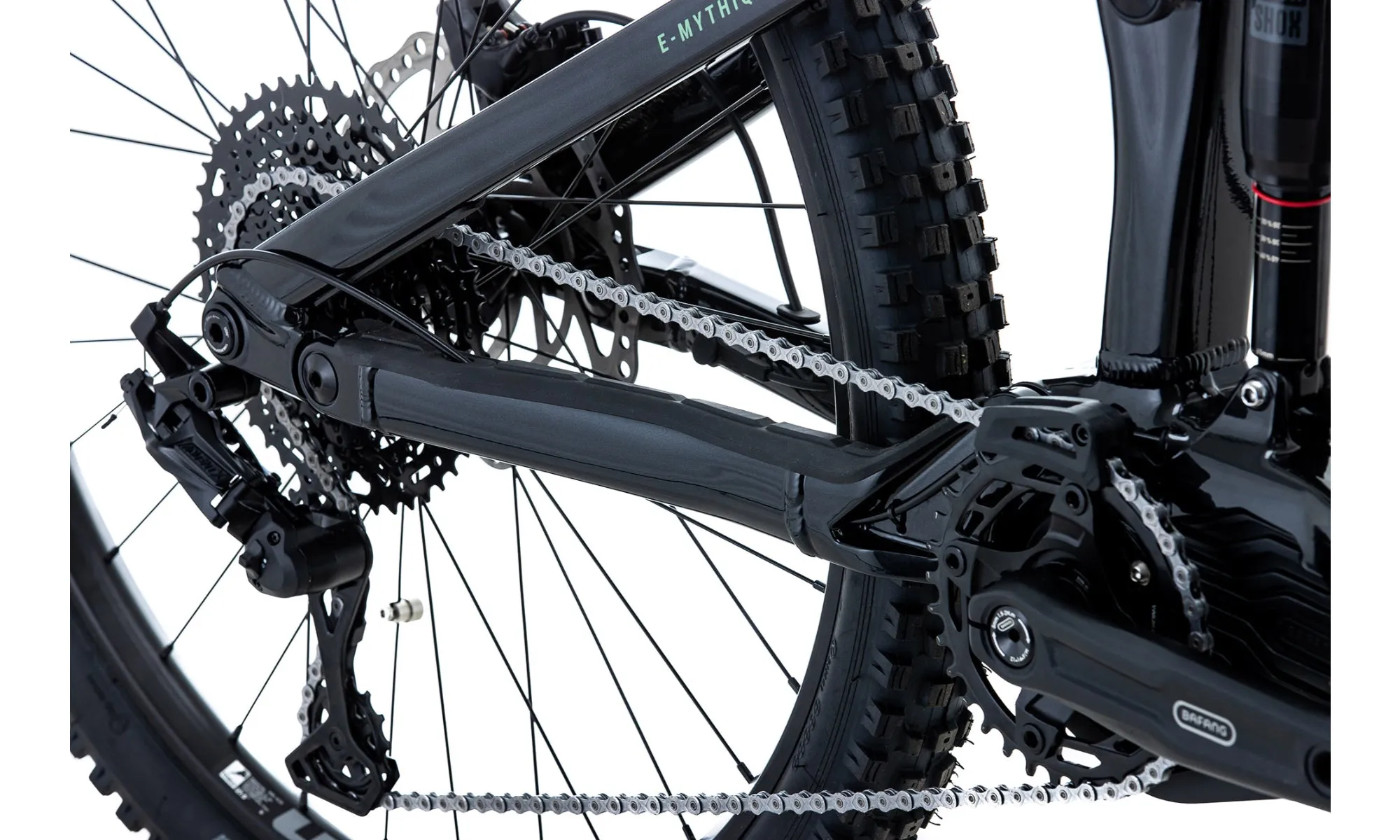

- Wide range Microshift Advent X 1x10 speed drivetrain

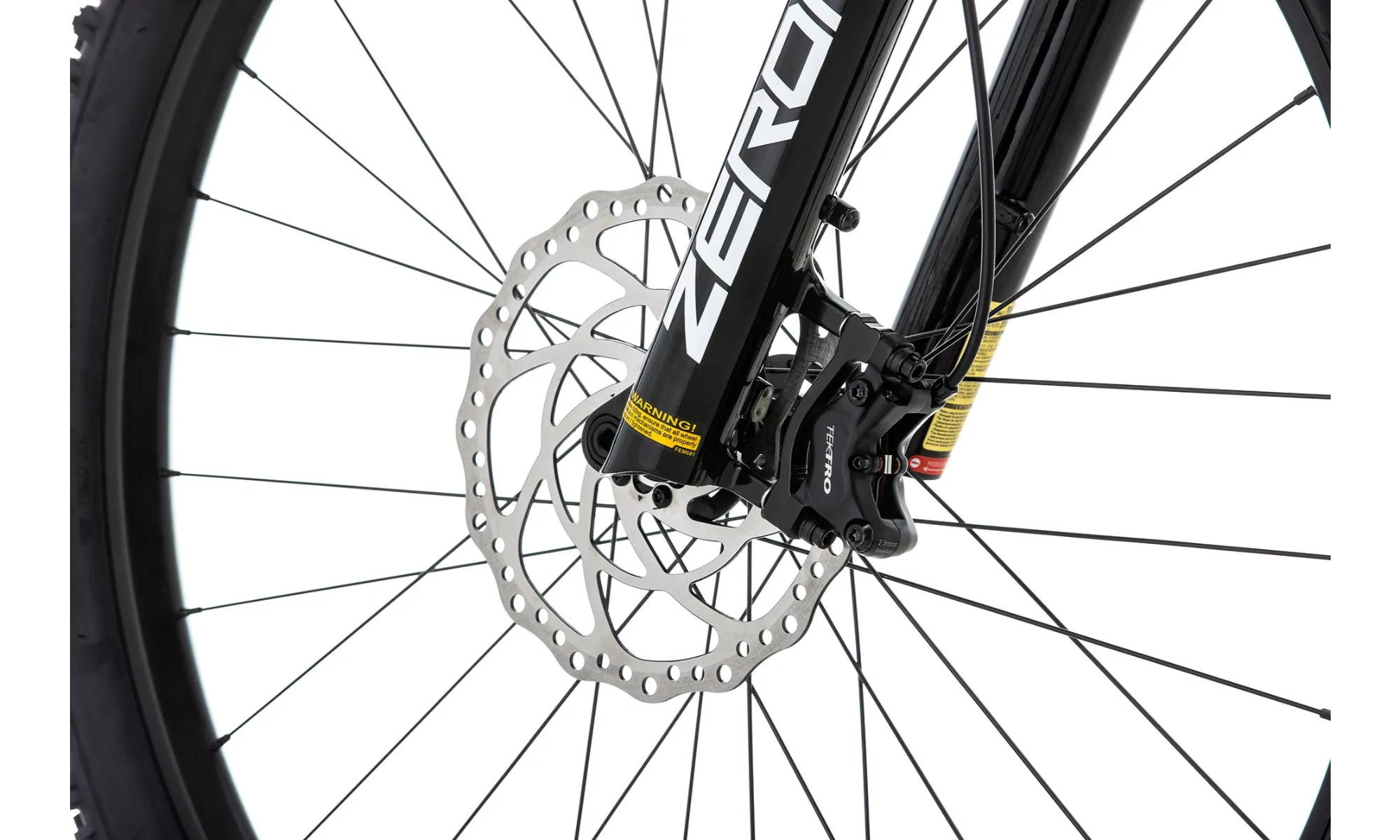

- Powerful Tektro 4 piston hydraulic disc brakes
- Tubeless ready WTB rims with grippy Vee Tyres
E-Mythique Electric Enduro PlatformInternal battery frame design with new Bafang M510 drive unit, optimised suspension kinematics and updated geometry. |
Frame Material6061-T6 Aluminium |
Suspension Travel (MTB Only)160mm Front & Rear |
Wheel SizeMullet - 29" Front / 27.5" Rear |
Available SizeS, M, L, XL |
ColourBlack Quartz |
Weight:Medium: 25kg (tubeless) |
Specifications
FRAMEE-Mythique 6061-T6 Double Butted Alloy Internal cable routing, post mount disc brake mounts, Boost hub spacing - 148mm x 12mm thru axle, Bafang M510 compatible. Axle Specifications: 181mm Length, 14.5mm Thread Length, M12xP1.0 Thread Pitch | REAR RIMWTB ST Light i30 TCS 2.0 27.5", 32H, Presta Valve, Tubeless Ready Rim Tape Installed |

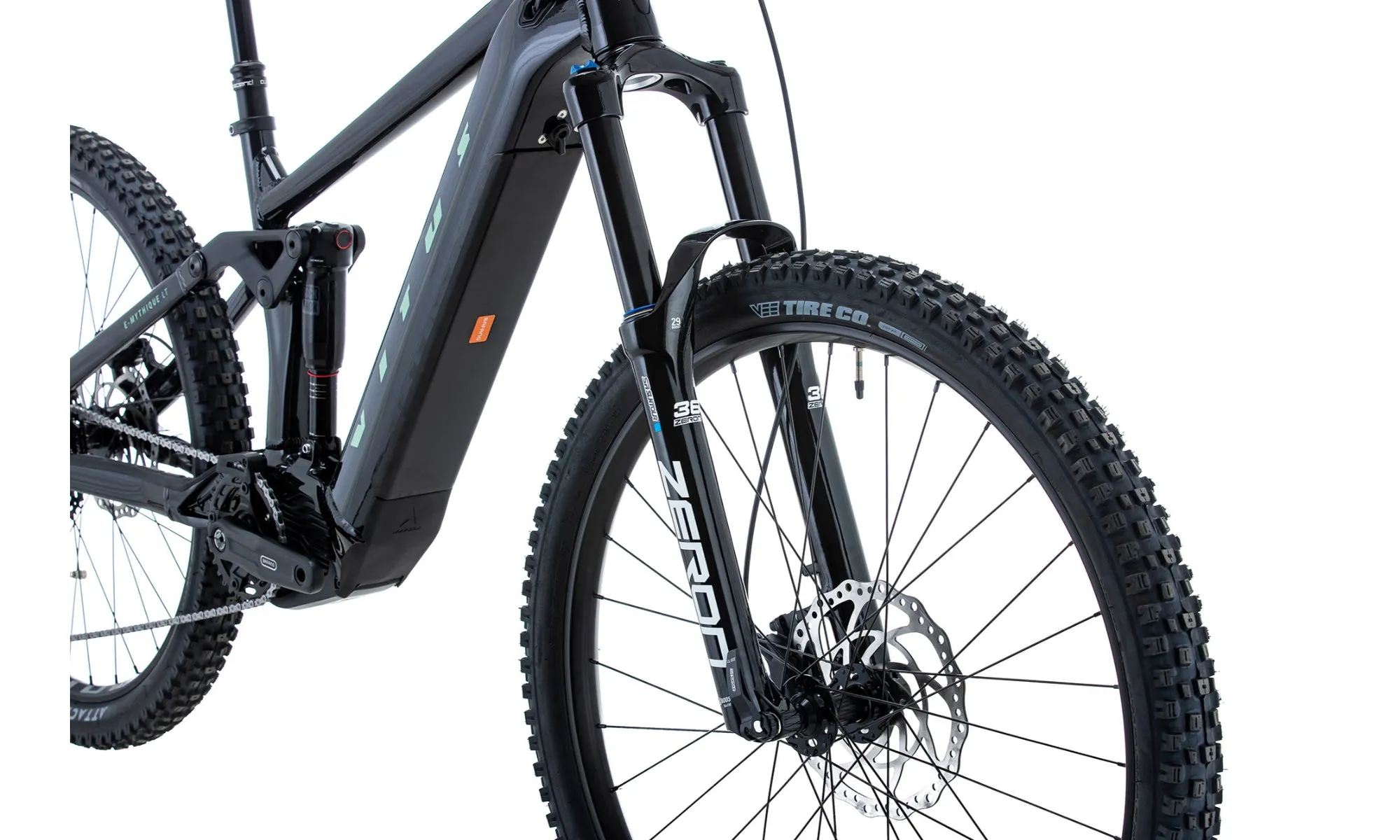

FORKSSR Suntour Zeron36 Boost EQ 29" 160mm travel, 110mm x 15mm axle, 44mm offset | FRONT HUBVitus KT DHF112
32H, 6 Bolt Disc Fitment, 110mm x 15mm |

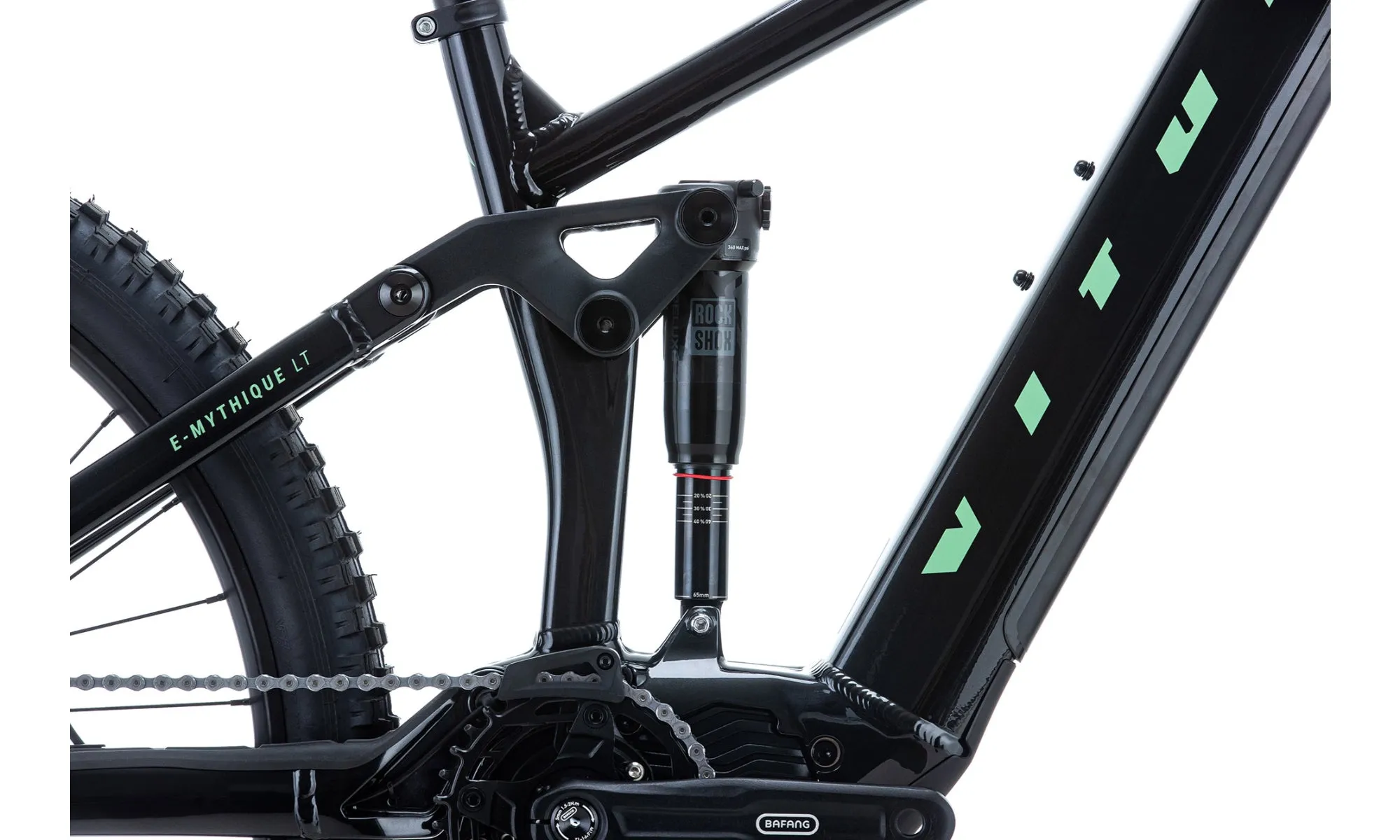

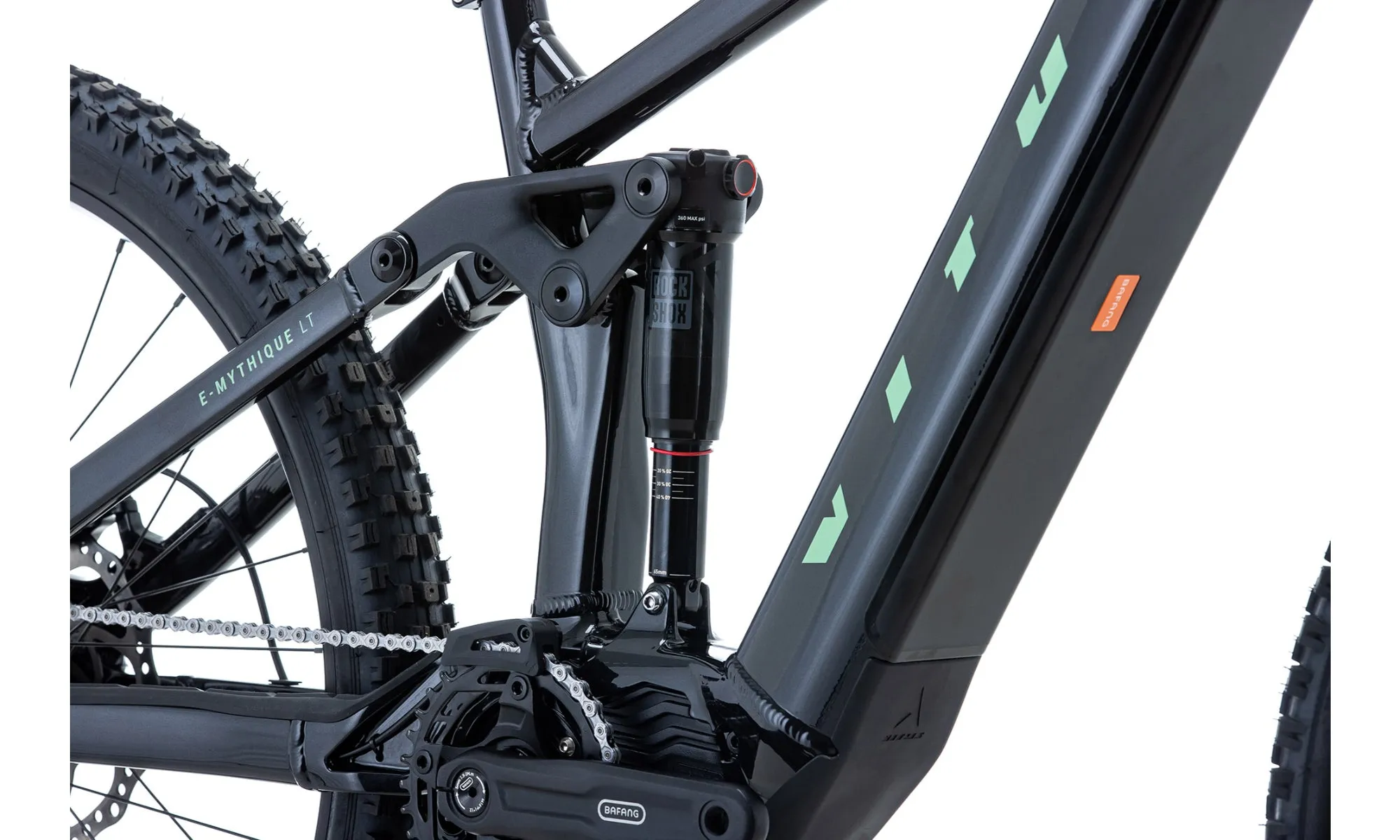

SHOCKRockShox Deluxe Select R DebonAir, 205mm x 65mm, trunnion | REAR HUB Vitus KT H5ER-SH 32H, 6 Bolt Disc Fitment, HG Freehub, 148mm x 12mm |
CHAINSETBafang 34T Narrow Wide Chainring, 165mm Crank Length, 53mm Chain Line | WHEELSETWTB ST Light i30 rims on Vitus KT hubs 29" Front, 27.5" Rear Wheelset, 32H, 6 Bolt, Boost 110mm x 15mm Front & 148mm x 12mm Rear Hub Spacing, Tubeless Ready |
BOTTOM BRACKETN/A N/A | FRONT TYREVee Tire Co. Attack HPL 29" x 2.5", TOP40 Compound, Enduro Core |
FRONT DERAILLEURN/A N/A | REAR TYREVee Tire Co. Attack HPL 27.5" x 2.5", E-Ctrl Compound, Override Core |
REAR DERAILLEURMicroshift Advent X 10 Speed, Medium Cage | BRAKESTekto HD-M535
Post Mount, Four Piston Caliper |
SHIFTERSMicroshift Advent X
10 Speed, Trigger Shifter | BRAKE ROTORSTektro TR203-17
203mm Front & Rear, 6 Bolt Hub Fitment |

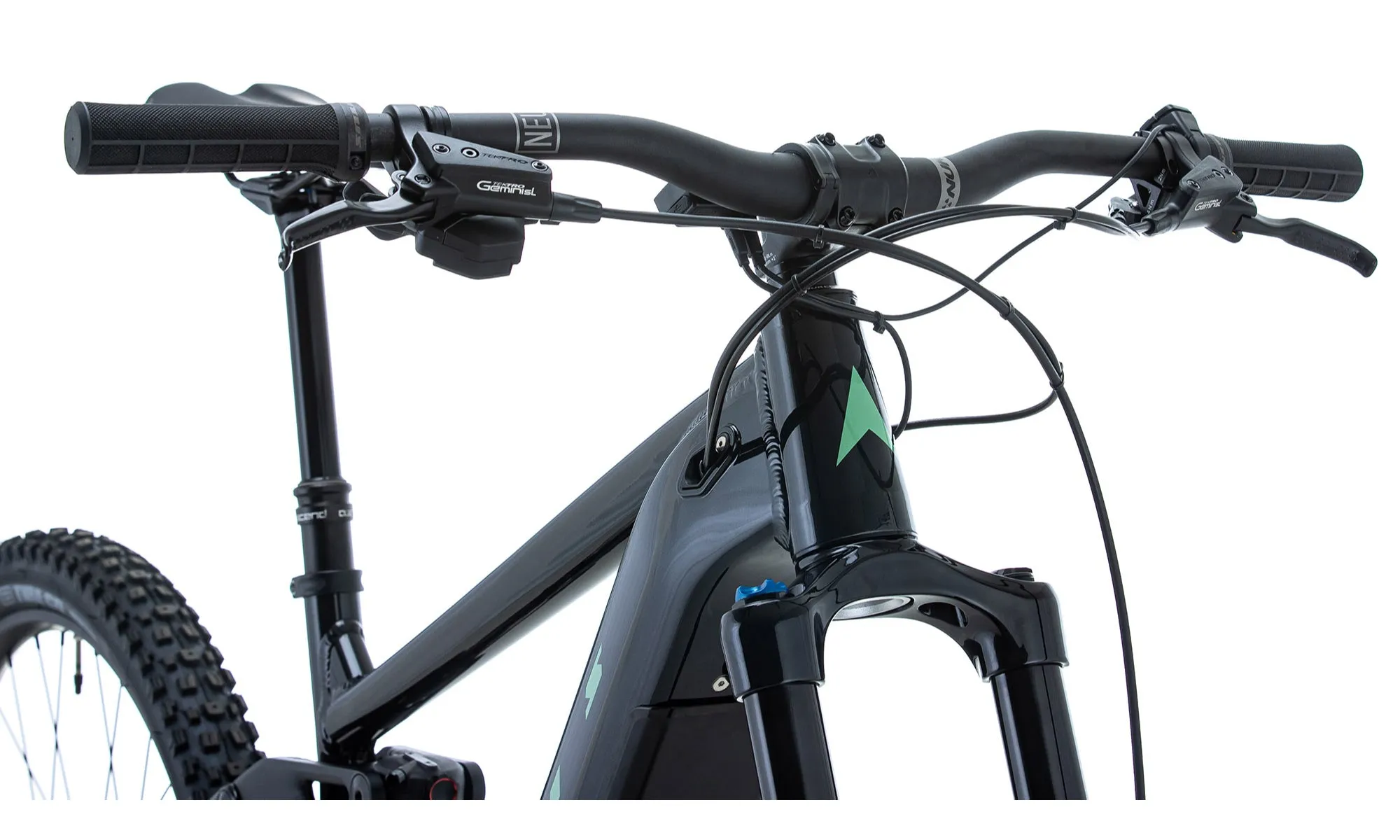

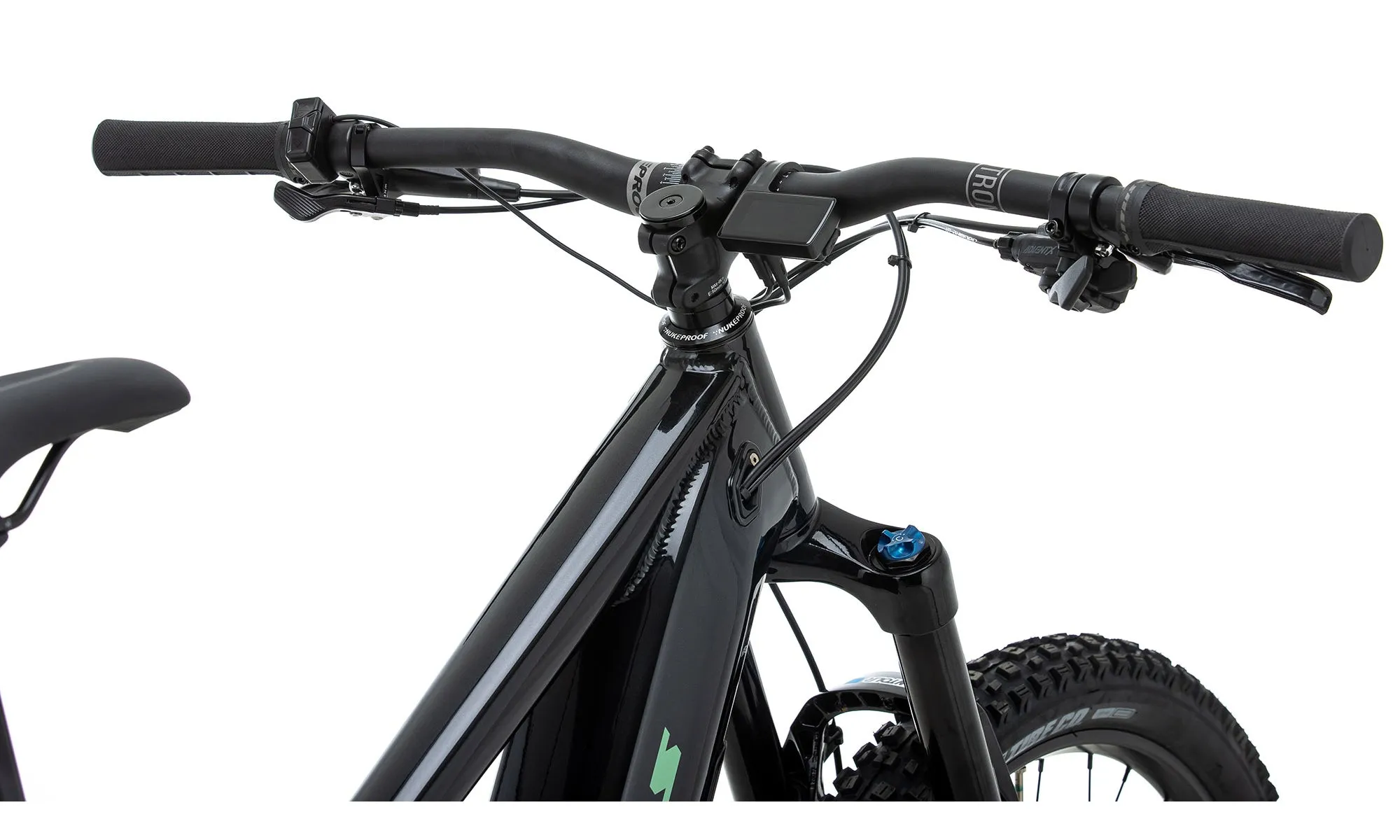

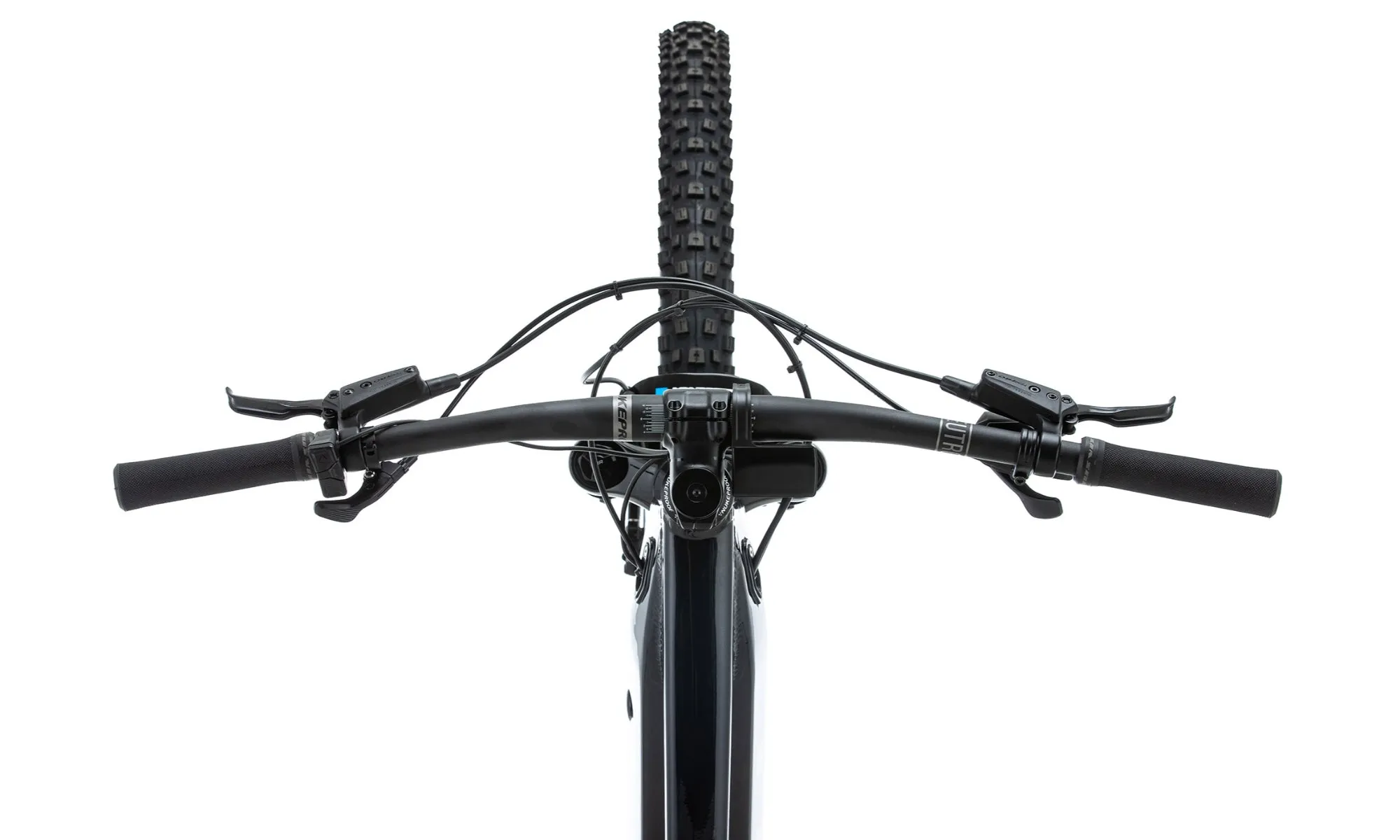

CASSETTEMicroshift Advent X H-Series 10 Speed, CS-H104, 11-48T Range | HANDLEBARSNukeproof Neutron V2 Riser
6061 Alloy, 9° Back Sweep, 31.8mm Clamp Diameter, S & M: 760mm Wide, 12mm Rise, L & XL: 780mm Wide, 25mm Rise |
CHAINKMC X10
10 Speed, 116 Links | STEMVitus Alloy
50mm Reach, 3° Rise, 31.8mm Handlebar Clamp Diameter |
MOTOR BATTERYBafang M510
630Wh, Downtube Integrated | HEADSETNukeproof
ZS44/28.6 upper & ZS56/40 lower to suit 1-1/8" upper tapered to 1.5" lower headtube |
MOTOR COMPUTERBafang M510
Colour LCD Screen, 5 Modes | GRIPSVitus Lock On
N/A |
MOTOR SHIFTERBafang M510
Mounted on left | SADDLENukeproof Neutron Saddle
Black, Steel Rails |
MOTOR DRIVE UNITBafang M510

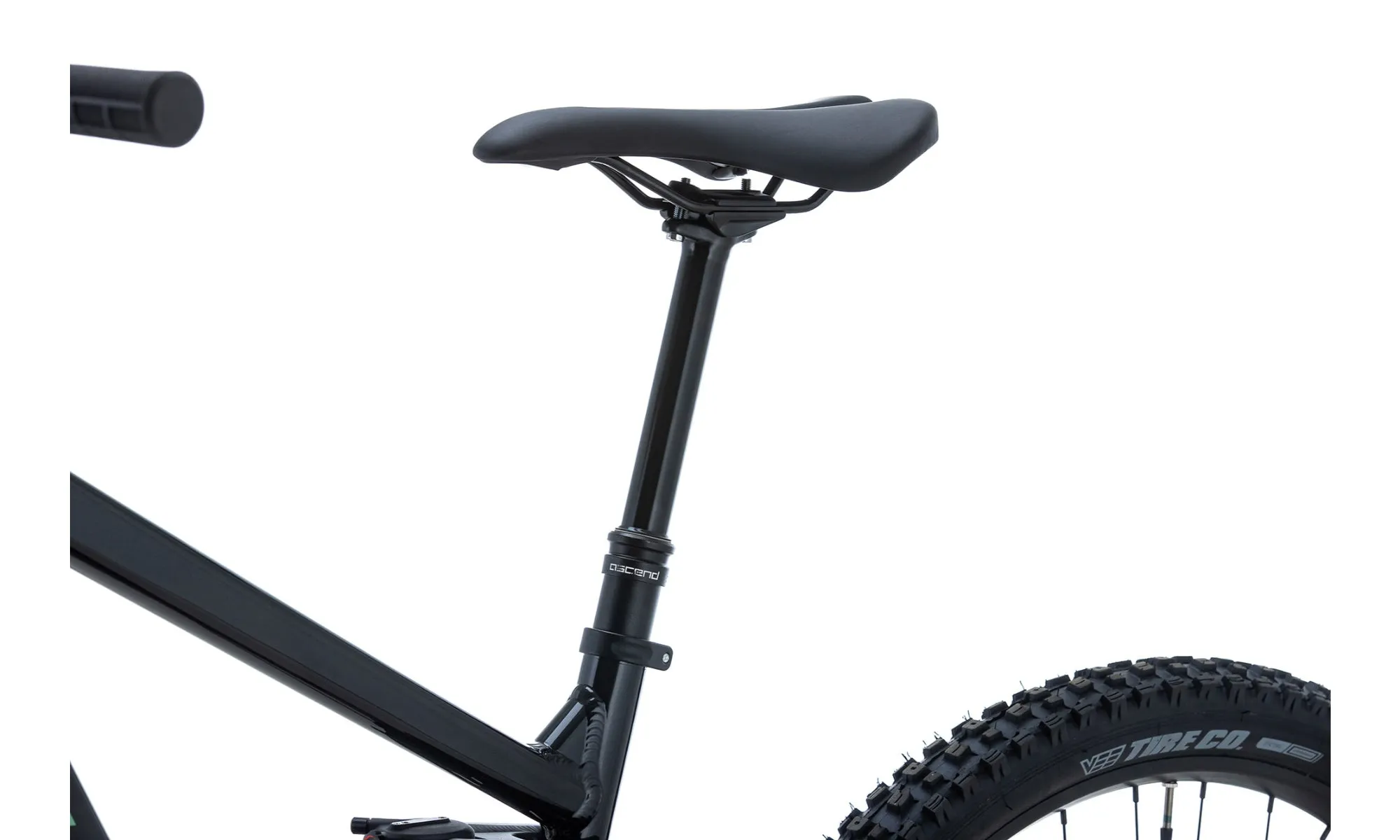

Max Power Output 250W, Max Torque 95Nm | SEATPOSTBrand-X Ascend Dropper
Remote lever, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop |
FRONT RIMWTB ST Light i30 TCS 2.0
29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed | SEATCLAMPVitus
34.9mm Diameter |
