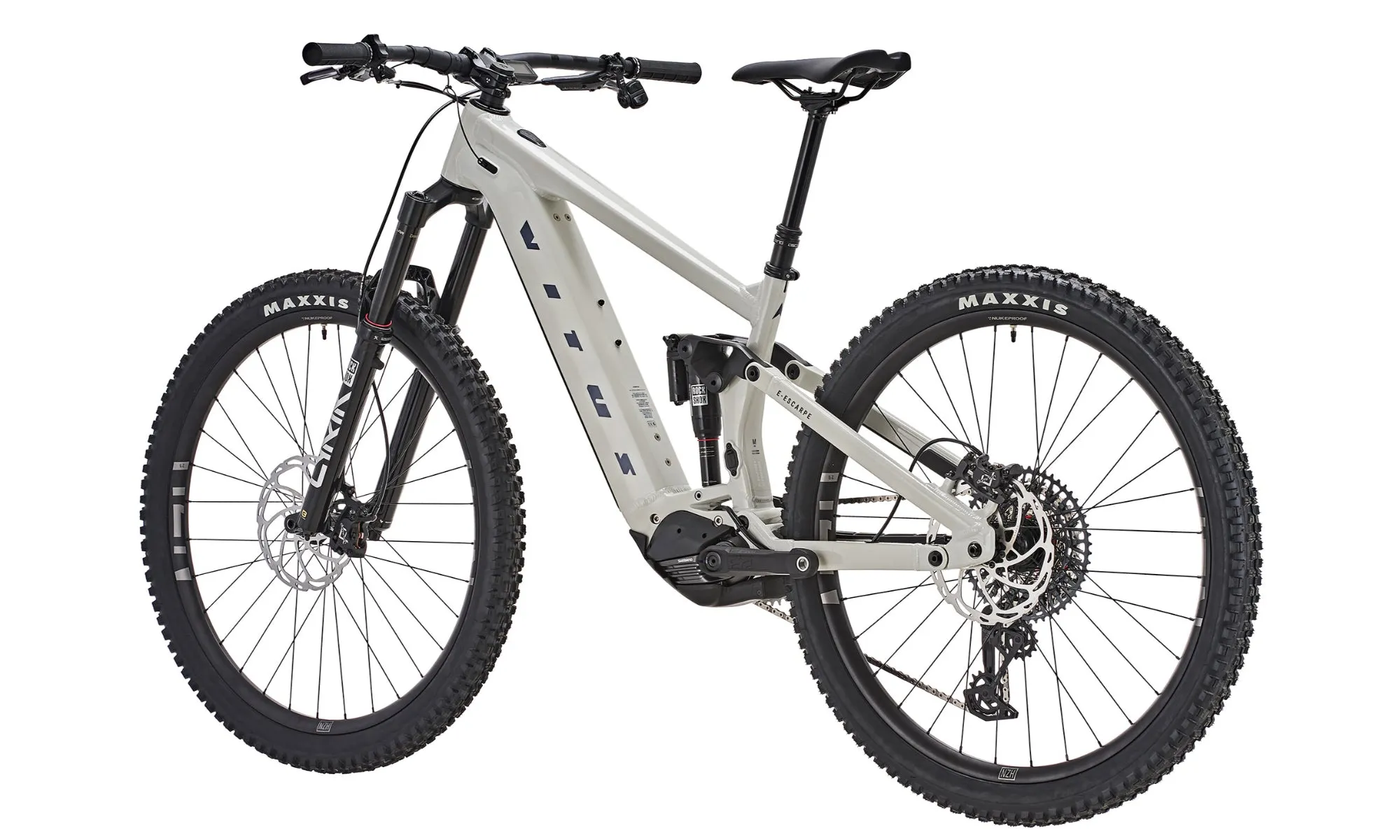

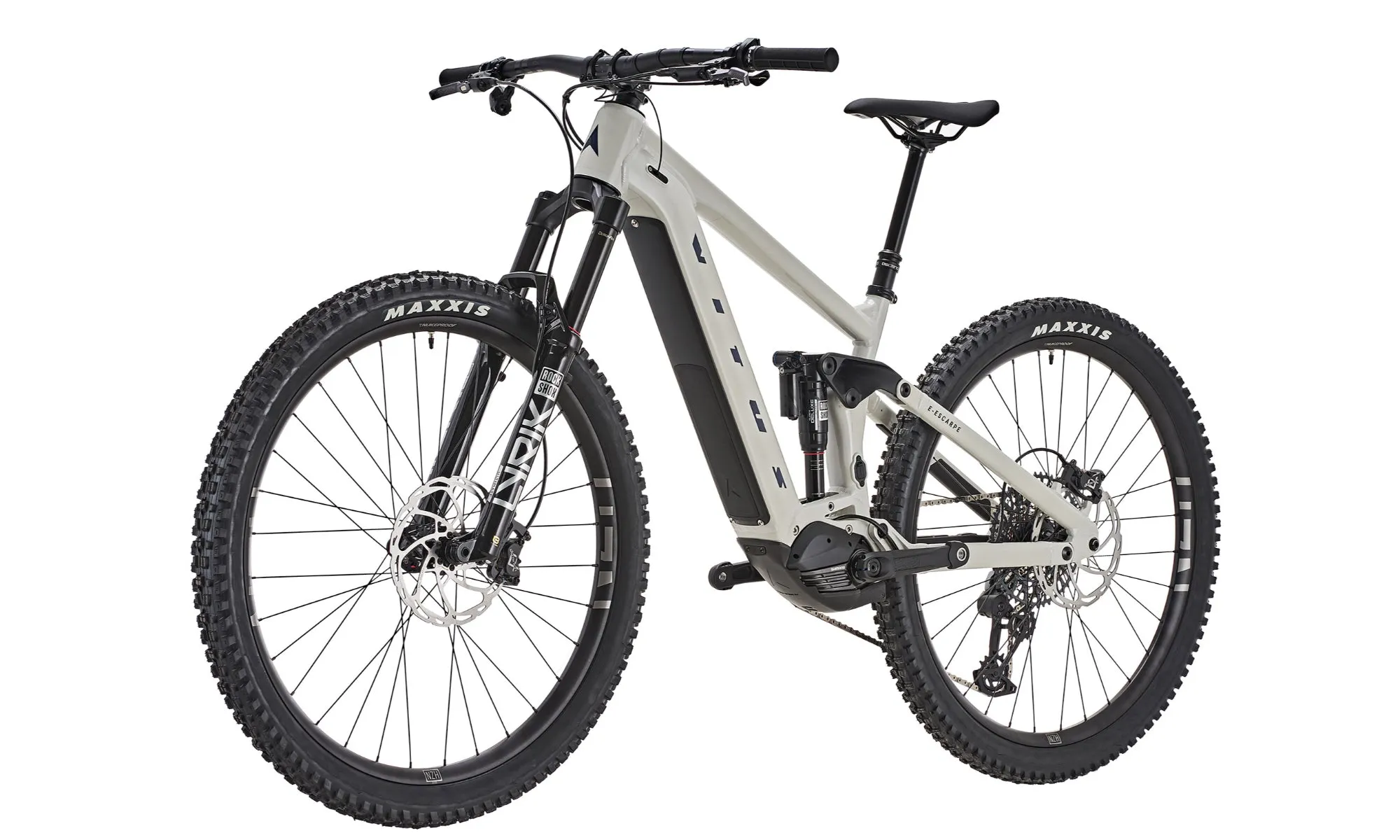

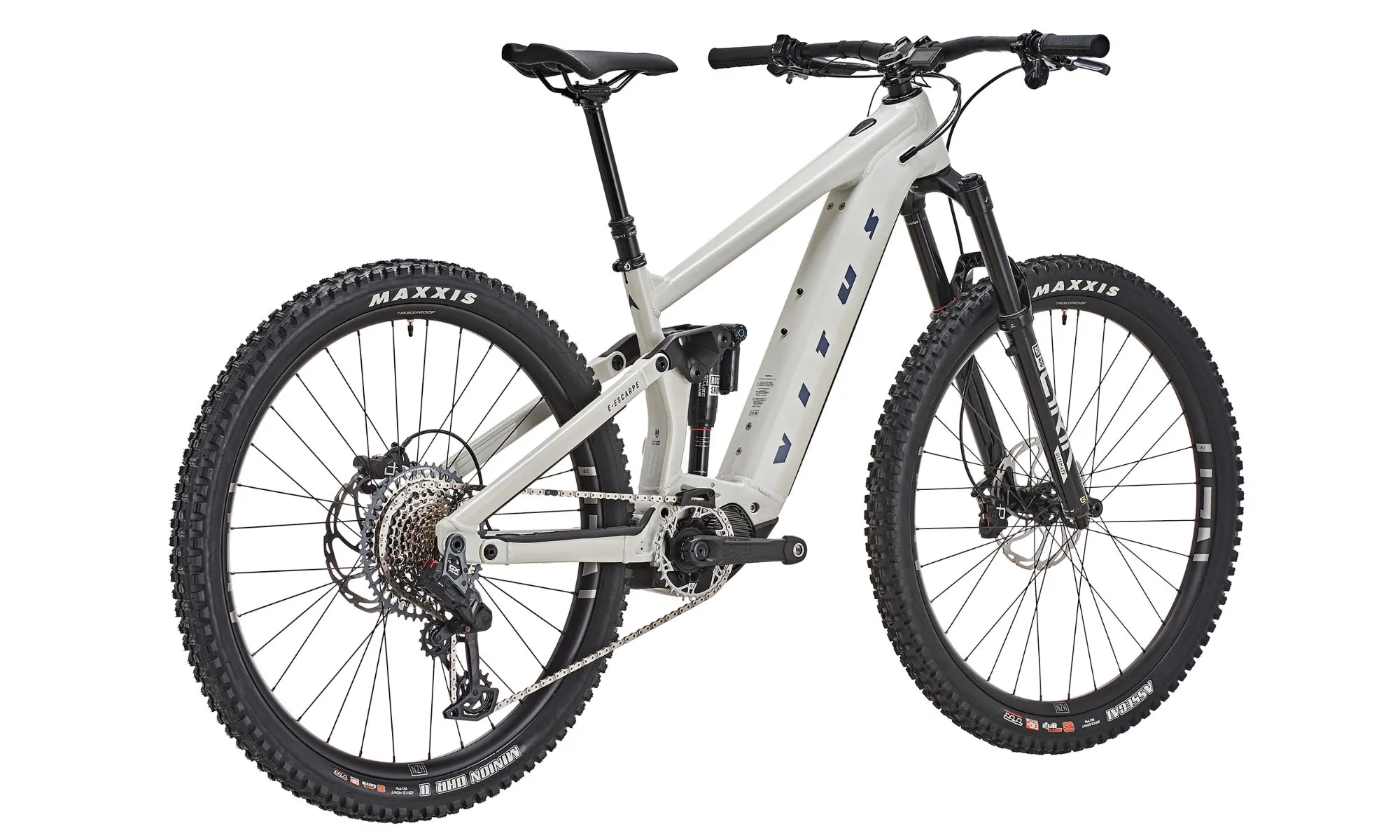

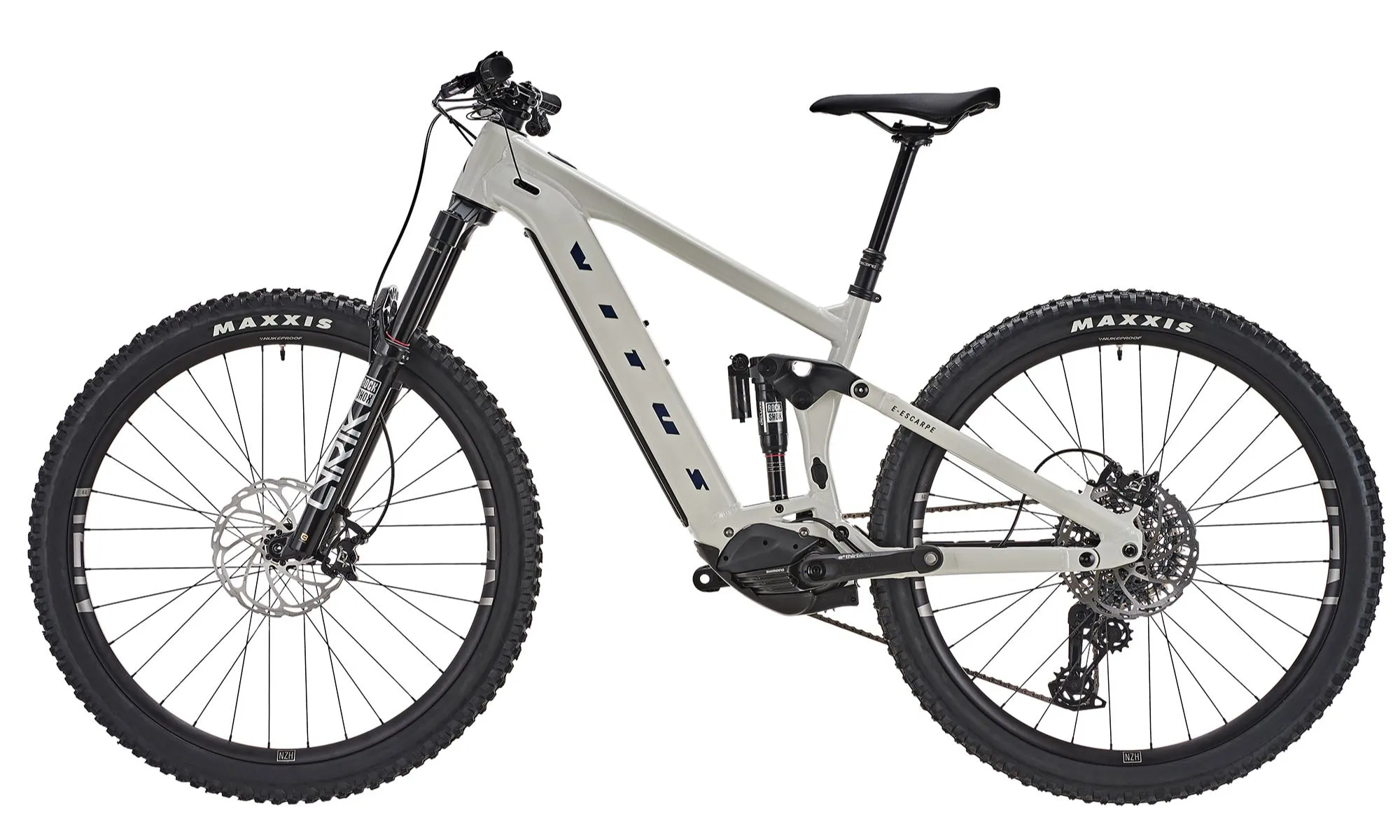

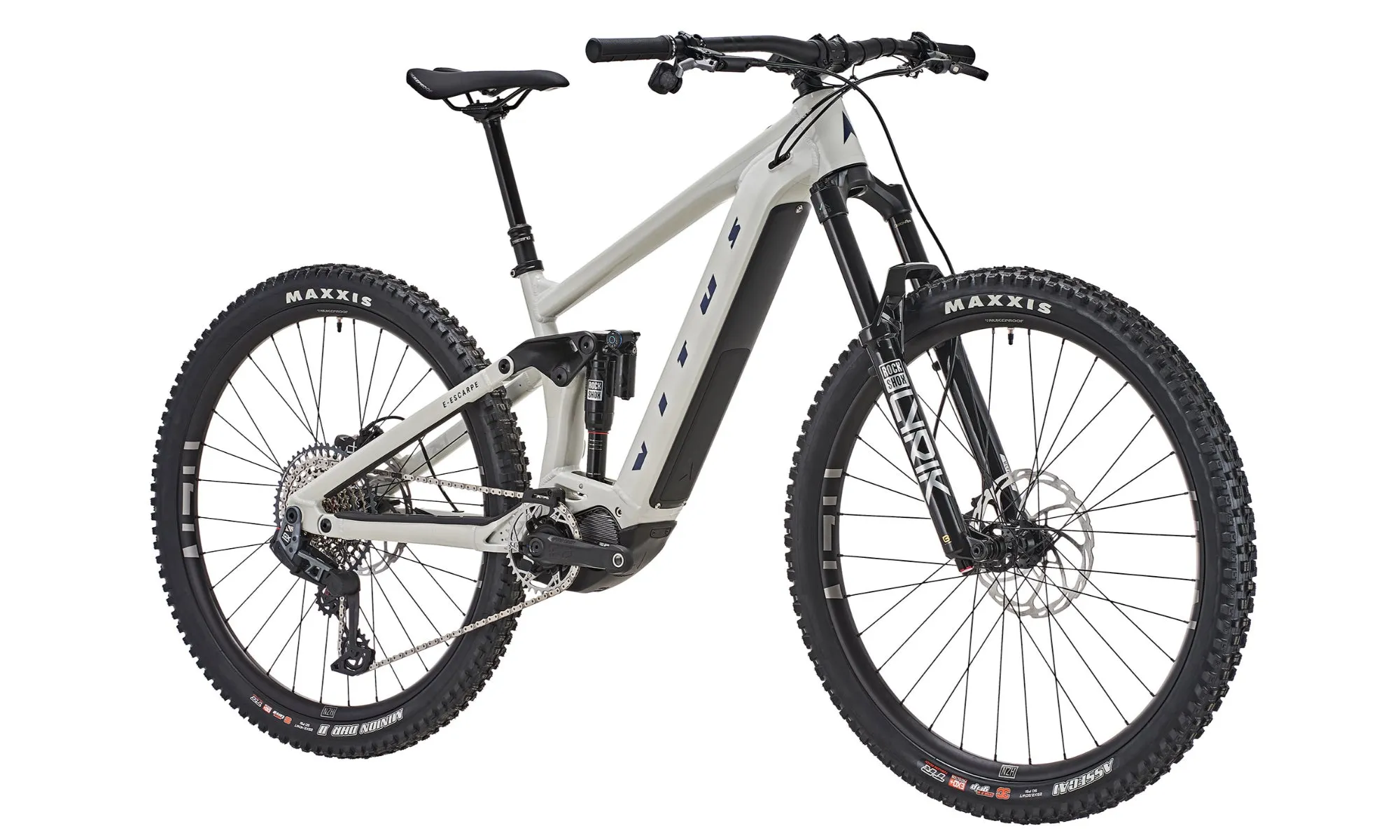

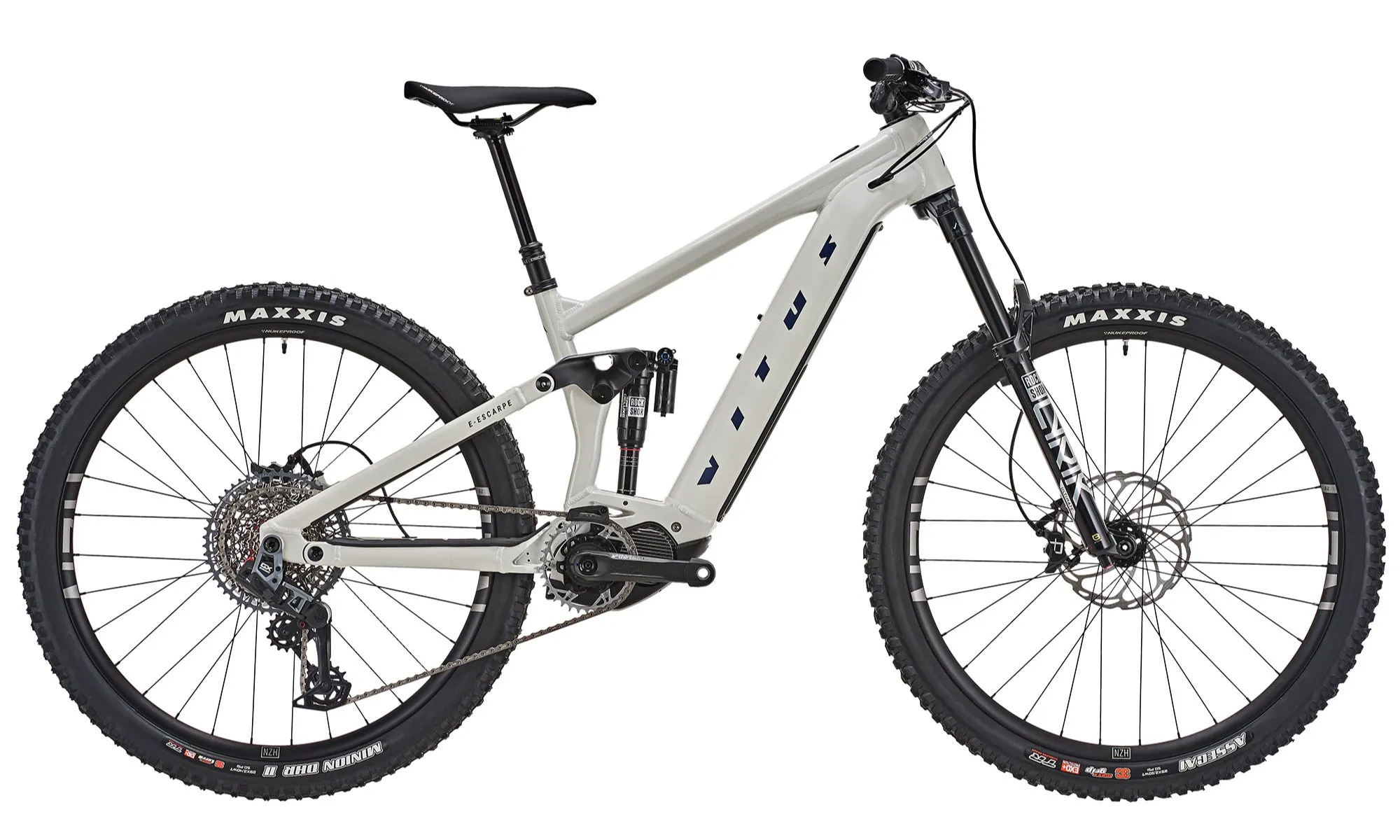

Vitus E-Escarpe VRX: The right bike for any job
The E-Escarpe is an all-mountain eMTB designed for singletrack, after work laps, and for those looking for a pedal-assist alternative to a standard trail bike. Its balanced geometry is a blast uphill and down, and its Shimano EP801 drive system is intuitive and can be tuned to suit the way you ride.
It’s an eMTB for the rider who wants a nimble and responsive e-bike; a bike that’s a little less of an e-enduro brawler and instead a little more versatile and responsive.

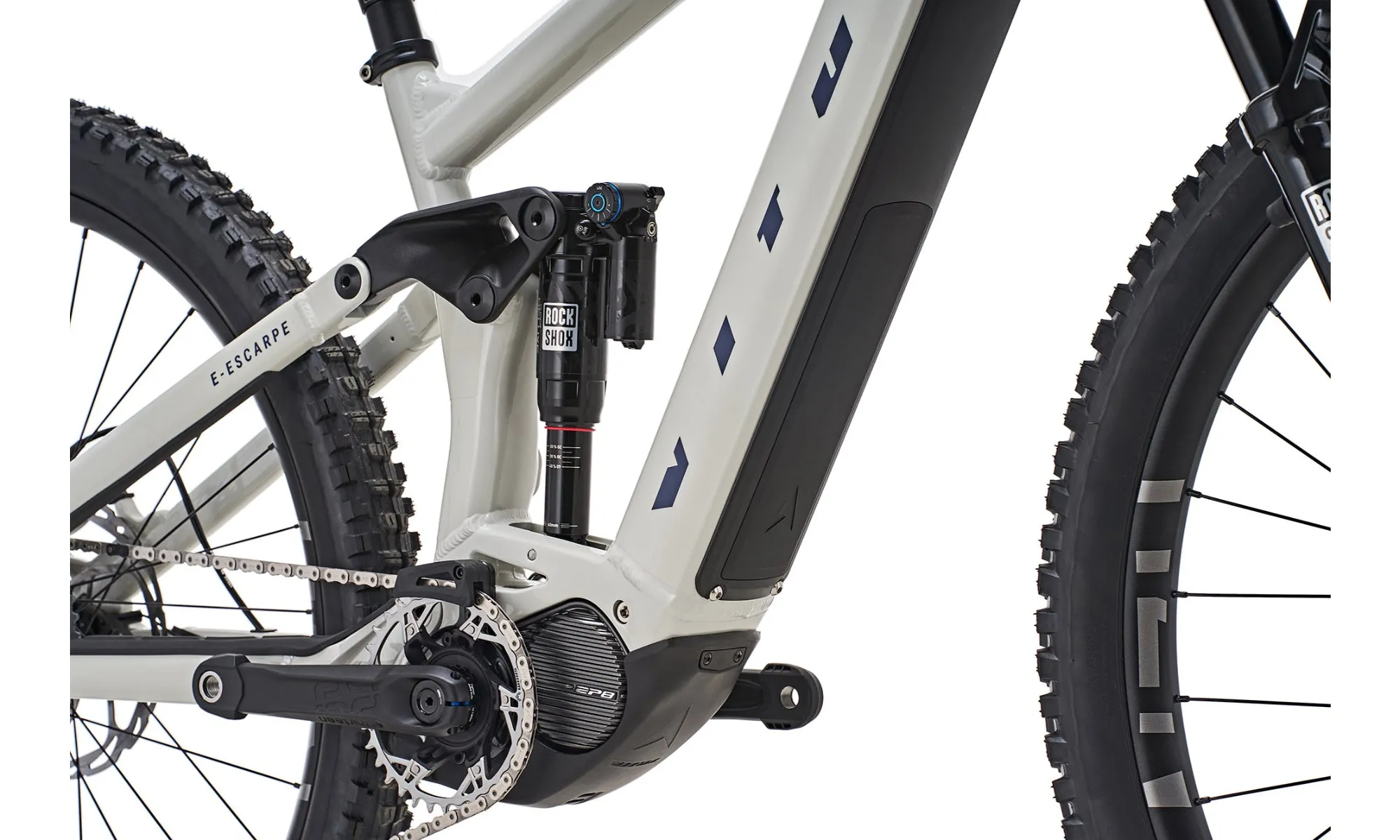

Closely based on our award-winning Escarpe trail bike, the E-Escarpe is powered by the grunty and Shimano STEPS EP801 drive unit and a 630Wh battery. This motor system makes 85Nm of climb-eating torque and peaks at 600w of power — a capable tool in an all-mountain setting.
Our goal was to make an eMTB that handled exactly like the rock-solid Escarpe trail bike, which is exactly where our designers landed. We began development on the E-Escarpe by starting with the original Escarpe frame and making small tweaks to make room for the EP801 drive system and adjusted the geometry for eMTB use. The result is an e-bike chassis that’s efficient on climbs and an absolute blast on descents; flickable enough to rail switchbacks and blitz rock gardens while still placing emphasis on uphill efficiency. It’s what we at Vitus envision as the ideal all-day, do-anything, ride-anywhere eMTB.

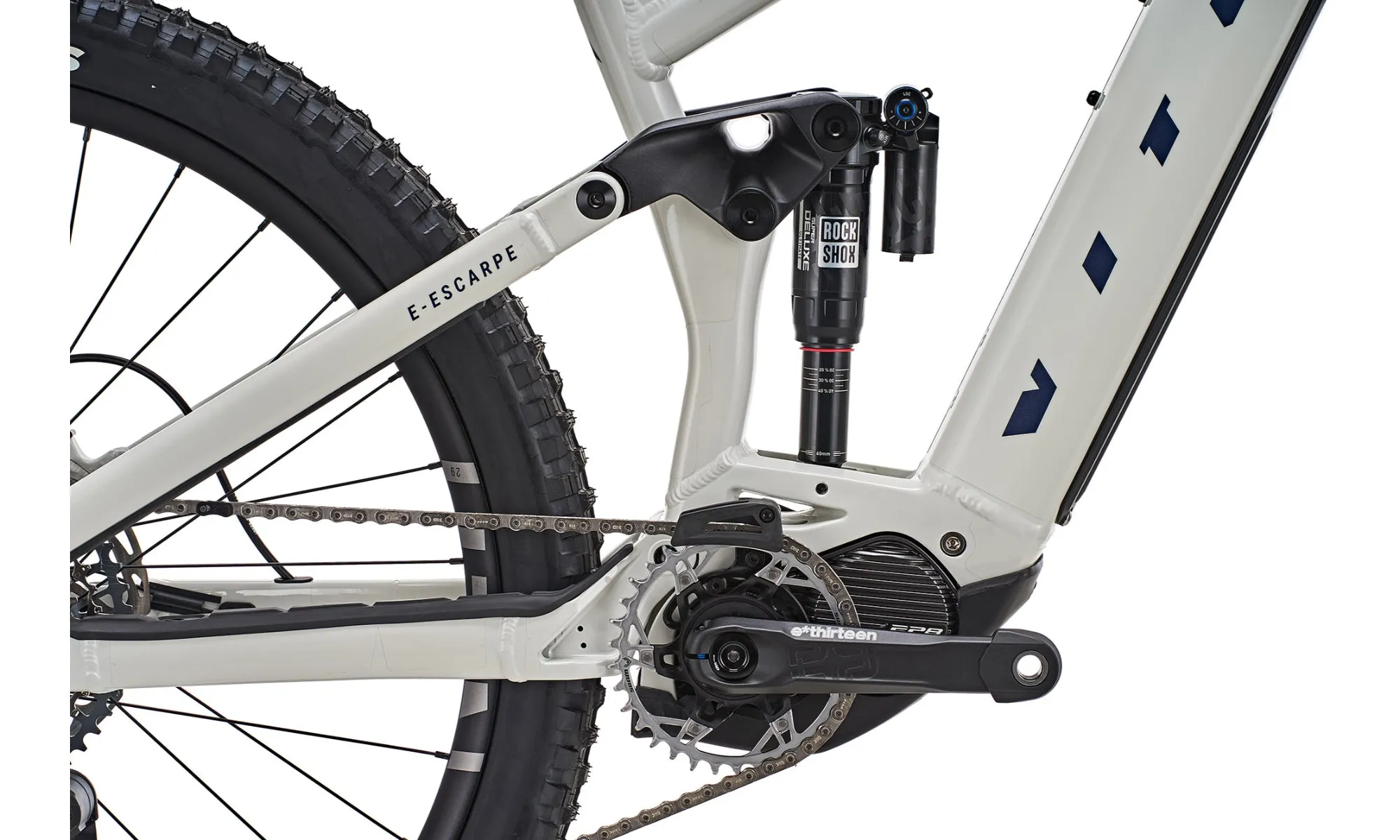

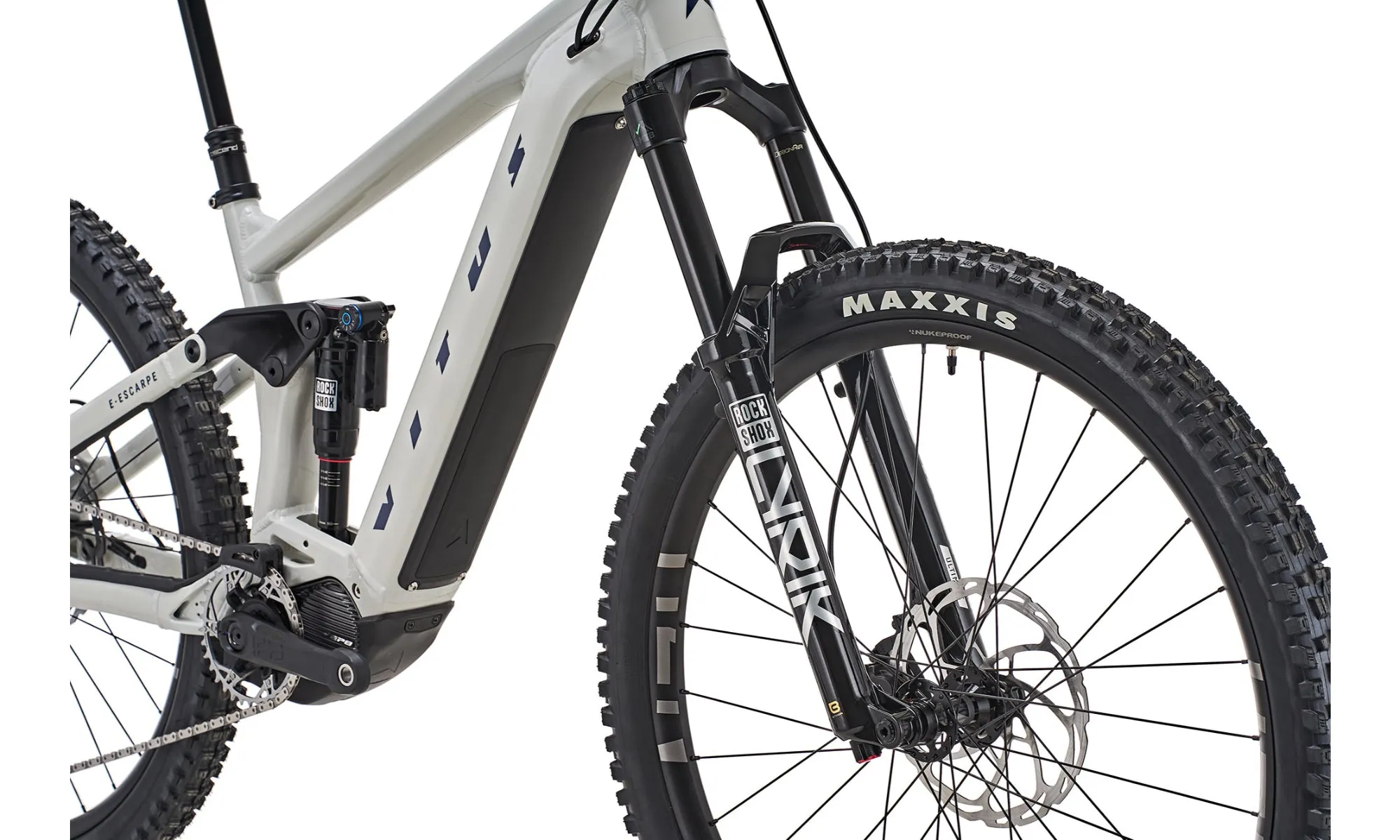

The E-Escarpe VRX is built around SRAM’s brand-new GX Eagle AXS T-Type 12-speed electronic drivetrain and a set of Hayes Dominion A4 4-piston hydraulic brakes. The suspension is a 150mm RockShox Ultimate fork paired with a RockShox Super Deluxe Ultimate shock with 140mm of travel in the rear. The rest of the kit is finished with Nukeproof components, with their bomber Horizon V2 wheels and a Horizon cockpit.
Built for variable terrain, after-work power laps, and undulating days in the saddle, the E-Escarpe is the perfect tool for any job.
Alloy Trail PlatformInternal battery frame design with new Shimano EP801 drive unit, improved suspension kinematics and updated geometry. |
Frame Material6061-T6 Aluminium |
Suspension Travel150mm Front, 140mm Rear |
Wheel Size29" |
Available SizeS, M, L, XL |
ColourCool Grey |
Weight:Medium: 24.2kg (tubeless setup) |
Specifications
FRAMEE-Escarpe 6061-T6 Double Butted Alloy Internal cable routing, post mount disc brake mounts, Boost hub spacing - 148mm x 12mm thru axle, Shimano STEPS compatible. Axle Specifications: 180mm Length, 14.5mm Thread Length, M12xP1.0 Thread Pitch | REAR RIMNukeproof Horizon V2 27.5", 32H, Presta Valve, Tubeless Ready Rim Tape Installed |

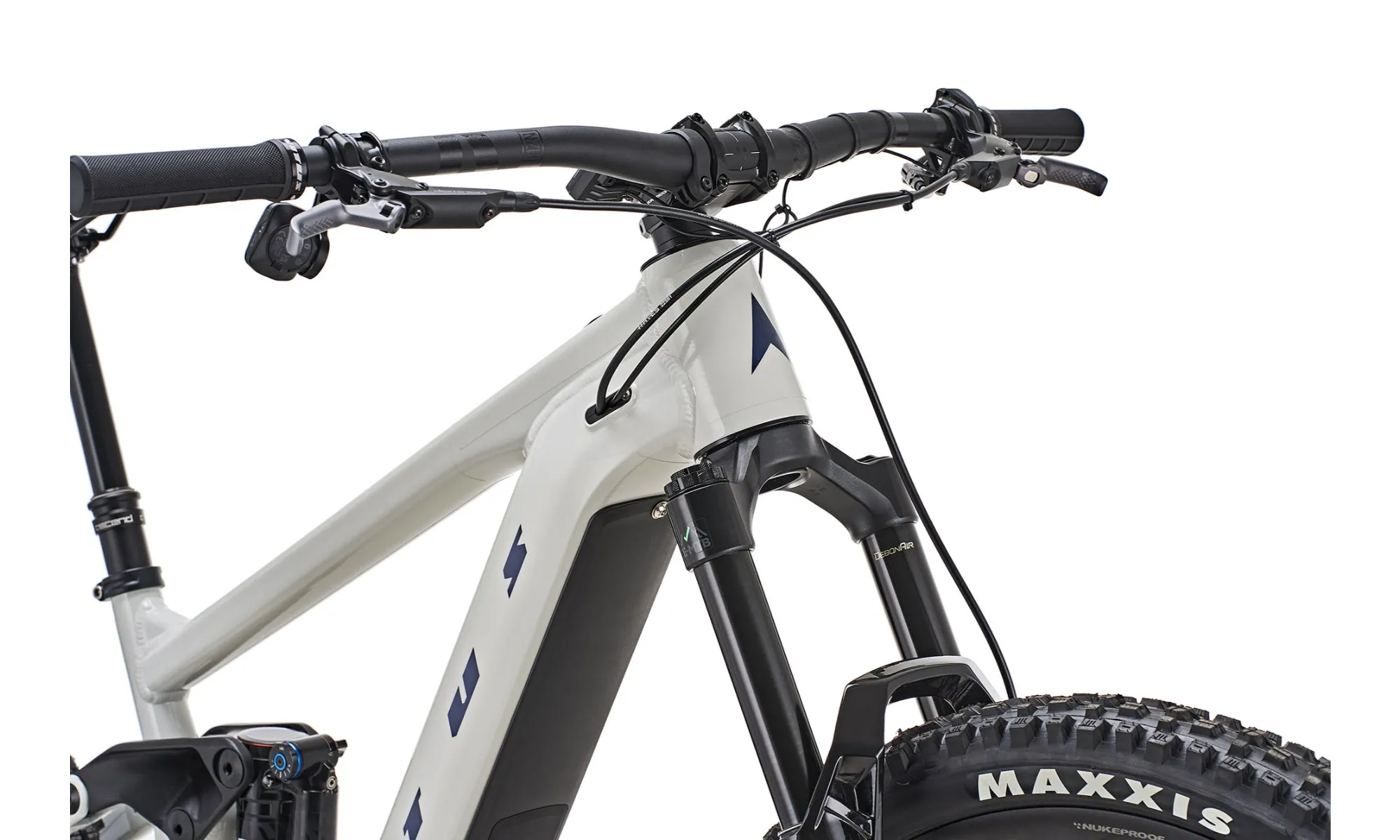

FORKSRockShox Lyrik Ultimate RC2 29" 150mm travel, DebonAir, Charger 3 RC2 Damper with ButterCups, 35mm stanchions, 110mm x 15mm Maxle Stealth axle, 44mm offset | FRONT HUBNukeproof Horizon V2
32H, 6 Bolt Disc Fitment, 110mm x 15mm |

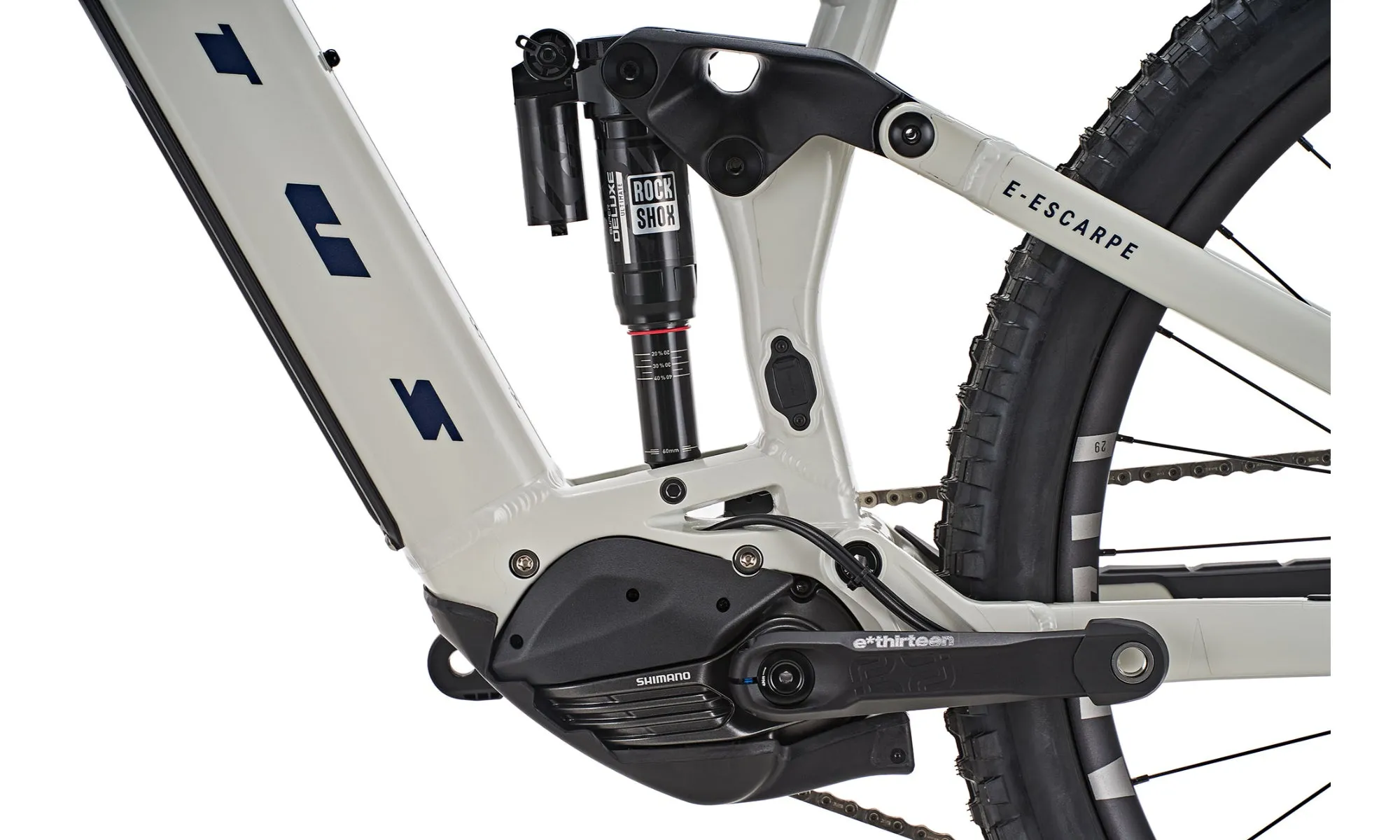

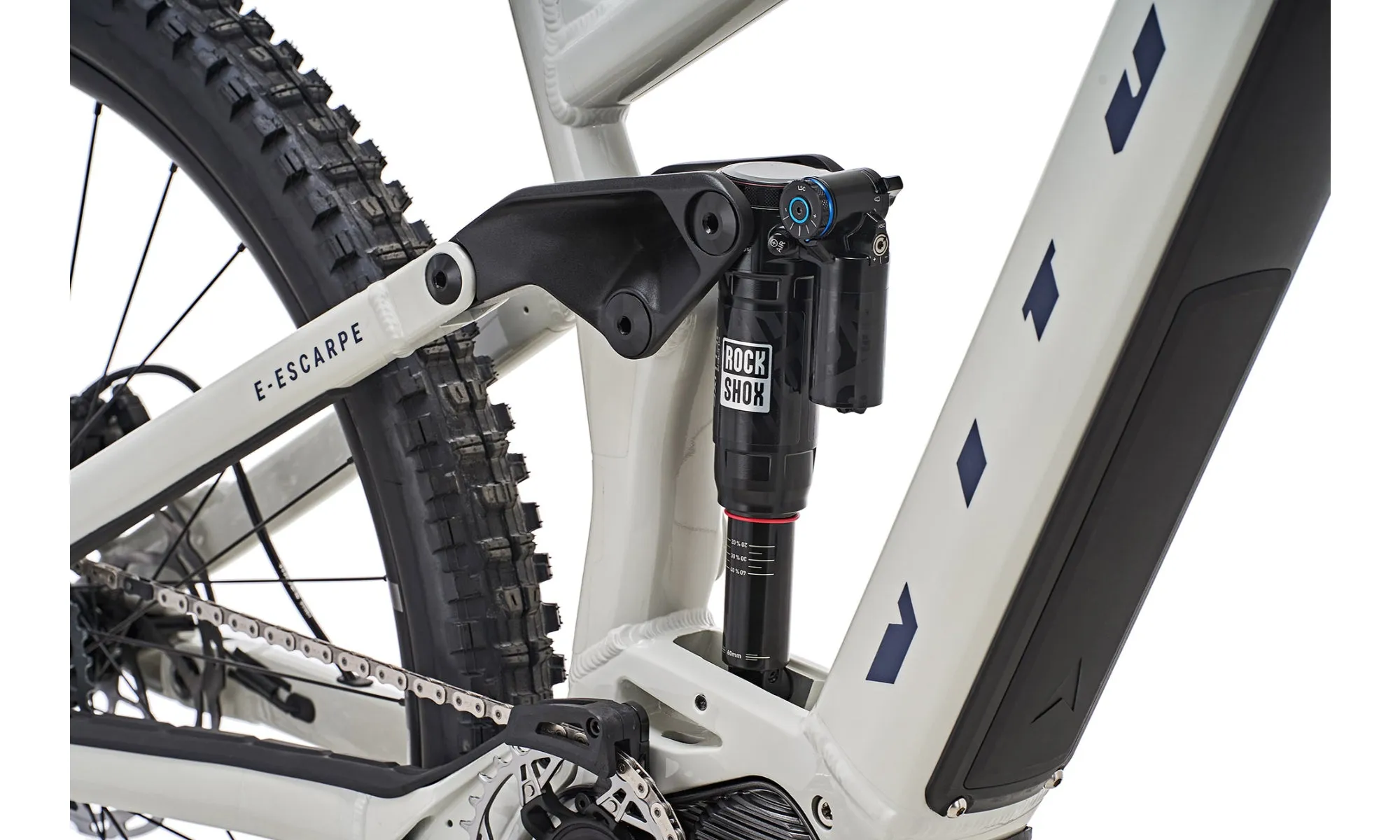

SHOCKRockShox Super Deluxe Ultimate RC2T DebonAir, 205mm x 60mm, trunnion | REAR HUB Nukeproof Horizon V2 32H, 6 Bolt Disc Fitment, XD Freehub, 148mm x 12mm |

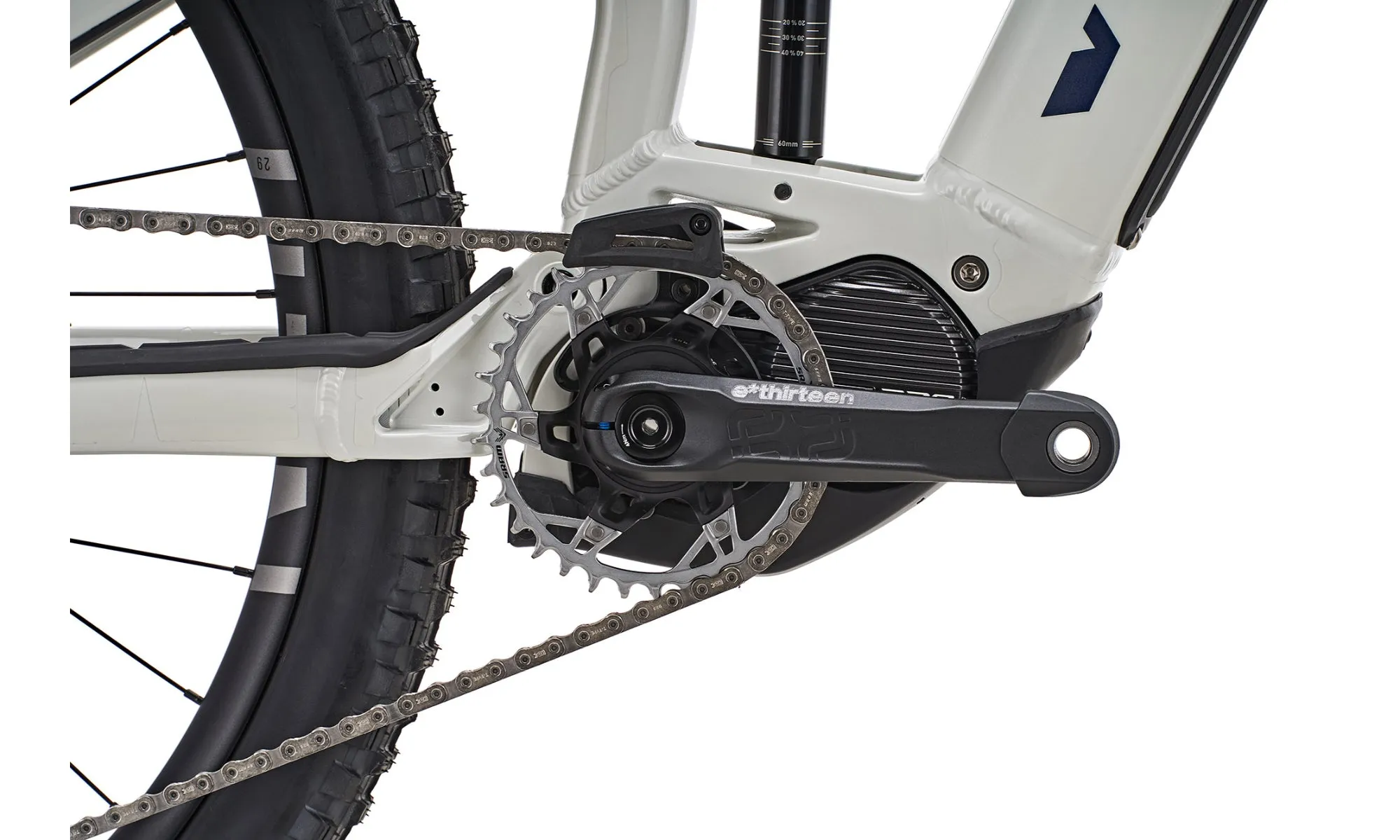

CHAINSETE*Thirteen E*Spec Plus 34T Narrow Wide Chainring, 165mm Crank Length, 53mm Chain Line | WHEELSETNukeproof Horizon V2 Wheelset 29", 32H, 6 Bolt, Boost 110mm x 15mm Front & 148mm x 12mm Rear Hub Spacing, XD Freehub, Tubeless Ready |
BOTTOM BRACKETN/A N/A | FRONT TYREMaxxis Assegai 29" x 2.5" WT, 3C MaxxGrip compound, EXO casing |
FRONT DERAILLEURN/A N/A | REAR TYREMaxxis Minion DHR II 29" x 2.4" WT, 3C MaxxTerra compound, EXO casing |

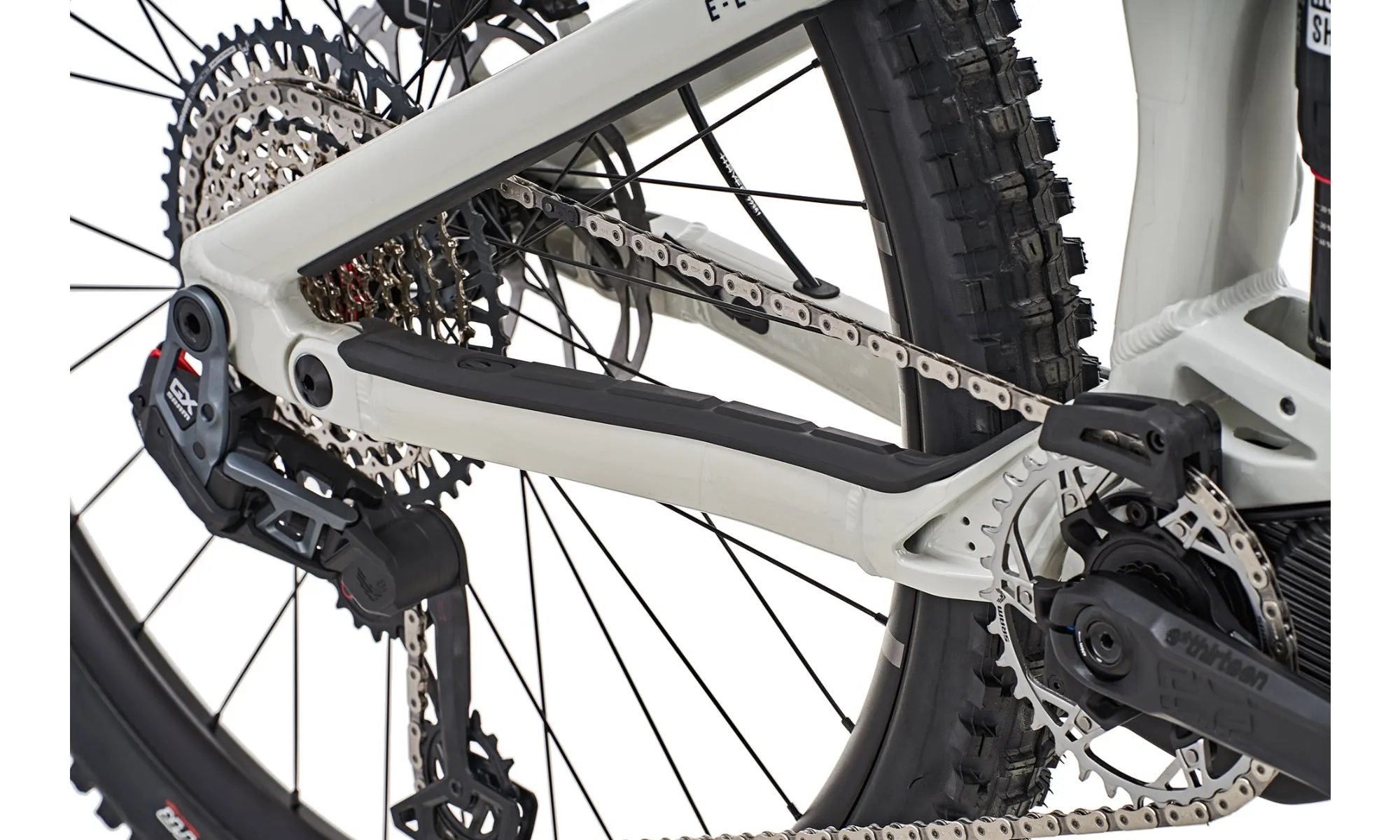

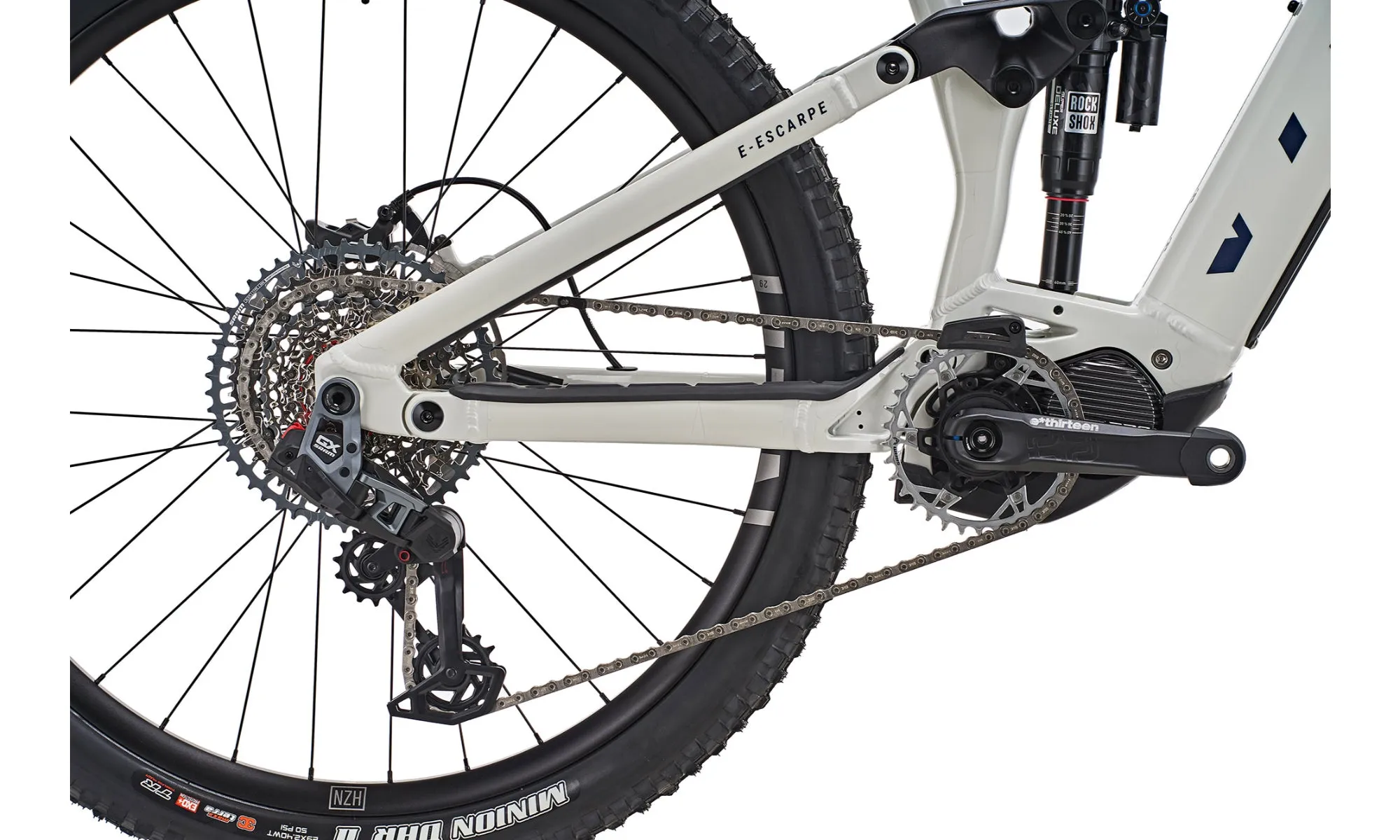

REAR DERAILLEURSRAM GX Eagle T-Type AXS 12 Speed, Wireless Electronic, Long Cage | BRAKESHayes Dominion A4
Post Mount, Four Piston Caliper |
| SHIFTERSSRAM AXS Pod Controller
12 Speed, Wireless Electronic, MMX Clamp | BRAKE ROTORSHayes D-Series
203mm Front & Rear, 6 Bolt Hub Fitment |

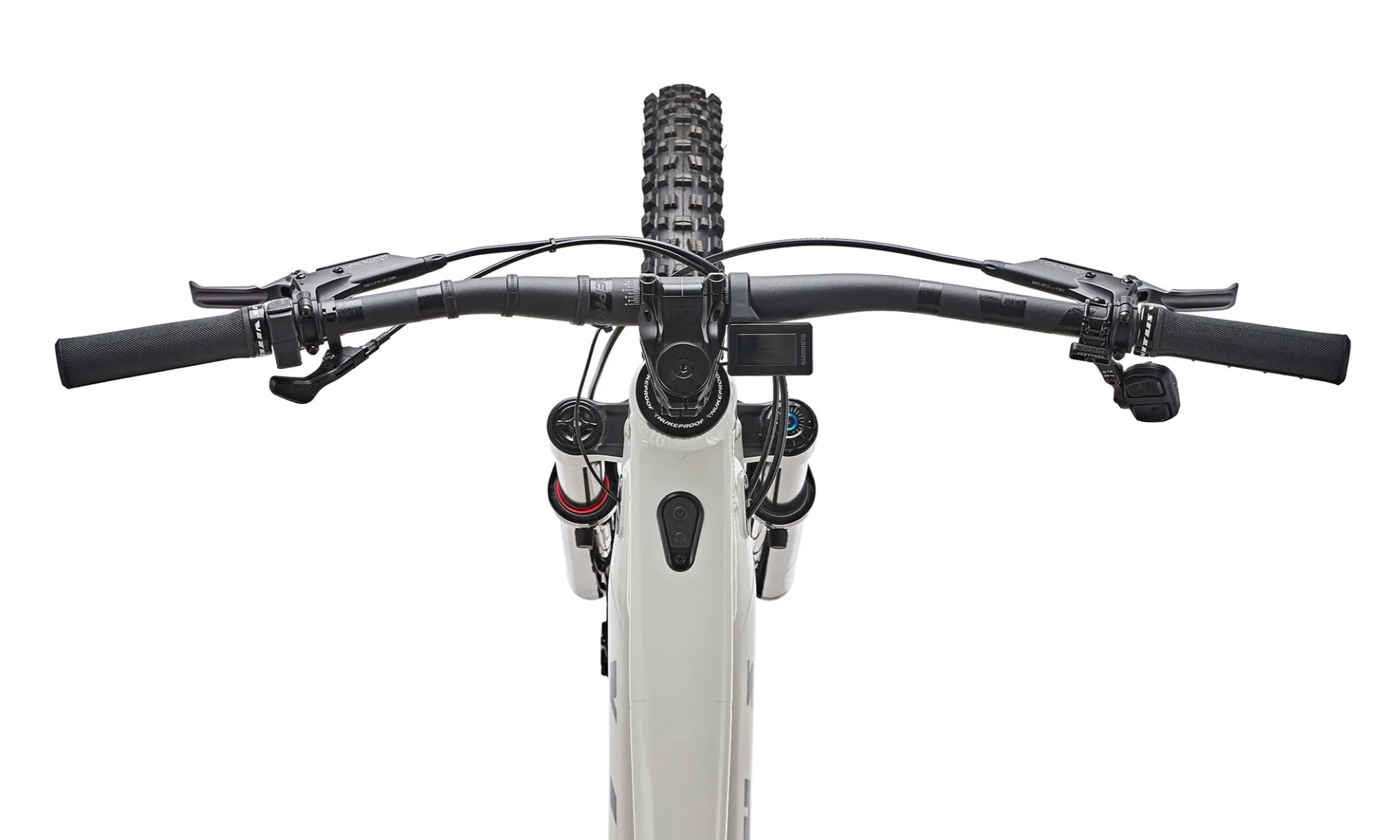

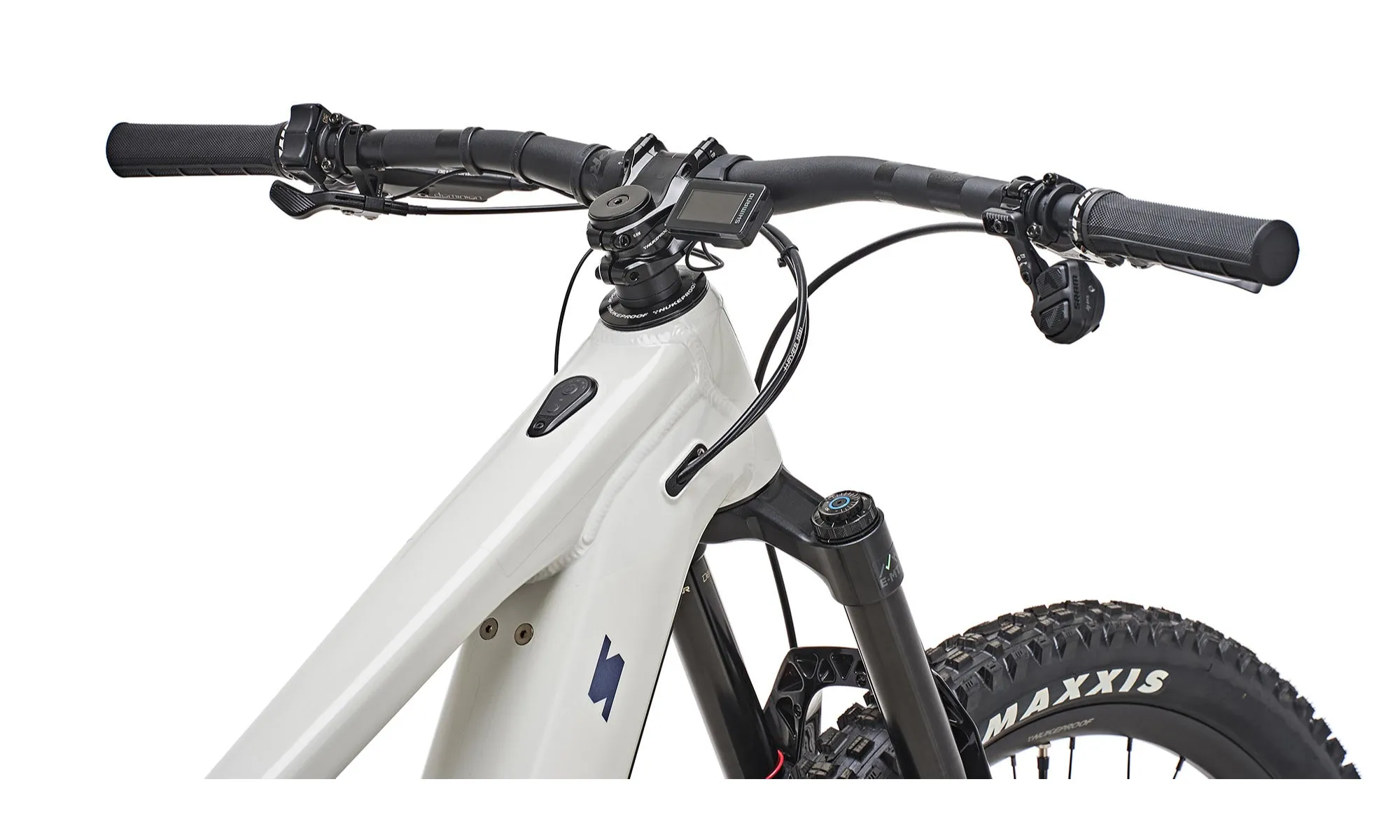

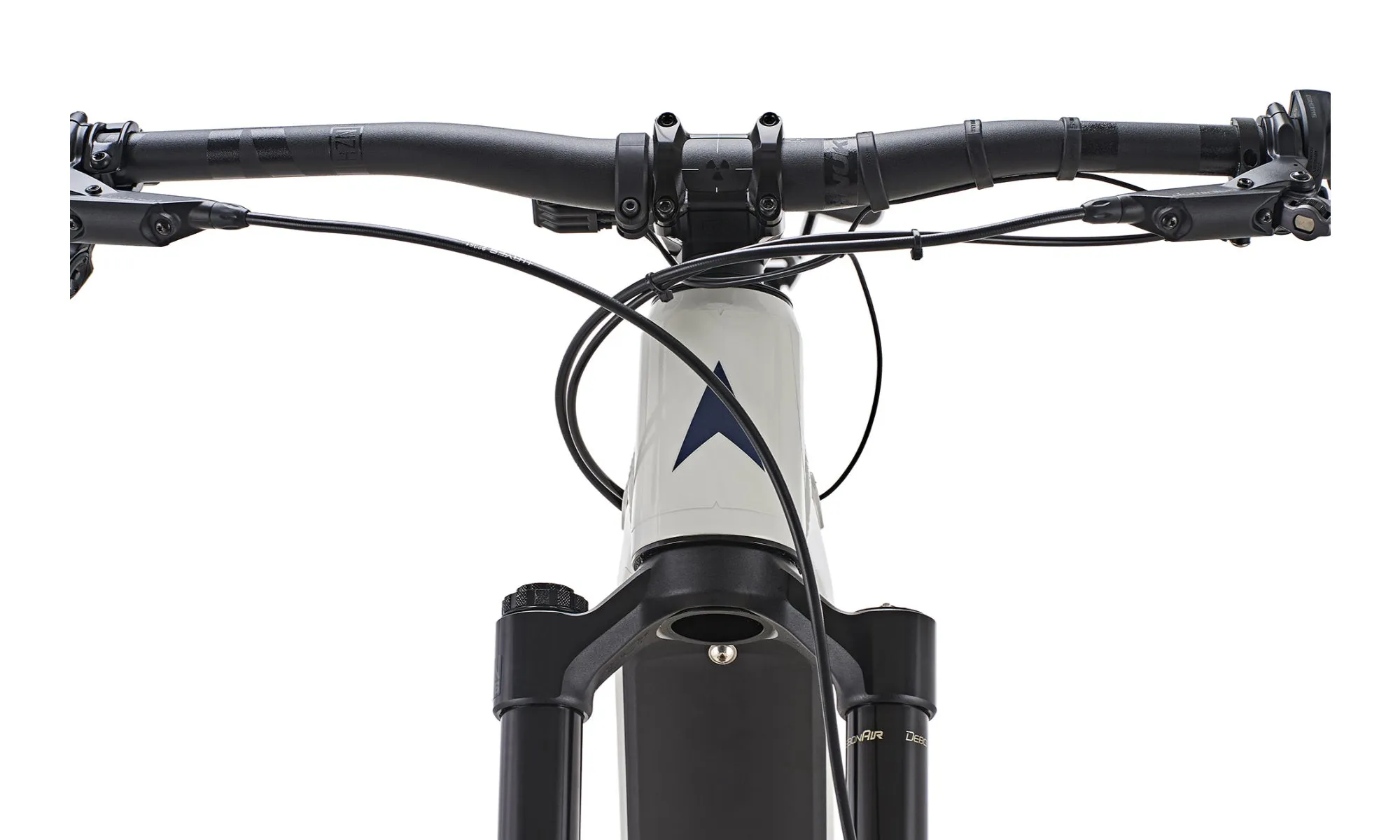

CASSETTESRAM GX Eagle T-Type 12 Speed, 10-52T Range | HANDLEBARSNukeproof Horizon V2 Riser
7075 Alloy, 9° Back Sweep, 31.8mm Clamp Diameter, S & M: 780mm Wide, 12mm Rise, L & XL: 800mm Wide, 25mm Rise |
| CHAINSRAM GX Eagle T-Type
12 Speed, 118 Links | STEMNukeproof Horizon
6061 Alloy, 50mm length, 31.8mm Handlebar Clamp Diameter, 5° Rise |
| MOTOR BATTERYShimano BT-EN806-A
630Wh, Downtube Integrated | HEADSETNukeproof
ZS56/28.6 upper & ZS66/46 lower to suit 1-1/8" upper tapered to 1.8" lower headtube |

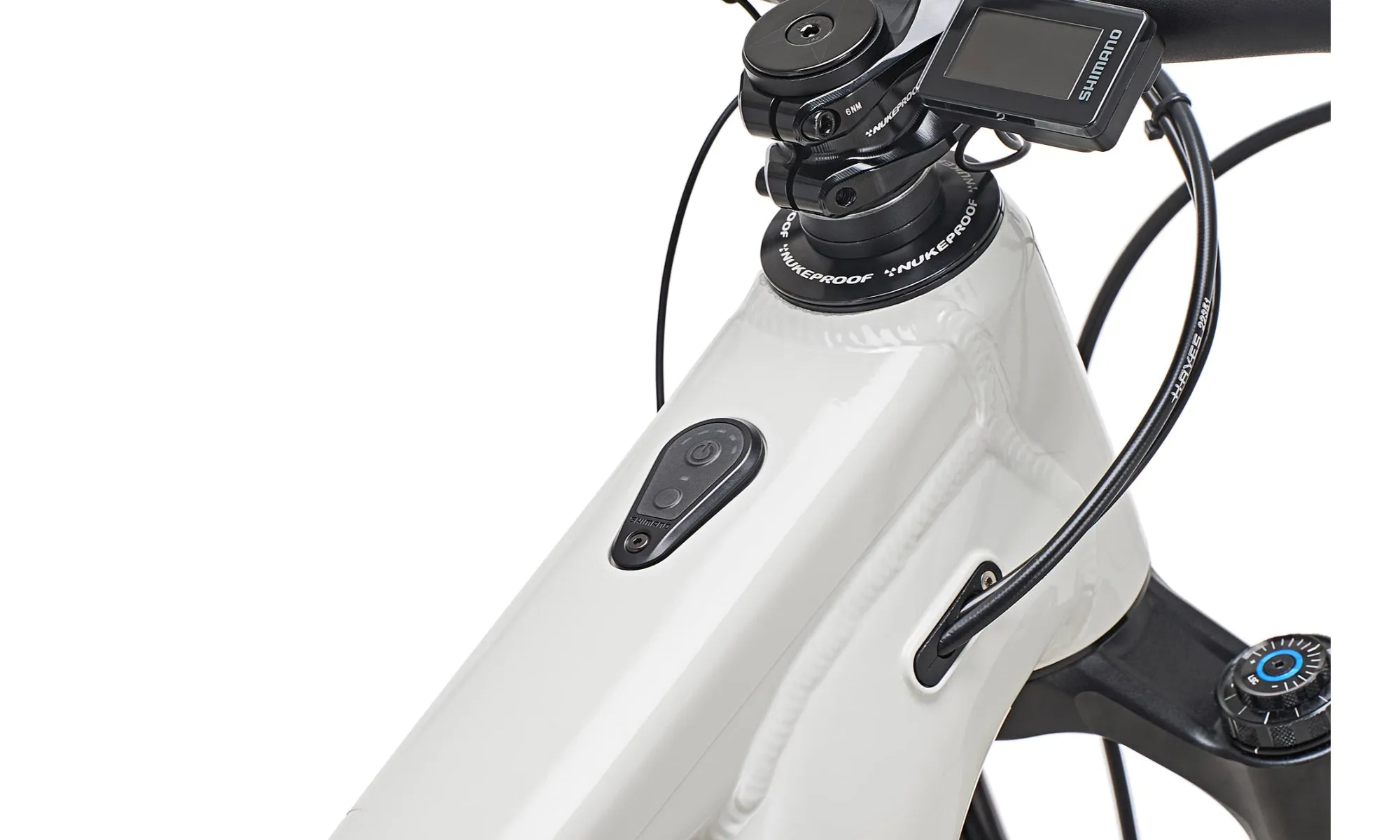

| MOTOR COMPUTERShimano SC-EM800
Boost, Trail, Eco, Off & Walk modes | GRIPSVitus Lock On
N/A |
| MOTOR SHIFTERShimano SW-EM800
Mounted on left | SADDLENukeproof Trail Saddle
Black, Steel Rails |

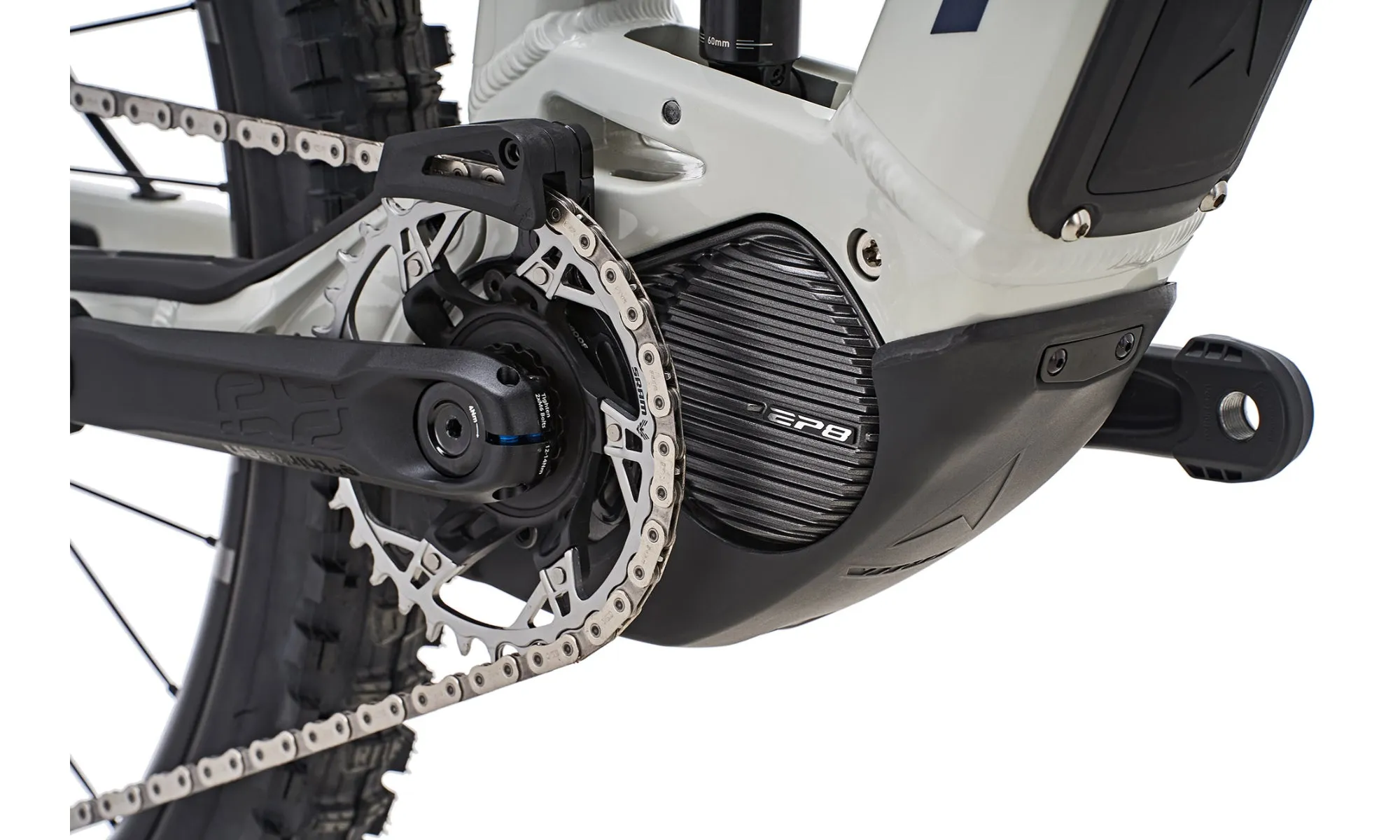

| MOTOR DRIVE UNITShimano STEPS EP801

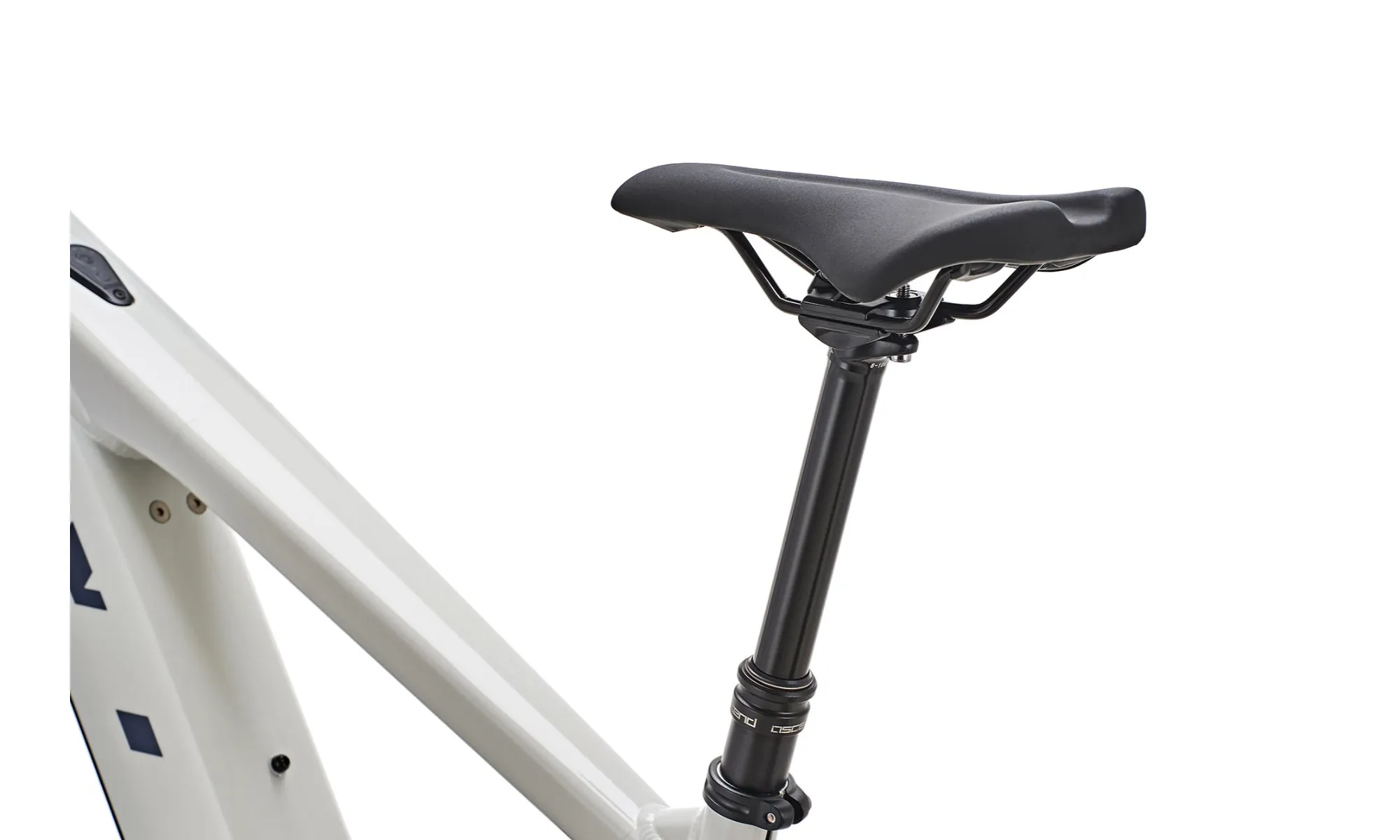

Power Output 250W, Max Torque 85Nm | SEATPOSTBrand-X Ascend Dropper
Remote lever, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop |
| FRONT RIMNukeproof Horizon V2
29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed | SEATCLAMPVitus
34.9mm Diameter |
