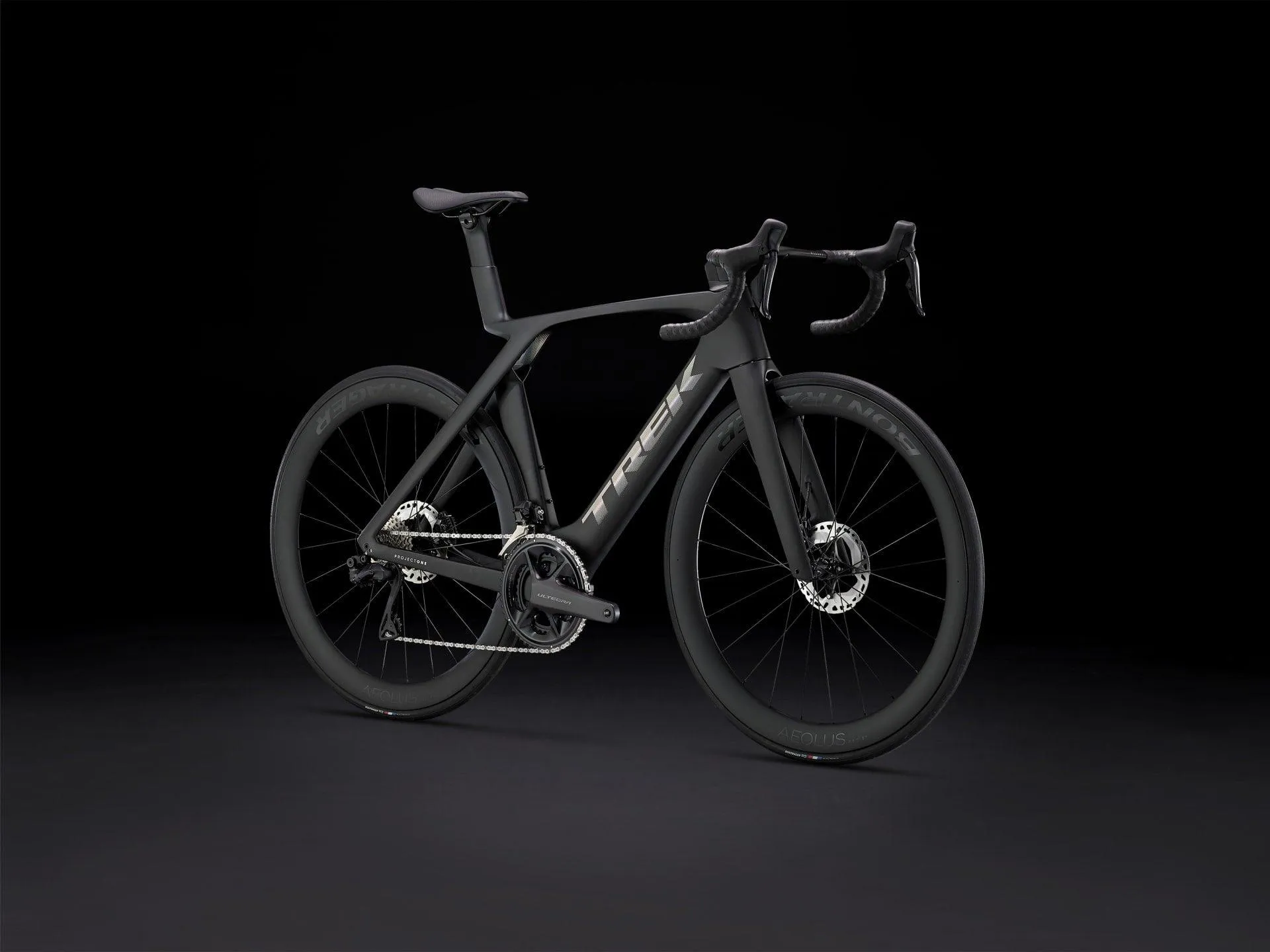

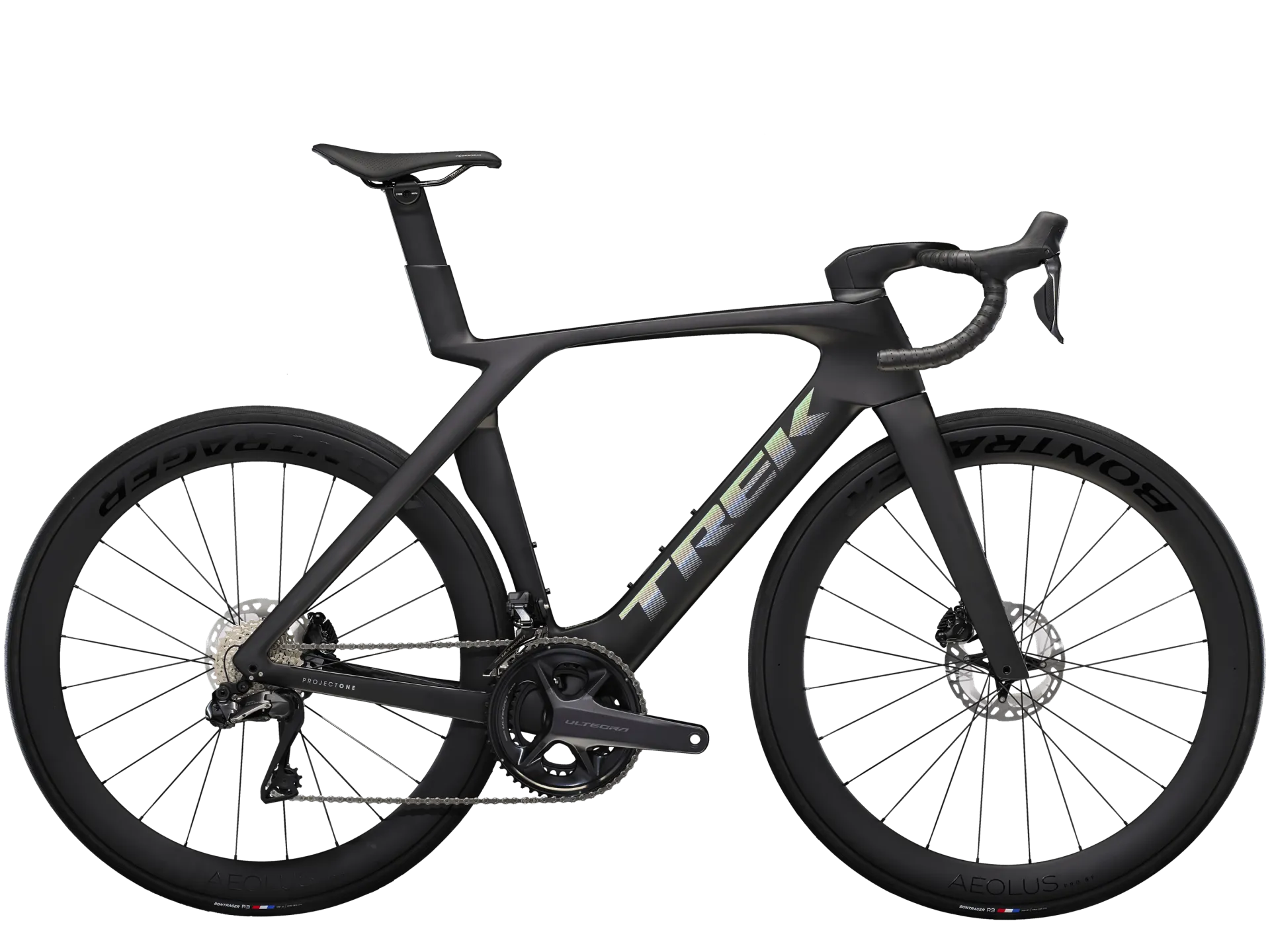

The Madone SLR 7 is the ultimate race machine. An 800 Series OCLV Carbon frame with exclusive IsoFlow technology adds an aerodynamic advantage, cuts weight and smooths the road ahead

Features

• All-new aerodynamic Kammtail frame shapes, bar/stem design and rider position make the Madone SLR our fastest road race bike yet.
• Never-before-seen IsoFlow technology specifically designed for the seventh-generation Madone SLR shaves weight, improves aerodynamics and smooths your ride.
• Super lightweight 800 Series OCLV Carbon and a new lightweight design make this our lightest Madone disc ever.
• A newly optimised bar/stem that’s 3 cm narrower in the hoods than the drops offers a more comfortable and ergonomic riding position for faster racing, improved aerodynamics and ultimate control.
• Every element of this bike is part of a greater whole. It has invisible cable routing, aero cockpit, hidden seat mast and more.

Specifications

• Intended Use- Race
• Wheel Size- 700c
• Braking System- Hydraulic Disc
• Frame Material- Carbon
• Fork Material- Carbon

Components

• Frame- 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12 mm thru axle
• Fork- Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
• Bottom Bracket- Praxis, T47 threaded, internal bearing
• Chain- Shimano Ultegra/XT M8100, 12-speed
• Crank- Size: 47 Shimano Ultegra R8100, 52/36, 165 mm length Size: 50, 52 Shimano Ultegra R8100, 52/36, 170 mm length Size: 54 Shimano Ultegra R8100, 52/36, 172.5 mm length
• Shift Levers- Shimano Ultegra R8170 Di2, 12-speed
• Cassette- Shimano Ultegra R8100, 11-30, 12 speed
• Front Derailleur- Shimano Ultegra R8150 Di2, braze-on, down swing
• Rear Derailleur- Shimano Ultegra R8150 Di2, 34T max cog
• Grips/Bartape- Bontrager Supertack Perf tape
• Handlebar- Size: 47 Madone Integrated handlebar/stem, OCLV Carbon, 380 mm width, 80 mm stem length Size: 50, 52 Madone Integrated handlebar/stem, OCLV Carbon, 400 mm width, 90 mm stem length Size: 54 Madone Integrated handlebar/stem, OCLV Carbon, 420 mm width, 90 mm stem length
• Stem- Size: 47 Madone Integrated handlebar/stem, OCLV Carbon, 380 mm width, 80 mm stem length Size: 50, 52 Madone Integrated handlebar/stem, OCLV Carbon, 400 mm width, 90 mm stem length Size: 54 Madone Integrated handlebar/stem, OCLV Carbon, 420 mm width, 90 mm stem length
• Saddle- Size: 47, 50, 52 Bontrager Aeolus P2 Elite, 155 mm width Size: 54 Bontrager Aeolus Elite, austenite rails, 145 mm width
• Seatpost- Madone aero carbon internal seat mast cap, integrated light mount, 0 mm offset, short length
• Front Brake- Shimano Ultegra hydraulic disc
• Rear Brake- Shimano Ultegra hydraulic disc
• Front Wheel- Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
• Rear Wheel- Bontrager Aeolus Pro 51, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru-axle
• Tire- Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 mm
• Pedal- NA
• Weight(Apprx)- 7.69 kg
