Product Details

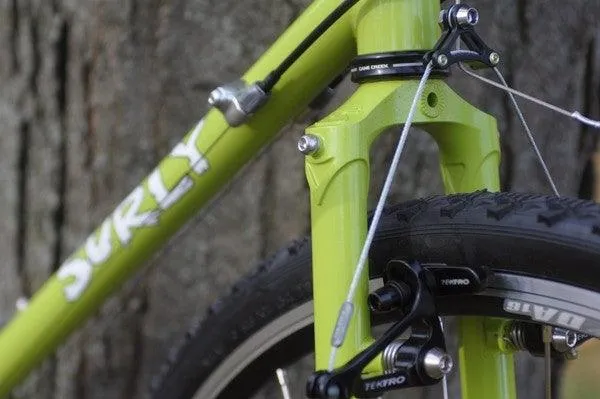

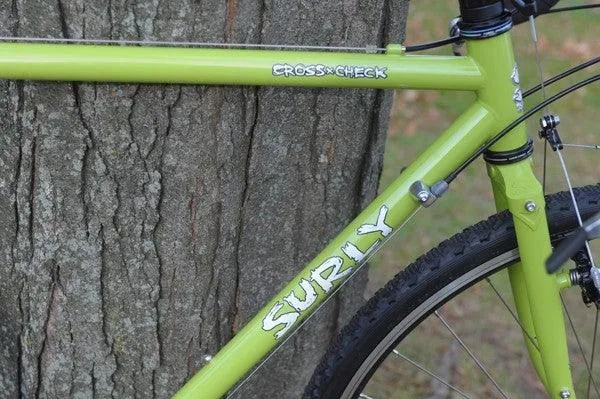

The Cross Check frame gives you options whether its using gears or hucking it singlespeed, or building the frame as a commuter or a touring bike.  You can even use the Cross Check as a cross bike!  And race it too!

 Features
  • Tubing: 100% Surly 4130 CroMoly steel. Main triangle double-butted. TIG-welded
  • Rear dropouts: Semi-horizontal dropouts with adjusters give you single-speed compatibility and wheel base adjustability. Gnot-rite spacing (132.5mm) allows you to run 130mm road hubs and 135mm MTB hubs
  • Braze-ons: Bosses front and rear to take cantilever or linear-pull brakes, eyelets at the dropouts, rear rack bosses, dual water bottle mounts, downtube shifter bosses
  • Seatpost diameter: 27.2mm
  • Seatpost clamp diameter: 30.0mm, Surly Stainless included
  • Headset: 1-1/8" threadless
  • Bottom bracket: 68mm wide, standard English threaded (1.37" x 24t)
  • Tire clearance: Room for tires up to 700 x 45mm. Go a bit smaller for fender clearance.
  • Chainring clearance: Manipulated stays so you can fit the size rings you want. Go nuts!
  • Color: Hospital Foam or Gloss Black
  • Weight: 56cm = 4.88 lbs (2.2 kg) Fork - uncut = 2.19 lbs (.99 kg)
  • Fork: 4130 CroMoly steel. Lugged and brazed. Sloping crown, curved tapered legs
Additional Info
  • Country of Origin: Taiwan
  • Imported By: Happy Earth Enterprises LLP , 3/8 Ground Floor , Opp. MG Infant School , Bilekahalli , Bengaluru - 560076 , India.
  • Net Quantity: 1N
  • Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: [email protected]
  • Commodity: Framesets

Surly Cross Check Frameset (H. FOAM)

  • 42cm
  • 54cm
  • 56cm

$ 68.79

$ 89.43

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
