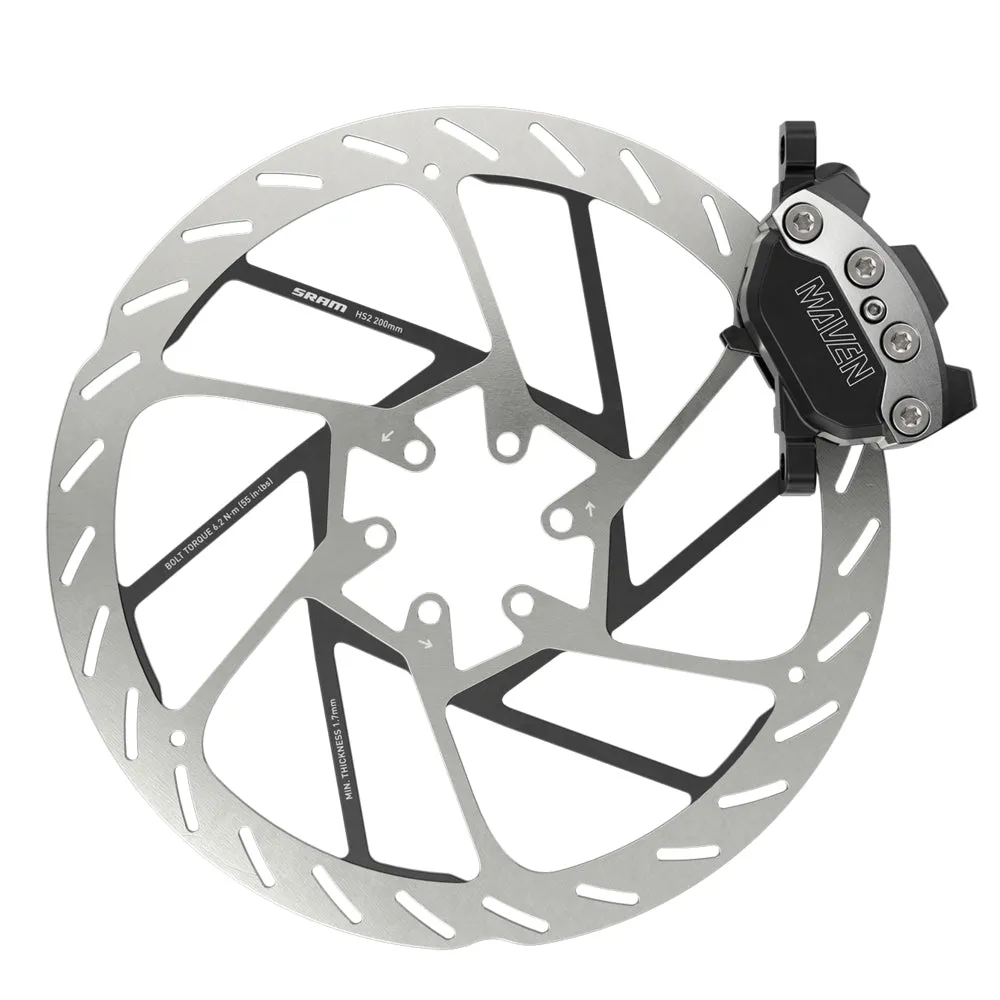

Modern mountain bikes have redefined what riders are capable of, pushing the requirements for heavy-duty power further than ever before. Maven Ultimate is our answer to that evolution, with monstrous 18 and 19.5-millimeter pistons driving 50% more power than Code. But best-in-class power means nothing unless you’re able to harness it. Swinglink translates rider input for progressive power throughout the lever pull, maintaining SRAM’s signature ride feel. And because of a stiff 4-bolt caliper that sheds an incredible amount of heat, that feel remains consistent, so the last corner feels like the first corner. But with so much baseline power on hand, there is more range than ever before to tune the ride qualities to exactly how you want with different pad materials, and rotor sizes. Maven Ultimate pairs a sleek high polish lever body to a caliper with machined edges and titanium hardware for a finish worthy of any modern super bike. And for unrivaled ease of customization, features tool-free Reach and Contact Point Adjust. Maven is the expert, but Maven Ultimate is the pinnacle.
FEATURES
- 18 and 19.5-millimeter pistons for best-in-class power.
- Swinglink for signature SRAM lever feel.

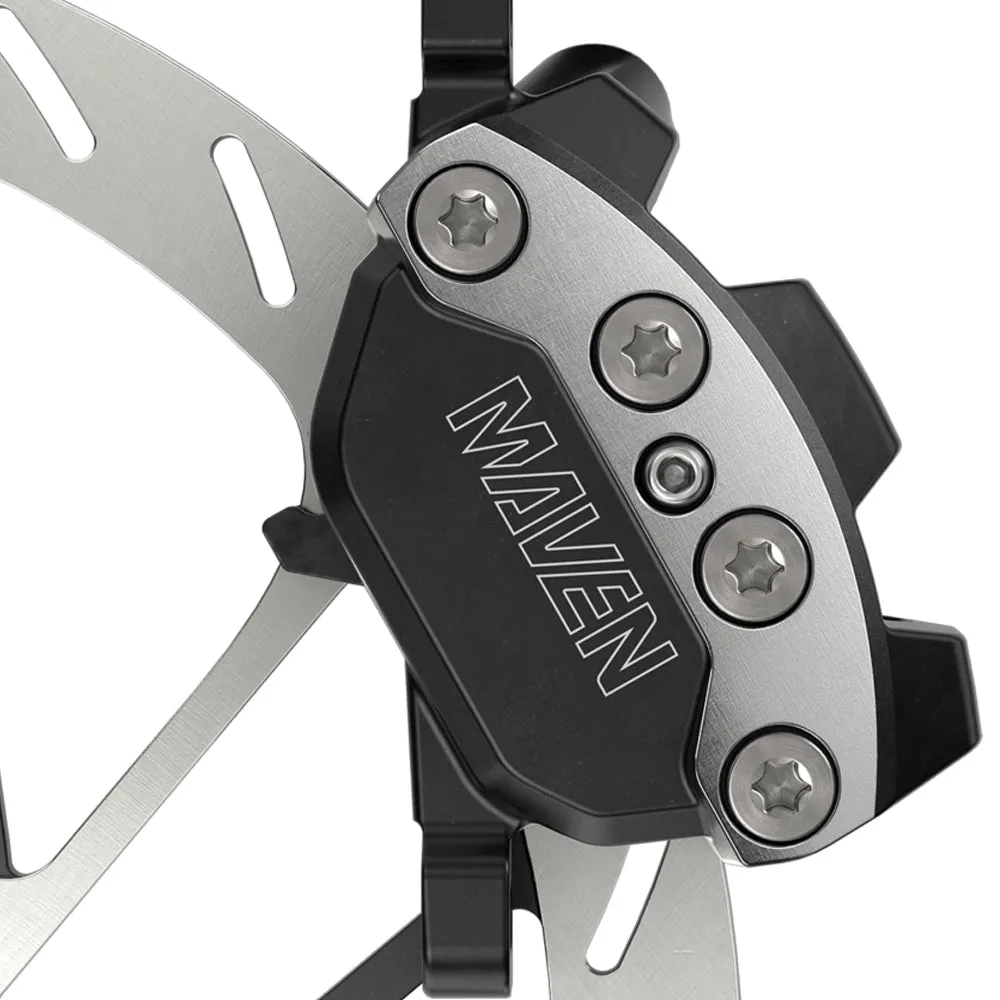

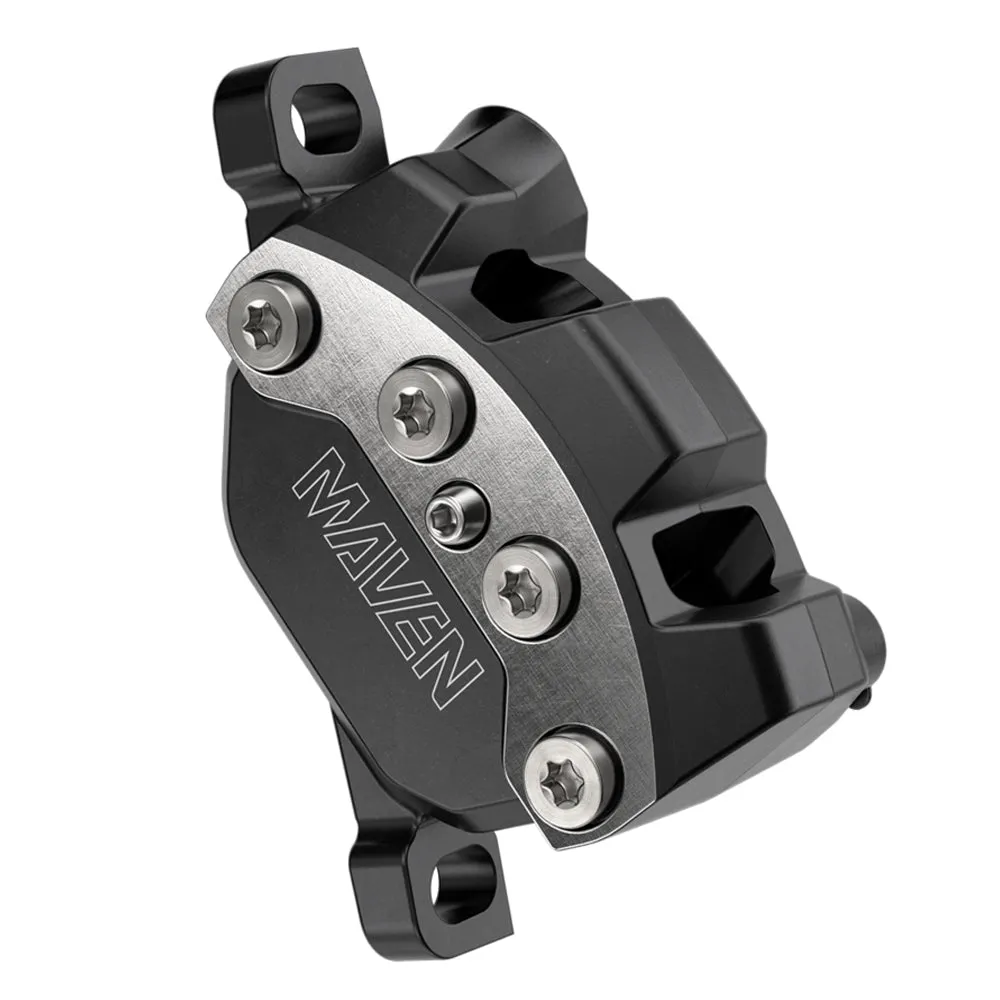

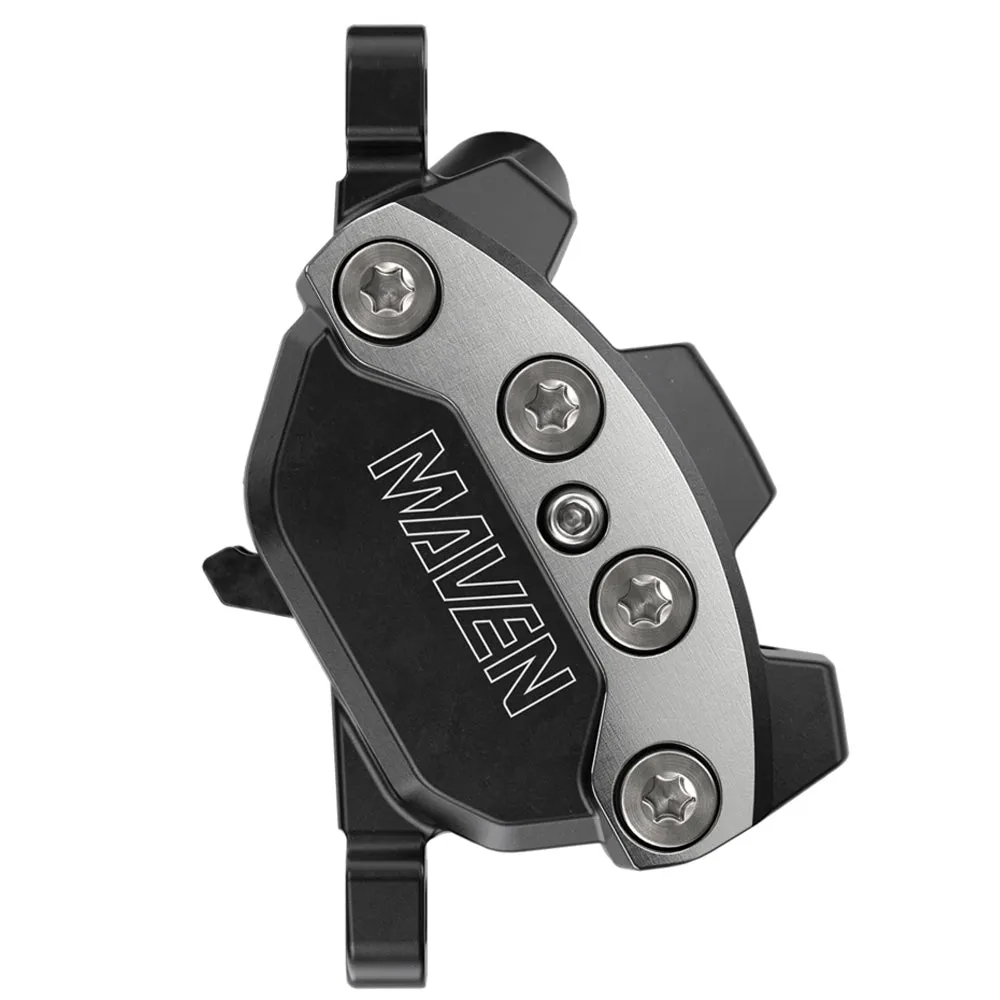

- Stiff 4-piston caliper with best heat management and easier bolt access.
- Organic pads come standard for the best modulation and the quietest ride.
- Stealth lever architecture for a sleeker, more modern ride.
- Mineral Oil for low maintenance and performance.
- Designed for use with Maxima Mineral Brake Oil only.

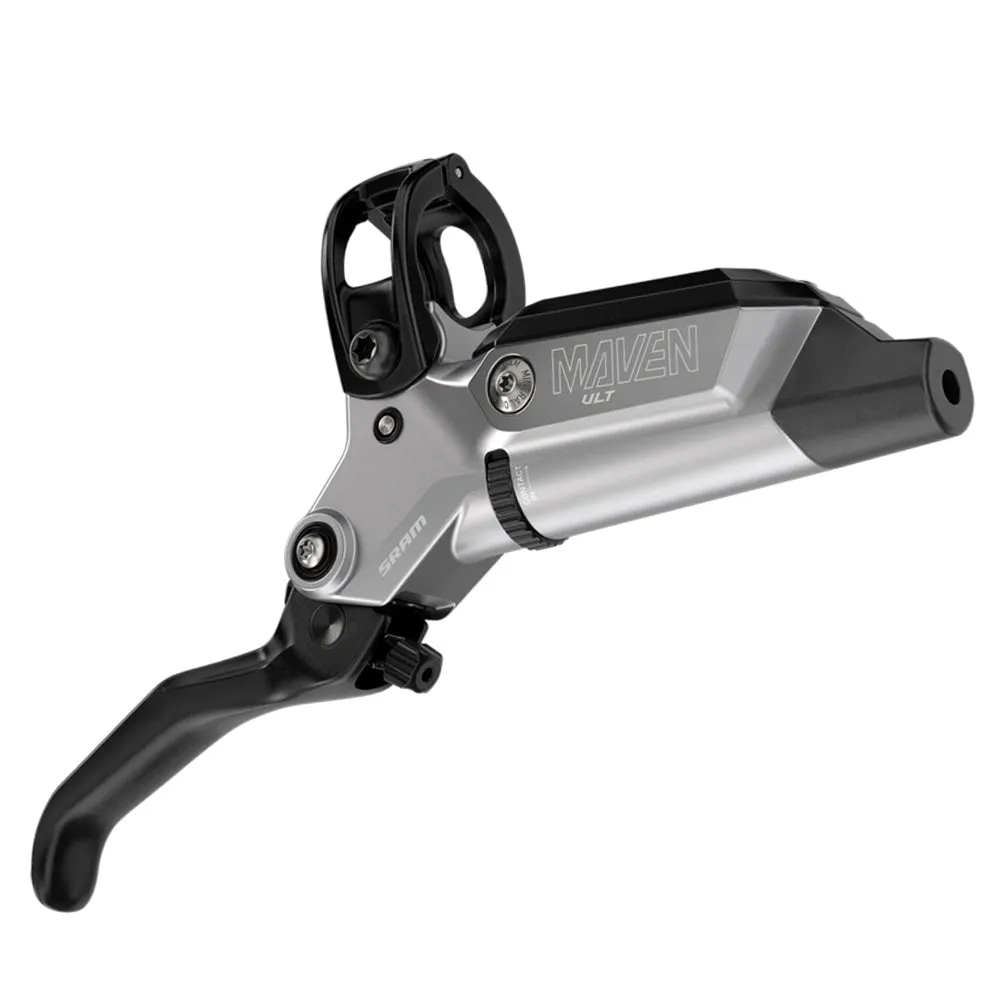

- Ultimate worthy polished Lever body and Titanium hardware.
- Contact Point Adjust and tool-free Reach Adjust.
SPECIFICATIONS
| Application (DB) | MTB |
| Brake type | Hydraulic |
| Blade material | Aluminum |
| Contact adjust | Yes |
| Color (DB) | Clear Anodized, Red |
| Orientation | Front, n/a, Rear |
| Pad type (Disc) | Steel-backed metal sintered, Steel-backed organic |
| Bracket (Disc Brake) | Direct mount DIR |
| Reach adjust | Tool-free |
| Hydraulic fluid | SRAM Mineral Oil |
| Lever pivot | Bearing |
| Weight (g) | 362 |
| Weight Based On | Rear, Stealth-a-majig, DIR, 1800mm, w/pads (no clamp, no mounting hardware, no pad spacer, no rotor/bolts) |
Maven comparison table:
| Ultimate Expert Kit | Ultimate | Silver | Bronze | |
| Blade | Forged Aluminium | Forged Aluminium | Forged Aluminium | Stamped Aluminium |
| Caliper Hardware | Titanium | Titanium | Stainless Steel | Stainless Steel |
| Contact Adjustable | Yes | Yes | Yes | No |
| Lever Pivot | Bearing | Bearing | Bearing | Bushing |
| Weight | 362g | 362g | 371g | 369g |
| Bleed Kit & Rotors Included | Yes | No | No | No |
Industry Reviews
“The powerful end of the mountain brake market has some very strong contenders right now, and the SRAM Maven is a welcomed addition to that elite group. The power is remarkable, the ability to control it is there, and the ubiquitously available tuning parts mean you'll be able to hone the feel in perfectly to your liking.”
“The new SRAM Maven is the brand's most powerful disc brake ever made, designed for downhill, enduro and eMTB riders and racers.”
“The SRAM Maven is an all-new disc brake that ups the ante over the Codes. Are they too powerful? We've been testing three sets to find out!”
