Product Details
＋
Note: Does not include Chainring /BB

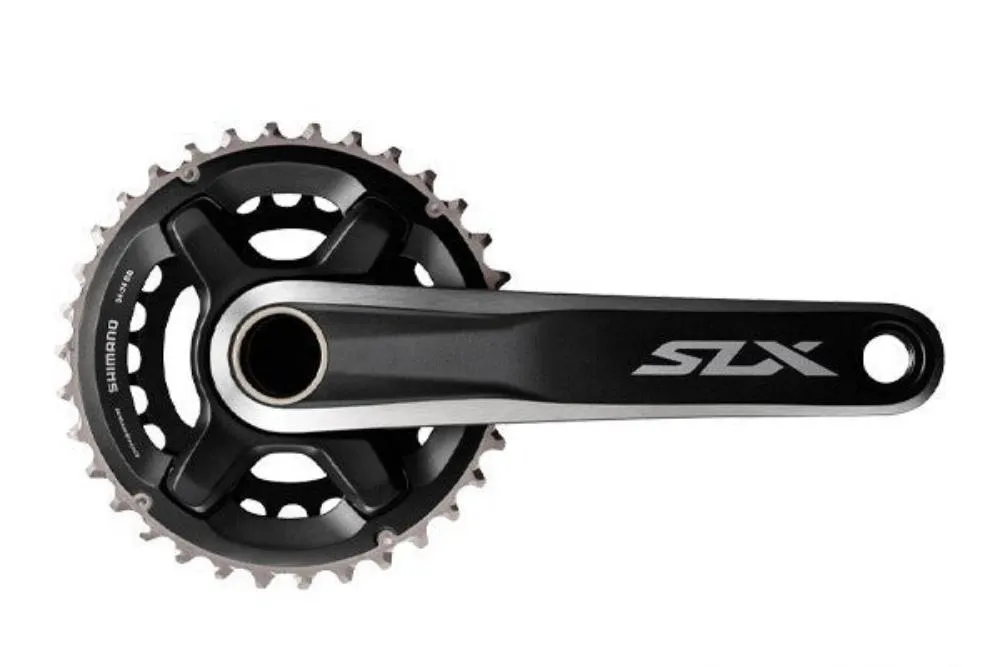

| MODEL NO | FC-M7000-11-1 |
| SERIES | SLX M7000 Series |
| COLOR | Series color |
| AVERAGE WEIGHT | 721.1 (34T) 715.4 (32T) 699.3 (30T) |
| Remarks | w/o chainring spec available for OTC, chainring is sold separately (SM-CRM70) |
| Chain line (mm) | 50 |
| Chainring combination | 34T, 32T, 30T (SM-CRM70) |
| Compatible bottom bracket type_Outboard | ✔ |
| Compatible chain | HG-X11 |
| Crank fixing bolt included | ✔ |
| Crank arm length (mm)_170 | ✔ |
| Crank arm length (mm)_175 | ✔ |
| Spider/Gear arms | 4 |
| HOLLOWTECH II | ✔ |
| Optional chain guard_Without chain/bash guard | ✔ |
| P.C.D. (mm) | 96 |
| Rear speeds | 11 |
| Recommended bottom bracket_Press-fit | BB-MT800-PA |
| Recommended bottom bracket_Threaded (normal) | BB-MT800 |
| Threaded bottom bracket shell width (mm)_68 | ✔ |
| hreaded bottom bracket shell width (mm)_73 | ✔ |
| Crank arm fixing bolt_With | ✔ |
| Q-factor (mm) | 176 |
| Chain line (mm) | 50 |
| Compatible chain | HG-X11 |
| P.C.D. (mm) | 96 |
| Rear speeds | 11 |
| O.L.D._QR/Nut (mm) | 135 |
| O.L.D._Thru (mm) | 142 |
