Product Details
＋

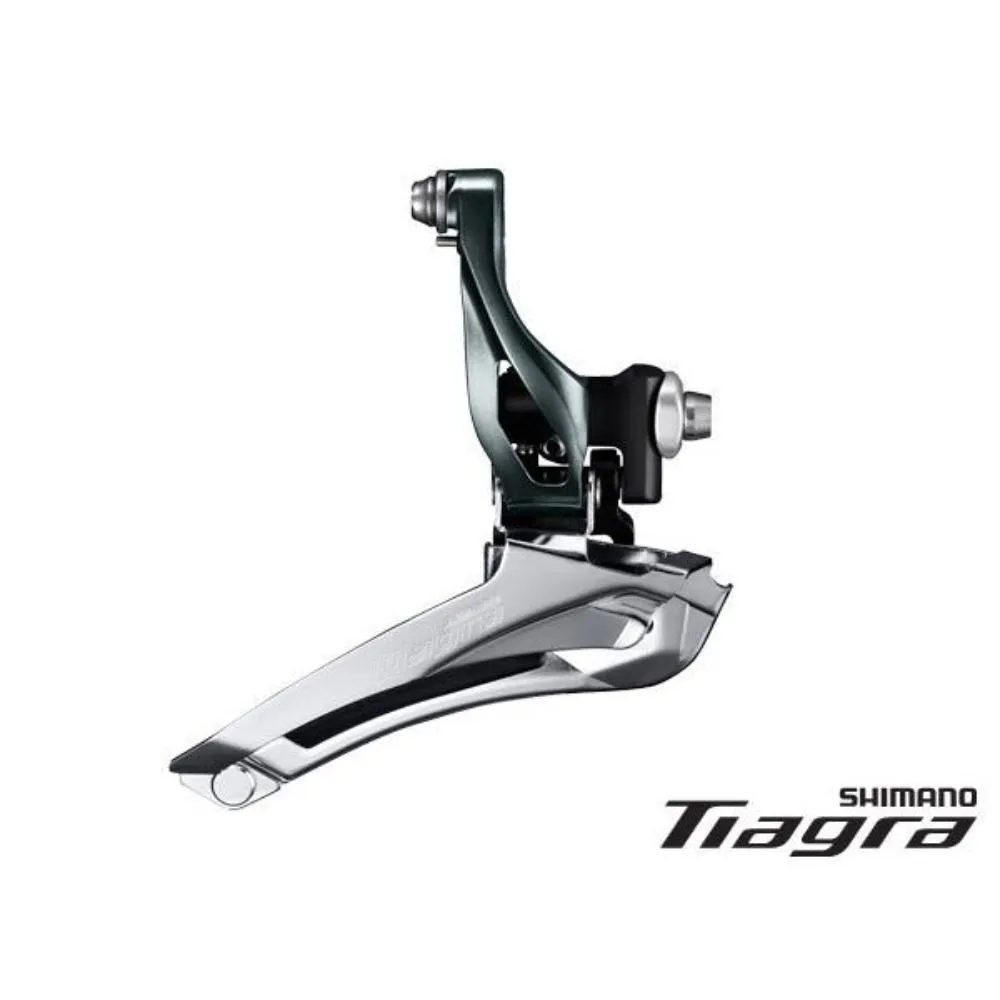

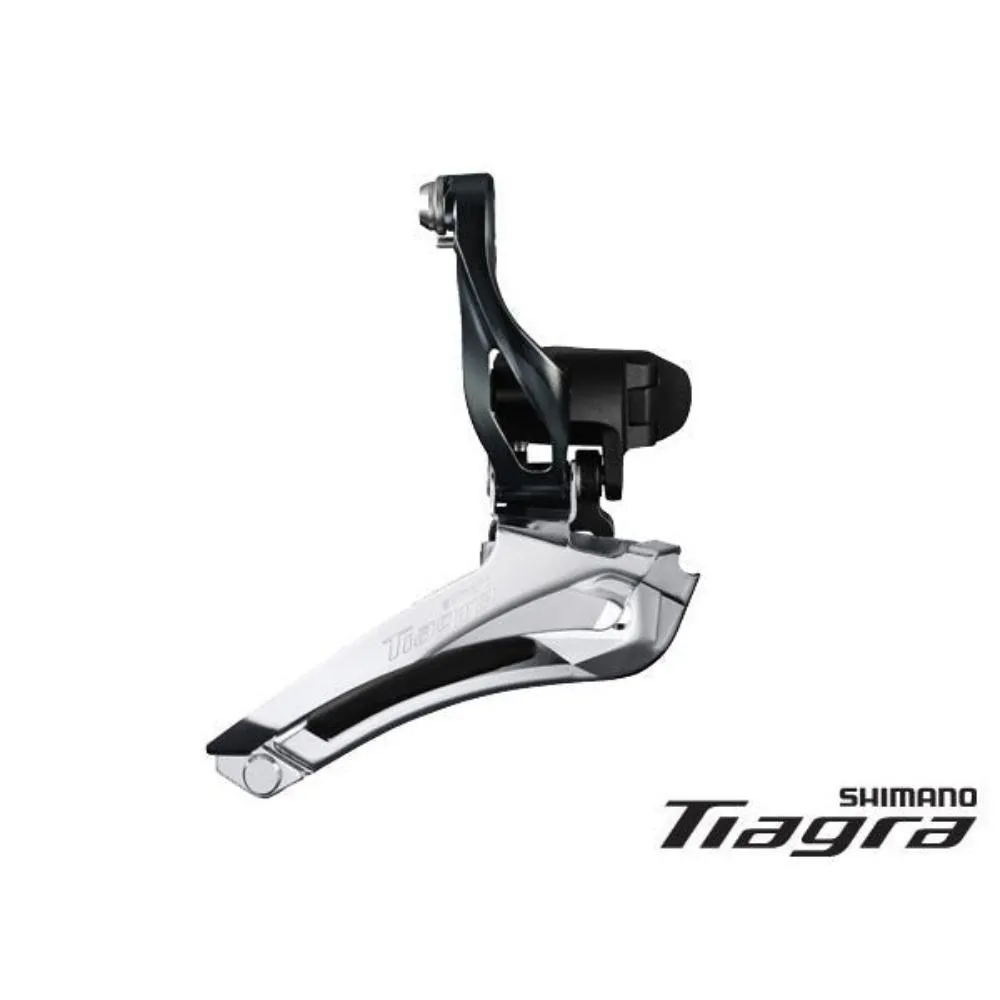

The longer lever arm on the SHIMANO TIAGRA front derailleur creates a light action at the shift lever and precise, reliable shifting across a 16T capacity.
| Model No | FD-4700-F |
| Series | TIAGRA 4700 Series |
| Color | Series color |
| Front speeds | 2 |
| Rear speeds | 10 |
| Compatible chain | HG-X chain/CN-HG500 |
| Action|Down Swing | ✔ |
| Mount|Brazed-On | ✔ |
| Chain line (mm) | 43.5 |
| Chain stay angle (deg.) | 61 - 66 |
| Top gear teeth | 46-52T |
| Total capacity | 16T |
