Product Details
＋

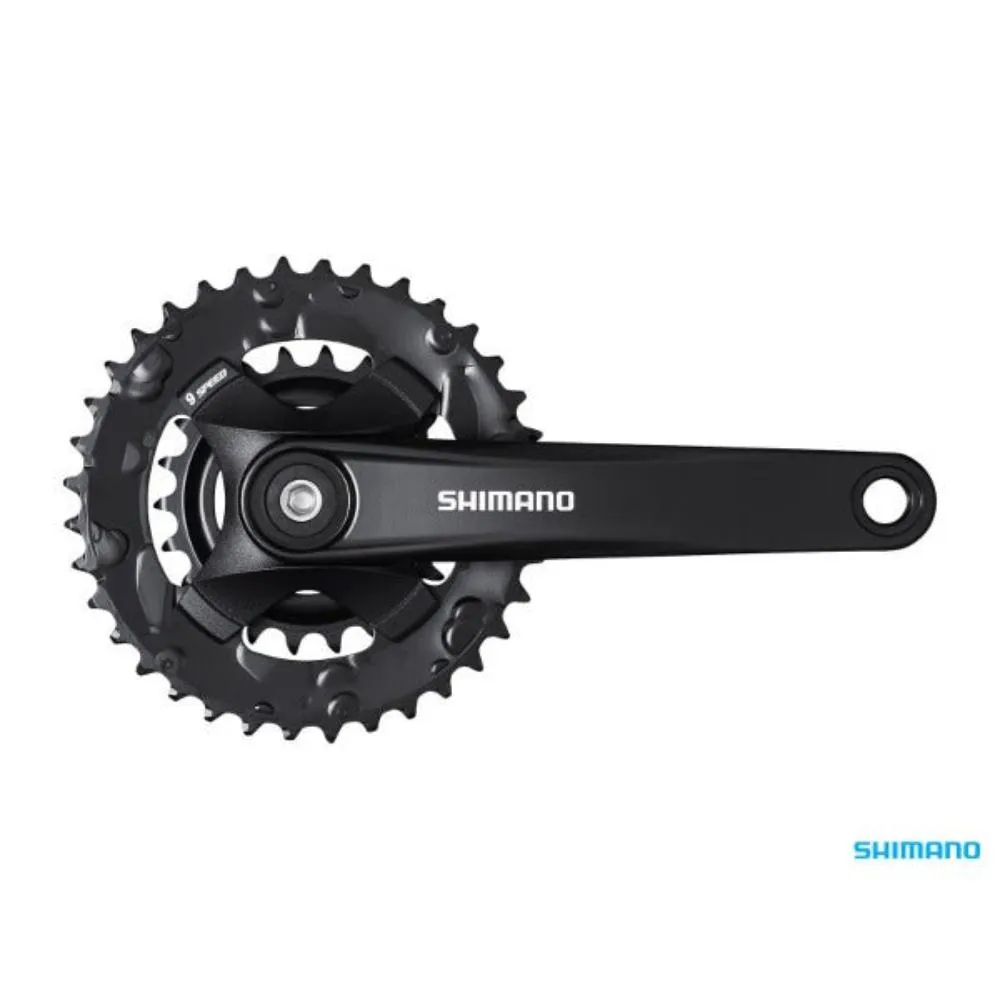

The SHIMANO FC-MT101-2 crank is designed for 2x9 speed MTB drivetrains. With HYPERDRIVE technology it provides smooth and precise shifting.
FEATURES
- Precise and reliable shifting >>SG-X chainrings >>Consistent off-road front shifting -HYPERDRIVE
| MODEL NO | FC-MT101-2 |
| SERIES | SHIMANO ALIVIO M3100 Series |
| Color | Black |
| Remarks | SHIMANO logo |
| Axle length of BB-UN/ES (mm)_Threaded (normal) | LL123 |
| Chainring combination | 36-22T |
| Compatible bottom bracket type_Square | ✔ |
| Crank fixing screw included | ✔ |
| Crank arm length (mm)_170 | ✔ |
| Crank arm length (mm)_175 | ✔ |
| Spider/Gear arms | 4 |
| Optional chain guard_Without chain/bash guard | ✔ |
| Recommended bottom bracket_Threaded (normal) | BB-UN101 |
| Threaded bottom bracket shell width (mm)_68 | ✔ |
| Threaded bottom bracket shell width (mm)_73 | ✔ |
| Q-factor (mm) | 179.4 |
| Chain line (mm) | 48.8 |
| Compatible chain | HG 9-speed |
| P.C.D. (mm) | Riveted |
| Rear speeds | 9 |
| O.L.D._QR/Nut (mm) | 135 |
| O.L.D._Thru (mm) | 142 |
