Product Details
＋

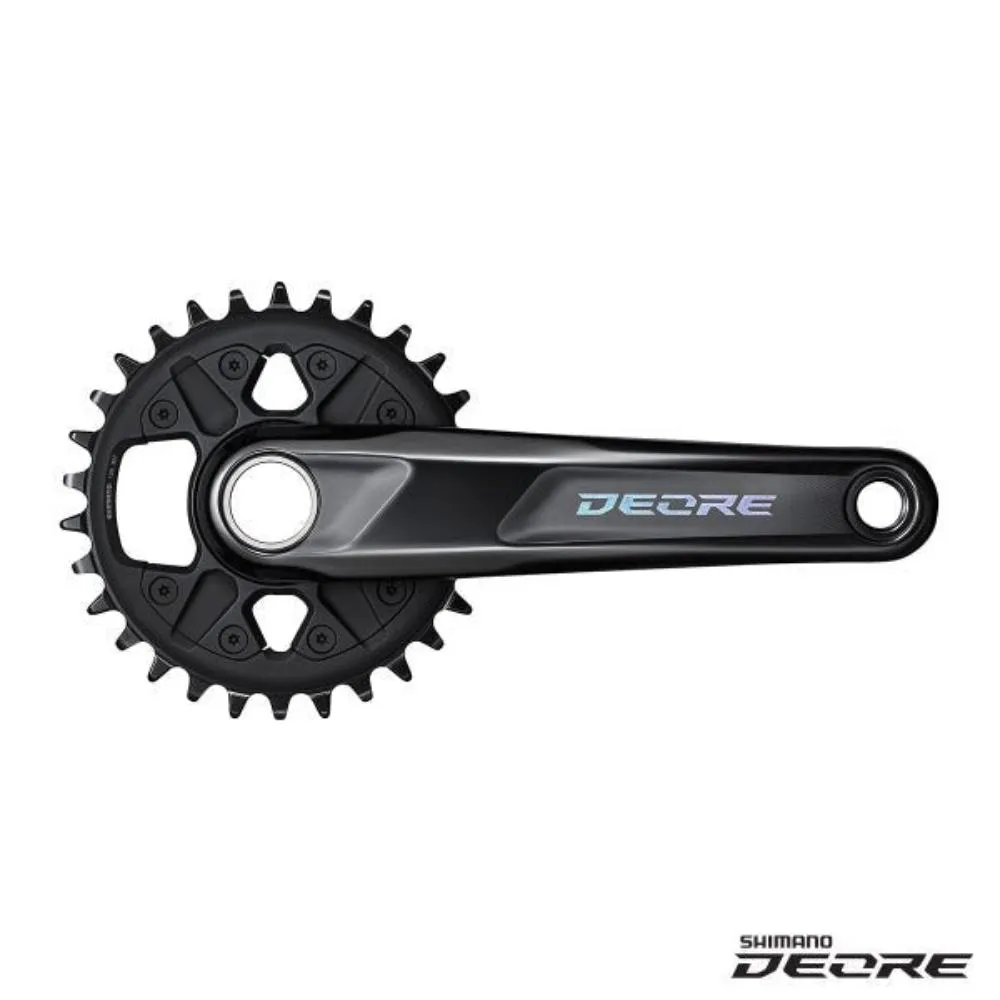

| MODEL NO | FC-M6100 |
| SERIES | DEORE M6100 Series |
| Color | Series Color |
| 2-PIECE CRANKSET | ✔ |
| Chain line (mm) | 52 |
| Chainring combination | 32T |
| Compatible bottom bracket type_Outboard | ✔ |
| Compatible chain | HG 12-speed |
| Crank fixing bolt included | ✔ |
| Crank arm length (mm)_165 | X (NEW) |
| Crank arm length (mm)_170 | ✔ |
| Crank arm length (mm)_175 | ✔ |
| Spider/Gear arms | 4 |
| Optional chain guard_Without chain/bash guard | ✔ |
| P.C.D. (mm) | Direct |
| Rear speeds | 12 |
| Recommended bottom bracket_Press-fit | BB-MT500-PA |
| Recommended bottom bracket_Threaded (normal) | SM-BB52 |
| Threaded bottom bracket shell width (mm)_68 | ✔ |
| Threaded bottom bracket shell width (mm)_73 | ✔ |
| Q-factor (mm) | 172 |
| Chain line (mm) | 52 |
| Compatible chain | HG 12-speed |
| P.C.D. (mm) | Direct |
| Rear speeds | 12 |
| O.L.D._QR/Nut (mm) | 135, 141 |
| O.L.D._Thru (mm) | 142, 148 |
